Crops selected segmentations to the smallest bounding box enclosing non-zero pixels. More...

#include <mitkAutoCropTool.h>

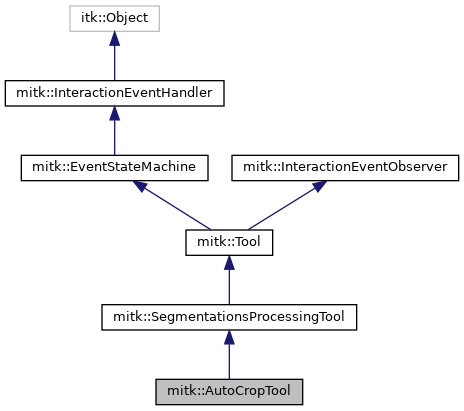

Inheritance diagram for mitk::AutoCropTool:

[legend]

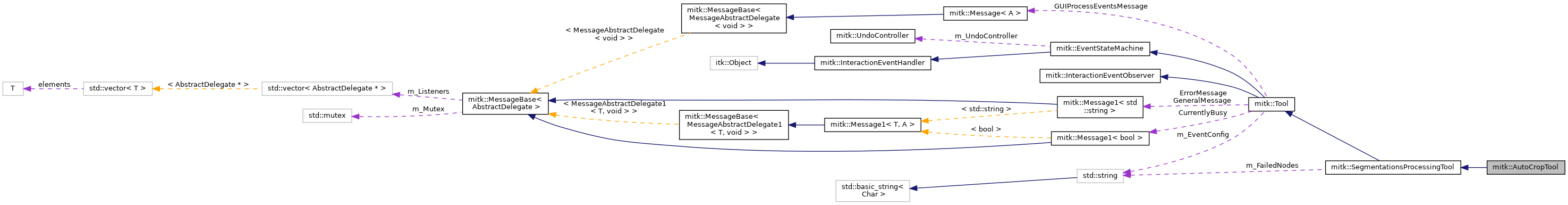

Collaboration diagram for mitk::AutoCropTool:

[legend]

Public Member Functions
	mitkClassMacro (AutoCropTool, SegmentationsProcessingTool)

Pointer	Clone () const

const char *	GetName () const override
	Return the human-readable name of this tool ("Crop"). More...

Public Member Functions inherited from mitk::SegmentationsProcessingTool
	mitkClassMacro (SegmentationsProcessingTool, Tool)

Public Member Functions inherited from mitk::Tool
	mitkClassMacro (Tool, EventStateMachine)

virtual us::ModuleResource	GetCursorIconResource () const
	Returns the cursor icon of the tool wrapped by a usModuleResource. More...

virtual us::ModuleResource	GetIconResource () const
	Returns the tool button icon of the tool wrapped by a usModuleResource. More...

virtual mitk::Label::AlgorithmType	GetAlgorithmType () const
	Returns the intrinsic algorithm type of this tool, used to stamp label provenance. More...

virtual bool	IsEligibleForAutoInit () const
	Returns whether this tool is eligible for auto-initialization by ToolManager. More...

virtual void	InitializeStateMachine ()
	Initializes the state machine for this tool based on the interaction type. More...

virtual itk::Object::Pointer	GetGUI (const std::string &toolkitPrefix, const std::string &toolkitPostfix)
	Interface for GUI creation. More...

virtual NodePredicateBase::ConstPointer	GetReferenceDataPreference () const
	Returns a predicate describing valid reference data for this tool. More...

virtual NodePredicateBase::ConstPointer	GetWorkingDataPreference () const
	Returns a predicate describing valid working data for this tool. More...

virtual bool	CanHandle (const BaseData referenceData, const BaseData workingData) const
	Checks if a tool can handle the given reference data and optional working data. More...

virtual bool	ConfirmBeforeDeactivation ()
	Method call to invoke a dialog box just before exiting. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()
	Disable this observer so it no longer receives notifications. More...

void	Enable ()
	Enable this observer so it receives notifications. More...

bool	IsEnabled () const
	Check whether this observer is currently enabled. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
bool	ProcessOneWorkingData (DataNode *node) override
	Crop a single working data node to its foreground bounding box. More...

std::string	GetErrorMessage () override
	Return a user-facing error message prefix for failed crop operations. More...

	AutoCropTool ()

	~AutoCropTool () override

Protected Member Functions inherited from mitk::SegmentationsProcessingTool
	SegmentationsProcessingTool ()

	~SegmentationsProcessingTool () override

const char *	GetGroup () const override
	Name of a group. More...

void	Activated () override
	Called when the tool gets activated. More...

void	Deactivated () override
	Called when the tool gets deactivated. More...

virtual void	ProcessAllObjects ()
	Loop over all working data items. More...

virtual void	StartProcessingAllData ()
	Subclasses should override this method. More...

virtual void	FinishProcessingAllData ()
	Subclasses should override this method. More...

virtual void	SendErrorMessageIfAny ()
	Sends an error message if there was an error during processing. More...

Protected Member Functions inherited from mitk::Tool
virtual void	SetToolManager (ToolManager *)

ToolManager *	GetToolManager () const

mitk::DataStorage *	GetDataStorage () const

void	ConnectActionsAndFunctions () override

	Tool (const char , const us::Module interactorModule=nullptr)

	~Tool () override

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override
	Called by the Dispatcher to notify this observer about an InteractionEvent. More...

bool	FilterEvents (InteractionEvent , DataNode ) override

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Additional Inherited Members
Public Types inherited from mitk::Tool
typedef mitk::Label::PixelType	DefaultSegmentationDataType

Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Attributes inherited from mitk::Tool
Message	GUIProcessEventsMessage
	To let GUI process new events (e.g. qApp->processEvents() ) More...

Message1< std::string >	ErrorMessage
	To send error messages (to be shown by some GUI) More...

Message1< bool >	CurrentlyBusy
	To send whether the tool is busy (to be shown by some GUI) More...

Message1< std::string >	GeneralMessage
	To send general messages (to be shown by some GUI) More...

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::SegmentationsProcessingTool
std::string	m_FailedNodes

Protected Attributes inherited from mitk::Tool
std::string	m_EventConfig
	Let subclasses change their event configuration. More...

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Crops selected segmentations to the smallest bounding box enclosing non-zero pixels.

See also: mitk::Tool; QmitkInteractiveSegmentation

Uses AutoCropImageFilter internally to determine the minimal bounding box around the foreground region (non-zero pixels) and replaces the node data with the cropped result.

Definition at line 33 of file mitkAutoCropTool.h.

Constructor & Destructor Documentation

◆ AutoCropTool()

mitk::AutoCropTool::AutoCropTool ( )

protected

◆ ~AutoCropTool()

mitk::AutoCropTool::~AutoCropTool ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::AutoCropTool::Clone ( ) const

◆ GetErrorMessage()

std::string mitk::AutoCropTool::GetErrorMessage ( )

overrideprotectedvirtual

Return a user-facing error message prefix for failed crop operations.

Reimplemented from mitk::SegmentationsProcessingTool.

◆ GetName()

const char* mitk::AutoCropTool::GetName ( ) const

overridevirtual

Return the human-readable name of this tool ("Crop").

Implements mitk::Tool.

◆ mitkClassMacro()

mitk::AutoCropTool::mitkClassMacro	(	AutoCropTool	,
		SegmentationsProcessingTool
	)

◆ New()

static Pointer mitk::AutoCropTool::New ( )

static

◆ ProcessOneWorkingData()

bool mitk::AutoCropTool::ProcessOneWorkingData ( DataNode * node )

overrideprotectedvirtual

Crop a single working data node to its foreground bounding box.

Returns: True on success, false if the node is null or processing fails.
