Shrink the image borders to a minimum considering a background color. More...

#include <mitkAutoCropImageFilter.h>

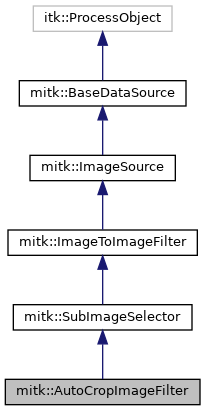

Inheritance diagram for mitk::AutoCropImageFilter:

[legend]

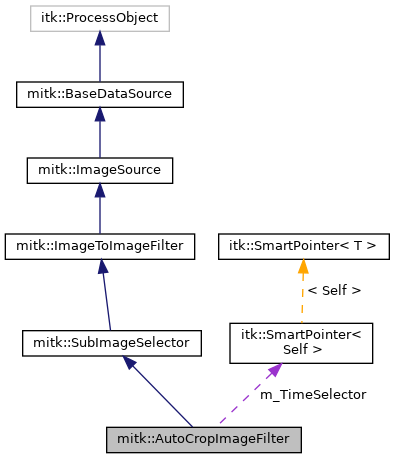

Collaboration diagram for mitk::AutoCropImageFilter:

[legend]

Public Types
typedef itk::ImageRegion< 3 >	RegionType
	3D image region type used for cropping bounds. More...

Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (AutoCropImageFilter, SubImageSelector)

Pointer	Clone () const

virtual float	GetBackgroundValue () const
	Get the background value used to determine non-relevant pixels. More...

virtual void	SetBackgroundValue (float _arg)
	Set the background value. Pixels with this value are considered background. More...

virtual float	GetMarginFactor () const
	Get the margin factor for enlarging the cropping region. More...

virtual void	SetMarginFactor (float _arg)
	Set the margin factor to enlarge the cropping region. More...

virtual RegionType	GetCroppingRegion ()
	Get the computed or manually set cropping region. More...

void	SetCroppingRegion (RegionType overrideRegion)
	Manually set the cropping region, overriding automatic computation. More...

virtual const PixelType	GetOutputPixelType ()
	Returns the pixel type of the output image. More...

Public Member Functions inherited from mitk::SubImageSelector
	mitkClassMacro (SubImageSelector, ImageToImageFilter)

Pointer	Clone () const

virtual void	SetPosNr (int p)
	Set the position number for sub-image selection. More...

	SubImageSelector ()

	~SubImageSelector () override

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::SubImageSelector
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Types
typedef itk::Image< float, 3 >	ImageType

typedef ImageType::Pointer	ImagePointer

Protected Member Functions
	AutoCropImageFilter ()

	~AutoCropImageFilter () override

void	ComputeNewImageBounds ()

template<typename TPixel , unsigned int VImageDimension>
void	ITKCrop3DImage (itk::Image< TPixel, VImageDimension > *inputItkImage, unsigned int timestep)

void	GenerateOutputInformation () override

void	GenerateInputRequestedRegion () override

void	GenerateData () override

Protected Member Functions inherited from mitk::SubImageSelector
mitk::Image::ImageDataItemPointer	GetSliceData (int s=0, int t=0, int n=0)
	Get the data item for the specified slice. More...

mitk::Image::ImageDataItemPointer	GetVolumeData (int t=0, int n=0)
	Get the data item for the specified volume. More...

mitk::Image::ImageDataItemPointer	GetChannelData (int n=0)
	Get the data item for the specified channel. More...

void	SetSliceItem (mitk::Image::ImageDataItemPointer dataItem, int s=0, int t=0, int n=0)
	Set the data item for the specified slice in the output image. More...

void	SetVolumeItem (mitk::Image::ImageDataItemPointer dataItem, int t=0, int n=0)
	Set the data item for the specified volume in the output image. More...

void	SetChannelItem (mitk::Image::ImageDataItemPointer dataItem, int n=0)
	Set the data item for the specified channel in the output image. More...

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
float	m_BackgroundValue

RegionType	m_CroppingRegion

float	m_MarginFactor

RegionType::SizeType	m_RegionSize

RegionType::IndexType	m_RegionIndex

mitk::ImageTimeSelector::Pointer	m_TimeSelector

mitk::SlicedData::RegionType	m_InputRequestedRegion

itk::TimeStamp	m_TimeOfHeaderInitialization

bool	m_OverrideCroppingRegion

Additional Inherited Members
Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Shrink the image borders to a minimum considering a background color.

This filter determines the smallest bounding box of all pixels different from the background, and returns an output image which has been cropped to this size. The box calculated this way is not the smallest possible box, but the box with the smallest sides perpendicular to the world coordinate system.

The filter works on 3D and 4D image data. For the 4D case, the smallest box is calculated with side lengths as the maximum of single side lengths from all time steps.

2D images are not supported, and will never be.

It is also possible to set the region to be cropped manually using the SetCroppingRegion() method.

A margin can be set to enlarge the cropped region with a constant factor in all directions around the smallest possible.

Author: Thomas Boettger; revised by Tobias Schwarz and Daniel Stein

Definition at line 53 of file mitkAutoCropImageFilter.h.

Member Typedef Documentation

◆ ImagePointer

typedef ImageType::Pointer mitk::AutoCropImageFilter::ImagePointer

protected

Definition at line 145 of file mitkAutoCropImageFilter.h.

◆ ImageType

typedef itk::Image<float, 3> mitk::AutoCropImageFilter::ImageType

protected

Definition at line 144 of file mitkAutoCropImageFilter.h.

◆ RegionType

typedef itk::ImageRegion<3> mitk::AutoCropImageFilter::RegionType

3D image region type used for cropping bounds.

Definition at line 57 of file mitkAutoCropImageFilter.h.

Constructor & Destructor Documentation

◆ AutoCropImageFilter()

mitk::AutoCropImageFilter::AutoCropImageFilter ( )

protected

◆ ~AutoCropImageFilter()

mitk::AutoCropImageFilter::~AutoCropImageFilter ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::AutoCropImageFilter::Clone ( ) const

◆ ComputeNewImageBounds()

void mitk::AutoCropImageFilter::ComputeNewImageBounds ( )

protected

◆ GenerateData()

void mitk::AutoCropImageFilter::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::AutoCropImageFilter::GenerateInputRequestedRegion ( )

overrideprotected

◆ GenerateOutputInformation()

void mitk::AutoCropImageFilter::GenerateOutputInformation ( )

overrideprotected

◆ GetBackgroundValue()

virtual float mitk::AutoCropImageFilter::GetBackgroundValue ( ) const

virtual

Get the background value used to determine non-relevant pixels.

Returns: The current background pixel value (default: 0).

◆ GetCroppingRegion()

virtual RegionType mitk::AutoCropImageFilter::GetCroppingRegion ( )

virtual

Get the computed or manually set cropping region.

Returns: The cropping region as an itk::ImageRegion<3>.

◆ GetMarginFactor()

virtual float mitk::AutoCropImageFilter::GetMarginFactor ( ) const

virtual

Get the margin factor for enlarging the cropping region.

Returns: The margin factor (default: 0).

◆ GetOutputPixelType()

virtual const PixelType mitk::AutoCropImageFilter::GetOutputPixelType ( )

virtual

Returns the pixel type of the output image.

Returns: The output pixel type.

◆ ITKCrop3DImage()

template<typename TPixel , unsigned int VImageDimension>

void mitk::AutoCropImageFilter::ITKCrop3DImage	(	itk::Image< TPixel, VImageDimension > *	inputItkImage,
		unsigned int	timestep
	)

protected

◆ mitkClassMacro()

mitk::AutoCropImageFilter::mitkClassMacro	(	AutoCropImageFilter	,
		SubImageSelector
	)

◆ New()

static Pointer mitk::AutoCropImageFilter::New ( )

static

◆ SetBackgroundValue()

virtual void mitk::AutoCropImageFilter::SetBackgroundValue ( float _arg )

virtual

Set the background value. Pixels with this value are considered background.

Parameters

[in] _arg The background pixel value.

◆ SetCroppingRegion()

void mitk::AutoCropImageFilter::SetCroppingRegion ( RegionType overrideRegion )

Manually set the cropping region, overriding automatic computation.

When this method is called, the filter will use the provided region instead of computing the smallest bounding box from the image content.

Parameters

[in] overrideRegion The region to use for cropping.

◆ SetMarginFactor()

virtual void mitk::AutoCropImageFilter::SetMarginFactor ( float _arg )

virtual

Set the margin factor to enlarge the cropping region.

The cropping region is enlarged by this factor in all directions around the tightest bounding box of non-background pixels.

Parameters

[in] _arg The margin factor.

Member Data Documentation

◆ m_BackgroundValue

float mitk::AutoCropImageFilter::m_BackgroundValue

protected

Definition at line 138 of file mitkAutoCropImageFilter.h.

◆ m_CroppingRegion

RegionType mitk::AutoCropImageFilter::m_CroppingRegion

protected

Definition at line 140 of file mitkAutoCropImageFilter.h.

◆ m_InputRequestedRegion

mitk::SlicedData::RegionType mitk::AutoCropImageFilter::m_InputRequestedRegion

protected

Definition at line 152 of file mitkAutoCropImageFilter.h.

◆ m_MarginFactor

float mitk::AutoCropImageFilter::m_MarginFactor

protected

Definition at line 142 of file mitkAutoCropImageFilter.h.

◆ m_OverrideCroppingRegion

bool mitk::AutoCropImageFilter::m_OverrideCroppingRegion

protected

Definition at line 155 of file mitkAutoCropImageFilter.h.

◆ m_RegionIndex

RegionType::IndexType mitk::AutoCropImageFilter::m_RegionIndex

protected

Definition at line 148 of file mitkAutoCropImageFilter.h.

◆ m_RegionSize

RegionType::SizeType mitk::AutoCropImageFilter::m_RegionSize

protected

Definition at line 147 of file mitkAutoCropImageFilter.h.

◆ m_TimeOfHeaderInitialization

itk::TimeStamp mitk::AutoCropImageFilter::m_TimeOfHeaderInitialization

protected

Definition at line 153 of file mitkAutoCropImageFilter.h.

◆ m_TimeSelector

mitk::ImageTimeSelector::Pointer mitk::AutoCropImageFilter::m_TimeSelector

protected

Definition at line 150 of file mitkAutoCropImageFilter.h.

The documentation for this class was generated from the following file:

mitkAutoCropImageFilter.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ImagePointer

◆ ImageType

◆ RegionType

Constructor & Destructor Documentation

◆ AutoCropImageFilter()

◆ ~AutoCropImageFilter()

Member Function Documentation

◆ Clone()

◆ ComputeNewImageBounds()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetBackgroundValue()

◆ GetCroppingRegion()

◆ GetMarginFactor()

◆ GetOutputPixelType()

◆ ITKCrop3DImage()

◆ mitkClassMacro()

◆ New()

◆ SetBackgroundValue()

◆ SetCroppingRegion()

◆ SetMarginFactor()

Member Data Documentation

◆ m_BackgroundValue

◆ m_CroppingRegion

◆ m_InputRequestedRegion

◆ m_MarginFactor

◆ m_OverrideCroppingRegion

◆ m_RegionIndex

◆ m_RegionSize

◆ m_TimeOfHeaderInitialization

◆ m_TimeSelector
