Super class of data objects consisting of slices. More...

#include <mitkSlicedData.h>

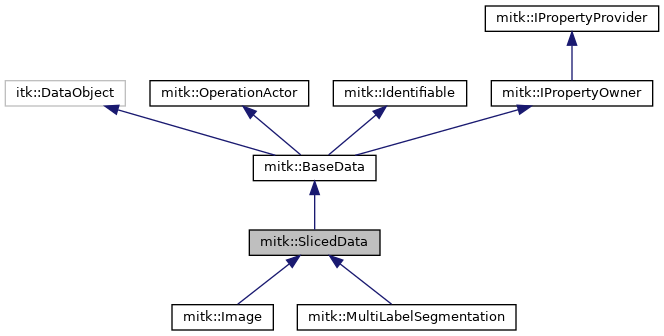

Inheritance diagram for mitk::SlicedData:

[legend]

Collaboration diagram for mitk::SlicedData:

[legend]

Public Types
typedef itk::ImageRegion< RegionDimension >	RegionType

typedef itk::Index< RegionDimension >	IndexType

typedef IndexType::IndexValueType	IndexValueType

typedef itk::Offset< RegionDimension >	OffsetType

typedef OffsetType::OffsetValueType	OffsetValueType

typedef itk::Size< RegionDimension >	SizeType

typedef SizeType::SizeValueType	SizeValueType

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (SlicedData, BaseData)

	itkStaticConstMacro (RegionDimension, unsigned int, 5)

void	UpdateOutputInformation () override
	Update the information for this DataObject so it can be used as an output of a ProcessObject. More...

void	PrepareForNewData () override
	Prepare the data object to receive new data. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the RequestedRegion to the LargestPossibleRegion. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the RequestedRegion is outside of the BufferedRegion. More...

bool	VerifyRequestedRegion () override
	Verify that the RequestedRegion is within the LargestPossibleRegion. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object. More...

virtual void	SetRequestedRegion (SlicedData::RegionType *region)
	Set the requested region from a RegionType pointer. More...

void	SetLargestPossibleRegion (SlicedData::RegionType *region)
	Set the largest possible region. More...

const RegionType &	GetLargestPossibleRegion () const
	Get the largest possible region. More...

virtual const RegionType &	GetRequestedRegion () const
	Get the region object that defines the size and starting index for the requested region (i.e., the part of the data to be operated on). More...

virtual bool	IsSliceSet (int s=0, int t=0, int n=0) const =0
	Check whether slice s at time t in channel n is set. More...

virtual bool	IsVolumeSet (int t=0, int n=0) const =0
	Check whether volume at time t in channel n is set. More...

virtual bool	IsChannelSet (int n=0) const =0
	Check whether channel n is set. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

unsigned int	GetNumberOfChannels () const
	Get the number of channels. More...

SlicedGeometry3D *	GetSlicedGeometry (unsigned int t=0) const
	Convenience access method for the geometry, which is of type SlicedGeometry3D (or a sub-class of it). More...

const SlicedGeometry3D *	GetUpdatedSlicedGeometry (unsigned int t=0)
	Convenience access method that returns an up-to-date SlicedGeometry3D. More...

void	SetGeometry (BaseGeometry *aGeometry3D) override
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

void	SetOrigin (const Point3D &origin) override
	Convenience method for setting the origin of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (const ScalarType aSpacing[])
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (mitk::Vector3D aSpacing)
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Protected Member Functions
	SlicedData ()

	SlicedData (const SlicedData &other)

	~SlicedData () override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Protected Attributes
RegionType	m_LargestPossibleRegion

RegionType	m_RequestedRegion

bool	m_RequestedRegionInitialized

RegionType	m_BufferedRegion

bool	m_UseLargestPossibleRegion

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Super class of data objects consisting of slices.

SlicedData is the common base class for data objects that consist of slices, such as images (mitk::Image) or stacks of contours. GetGeometry() returns a BaseGeometry containing PlaneGeometry objects, and the data geometry is of type SlicedGeometry3D or a sub-class thereof.

SlicedData extends BaseData with region-based pipeline support using itk::ImageRegion<5>, where the five dimensions represent x, y, slices (z), time steps, and channels.

See also: mitk::Image, mitk::BaseData; mitk::SlicedGeometry3D, mitk::PlaneGeometry

Definition at line 44 of file mitkSlicedData.h.

Member Typedef Documentation

◆ IndexType

typedef itk::Index<RegionDimension> mitk::SlicedData::IndexType

Index typedef support. An index is used to access pixel values.

Definition at line 55 of file mitkSlicedData.h.

◆ IndexValueType

typedef IndexType::IndexValueType mitk::SlicedData::IndexValueType

Definition at line 56 of file mitkSlicedData.h.

◆ OffsetType

typedef itk::Offset<RegionDimension> mitk::SlicedData::OffsetType

Offset typedef support. An offset represent relative position between indices.

Definition at line 60 of file mitkSlicedData.h.

◆ OffsetValueType

typedef OffsetType::OffsetValueType mitk::SlicedData::OffsetValueType

Definition at line 61 of file mitkSlicedData.h.

◆ RegionType

typedef itk::ImageRegion<RegionDimension> mitk::SlicedData::RegionType

Region typedef support. A region is used to specify a subset of a SlicedData.

Definition at line 52 of file mitkSlicedData.h.

◆ SizeType

typedef itk::Size<RegionDimension> mitk::SlicedData::SizeType

Size typedef support. A size is used to define region bounds.

Definition at line 64 of file mitkSlicedData.h.

◆ SizeValueType

typedef SizeType::SizeValueType mitk::SlicedData::SizeValueType

Definition at line 65 of file mitkSlicedData.h.

Constructor & Destructor Documentation

◆ SlicedData() [1/2]

mitk::SlicedData::SlicedData ( )

protected

◆ SlicedData() [2/2]

mitk::SlicedData::SlicedData ( const SlicedData & other )

protected

◆ ~SlicedData()

mitk::SlicedData::~SlicedData ( )

overrideprotected

Member Function Documentation

◆ CopyInformation()

void mitk::SlicedData::CopyInformation ( const itk::DataObject * data )

override

Copy information from the specified data set.

Copies the TimeGeometry, PropertyList, and LargestPossibleRegion from the given data object. Calls the superclass version.

Parameters

[in] data The data object to copy from. Must be castable to SlicedData.

Exceptions

itk::ExceptionObject if data cannot be cast to SlicedData.

◆ GetLargestPossibleRegion()

const RegionType& mitk::SlicedData::GetLargestPossibleRegion ( ) const

inline

Get the largest possible region.

Returns: Const reference to the largest possible region.

Definition at line 149 of file mitkSlicedData.h.

◆ GetNumberOfChannels()

unsigned int mitk::SlicedData::GetNumberOfChannels ( ) const

inline

Get the number of channels.

The number of channels is derived from the fifth dimension of the LargestPossibleRegion.

Returns: The number of channels.

Definition at line 205 of file mitkSlicedData.h.

◆ GetRequestedRegion()

virtual const RegionType& mitk::SlicedData::GetRequestedRegion ( ) const

inlinevirtual

Get the region object that defines the size and starting index for the requested region (i.e., the part of the data to be operated on).

Returns: Const reference to the requested region.

Definition at line 157 of file mitkSlicedData.h.

◆ GetSlicedGeometry()

SlicedGeometry3D* mitk::SlicedData::GetSlicedGeometry ( unsigned int t = 0 ) const

Convenience access method for the geometry, which is of type SlicedGeometry3D (or a sub-class of it).

Warning: No update will be called. Normally used in GenerateOutputInformation of subclasses of BaseProcess.

Parameters

[in] t The time step for which to retrieve the geometry (default: 0).

Returns: Pointer to the SlicedGeometry3D, or nullptr if the TimeGeometry is not set.

See also: GetUpdatedSlicedGeometry

◆ GetUpdatedSlicedGeometry()

const SlicedGeometry3D* mitk::SlicedData::GetUpdatedSlicedGeometry ( unsigned int t = 0 )

Convenience access method that returns an up-to-date SlicedGeometry3D.

Before returning, this method ensures the geometry is up-to-date by calling SetRequestedRegionToLargestPossibleRegion() and UpdateOutputInformation().

Parameters

[in] t The time step for which to retrieve the geometry (default: 0).

Returns: Const pointer to the up-to-date SlicedGeometry3D.

See also: GetSlicedGeometry

◆ IsChannelSet()

virtual bool mitk::SlicedData::IsChannelSet ( int n = 0 ) const

pure virtual

Check whether channel n is set.

Parameters

[in] n Channel number (default: 0).

Returns: True if the channel data is available.

Implemented in mitk::MultiLabelSegmentation, and mitk::Image.

◆ IsSliceSet()

virtual bool mitk::SlicedData::IsSliceSet	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

pure virtual

Check whether slice s at time t in channel n is set.

Parameters

[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the slice data is available.

Implemented in mitk::MultiLabelSegmentation, and mitk::Image.

◆ IsVolumeSet()

virtual bool mitk::SlicedData::IsVolumeSet	(	int	t = `0`,
		int	n = `0`
	)		const

pure virtual

Check whether volume at time t in channel n is set.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the volume data is available.

Implemented in mitk::MultiLabelSegmentation, and mitk::Image.

◆ itkStaticConstMacro()

mitk::SlicedData::itkStaticConstMacro	(	RegionDimension	,
		unsigned int	,
		5
	)

◆ mitkClassMacro()

mitk::SlicedData::mitkClassMacro	(	SlicedData	,
		BaseData
	)

◆ PrepareForNewData()

void mitk::SlicedData::PrepareForNewData ( )

override

Prepare the data object to receive new data.

Releases existing data if the pipeline time has changed, ensuring a clean state for subsequent writes.

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::SlicedData::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Determine whether the RequestedRegion is outside of the BufferedRegion.

Returns true if at least one requested slice, volume, or channel is not currently buffered. Used by the pipeline mechanism to determine whether re-execution is needed.

Returns: True if the requested region is not fully contained in the buffered region.

Implements mitk::BaseData.

◆ SetGeometry()

void mitk::SlicedData::SetGeometry ( BaseGeometry * aGeometry3D )

overridevirtual

Set the BaseGeometry of the data, which will be referenced (not copied!).

The geometry must be a SlicedGeometry3D or a PlaneGeometry that can be wrapped in a SlicedGeometry3D. If a PlaneGeometry is provided, it will be used to initialize an evenly spaced SlicedGeometry3D.

Warning: This method will normally be called internally by sub-classes of SlicedData during initialization.

Parameters

[in] aGeometry3D The geometry to set. May be nullptr to clear the geometry.

Reimplemented from mitk::BaseData.

◆ SetLargestPossibleRegion()

void mitk::SlicedData::SetLargestPossibleRegion ( SlicedData::RegionType * region )

Set the largest possible region.

The largest possible region is the entire region occupied by the data object. The largest possible region should always be bigger than or equal to the requested region of any operation.

Parameters

[in] region Pointer to the region to set. Must not be nullptr.

Exceptions

itk::ExceptionObject if region is nullptr.

◆ SetOrigin()

void mitk::SlicedData::SetOrigin ( const Point3D & origin )

overridevirtual

Convenience method for setting the origin of the SlicedGeometry3D instances of all time steps.

In case the SlicedGeometry3D is evenly spaced, the origin of the first slice is set to origin and the sliced geometry is re-initialized.

Parameters

[in] origin The new origin in world coordinates.

See also: mitk::BaseData::SetOrigin

Reimplemented from mitk::BaseData.

◆ SetRequestedRegion() [1/2]

void mitk::SlicedData::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Set the requested region from another data object.

Parameters

[in] data The data object whose requested region will be matched. Must be castable to SlicedData.

Exceptions

itk::ExceptionObject if data cannot be cast to SlicedData.

Implements mitk::BaseData.

◆ SetRequestedRegion() [2/2]

virtual void mitk::SlicedData::SetRequestedRegion ( SlicedData::RegionType * region )

virtual

Set the requested region from a RegionType pointer.

Parameters

[in] region Pointer to the region to use. Must not be nullptr.

Exceptions

itk::ExceptionObject if region is nullptr.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::SlicedData::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Set the RequestedRegion to the LargestPossibleRegion.

Forces a filter to produce all of the output in one execution (i.e., no streaming) on the next call to Update().

Implements mitk::BaseData.

◆ SetSpacing() [1/2]

virtual void mitk::SlicedData::SetSpacing ( const ScalarType aSpacing[] )

virtual

Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps.

Parameters

[in] aSpacing Array of three spacing values [x, y, z].

See also: SetSpacing(mitk::Vector3D)

◆ SetSpacing() [2/2]

virtual void mitk::SlicedData::SetSpacing ( mitk::Vector3D aSpacing )

virtual

Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps.

Parameters

[in] aSpacing Vector of three spacing values [x, y, z].

See also: SetSpacing(const ScalarType[])

◆ UpdateOutputInformation()

void mitk::SlicedData::UpdateOutputInformation ( )

override

Update the information for this DataObject so it can be used as an output of a ProcessObject.

Propagates information through the pipeline and initializes metadata. Calls the source's UpdateOutputInformation() and, if there is no source, sets the use-largest-possible-region flag. Also initializes the requested region if it has not yet been set.

◆ VerifyRequestedRegion()

bool mitk::SlicedData::VerifyRequestedRegion ( )

overridevirtual

Verify that the RequestedRegion is within the LargestPossibleRegion.

If the RequestedRegion is not within the LargestPossibleRegion, the filter cannot satisfy the request.

Returns: True if the request can be satisfied, false otherwise.

Implements mitk::BaseData.

Member Data Documentation

◆ m_BufferedRegion

RegionType mitk::SlicedData::m_BufferedRegion

protected

Definition at line 287 of file mitkSlicedData.h.

◆ m_LargestPossibleRegion

RegionType mitk::SlicedData::m_LargestPossibleRegion

protected

Definition at line 282 of file mitkSlicedData.h.

◆ m_RequestedRegion

RegionType mitk::SlicedData::m_RequestedRegion

mutableprotected

Definition at line 284 of file mitkSlicedData.h.

◆ m_RequestedRegionInitialized

bool mitk::SlicedData::m_RequestedRegionInitialized

mutableprotected

Definition at line 285 of file mitkSlicedData.h.

◆ m_UseLargestPossibleRegion

bool mitk::SlicedData::m_UseLargestPossibleRegion

protected

Definition at line 288 of file mitkSlicedData.h.

The documentation for this class was generated from the following file:

mitkSlicedData.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ IndexType

◆ IndexValueType

◆ OffsetType

◆ OffsetValueType

◆ RegionType

◆ SizeType

◆ SizeValueType

Constructor & Destructor Documentation

◆ SlicedData() [1/2]

◆ SlicedData() [2/2]

◆ ~SlicedData()

Member Function Documentation

◆ CopyInformation()

◆ GetLargestPossibleRegion()

◆ GetNumberOfChannels()

◆ GetRequestedRegion()

◆ GetSlicedGeometry()

◆ GetUpdatedSlicedGeometry()

◆ IsChannelSet()

◆ IsSliceSet()

◆ IsVolumeSet()

◆ itkStaticConstMacro()

◆ mitkClassMacro()

◆ PrepareForNewData()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetGeometry()

◆ SetLargestPossibleRegion()

◆ SetOrigin()

◆ SetRequestedRegion() [1/2]

◆ SetRequestedRegion() [2/2]

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetSpacing() [1/2]

◆ SetSpacing() [2/2]

◆ UpdateOutputInformation()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_BufferedRegion

◆ m_LargestPossibleRegion

◆ m_RequestedRegion

◆ m_RequestedRegionInitialized

◆ m_UseLargestPossibleRegion
