Describes the geometry of a data object consisting of slices. More...

#include <mitkSlicedGeometry3D.h>

Inheritance diagram for mitk::SlicedGeometry3D:

[legend]

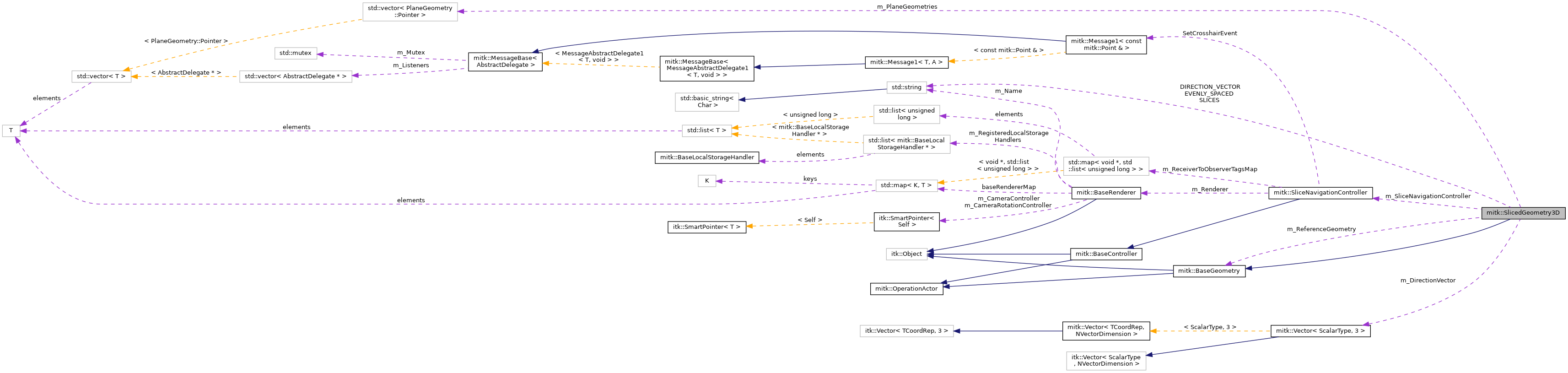

Collaboration diagram for mitk::SlicedGeometry3D:

[legend]

Public Member Functions
	mitkClassMacro (SlicedGeometry3D, BaseGeometry)

Pointer	Clone () const

virtual mitk::PlaneGeometry *	GetPlaneGeometry (int s) const
	Returns the PlaneGeometry of the slice (s). More...

void	ChangeImageGeometryConsideringOriginOffset (const bool isAnImageGeometry) override
	Switch between image geometry and normal geometry with origin correction. More...

const mitk::BoundingBox *	GetBoundingBox () const override
	Get the bounding box of this sliced geometry. More...

virtual unsigned int	GetSlices () const
	Get the number of slices. More...

virtual bool	SetPlaneGeometry (mitk::PlaneGeometry *geometry2D, int s)
	Set PlaneGeometry of slice s. More...

virtual bool	IsValidSlice (int s=0) const
	Check whether a slice exists. More...

virtual const BaseGeometry *	GetReferenceGeometry () const
	Get the reference geometry used for reslicing calculations. More...

virtual void	SetReferenceGeometry (const BaseGeometry *referenceGeometry)
	Set the reference geometry for reslicing calculations. More...

bool	HasReferenceGeometry () const
	Check whether a reference geometry has been set. More...

virtual void	SetSliceNavigationController (mitk::SliceNavigationController *snc)
	Set the SliceNavigationController corresponding to this sliced geometry. More...

mitk::SliceNavigationController *	GetSliceNavigationController ()
	Get the SliceNavigationController associated with this geometry. More...

virtual bool	GetEvenlySpaced () const
	Set/Get whether the SlicedGeometry3D is evenly-spaced (m_EvenlySpaced) More...

virtual void	SetEvenlySpaced (bool on=true)

virtual void	SetDirectionVector (const mitk::Vector3D &directionVector)
	Set/Get the vector between slices for the evenly-spaced case (m_EvenlySpaced==true). More...

virtual const mitk::Vector3D &	GetDirectionVector () const

virtual void	InitializeSlicedGeometry (unsigned int slices)
	Tell this instance how many PlaneGeometries it shall manage. Bounding box and the PlaneGeometries must be set additionally by calling the respective methods! More...

virtual void	InitializeEvenlySpaced (mitk::PlaneGeometry *geometry2D, unsigned int slices)
	Completely initialize this instance as evenly-spaced with slices parallel to the provided PlaneGeometry that is used as the first slice and for spacing calculation. More...

virtual void	InitializeEvenlySpaced (mitk::PlaneGeometry *geometry2D, mitk::ScalarType zSpacing, unsigned int slices)
	Completely initialize this instance as evenly-spaced with slices parallel to the provided PlaneGeometry that is used as the first slice and for spacing calculation (except z-spacing). More...

virtual void	InitializePlanes (const mitk::BaseGeometry *geometry3D, mitk::AnatomicalPlane orientation, bool top=true, bool frontside=true, bool rotated=false)
	Completely initialize this instance as evenly-spaced plane slices parallel to a side of the provided BaseGeometry and using its spacing information. More...

void	SetImageGeometry (const bool isAnImageGeometry) override
	Override to propagate the ImageGeometry flag to all slice geometries. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this sliced geometry. More...

Public Member Functions inherited from mitk::BaseGeometry
	mitkClassMacroItkParent (BaseGeometry, itk::Object)

Pointer	Clone () const

Point3D	GetOrigin () const
	Get the origin of the geometry in world coordinates (mm). More...

void	SetOrigin (const Point3D &origin)
	Set the origin of the geometry in world coordinates (mm). More...

mitk::Vector3D	GetSpacing () const
	Get the spacing (voxel size) in mm per unit for each axis. More...

void	SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)
	Set the spacing (voxel size) for each axis. More...

VnlVector	GetOriginVnl () const
	Get the origin as a VNL vector. More...

virtual unsigned int	GetFrameOfReferenceID () const
	Get the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual void	SetFrameOfReferenceID (unsigned int _arg)
	Set the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual unsigned long	GetIndexToWorldTransformLastModified () const
	Get the last-modified timestamp of the IndexToWorldTransform. More...

void	Modified () const override
	Overloaded Modified() to support the ModifiedLock mechanism. More...

virtual bool	IsValid () const
	Check whether this geometry is in a valid state. More...

void	Initialize ()
	Initialize the geometry to default values. More...

void	InitializeGeometry (Self *newGeometry) const
	Copy the essential geometry properties into another instance. More...

mitk::AffineTransform3D *	GetIndexToWorldTransform ()
	Get the affine transform that maps index coordinates to world coordinates. More...

const mitk::AffineTransform3D *	GetIndexToWorldTransform () const
	Get the affine transform that maps index coordinates to world coordinates (const). More...

void	SetIndexToWorldTransform (mitk::AffineTransform3D *transform)
	Set the affine transform for index-to-world coordinate mapping. More...

void	SetIndexToWorldTransformByVtkMatrix (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4. More...

void	SetIndexToWorldTransformWithoutChangingSpacing (mitk::AffineTransform3D *transform)
	Set the IndexToWorldTransform while preserving the current spacing. More...

void	SetIndexToWorldTransformByVtkMatrixWithoutChangingSpacing (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4 while preserving spacing. More...

vtkMatrix4x4 *	GetVtkMatrix ()
	Get the IndexToWorldTransform as a 4x4 VTK matrix. More...

const vtkMatrix4x4 *	GetVtkMatrix () const
	Get the IndexToWorldTransform as a 4x4 VTK matrix (const). More...

vtkLinearTransform *	GetVtkTransform () const
	Get the IndexToWorldTransform as a vtkLinearTransform. More...

void	SetIdentity ()
	Reset the geometry to identity. More...

void	Compose (const TransformType *other, bool pre=false)
	Compose the IndexToWorldTransform with another transform. More...

void	Compose (const vtkMatrix4x4 *vtkmatrix, bool pre=false)
	Compose the IndexToWorldTransform with a vtkMatrix4x4. More...

void	Translate (const Vector3D &vector)
	Translate the origin by a given vector. More...

void	WorldToIndex (const mitk::Point3D &pt_mm, mitk::Point3D &pt_units) const
	Convert world coordinates (mm) of a point to continuous index coordinates. More...

void	WorldToIndex (const mitk::Vector3D &vec_mm, mitk::Vector3D &vec_units) const
	Convert world coordinates (mm) of a vector to continuous index coordinates. More...

template<unsigned int VIndexDimension>
void	WorldToIndex (const mitk::Point3D &pt_mm, itk::Index< VIndexDimension > &index) const
	Convert world coordinates (mm) of a point to discrete (integer) index coordinates. More...

void	IndexToWorld (const mitk::Vector3D &vec_units, mitk::Vector3D &vec_mm) const
	Convert index coordinates of a vector to world coordinates (mm). More...

void	IndexToWorld (const mitk::Point3D &pt_units, mitk::Point3D &pt_mm) const
	Convert continuous or discrete index coordinates of a point to world coordinates (mm). More...

template<unsigned int VIndexDimension>
void	IndexToWorld (const itk::Index< VIndexDimension > &index, mitk::Point3D &pt_mm) const
	Convert discrete (itk::Index) index coordinates of a point to world coordinates (mm). More...

template<class TCoordRep >
void	ItkPhysicalPointToWorld (const itk::Point< TCoordRep, 3 > &itkPhysicalPoint, mitk::Point3D &pt_mm) const
	Convert an ITK physical point to MITK world coordinates. More...

template<class TCoordRep >
void	WorldToItkPhysicalPoint (const mitk::Point3D &pt_mm, itk::Point< TCoordRep, 3 > &itkPhysicalPoint) const
	Convert MITK world coordinates to ITK physical coordinates. More...

virtual const BoundingBoxType *	GetBoundingBox ()
	Get the bounding box in index/unit coordinates. More...

const BoundsArrayType	GetBounds () const
	Get the bounding box bounds as a BoundsArrayType in index/unit coordinates. More...

void	SetBounds (const BoundsArrayType &bounds)
	Set the bounding box in index/unit coordinates. More...

void	SetFloatBounds (const float bounds[6])
	Set the bounding box via a float array. More...

void	SetFloatBounds (const double bounds[6])
	Set the bounding box via a double array. More...

VnlVector	GetMatrixColumn (unsigned int direction) const
	Get a column of the IndexToWorldTransform matrix as a VnlVector. More...

mitk::BoundingBox::Pointer	CalculateBoundingBoxRelativeToTransform (const mitk::AffineTransform3D *transform) const
	Calculate a bounding box relative to a given transform. More...

ScalarType	GetExtent (unsigned int direction) const
	Set the time bounds (in ms) More...

ScalarType	GetExtentInMM (int direction) const
	Get the extent of the bounding box in mm along the specified direction. More...

Vector3D	GetAxisVector (unsigned int direction) const
	Get a vector along the bounding box in the specified direction in mm. More...

virtual bool	Is2DConvertable ()
	Check if this geometry can be converted to 2D without information loss. More...

Point3D	GetCenter () const
	Get the center of the bounding box in world coordinates (mm). More...

double	GetDiagonalLength2 () const
	Get the squared length of the bounding-box diagonal in mm. More...

double	GetDiagonalLength () const
	Get the length of the bounding-box diagonal in mm. More...

Point3D	GetCornerPoint (int id) const
	Get the position of corner number id in world coordinates. More...

Point3D	GetCornerPoint (bool xFront=true, bool yFront=true, bool zFront=true) const
	Get the position of a corner in world coordinates. More...

void	SetExtentInMM (int direction, ScalarType extentInMM)
	Set the extent of the bounding box in mm along the specified direction. More...

bool	IsInside (const mitk::Point3D &p) const
	Test whether a point (world coordinates, mm) lies inside the bounding box. More...

bool	IsIndexInside (const mitk::Point3D &index) const
	Test whether a point in continuous index coordinates lies inside the bounding box. More...

template<unsigned int VIndexDimension>
bool	IsIndexInside (const itk::Index< VIndexDimension > &index) const
	Test whether a discrete ITK index lies inside the bounding box. More...

Point3D	ClampPoint (const Point3D &point) const
	Clamp a point to lie within the geometry's world-coordinate bounds. More...

virtual bool	GetImageGeometry () const
	Query whether this geometry refers to an image. More...

virtual void	ImageGeometryOn ()
	Toggle macro for ImageGeometry (ImageGeometryOn/ImageGeometryOff). More...

virtual void	ImageGeometryOff ()

const GeometryTransformHolder *	GetGeometryTransformHolder () const
	Get the internal GeometryTransformHolder. More...

void	MapAxesToOrientations (int axes[]) const
	Map geometry axes to anatomical orientations (sagittal, coronal, axial). More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

static double	CalculateSpacing (const mitk::Vector3D &spacing, const mitk::Vector3D &d)
	Calculate directed spacing from regular spacing and a direction vector. More...

Static Public Attributes
static const std::string	SLICES
	Property key for the number of slices. More...

static const std::string	DIRECTION_VECTOR
	Property key for the direction vector between slices. More...

static const std::string	EVENLY_SPACED
	Property key for the evenly-spaced flag. More...

Protected Member Functions
	SlicedGeometry3D ()

	SlicedGeometry3D (const SlicedGeometry3D &other)

	~SlicedGeometry3D () override

virtual void	ReinitializePlanes (const Point3D &center, const Point3D &referencePoint)

ScalarType	GetLargestExtent (const BaseGeometry *geometry)

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

double	CalculateSpacing (const mitk::Vector3D &direction) const

mitk::Vector3D	AdjustNormal (const mitk::Vector3D &normal) const

void	PreSetSpacing (const mitk::Vector3D &aSpacing) override
	PreSetSpacing. More...

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::BaseGeometry
	BaseGeometry ()

	BaseGeometry (const BaseGeometry &other)

	~BaseGeometry () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

virtual unsigned int	GetNDimensions () const

bool	IsBoundingBoxNull () const

bool	IsIndexToWorldTransformNull () const

void	SetVtkMatrixDeepCopy (vtkTransform *vtktransform)

void	_SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)

virtual void	CheckBounds (const BoundsArrayType &)
	CheckBounds. More...

virtual void	CheckIndexToWorldTransform (mitk::AffineTransform3D *)
	CheckIndexToWorldTransform. More...

Protected Attributes
std::vector< PlaneGeometry::Pointer >	m_PlaneGeometries

bool	m_EvenlySpaced

mitk::Vector3D	m_DirectionVector

unsigned int	m_Slices

const mitk::BaseGeometry *	m_ReferenceGeometry

mitk::SliceNavigationController *	m_SliceNavigationController

Additional Inherited Members
Public Types inherited from mitk::BaseGeometry
typedef GeometryTransformHolder::TransformType	TransformType
	Affine transform type used for index-to-world mapping. More...

typedef itk::BoundingBox< unsigned long, 3, ScalarType >	BoundingBoxType
	3D bounding box type parameterized with ScalarType. More...

typedef BoundingBoxType::BoundsArrayType	BoundsArrayType
	Fixed-size array of six ScalarType values representing axis-aligned bounds [xmin,xmax,ymin,ymax,zmin,zmax]. More...

typedef BoundingBoxType::Pointer	BoundingBoxPointer
	Smart-pointer type for BoundingBoxType. More...

Static Protected Member Functions inherited from mitk::BaseGeometry
static const std::string	GetTransformAsString (TransformType *transformType)

Detailed Description

Describes the geometry of a data object consisting of slices.

A PlaneGeometry can be requested for each slice. In the case of evenly-spaced, plane geometries (m_EvenlySpaced==true), only the 2D-geometry of the first slice has to be set (to an instance of PlaneGeometry). The 2D geometries of the other slices are calculated by shifting the first slice in the direction m_DirectionVector by m_Spacing.z * sliceNumber. The m_Spacing member (which is only relevant in the case m_EvenlySpaced==true) describes the size of a voxel (in mm), i.e., m_Spacing.x is the voxel width in the x-direction of the plane. It is derived from the reference geometry of this SlicedGeometry3D, which usually would be the global geometry describing how datasets are to be resliced.

By default, slices are oriented in the direction of one of the main axes (x, y, z). However, by means of rotation, it is possible to realign the slices in any possible direction. In case of an inclined plane, the spacing is derived as a product of the (regular) geometry spacing and the direction vector of the plane.

SlicedGeometry3D and the associated PlaneGeometries have to be initialized in the method GenerateOutputInformation() of BaseProcess (or CopyInformation / UpdateOutputInformation of BaseData, if possible, e.g., by analyzing pic tags in Image) subclasses. See also

See also: itk::ProcessObject::GenerateOutputInformation(),; itk::DataObject::CopyInformation() and itk::DataObject::UpdateOutputInformation().

Rule: everything is in mm (or ms for temporal information) if not stated otherwise.

Warning: The hull (i.e., transform, bounding-box and time-bounds) is only guaranteed to be up-to-date after calling UpdateInformation().

Definition at line 62 of file mitkSlicedGeometry3D.h.

Constructor & Destructor Documentation

◆ SlicedGeometry3D() [1/2]

mitk::SlicedGeometry3D::SlicedGeometry3D ( )

protected

◆ SlicedGeometry3D() [2/2]

mitk::SlicedGeometry3D::SlicedGeometry3D ( const SlicedGeometry3D & other )

protected

◆ ~SlicedGeometry3D()

mitk::SlicedGeometry3D::~SlicedGeometry3D ( )

overrideprotected

Member Function Documentation

◆ AdjustNormal()

mitk::Vector3D mitk::SlicedGeometry3D::AdjustNormal ( const mitk::Vector3D & normal ) const

protected

The extent of the slice stack, i.e. the number of slices, depends on the plane normal. For rotated geometries, the geometry's transform needs to be accounted in this calculation.

◆ CalculateSpacing() [1/2]

double mitk::SlicedGeometry3D::CalculateSpacing ( const mitk::Vector3D & direction ) const

protected

Calculate "directed spacing", i.e. the spacing in directions non-orthogonal to the coordinate axes. This is done via the ellipsoid equation.

◆ CalculateSpacing() [2/2]

static double mitk::SlicedGeometry3D::CalculateSpacing	(	const mitk::Vector3D &	spacing,
		const mitk::Vector3D &	d
	)

static

Calculate directed spacing from regular spacing and a direction vector.

Computes the effective spacing along d given the isotropic spacing, using the ellipsoid equation.

Parameters

[in]	spacing	The regular voxel spacing.
[in]	d	The direction vector.

Returns: The calculated spacing along d.

◆ ChangeImageGeometryConsideringOriginOffset()

void mitk::SlicedGeometry3D::ChangeImageGeometryConsideringOriginOffset ( const bool isAnImageGeometry )

overridevirtual

Switch between image geometry and normal geometry with origin correction.

Overrides BaseGeometry to also propagate the change to all contained PlaneGeometries.

Parameters

[in] isAnImageGeometry true to switch to image geometry, false to switch to normal geometry.

Reimplemented from mitk::BaseGeometry.

◆ Clone()

Pointer mitk::SlicedGeometry3D::Clone ( ) const

◆ ExecuteOperation()

void mitk::SlicedGeometry3D::ExecuteOperation ( Operation * operation )

overridevirtual

Execute an operation on this sliced geometry.

Handles rotation operations by re-initializing the plane stack after the rotation is applied.

Parameters

[in] operation The operation to execute.

Reimplemented from mitk::BaseGeometry.

◆ GetBoundingBox()

const mitk::BoundingBox* mitk::SlicedGeometry3D::GetBoundingBox ( ) const

override

Get the bounding box of this sliced geometry.

Returns: Const pointer to the bounding box.

Precondition: The bounding box must not be null.

◆ GetDirectionVector()

virtual const mitk::Vector3D& mitk::SlicedGeometry3D::GetDirectionVector ( ) const

virtual

◆ GetEvenlySpaced()

virtual bool mitk::SlicedGeometry3D::GetEvenlySpaced ( ) const

virtual

Set/Get whether the SlicedGeometry3D is evenly-spaced (m_EvenlySpaced)

If (a) m_EvenlySpaced==true, (b) we don't have a PlaneGeometry stored for the requested slice, and (c) the first slice (s=0) is a PlaneGeometry instance, then we calculate the geometry of the requested as the plane of the first slice shifted by m_Spacing.z * s in the direction of m_DirectionVector.

See also: GetPlaneGeometry

◆ GetLargestExtent()

ScalarType mitk::SlicedGeometry3D::GetLargestExtent ( const BaseGeometry * geometry )

protected

◆ GetPlaneGeometry()

virtual mitk::PlaneGeometry* mitk::SlicedGeometry3D::GetPlaneGeometry ( int s ) const

virtual

Returns the PlaneGeometry of the slice (s).

If (a) m_EvenlySpaced==true, (b) we don't have a PlaneGeometry stored for the requested slice, and (c) the first slice (s=0) is a PlaneGeometry instance, then we calculate the geometry of the requested as the plane of the first slice shifted by m_Spacing[3]*s in the direction of m_DirectionVector.

Warning: The PlaneGeometries are not necessarily up-to-date and not even initialized.

The PlaneGeometries have to be initialized in the method GenerateOutputInformation() of BaseProcess (or CopyInformation / UpdateOutputInformation of BaseData, if possible, e.g., by analyzing pic tags in Image) subclasses. See also

See also: itk::ProcessObject::GenerateOutputInformation(),; itk::DataObject::CopyInformation() and; itk::DataObject::UpdateOutputInformation().

◆ GetReferenceGeometry()

virtual const BaseGeometry* mitk::SlicedGeometry3D::GetReferenceGeometry ( ) const

virtual

Get the reference geometry used for reslicing calculations.

Returns: Const pointer to the reference geometry, or nullptr if not set.

◆ GetSliceNavigationController()

mitk::SliceNavigationController* mitk::SlicedGeometry3D::GetSliceNavigationController ( )

Get the SliceNavigationController associated with this geometry.

Returns: Pointer to the SliceNavigationController, or nullptr if none is set.

◆ GetSlices()

virtual unsigned int mitk::SlicedGeometry3D::GetSlices ( ) const

virtual

Get the number of slices.

◆ HasReferenceGeometry()

bool mitk::SlicedGeometry3D::HasReferenceGeometry ( ) const

Check whether a reference geometry has been set.

Returns: true if a non-null reference geometry is available.

◆ InitializeEvenlySpaced() [1/2]

virtual void mitk::SlicedGeometry3D::InitializeEvenlySpaced	(	mitk::PlaneGeometry *	geometry2D,
		mitk::ScalarType	zSpacing,
		unsigned int	slices
	)

virtual

Completely initialize this instance as evenly-spaced with slices parallel to the provided PlaneGeometry that is used as the first slice and for spacing calculation (except z-spacing).

Initializes the bounding box according to the width/height of the PlaneGeometry and slices. The x-/y-spacing is calculated from the PlaneGeometry.

◆ InitializeEvenlySpaced() [2/2]

virtual void mitk::SlicedGeometry3D::InitializeEvenlySpaced	(	mitk::PlaneGeometry *	geometry2D,
		unsigned int	slices
	)

virtual

Completely initialize this instance as evenly-spaced with slices parallel to the provided PlaneGeometry that is used as the first slice and for spacing calculation.

Initializes the bounding box according to the width/height of the PlaneGeometry and slices. The spacing is calculated from the PlaneGeometry.

Referenced by mitk::Image::InitializeByItk().

◆ InitializePlanes()

virtual void mitk::SlicedGeometry3D::InitializePlanes	(	const mitk::BaseGeometry *	geometry3D,
		mitk::AnatomicalPlane	orientation,
		bool	top = `true`,
		bool	frontside = `true`,
		bool	rotated = `false`
	)

virtual

Completely initialize this instance as evenly-spaced plane slices parallel to a side of the provided BaseGeometry and using its spacing information.

Initializes the bounding box according to the width/height of the BaseGeometry and the number of slices according to BaseGeometry::GetExtent(2).

Parameters

geometry3D
orientation	side parallel to which the slices will be oriented
top	if true, create plane at top, otherwise at bottom (for AnatomicalPlane Axial, for other plane locations respectively)
frontside	defines the side of the plane (the definition of front/back is somewhat arbitrary)
rotated	rotates the plane by 180 degree around its normal (the definition of rotated vs not rotated is somewhat arbitrary)

◆ InitializeSlicedGeometry()

virtual void mitk::SlicedGeometry3D::InitializeSlicedGeometry ( unsigned int slices )

virtual

Tell this instance how many PlaneGeometries it shall manage. Bounding box and the PlaneGeometries must be set additionally by calling the respective methods!

Warning: Bounding box and the 2D-geometries must be set additionally: use SetBounds(), SetGeometry().

◆ IsValidSlice()

virtual bool mitk::SlicedGeometry3D::IsValidSlice ( int s = 0 ) const

virtual

Check whether a slice exists.

◆ mitkClassMacro()

mitk::SlicedGeometry3D::mitkClassMacro	(	SlicedGeometry3D	,
		BaseGeometry
	)

◆ mitkCloneMacro()

mitk::SlicedGeometry3D::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::SlicedGeometry3D::New ( )

static

Method for creation through the object factory.

◆ PreSetSpacing()

void mitk::SlicedGeometry3D::PreSetSpacing ( const mitk::Vector3D & aSpacing )

overrideprotectedvirtual

PreSetSpacing.

These virtual function allows a different beahiour in subclasses. Do implement them in every subclass of BaseGeometry. If not needed, use {Superclass::PreSetSpacing();};

Reimplemented from mitk::BaseGeometry.

◆ PrintSelf()

void mitk::SlicedGeometry3D::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ ReinitializePlanes()

virtual void mitk::SlicedGeometry3D::ReinitializePlanes	(	const Point3D &	center,
		const Point3D &	referencePoint
	)

protectedvirtual

Reinitialize plane stack after rotation. More precisely, the first plane of the stack needs to spatially aligned, in two respects:

Re-alignment with respect to the dataset center; this is necessary since the distance from the first plane to the center could otherwise continuously decrease or increase.
Re-alignment with respect to a given reference point; the reference point is a location which the user wants to be exactly touched by one plane of the plane stack. The first plane is minimally shifted to ensure this touching. Usually, the reference point would be the point around which the geometry is rotated.

◆ SetDirectionVector()

virtual void mitk::SlicedGeometry3D::SetDirectionVector ( const mitk::Vector3D & directionVector )

virtual

Set/Get the vector between slices for the evenly-spaced case (m_EvenlySpaced==true).

If the direction-vector is (0,0,0) (the default) and the first 2D geometry is a PlaneGeometry, then the direction-vector will be calculated from the plane normal.

See also: m_DirectionVector

◆ SetEvenlySpaced()

virtual void mitk::SlicedGeometry3D::SetEvenlySpaced ( bool on = true )

virtual

◆ SetImageGeometry()

void mitk::SlicedGeometry3D::SetImageGeometry ( const bool isAnImageGeometry )

overridevirtual

Override to propagate the ImageGeometry flag to all slice geometries.

Parameters

[in] isAnImageGeometry true for image geometry, false otherwise.

Reimplemented from mitk::BaseGeometry.

◆ SetPlaneGeometry()

virtual bool mitk::SlicedGeometry3D::SetPlaneGeometry	(	mitk::PlaneGeometry *	geometry2D,
		int	s
	)

virtual

Set PlaneGeometry of slice s.

◆ SetReferenceGeometry()

virtual void mitk::SlicedGeometry3D::SetReferenceGeometry ( const BaseGeometry * referenceGeometry )

virtual

Set the reference geometry for reslicing calculations.

The reference geometry is typically the global geometry describing how datasets are to be resliced. It is propagated to each PlaneGeometry managed by this SlicedGeometry3D.

Parameters

[in] referenceGeometry The reference geometry (may be nullptr).

◆ SetSliceNavigationController()

virtual void mitk::SlicedGeometry3D::SetSliceNavigationController ( mitk::SliceNavigationController * snc )

virtual

Set the SliceNavigationController corresponding to this sliced geometry.

The SNC needs to be informed when the number of slices in the geometry changes, which can occur whenthe slices are re-oriented by rotation.

Member Data Documentation

◆ DIRECTION_VECTOR

const std::string mitk::SlicedGeometry3D::DIRECTION_VECTOR

static

Property key for the direction vector between slices.

Definition at line 199 of file mitkSlicedGeometry3D.h.

◆ EVENLY_SPACED

const std::string mitk::SlicedGeometry3D::EVENLY_SPACED

static

Property key for the evenly-spaced flag.

Definition at line 201 of file mitkSlicedGeometry3D.h.

◆ m_DirectionVector

mitk::Vector3D mitk::SlicedGeometry3D::m_DirectionVector

mutableprotected

Vector between slices for the evenly-spaced case (m_EvenlySpaced==true). If the direction-vector is (0,0,0) (the default) and the first 2D geometry is a PlaneGeometry, then the direction-vector will be calculated from the plane normal.

Definition at line 350 of file mitkSlicedGeometry3D.h.

◆ m_EvenlySpaced

bool mitk::SlicedGeometry3D::m_EvenlySpaced

protected

If (a) m_EvenlySpaced==true, (b) we don't have a PlaneGeometry stored for the requested slice, and (c) the first slice (s=0) is a PlaneGeometry instance, then we calculate the geometry of the requested as the plane of the first slice shifted by m_Spacing.z*s in the direction of m_DirectionVector.

See also: GetPlaneGeometry

Definition at line 342 of file mitkSlicedGeometry3D.h.

◆ m_PlaneGeometries

std::vector<PlaneGeometry::Pointer> mitk::SlicedGeometry3D::m_PlaneGeometries

mutableprotected

Container for the 2D-geometries contained within this SliceGeometry3D.

Definition at line 331 of file mitkSlicedGeometry3D.h.

◆ m_ReferenceGeometry

const mitk::BaseGeometry* mitk::SlicedGeometry3D::m_ReferenceGeometry

protected

Underlying BaseGeometry for this SlicedGeometry

Definition at line 356 of file mitkSlicedGeometry3D.h.

◆ m_SliceNavigationController

mitk::SliceNavigationController* mitk::SlicedGeometry3D::m_SliceNavigationController

protected

SNC correcsponding to this geometry; used to reflect changes in the number of slices due to rotation.

Definition at line 361 of file mitkSlicedGeometry3D.h.

◆ m_Slices

unsigned int mitk::SlicedGeometry3D::m_Slices

protected

Number of slices this SliceGeometry3D is describing.

Definition at line 353 of file mitkSlicedGeometry3D.h.

◆ SLICES

const std::string mitk::SlicedGeometry3D::SLICES

static

Property key for the number of slices.

Definition at line 197 of file mitkSlicedGeometry3D.h.

The documentation for this class was generated from the following file:

mitkSlicedGeometry3D.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SlicedGeometry3D() [1/2]

◆ SlicedGeometry3D() [2/2]

◆ ~SlicedGeometry3D()

Member Function Documentation

◆ AdjustNormal()

◆ CalculateSpacing() [1/2]

◆ CalculateSpacing() [2/2]

◆ ChangeImageGeometryConsideringOriginOffset()

◆ Clone()

◆ ExecuteOperation()

◆ GetBoundingBox()

◆ GetDirectionVector()

◆ GetEvenlySpaced()

◆ GetLargestExtent()

◆ GetPlaneGeometry()

◆ GetReferenceGeometry()

◆ GetSliceNavigationController()

◆ GetSlices()

◆ HasReferenceGeometry()

◆ InitializeEvenlySpaced() [1/2]

◆ InitializeEvenlySpaced() [2/2]

◆ InitializePlanes()

◆ InitializeSlicedGeometry()

◆ IsValidSlice()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ PreSetSpacing()

◆ PrintSelf()

◆ ReinitializePlanes()

◆ SetDirectionVector()

◆ SetEvenlySpaced()

◆ SetImageGeometry()

◆ SetPlaneGeometry()

◆ SetReferenceGeometry()

◆ SetSliceNavigationController()

Member Data Documentation

◆ DIRECTION_VECTOR

◆ EVENLY_SPACED

◆ m_DirectionVector

◆ m_EvenlySpaced

◆ m_PlaneGeometries

◆ m_ReferenceGeometry

◆ m_SliceNavigationController

◆ m_Slices

◆ SLICES
