Superclass of all classes having one or more Images as input and generating Images as output. More...

#include <mitkImageToImageFilter.h>

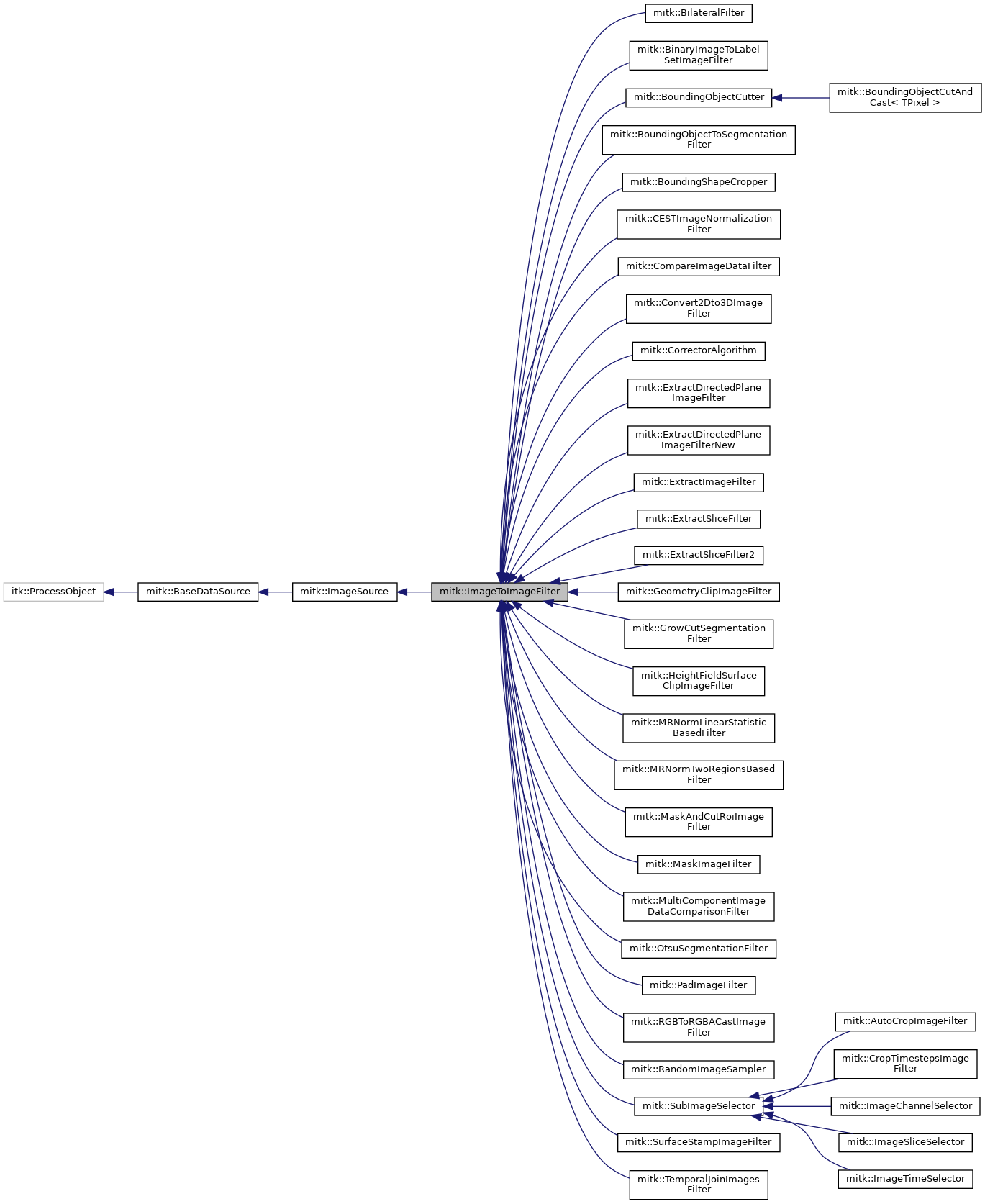

Inheritance diagram for mitk::ImageToImageFilter:

[legend]

Collaboration diagram for mitk::ImageToImageFilter:

[legend]

Public Types
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Additional Inherited Members
Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Superclass of all classes having one or more Images as input and generating Images as output.

See also: ImageSource

Definition at line 28 of file mitkImageToImageFilter.h.

Member Typedef Documentation

◆ InputImageConstPointer

typedef InputImageType::ConstPointer mitk::ImageToImageFilter::InputImageConstPointer

Definition at line 43 of file mitkImageToImageFilter.h.

◆ InputImagePointer

typedef InputImageType::Pointer mitk::ImageToImageFilter::InputImagePointer

Definition at line 42 of file mitkImageToImageFilter.h.

◆ InputImageRegionType

typedef SlicedData::RegionType mitk::ImageToImageFilter::InputImageRegionType

Definition at line 44 of file mitkImageToImageFilter.h.

◆ InputImageType

typedef mitk::Image mitk::ImageToImageFilter::InputImageType

Some convenient typedefs.

Definition at line 41 of file mitkImageToImageFilter.h.

◆ OutputImageRegionType

typedef Superclass::OutputImageRegionType mitk::ImageToImageFilter::OutputImageRegionType

Superclass typedefs.

Definition at line 38 of file mitkImageToImageFilter.h.

Constructor & Destructor Documentation

◆ ImageToImageFilter()

mitk::ImageToImageFilter::ImageToImageFilter ( )

protected

◆ ~ImageToImageFilter()

mitk::ImageToImageFilter::~ImageToImageFilter ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::ImageToImageFilter::Clone ( ) const

◆ GenerateInputRequestedRegion()

void mitk::ImageToImageFilter::GenerateInputRequestedRegion ( )

overrideprotected

Determine the input requested region to produce the output requested region.

The base assumption for image processing filters is that the input requested region can be set to match the output requested region. If a filter requires more input (for instance a filter that uses neighborhoods needs more input than output to avoid introducing artificial boundary conditions) or less input (for instance a magnify filter) will have to override this method. In doing so, it should call its superclass' implementation as its first step.

See also: ProcessObject::GenerateInputRequestedRegion(), ImageSource::GenerateInputRequestedRegion()

◆ GetInput() [1/4]

InputImageType* mitk::ImageToImageFilter::GetInput ( unsigned int idx )

Get the input image at the specified index (non-const).

Parameters

idx	The input index.

Returns: The input image at the given index.

◆ GetInput() [2/4]

const InputImageType* mitk::ImageToImageFilter::GetInput ( unsigned int idx ) const

Get the input image at the specified index (const).

Parameters

idx	The input index.

Returns: The input image at the given index.

◆ GetInput() [3/4]

InputImageType* mitk::ImageToImageFilter::GetInput ( void )

Get the input image (non-const).

◆ GetInput() [4/4]

const InputImageType* mitk::ImageToImageFilter::GetInput ( void ) const

Get the input image (const).

◆ mitkClassMacro()

mitk::ImageToImageFilter::mitkClassMacro	(	ImageToImageFilter	,
		ImageSource
	)

◆ New()

static Pointer mitk::ImageToImageFilter::New ( )

static

Method for creation through the object factory.

◆ PrintSelf()

void mitk::ImageToImageFilter::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Print self information to the given stream.

◆ SetInput() [1/2]

virtual void mitk::ImageToImageFilter::SetInput ( const InputImageType * image )

virtual

Set the image input of this process object.

Parameters

image The input image.

Reimplemented in mitk::BinaryImageToLabelSetImageFilter, mitk::ExtractSliceFilter2, and mitk::CropTimestepsImageFilter.

◆ SetInput() [2/2]

virtual void mitk::ImageToImageFilter::SetInput	(	unsigned int	idx,
		const InputImageType *	image
	)

virtual

Set the image input at the specified index.

Parameters

idx	The input index.
image	The input image.

Reimplemented in mitk::BinaryImageToLabelSetImageFilter, mitk::ExtractSliceFilter2, and mitk::CropTimestepsImageFilter.

The documentation for this class was generated from the following file:

mitkImageToImageFilter.h
