A data structure describing a label in a multi-label segmentation. More...

#include <mitkLabel.h>

Inheritance diagram for mitk::Label:

[legend]

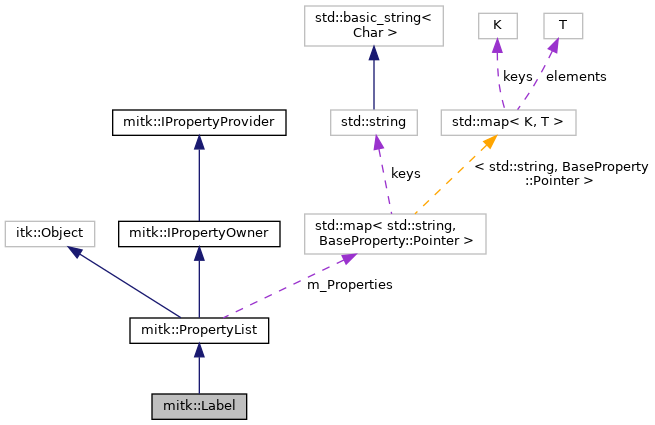

Collaboration diagram for mitk::Label:

[legend]

Public Types
enum class	AlgorithmType { Undefined , MANUAL , SEMIAUTOMATIC , AUTOMATIC }
	Enumeration describing how a label was created or refined. More...

typedef unsigned short	PixelType
	Pixel type used for label values (unsigned short). More...

Public Types inherited from mitk::PropertyList
typedef std::map< std::string, BaseProperty::Pointer >	PropertyMap

typedef std::pair< std::string, BaseProperty::Pointer >	PropertyMapElementType

Public Member Functions
	mitkClassMacro (Label, mitk::PropertyList)

	mitkNewMacro2Param (Self, PixelType, const std::string &)

void	SetLocked (bool locked)
	Sets the lock state of the label. More...

bool	GetLocked () const
	Returns the lock state of the label. More...

void	SetVisible (bool visible)
	Sets the visibility state of the label for rendering. More...

bool	GetVisible () const
	Returns the visibility state of the label. More...

void	SetOpacity (float opacity)
	Sets the opacity of the label for rendering. More...

float	GetOpacity () const
	Returns the opacity of the label. More...

void	SetName (const std::string &name)
	Sets the (class) name of the label. More...

std::string	GetName () const
	Returns the (class) name of the label. More...

void	SetTrackingID (const std::string &trackingID)
	Sets the DICOM tracking ID of the label. More...

std::string	GetTrackingID () const
	Returns the DICOM tracking ID of the label. More...

bool	HasTrackingID () const
	Returns whether a tracking ID property is set on the label. More...

void	SetTrackingUID (const std::string &trackingUID)
	Sets the DICOM tracking unique identifier (UID) of the label. More...

std::string	GetTrackingUID () const
	Returns the DICOM tracking unique identifier (UID) of the label. More...

bool	HasTrackingUID () const
	Returns whether a tracking UID property is set on the label. More...

void	SetDescription (const std::string &description)
	Sets a textual description for the label. More...

std::string	GetDescription () const
	Returns the textual description of the label. More...

mitk::Point3D	GetCenterOfMassIndex () const
	Returns the center of mass of the label as image index coordinates. More...

mitk::Point3D	GetCenterOfMassCoordinates () const
	Returns the center of mass of the label in world coordinates. More...

void	ResetCenterOfMass ()
	Resets (clears) the center of mass properties. More...

itk::ModifiedTimeType	GetCenterOfMassMTime () const
	Returns the modification time of the last center of mass property update. More...

void	UpdateCenterOfMass (const mitk::Point3D &index, const mitk::Point3D &coordinates)
	Updates the center of mass with new index and world coordinates. More...

void	SetColor (const mitk::Color &color)
	Sets the display color of the label. More...

const mitk::Color &	GetColor () const
	Returns the display color of the label. More...

void	SetValue (PixelType pixelValue)
	Sets the pixel value that identifies this label in the segmentation image. More...

PixelType	GetValue () const
	Returns the pixel value that identifies this label in the segmentation image. More...

void	SetAlgorithmType (AlgorithmType algoType)
	Sets the algorithm type that was used to create or modify this label. More...

void	SetAlgorithmTypeStr (const std::string &algoType)
	Sets the algorithm type from a string representation. More...

AlgorithmType	GetAlgorithmType () const
	Returns the algorithm type used to create or modify this label. More...

std::string	GetAlgorithmTypeStr () const
	Returns the algorithm type as a string. More...

void	SetAlgorithmName (const std::string &algoName)
	Sets the name of the algorithm used to create or modify this label. More...

std::string	GetAlgorithmName () const
	Returns the name of the algorithm used to create or modify this label. More...

bool	HasAlgorithmName () const
	Returns whether an algorithm name property is set on the label. More...

void	AddToolUse (AlgorithmType algoType, const std::string &algoName)
	Records that a tool/operation contributed to this label, updating algorithm type and name. More...

void	MergeToolUses (const Label *other)
	Absorbs another label's recorded provenance (algorithm type and tool names) into this one. More...

void	SetAnatomicRegion (const DICOMCodeSequenceWithModifiers &code, std::size_t index=0)
	Sets an anatomic region code at the specified index. More...

DICOMCodeSequenceWithModifiers	GetAnatomicRegion (std::size_t index=0) const
	Gets an anatomic region code at the specified index. More...

std::size_t	GetAnatomicRegionCount () const
	Gets the number of anatomic region codes stored. More...

void	RemoveAnatomicRegion (std::size_t index)
	Removes an anatomic region code at the specified index. More...

void	SetPrimaryAnatomicStructure (const DICOMCodeSequenceWithModifiers &code, std::size_t index=0)
	Sets a primary anatomic structure code at the specified index. More...

DICOMCodeSequenceWithModifiers	GetPrimaryAnatomicStructure (std::size_t index=0) const
	Gets a primary anatomic structure code at the specified index. More...

std::size_t	GetPrimaryAnatomicStructureCount () const
	Gets the number of primary anatomic structure codes stored. More...

void	RemovePrimaryAnatomicStructure (std::size_t index)
	Removes a primary anatomic structure code at the specified index. More...

void	SetSegmentedPropertyCategory (const DICOMCodeSequence &code)
	Sets the segmented property category code. More...

std::optional< DICOMCodeSequence >	GetSegmentedPropertyCategory () const
	Gets the segmented property category code. More...

void	SetSegmentedPropertyType (const DICOMCodeSequenceWithModifiers &code)
	Sets the segmented property type code with optional modifiers. More...

std::optional< DICOMCodeSequenceWithModifiers >	GetSegmentedPropertyType () const
	Gets the segmented property type code with modifiers. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Sets a property on this label. More...

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Returns a const pointer to the property with the given key. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Returns a non-const pointer to the property with the given key. More...

void	Modified ()
	Marks this label as modified. More...

void	Update (const Label *templateLabel, bool updateLabelValue=false)
	Function updates the property values of a label provided as templates. If a property exists in the destination label only the value will be updated (therefor observers and pointers stay valid). If the property does not exist, it will be cloned and added. No properties will be removed. More...

	Label ()
	Default constructor. Creates a label with default properties. More...

	Label (PixelType value, const std::string &name)
	Constructor that creates a label with a specified pixel value and name. More...

	~Label () override
	Destructor. More...

Public Member Functions inherited from mitk::PropertyList
	mitkClassMacroItkParent (PropertyList, itk::Object)

Pointer	Clone () const

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Retrieve all property keys. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Return available property context names. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the list by key. More...

mitk::BaseProperty *	GetProperty (const std::string &propertyKey) const
	Get a property by its name. More...

void	ReplaceProperty (const std::string &propertyKey, BaseProperty *property)
	Replace a property object in the list by a new one. More...

void	ConcatenatePropertyList (PropertyList *pList, bool replace=false)
	Merge another PropertyList into this one. More...

template<typename T >
bool	GetPropertyValue (const char *propertyKey, T &value) const
	Convenience access method for GenericProperty<T> properties. More...

bool	GetBoolProperty (const char *propertyKey, bool &boolValue) const
	Convenience method to access the value of a BoolProperty. More...

bool	Get (const char *propertyKey, bool &boolValue) const
	Shortcut for GetBoolProperty(). More...

void	SetBoolProperty (const char *propertyKey, bool boolValue)
	Convenience method to set the value of a BoolProperty. More...

void	Set (const char *propertyKey, bool boolValue)
	Shortcut for SetBoolProperty(). More...

bool	GetIntProperty (const char *propertyKey, int &intValue) const
	Convenience method to access the value of an IntProperty. More...

bool	Get (const char *propertyKey, int &intValue) const
	Shortcut for GetIntProperty(). More...

void	SetIntProperty (const char *propertyKey, int intValue)
	Convenience method to set the value of an IntProperty. More...

void	Set (const char *propertyKey, int intValue)
	Shortcut for SetIntProperty(). More...

bool	GetFloatProperty (const char *propertyKey, float &floatValue) const
	Convenience method to access the value of a FloatProperty. More...

bool	Get (const char *propertyKey, float &floatValue) const
	Shortcut for GetFloatProperty(). More...

void	SetFloatProperty (const char *propertyKey, float floatValue)
	Convenience method to set the value of a FloatProperty. More...

void	Set (const char *propertyKey, float floatValue)
	Shortcut for SetFloatProperty(). More...

bool	GetDoubleProperty (const char *propertyKey, double &doubleValue) const
	Convenience method to access the value of a DoubleProperty. More...

bool	Get (const char *propertyKey, double &doubleValue) const
	Shortcut for GetDoubleProperty(). More...

void	SetDoubleProperty (const char *propertyKey, double doubleValue)
	Convenience method to set the value of a DoubleProperty. More...

void	Set (const char *propertyKey, double doubleValue)
	Shortcut for SetDoubleProperty(). More...

bool	GetStringProperty (const char *propertyKey, std::string &stringValue) const
	Convenience method to access the value of a StringProperty. More...

bool	Get (const char *propertyKey, std::string &stringValue) const
	Shortcut for GetStringProperty(). More...

void	SetStringProperty (const char propertyKey, const char stringValue)
	Convenience method to set the value of a StringProperty. More...

void	Set (const char propertyKey, const char stringValue)
	Shortcut for SetStringProperty() accepting a C-string. More...

void	Set (const char *propertyKey, const std::string &stringValue)
	Shortcut for SetStringProperty() accepting a std::string. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification timestamp of the list. More...

bool	DeleteProperty (const std::string &propertyKey)
	Remove a property from the list/map by key. More...

const PropertyMap *	GetMap () const
	Get a read-only pointer to the internal property map. More...

bool	IsEmpty () const
	Check whether the property list contains no properties. More...

virtual void	Clear ()
	Remove all properties from the list. More...

void	ToJSON (nlohmann::json &j) const
	Serialize the property list to JSON. More...

void	FromJSON (const nlohmann::json &j)
	Deserialize the property list from JSON. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::PropertyList
static Pointer	New ()

Static Public Attributes
static const PixelType	MAX_LABEL_VALUE
	The maximum value a label can have (65535 for unsigned short). More...

static constexpr PixelType	UNLABELED_VALUE
	Value indicating pixels that are not labeled at all (background). More...

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	Label (const Label &other)

	mitkCloneMacro (Label)

void	SetCenterOfMassIndex (const mitk::Point3D &center)

void	SetCenterOfMassCoordinates (const mitk::Point3D &center)

mitk::BaseProperty *	GetProperty (const std::string &propertyKey) const
	Get a property by its name. More...

Protected Member Functions inherited from mitk::PropertyList
	PropertyList ()

	PropertyList (const Self &other)

	~PropertyList () override

	mitkCloneMacro (Self)

Additional Inherited Members
Protected Attributes inherited from mitk::PropertyList
PropertyMap	m_Properties
	Map of properties. More...

Detailed Description

A data structure describing a label in a multi-label segmentation.

Label is the central descriptor for labeled regions in a MultiLabelSegmentation. It stores metadata such as name, color, visibility, lock state, opacity, and DICOM code sequences (anatomic region, primary anatomic structure, segmented property category/type). Label inherits from PropertyList, so all metadata is stored as properties.

Each label has a unique pixel value (PixelType) that identifies it within the segmentation image. Labels can be locked to prevent overwriting and can be set visible/invisible for rendering.

See also: MultiLabelSegmentation, LabelSetImageHelper

Definition at line 100 of file mitkLabel.h.

Member Typedef Documentation

◆ PixelType

typedef unsigned short mitk::Label::PixelType

Pixel type used for label values (unsigned short).

Definition at line 106 of file mitkLabel.h.

Member Enumeration Documentation

◆ AlgorithmType

enum mitk::Label::AlgorithmType

strong

Enumeration describing how a label was created or refined.

Enumerator
Undefined	Undefined/unknown algorithm type.
MANUAL	Label created manually by user with simple tools (e.g. Add tool).
SEMIAUTOMATIC	Label created or refined with algorithmic assistance (e.g. nnInteractive).
AUTOMATIC	Label created fully automatically by an algorithm (e.g. nnUNet).

Definition at line 282 of file mitkLabel.h.

Constructor & Destructor Documentation

◆ Label() [1/3]

mitk::Label::Label ( )

Default constructor. Creates a label with default properties.

Defaults: locked=true, visible=true, opacity=0.6, color=white, name="Unknown label name", value=UNLABELED_VALUE.

◆ Label() [2/3]

mitk::Label::Label	(	PixelType	value,
		const std::string &	name
	)

Constructor that creates a label with a specified pixel value and name.

Parameters

[in]	value	The pixel value for this label.
[in]	name	The name for this label.

◆ ~Label()

mitk::Label::~Label ( )

override

Destructor.

◆ Label() [3/3]

mitk::Label::Label ( const Label & other )

protected

Member Function Documentation

◆ AddToolUse()

void mitk::Label::AddToolUse	(	AlgorithmType	algoType,
		const std::string &	algoName
	)

Records that a tool/operation contributed to this label, updating algorithm type and name.

Type: the first contribution to a still-Undefined label defines its type; any type already present (a genuine MANUAL loaded from a DICOM SEG, or a prior tool's type) is preserved, and a later tool of a different type mixes the result to SEMIAUTOMATIC. Name: for internally-created labels, algorithm_name starts with the "MITK Segmentation" prefix; the first dedicated tool is appended after ": " and further tools after "|" (e.g. "MITK Segmentation: nnUNet|Paint"). A name still equal to just the prefix means no dedicated tool has been recorded yet.

Remarks: The encoding reserves the separators "|" and ": ". To keep the provenance string parseable, those characters are sanitized to "#" inside algoName (a warning is logged when this happens) rather than rejected; an empty algoName is ignored. Tool names should use plain spaces (e.g. "Boolean Union", "Morphological Closing", "Interpolation").; Idempotent for repeated identical use (type stable, name de-duplicated), so it is safe under the many small writes a single interaction (e.g. a paint drag) produces.

Note: Externally-loaded provenance names that do not carry the MITK prefix are kept as-is; a later in-MITK tool simply appends to them and mixes the type as usual.

◆ GetAlgorithmName()

std::string mitk::Label::GetAlgorithmName ( ) const

Returns the name of the algorithm used to create or modify this label.

Returns: The algorithm name string.

◆ GetAlgorithmType()

AlgorithmType mitk::Label::GetAlgorithmType ( ) const

Returns the algorithm type used to create or modify this label.

Returns: The AlgorithmType enum value.

◆ GetAlgorithmTypeStr()

std::string mitk::Label::GetAlgorithmTypeStr ( ) const

Returns the algorithm type as a string.

Returns: String representation of the algorithm type.

◆ GetAnatomicRegion()

DICOMCodeSequenceWithModifiers mitk::Label::GetAnatomicRegion ( std::size_t index = 0 ) const

Gets an anatomic region code at the specified index.

Parameters

index The index of the code to retrieve (default: 0)

Returns: The DICOMCodeSequenceWithModifiers at the specified index, or an empty code if not found

◆ GetAnatomicRegionCount()

std::size_t mitk::Label::GetAnatomicRegionCount ( ) const

Gets the number of anatomic region codes stored.

Returns: The count of anatomic region codes

◆ GetCenterOfMassCoordinates()

mitk::Point3D mitk::Label::GetCenterOfMassCoordinates ( ) const

Returns the center of mass of the label in world coordinates.

Returns: The center of mass in world (physical) coordinates.

See also: GetCenterOfMassIndex, UpdateCenterOfMass

◆ GetCenterOfMassIndex()

mitk::Point3D mitk::Label::GetCenterOfMassIndex ( ) const

Returns the center of mass of the label as image index coordinates.

Returns: The center of mass in index coordinates.

See also: GetCenterOfMassCoordinates, UpdateCenterOfMass

◆ GetCenterOfMassMTime()

itk::ModifiedTimeType mitk::Label::GetCenterOfMassMTime ( ) const

Returns the modification time of the last center of mass property update.

Returns: The modification timestamp.

◆ GetColor()

const mitk::Color& mitk::Label::GetColor ( ) const

Returns the display color of the label.

Returns: Reference to the RGB color. Default is white (1, 1, 1).

◆ GetConstProperty()

BaseProperty::ConstPointer mitk::Label::GetConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)		const

overridevirtual

Returns a const pointer to the property with the given key.

Parameters

[in]	propertyKey	The key of the property.
[in]	contextName	Optional context name (default: empty).
[in]	fallBackOnDefaultContext	If true, fall back to the default context (default: true).

Returns: Const smart pointer to the property, or nullptr if not found.

Reimplemented from mitk::PropertyList.

◆ GetDescription()

std::string mitk::Label::GetDescription ( ) const

Returns the textual description of the label.

Returns: The description string.

◆ GetLocked()

bool mitk::Label::GetLocked ( ) const

Returns the lock state of the label.

Returns: true if the label is locked, false otherwise. Default is true.

◆ GetName()

std::string mitk::Label::GetName ( ) const

Returns the (class) name of the label.

Returns: The label name string.

◆ GetNonConstProperty()

BaseProperty* mitk::Label::GetNonConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)

overridevirtual

Returns a non-const pointer to the property with the given key.

Parameters

[in]	propertyKey	The key of the property.
[in]	contextName	Optional context name (default: empty).
[in]	fallBackOnDefaultContext	If true, fall back to the default context (default: true).

Returns: Pointer to the property, or nullptr if not found.

Reimplemented from mitk::PropertyList.

◆ GetOpacity()

float mitk::Label::GetOpacity ( ) const

Returns the opacity of the label.

Returns: Opacity value in [0.0, 1.0].

◆ GetPrimaryAnatomicStructure()

DICOMCodeSequenceWithModifiers mitk::Label::GetPrimaryAnatomicStructure ( std::size_t index = 0 ) const

Gets a primary anatomic structure code at the specified index.

Parameters

index The index of the code to retrieve (default: 0)

Returns: The DICOMCodeSequenceWithModifiers at the specified index, or an empty code if not found

◆ GetPrimaryAnatomicStructureCount()

std::size_t mitk::Label::GetPrimaryAnatomicStructureCount ( ) const

Gets the number of primary anatomic structure codes stored.

Returns: The count of primary anatomic structure codes

◆ GetProperty()

mitk::BaseProperty* mitk::PropertyList::GetProperty

protected

Get a property by its name.

Parameters

[in] propertyKey The key identifying the property.

Returns: A raw pointer to the property, or nullptr if no property with the given key exists.

◆ GetSegmentedPropertyCategory()

std::optional<DICOMCodeSequence> mitk::Label::GetSegmentedPropertyCategory ( ) const

Gets the segmented property category code.

Returns: The DICOMCodeSequence representing the segmented property category

◆ GetSegmentedPropertyType()

std::optional<DICOMCodeSequenceWithModifiers> mitk::Label::GetSegmentedPropertyType ( ) const

Gets the segmented property type code with modifiers.

Returns: The DICOMCodeSequenceWithModifiers representing the segmented property type

◆ GetTrackingID()

std::string mitk::Label::GetTrackingID ( ) const

Returns the DICOM tracking ID of the label.

Returns: The tracking ID string.

◆ GetTrackingUID()

std::string mitk::Label::GetTrackingUID ( ) const

Returns the DICOM tracking unique identifier (UID) of the label.

Returns: The tracking UID string.

◆ GetValue()

PixelType mitk::Label::GetValue ( ) const

Returns the pixel value that identifies this label in the segmentation image.

Returns: The pixel value of the label.

◆ GetVisible()

bool mitk::Label::GetVisible ( ) const

Returns the visibility state of the label.

Returns: true if the label is visible, false otherwise. Default is true.

◆ HasAlgorithmName()

bool mitk::Label::HasAlgorithmName ( ) const

Returns whether an algorithm name property is set on the label.

Distinguishes "property absent" from "property present" (GetAlgorithmName returns the "MITK Segmentation" fallback in the absent case, so it cannot make this distinction). Persistence readers and AddToolUse only set the property when there is a real name to record, so a false result means no algorithm name was ever recorded for this label.

◆ HasTrackingID()

bool mitk::Label::HasTrackingID ( ) const

Returns whether a tracking ID property is set on the label.

Distinguishes "property absent" from "property present but empty". GetTrackingID returns "" in both cases. Persistence readers set the property only when the source carried a non-empty value, so a true result indicates a real tracking identifier on the source.

◆ HasTrackingUID()

bool mitk::Label::HasTrackingUID ( ) const

Returns whether a tracking UID property is set on the label.

Distinguishes "property absent" from "property present but empty" (see HasTrackingID). GetTrackingUID returns "" in both cases. Persistence readers set the property only when the source carried a non-empty value, so a true result indicates a real tracking UID on the source.

◆ MergeToolUses()

void mitk::Label::MergeToolUses ( const Label * other )

Absorbs another label's recorded provenance (algorithm type and tool names) into this one.

Intended for content-merging operations (e.g. merging labels): the target should reflect that it now contains the source's algorithmically-derived content. The source's type is mixed into this label's type with the same rule as AddToolUse (a differing defined type yields SEMIAUTOMATIC), and each tool name recorded on the source is appended (de-duplicated) to this label's tool chain.

Parameters

[in] other The source label whose provenance is absorbed. Must not be null.

Remarks: A source with type but no recorded tool name (e.g. a vendor MANUAL label) contributes only its type. A source with an Undefined type contributes nothing.

◆ mitkClassMacro()

mitk::Label::mitkClassMacro	(	Label	,
		mitk::PropertyList
	)

◆ mitkCloneMacro()

mitk::Label::mitkCloneMacro ( Label )

protected

◆ mitkNewMacro2Param()

mitk::Label::mitkNewMacro2Param	(	Self	,
		PixelType	,
		const std::string &
	)

◆ Modified()

void mitk::Label::Modified ( )

inline

Marks this label as modified.

Definition at line 475 of file mitkLabel.h.

◆ New()

static Pointer mitk::Label::New ( )

static

◆ PrintSelf()

void mitk::Label::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ RemoveAnatomicRegion()

void mitk::Label::RemoveAnatomicRegion ( std::size_t index )

Removes an anatomic region code at the specified index.

Parameters

index The index of the code to remove

◆ RemovePrimaryAnatomicStructure()

void mitk::Label::RemovePrimaryAnatomicStructure ( std::size_t index )

Removes a primary anatomic structure code at the specified index.

Parameters

index The index of the code to remove

◆ ResetCenterOfMass()

void mitk::Label::ResetCenterOfMass ( )

Resets (clears) the center of mass properties.

◆ SetAlgorithmName()

void mitk::Label::SetAlgorithmName ( const std::string & algoName )

Sets the name of the algorithm used to create or modify this label.

Parameters

[in] algoName The algorithm name string.

◆ SetAlgorithmType()

void mitk::Label::SetAlgorithmType ( AlgorithmType algoType )

Sets the algorithm type that was used to create or modify this label.

Parameters

[in] algoType The algorithm type.

◆ SetAlgorithmTypeStr()

void mitk::Label::SetAlgorithmTypeStr ( const std::string & algoType )

Sets the algorithm type from a string representation.

Parameters

[in] algoType String representation ("MANUAL", "SEMIAUTOMATIC", "AUTOMATIC", or "Undefined").

◆ SetAnatomicRegion()

void mitk::Label::SetAnatomicRegion	(	const DICOMCodeSequenceWithModifiers &	code,
		std::size_t	index = `0`
	)

Sets an anatomic region code at the specified index.

Parameters

code	The DICOMCodeSequenceWithModifiers representing the anatomic region
index	The index at which to store the code (default: 0)

◆ SetCenterOfMassCoordinates()

void mitk::Label::SetCenterOfMassCoordinates ( const mitk::Point3D & center )

protected

◆ SetCenterOfMassIndex()

void mitk::Label::SetCenterOfMassIndex ( const mitk::Point3D & center )

protected

◆ SetColor()

void mitk::Label::SetColor ( const mitk::Color & color )

Sets the display color of the label.

Parameters

[in] color The RGB color to use for rendering this label.

◆ SetDescription()

void mitk::Label::SetDescription ( const std::string & description )

Sets a textual description for the label.

Parameters

[in] description The description string.

◆ SetLocked()

void mitk::Label::SetLocked ( bool locked )

Sets the lock state of the label.

Parameters

[in] locked If true, the label is locked and its pixels cannot be overwritten by other operations that respect locks.

◆ SetName()

void mitk::Label::SetName ( const std::string & name )

Sets the (class) name of the label.

Parameters

[in] name The name string, e.g. "Liver" or "Tumor".

◆ SetOpacity()

void mitk::Label::SetOpacity ( float opacity )

Sets the opacity of the label for rendering.

Parameters

[in] opacity Opacity value in [0.0, 1.0]. Default is 0.6.

◆ SetPrimaryAnatomicStructure()

void mitk::Label::SetPrimaryAnatomicStructure	(	const DICOMCodeSequenceWithModifiers &	code,
		std::size_t	index = `0`
	)

Sets a primary anatomic structure code at the specified index.

Parameters

code	The DICOMCodeSequenceWithModifiers representing the primary anatomic structure
index	The index at which to store the code (default: 0)

◆ SetProperty()

void mitk::Label::SetProperty	(	const std::string &	propertyKey,
		BaseProperty *	property,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Sets a property on this label.

Parameters

[in]	propertyKey	The key of the property.
[in]	property	Pointer to the property to set.
[in]	contextName	Optional context name (default: empty).
[in]	fallBackOnDefaultContext	If true, fall back to the default context (default: false).

Reimplemented from mitk::PropertyList.

◆ SetSegmentedPropertyCategory()

void mitk::Label::SetSegmentedPropertyCategory ( const DICOMCodeSequence & code )

Sets the segmented property category code.

Parameters

code	The DICOMCodeSequence representing the segmented property category

◆ SetSegmentedPropertyType()

void mitk::Label::SetSegmentedPropertyType ( const DICOMCodeSequenceWithModifiers & code )

Sets the segmented property type code with optional modifiers.

Parameters

code	The DICOMCodeSequenceWithModifiers representing the segmented property type

◆ SetTrackingID()

void mitk::Label::SetTrackingID ( const std::string & trackingID )

Sets the DICOM tracking ID of the label.

Parameters

[in] trackingID The tracking ID string.

◆ SetTrackingUID()

void mitk::Label::SetTrackingUID ( const std::string & trackingUID )

Sets the DICOM tracking unique identifier (UID) of the label.

Parameters

[in] trackingUID The tracking UID string.

◆ SetValue()

void mitk::Label::SetValue ( PixelType pixelValue )

Sets the pixel value that identifies this label in the segmentation image.

Parameters

[in] pixelValue The pixel value for this label.

◆ SetVisible()

void mitk::Label::SetVisible ( bool visible )

Sets the visibility state of the label for rendering.

Parameters

[in] visible If true, the label is rendered visibly.

◆ Update()

void mitk::Label::Update	(	const Label *	templateLabel,
		bool	updateLabelValue = `false`
	)

Function updates the property values of a label provided as templates. If a property exists in the destination label only the value will be updated (therefor observers and pointers stay valid). If the property does not exist, it will be cloned and added. No properties will be removed.

Parameters

templateLabel	Label instance that provides the new values for properties
updateLabelValue	Indicate if also the label value should be updated.

◆ UpdateCenterOfMass()

void mitk::Label::UpdateCenterOfMass	(	const mitk::Point3D &	index,
		const mitk::Point3D &	coordinates
	)

Updates the center of mass with new index and world coordinates.

Parameters

[in]	index	The center of mass in image index coordinates.
[in]	coordinates	The center of mass in world coordinates.

Member Data Documentation

◆ MAX_LABEL_VALUE

const PixelType mitk::Label::MAX_LABEL_VALUE

static

The maximum value a label can have (65535 for unsigned short).

Definition at line 112 of file mitkLabel.h.

◆ UNLABELED_VALUE

constexpr PixelType mitk::Label::UNLABELED_VALUE

staticconstexpr

Value indicating pixels that are not labeled at all (background).

Definition at line 115 of file mitkLabel.h.

The documentation for this class was generated from the following file:

mitkLabel.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ PixelType

Member Enumeration Documentation

◆ AlgorithmType

Constructor & Destructor Documentation

◆ Label() [1/3]

◆ Label() [2/3]

◆ ~Label()

◆ Label() [3/3]

Member Function Documentation

◆ AddToolUse()

◆ GetAlgorithmName()

◆ GetAlgorithmType()

◆ GetAlgorithmTypeStr()

◆ GetAnatomicRegion()

◆ GetAnatomicRegionCount()

◆ GetCenterOfMassCoordinates()

◆ GetCenterOfMassIndex()

◆ GetCenterOfMassMTime()

◆ GetColor()

◆ GetConstProperty()

◆ GetDescription()

◆ GetLocked()

◆ GetName()

◆ GetNonConstProperty()

◆ GetOpacity()

◆ GetPrimaryAnatomicStructure()

◆ GetPrimaryAnatomicStructureCount()

◆ GetProperty()

◆ GetSegmentedPropertyCategory()

◆ GetSegmentedPropertyType()

◆ GetTrackingID()

◆ GetTrackingUID()

◆ GetValue()

◆ GetVisible()

◆ HasAlgorithmName()

◆ HasTrackingID()

◆ HasTrackingUID()

◆ MergeToolUses()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ mitkNewMacro2Param()

◆ Modified()

◆ New()

◆ PrintSelf()

◆ RemoveAnatomicRegion()

◆ RemovePrimaryAnatomicStructure()

◆ ResetCenterOfMass()

◆ SetAlgorithmName()

◆ SetAlgorithmType()

◆ SetAlgorithmTypeStr()

◆ SetAnatomicRegion()

◆ SetCenterOfMassCoordinates()

◆ SetCenterOfMassIndex()

◆ SetColor()

◆ SetDescription()

◆ SetLocked()

◆ SetName()

◆ SetOpacity()

◆ SetPrimaryAnatomicStructure()

◆ SetProperty()

◆ SetSegmentedPropertyCategory()

◆ SetSegmentedPropertyType()

◆ SetTrackingID()

◆ SetTrackingUID()

◆ SetValue()

◆ SetVisible()

◆ Update()

◆ UpdateCenterOfMass()

Member Data Documentation

◆ MAX_LABEL_VALUE

◆ UNLABELED_VALUE
