mitk::BoundingShapeVtkMapper2D Class Reference

VTK-based 2D mapper for rendering bounding shape cross-sections and handles. More...

#include <mitkBoundingShapeVtkMapper2D.h>

Inheritance diagram for mitk::BoundingShapeVtkMapper2D:

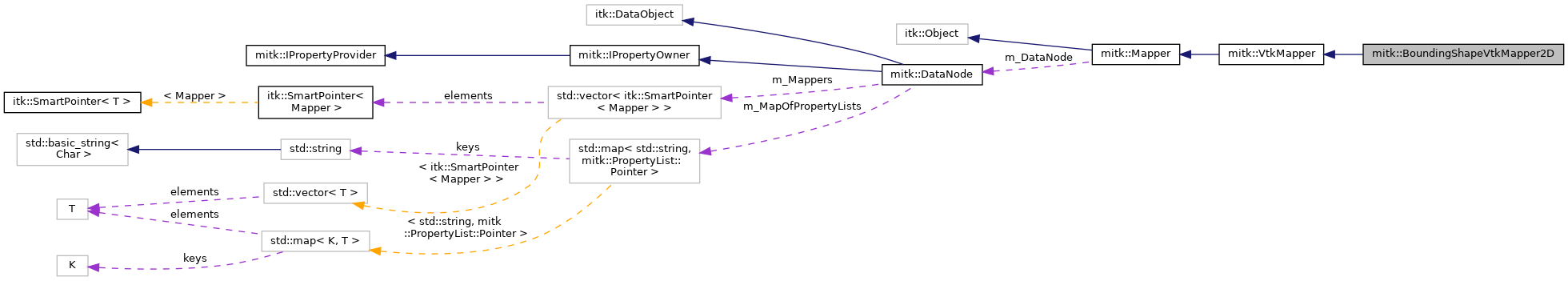

Collaboration diagram for mitk::BoundingShapeVtkMapper2D:

Public Member Functions
	mitkClassMacro (BoundingShapeVtkMapper2D, VtkMapper)
Pointer	Clone () const
void	ApplyColorAndOpacityProperties (BaseRenderer *renderer, vtkActor *actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...
vtkProp *	GetVtkProp (BaseRenderer *renderer) override
	Get the VTK prop assembly for rendering. More...
Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)
void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...
virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...
virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...
virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...
virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...
virtual bool	HasVtkProp (const vtkProp *prop, BaseRenderer *renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...
virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...
void	ApplyColorAndOpacityProperties (mitk::BaseRenderer *renderer, vtkActor *actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...
virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...
Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...
virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...
TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...
virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static void	SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default rendering properties for bounding shape 2D visualization. More...
static Pointer	New ()
Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()
	~VtkMapper () override
Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...
	~Mapper () override
	virtual destructor in order to derive from this class More...
virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...
virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

VTK-based 2D mapper for rendering bounding shape cross-sections and handles.

Renders the intersection of a bounding box (GeometryData) with the current 2D slice plane, along with interactive handles for resizing. Handles are displayed as small cubes at the face centers of the bounding box where they intersect the slice.

See also

BoundingShapeVtkMapper3D, BoundingShapeInteractor, VtkMapper

Definition at line 38 of file mitkBoundingShapeVtkMapper2D.h.

Member Function Documentation

ApplyColorAndOpacityProperties()

void mitk::BoundingShapeVtkMapper2D::ApplyColorAndOpacityProperties ( BaseRenderer *  renderer, vtkActor *  actor  )

overridevirtual

Apply color and opacity properties read from the PropertyList to the given vtkActor.

Reads the "color" and "opacity" properties from the DataNode and applies them to the actor's vtkProperty.

Parameters

[in]	renderer	The renderer whose property list is queried.
[in]	actor	The vtkActor to apply color and opacity to.

Implements mitk::Mapper.

Clone()

Pointer mitk::BoundingShapeVtkMapper2D::Clone

(

)

const

GetVtkProp()

vtkProp* mitk::BoundingShapeVtkMapper2D::GetVtkProp ( BaseRenderer *  renderer )

overridevirtual

Get the VTK prop assembly for rendering.

Parameters

[in]

renderer

The renderer to get the prop for.

Returns

The VTK prop assembly containing the bounding shape and handle actors.

Implements mitk::VtkMapper.

mitkClassMacro()

mitk::BoundingShapeVtkMapper2D::mitkClassMacro	(	BoundingShapeVtkMapper2D	,
		VtkMapper
	)

New()

static Pointer mitk::BoundingShapeVtkMapper2D::New ( )

static

SetDefaultProperties()

static void mitk::BoundingShapeVtkMapper2D::SetDefaultProperties ( DataNode *  node, BaseRenderer *  renderer = nullptr, bool  overwrite = false  )

static

Set default rendering properties for bounding shape 2D visualization.

Parameters

[in]	node	The data node to set properties on.
[in]	renderer	The renderer context, or nullptr for all renderers.
[in]	overwrite	If true, overwrite existing properties.

---

The documentation for this class was generated from the following file:

• mitkBoundingShapeVtkMapper2D.h
