VTK-based 3D mapper for rendering bounding shapes as wireframe cubes with handles. More...

#include <mitkBoundingShapeVtkMapper3D.h>

Inheritance diagram for mitk::BoundingShapeVtkMapper3D:

[legend]

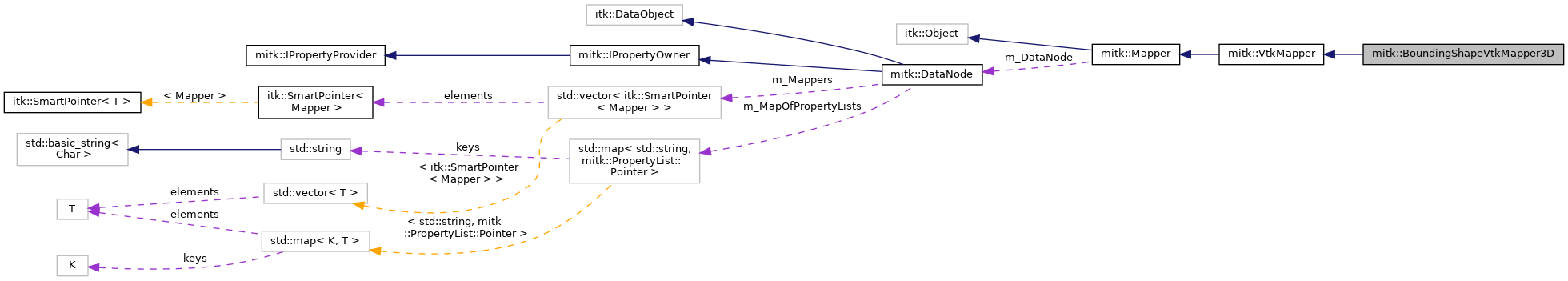

Collaboration diagram for mitk::BoundingShapeVtkMapper3D:

[legend]

Public Member Functions
	mitkClassMacro (BoundingShapeVtkMapper3D, VtkMapper)

Pointer	Clone () const

void	ApplyColorAndOpacityProperties (BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

void	ApplyBoundingShapeProperties (BaseRenderer renderer, vtkActor actor)
	Apply bounding-shape-specific visual properties to the actor. More...

vtkProp *	GetVtkProp (BaseRenderer *renderer) override
	Get the VTK prop assembly for 3D rendering. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default rendering properties for bounding shape 3D visualization. More...

static Pointer	New ()

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Protected Member Functions
void	GenerateDataForRenderer (BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

VTK-based 3D mapper for rendering bounding shapes as wireframe cubes with handles.

Renders a bounding box (GeometryData) as a 3D wireframe cube with interactive handles at the face centers for resizing. Selected handles are highlighted with a different color.

See also: BoundingShapeVtkMapper2D, BoundingShapeInteractor, VtkMapper

Definition at line 28 of file mitkBoundingShapeVtkMapper3D.h.

Member Function Documentation

◆ ApplyBoundingShapeProperties()

void mitk::BoundingShapeVtkMapper3D::ApplyBoundingShapeProperties	(	BaseRenderer *	renderer,
		vtkActor *	actor
	)

Apply bounding-shape-specific visual properties to the actor.

Parameters

[in]	renderer	The renderer context.
[in]	actor	The VTK actor to apply properties to (currently unused).

◆ ApplyColorAndOpacityProperties()

void mitk::BoundingShapeVtkMapper3D::ApplyColorAndOpacityProperties	(	BaseRenderer *	renderer,
		vtkActor *	actor
	)

overridevirtual

Apply color and opacity properties read from the PropertyList to the given vtkActor.

Reads the "color" and "opacity" properties from the DataNode and applies them to the actor's vtkProperty.

Parameters

[in]	renderer	The renderer whose property list is queried.
[in]	actor	The vtkActor to apply color and opacity to.

Implements mitk::Mapper.

◆ Clone()

Pointer mitk::BoundingShapeVtkMapper3D::Clone ( ) const

◆ GenerateDataForRenderer()

void mitk::BoundingShapeVtkMapper3D::GenerateDataForRenderer ( BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

◆ GetVtkProp()

vtkProp* mitk::BoundingShapeVtkMapper3D::GetVtkProp ( BaseRenderer * renderer )

overridevirtual

Get the VTK prop assembly for 3D rendering.

Parameters

[in] renderer The renderer to get the prop for.

Returns: The VTK prop containing the bounding shape wireframe and handle actors.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::BoundingShapeVtkMapper3D::mitkClassMacro	(	BoundingShapeVtkMapper3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::BoundingShapeVtkMapper3D::New ( )

static

◆ SetDefaultProperties()

static void mitk::BoundingShapeVtkMapper3D::SetDefaultProperties	(	DataNode *	node,
		BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default rendering properties for bounding shape 3D visualization.

Parameters

[in]	node	The data node to set properties on.
[in]	renderer	The renderer context, or `nullptr` for all renderers.
[in]	overwrite	If `true`, overwrite existing properties.

The documentation for this class was generated from the following file:

mitkBoundingShapeVtkMapper3D.h
