Crops or masks an image using a bounding box defined by GeometryData. More...

#include <mitkBoundingShapeCropper.h>

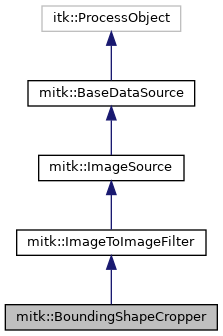

Inheritance diagram for mitk::BoundingShapeCropper:

[legend]

Collaboration diagram for mitk::BoundingShapeCropper:

[legend]

Public Member Functions
	mitkClassMacro (BoundingShapeCropper, ImageToImageFilter)

Pointer	Clone () const

void	SetGeometry (const mitk::GeometryData *geometry)
	Set the geometry of the bounding object used for cropping/masking. More...

virtual void	SetOutsideValue (ScalarType _arg)
	Set the pixel value assigned to voxels outside the bounding box during masking. More...

virtual ScalarType	GetOutsideValue ()
	Get the current outside pixel value used for masking. More...

virtual void	SetUseWholeInputRegion (bool _arg)
	Set whether the full input region is preserved (masking mode). More...

virtual bool	GetUseWholeInputRegion ()
	Get whether masking mode is active. More...

virtual void	SetCurrentTimeStep (ScalarType _arg)
	Set the time step to process for 4D images. More...

virtual ScalarType	GetCurrentTimeStep ()
	Get the current time step index. More...

virtual void	SetUseCropTimeStepOnly (bool _arg)
	Set whether to process only a single time step. More...

virtual bool	GetUseCropTimeStepOnly ()
	Get whether only a single time step is processed. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
	BoundingShapeCropper ()

	~BoundingShapeCropper () override

virtual const PixelType	GetOutputPixelType ()

void	GenerateInputRequestedRegion () override
	Reimplemented from ImageToImageFilter. More...

void	GenerateOutputInformation () override

void	GenerateData () override

template<typename TPixel , unsigned int VImageDimension>
void	CutImage (itk::Image< TPixel, VImageDimension > *inputItkImage, int timeStep)
	Template Function for cropping and masking images with scalar pixel type. More...

virtual void	ComputeData (mitk::Image *input3D, int boTimeStep)
	Process the image and create the output. More...

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Crops or masks an image using a bounding box defined by GeometryData.

This filter takes an mitk::Image and an mitk::GeometryData as inputs and produces a cropped or masked image as output.

Two modes of operation are supported:

Cropping (UseWholeInputRegion = false): The output image is reduced to the size of the bounding box.
Masking (UseWholeInputRegion = true): The output image retains the original dimensions, but pixels outside the bounding box are set to the OutsideValue.

For 4D images, optionally only a single time step can be processed via UseCropTimeStepOnly and CurrentTimeStep.

Precondition: The input image and a valid GeometryData must be set before calling Update().

See also: GeometryData, ImageToImageFilter, BoundingShapeInteractor

Definition at line 47 of file mitkBoundingShapeCropper.h.

Constructor & Destructor Documentation

◆ BoundingShapeCropper()

mitk::BoundingShapeCropper::BoundingShapeCropper ( )

protected

◆ ~BoundingShapeCropper()

mitk::BoundingShapeCropper::~BoundingShapeCropper ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::BoundingShapeCropper::Clone ( ) const

◆ ComputeData()

virtual void mitk::BoundingShapeCropper::ComputeData	(	mitk::Image *	input3D,
		int	boTimeStep
	)

protectedvirtual

Process the image and create the output.

◆ CutImage()

template<typename TPixel , unsigned int VImageDimension>

void mitk::BoundingShapeCropper::CutImage	(	itk::Image< TPixel, VImageDimension > *	inputItkImage,
		int	timeStep
	)

protected

Template Function for cropping and masking images with scalar pixel type.

◆ GenerateData()

void mitk::BoundingShapeCropper::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::BoundingShapeCropper::GenerateInputRequestedRegion ( )

overrideprotected

Reimplemented from ImageToImageFilter.

◆ GenerateOutputInformation()

void mitk::BoundingShapeCropper::GenerateOutputInformation ( )

overrideprotected

◆ GetCurrentTimeStep()

virtual ScalarType mitk::BoundingShapeCropper::GetCurrentTimeStep ( )

virtual

Get the current time step index.

Returns: The zero-based time step index.

◆ GetOutputPixelType()

virtual const PixelType mitk::BoundingShapeCropper::GetOutputPixelType ( )

protectedvirtual

◆ GetOutsideValue()

virtual ScalarType mitk::BoundingShapeCropper::GetOutsideValue ( )

virtual

Get the current outside pixel value used for masking.

Returns: The scalar value assigned to pixels outside the bounding box.

◆ GetUseCropTimeStepOnly()

virtual bool mitk::BoundingShapeCropper::GetUseCropTimeStepOnly ( )

virtual

Get whether only a single time step is processed.

Returns: true if only the CurrentTimeStep is processed.

◆ GetUseWholeInputRegion()

virtual bool mitk::BoundingShapeCropper::GetUseWholeInputRegion ( )

virtual

Get whether masking mode is active.

Returns: true if masking mode is active, false for cropping mode.

◆ mitkClassMacro()

mitk::BoundingShapeCropper::mitkClassMacro	(	BoundingShapeCropper	,
		ImageToImageFilter
	)

◆ New()

static Pointer mitk::BoundingShapeCropper::New ( )

static

◆ SetCurrentTimeStep()

virtual void mitk::BoundingShapeCropper::SetCurrentTimeStep ( ScalarType _arg )

virtual

Set the time step to process for 4D images.

Only relevant when UseCropTimeStepOnly is true.

Parameters

[in] _arg The zero-based time step index.

◆ SetGeometry()

void mitk::BoundingShapeCropper::SetGeometry ( const mitk::GeometryData * geometry )

Set the geometry of the bounding object used for cropping/masking.

Parameters

[in] geometry The GeometryData defining the bounding box region.

Precondition: geometry is not null and has a valid BaseGeometry.

◆ SetOutsideValue()

virtual void mitk::BoundingShapeCropper::SetOutsideValue ( ScalarType _arg )

virtual

Set the pixel value assigned to voxels outside the bounding box during masking.

Only used when UseWholeInputRegion is true (masking mode). Default: 0.

Parameters

[in] _arg The scalar value for outside pixels.

◆ SetUseCropTimeStepOnly()

virtual void mitk::BoundingShapeCropper::SetUseCropTimeStepOnly ( bool _arg )

virtual

Set whether to process only a single time step.

Parameters

[in] _arg If true, only the time step specified by CurrentTimeStep is cropped/masked. If false, all time steps are processed.

◆ SetUseWholeInputRegion()

virtual void mitk::BoundingShapeCropper::SetUseWholeInputRegion ( bool _arg )

virtual

Set whether the full input region is preserved (masking mode).

Parameters

[in] _arg If true, the output has the same dimensions as the input and outside pixels are set to OutsideValue (masking). If false, the output is cropped to the bounding box size.

The documentation for this class was generated from the following file:

mitkBoundingShapeCropper.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BoundingShapeCropper()

◆ ~BoundingShapeCropper()

Member Function Documentation

◆ Clone()

◆ ComputeData()

◆ CutImage()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetCurrentTimeStep()

◆ GetOutputPixelType()

◆ GetOutsideValue()

◆ GetUseCropTimeStepOnly()

◆ GetUseWholeInputRegion()

◆ mitkClassMacro()

◆ New()

◆ SetCurrentTimeStep()

◆ SetGeometry()

◆ SetOutsideValue()

◆ SetUseCropTimeStepOnly()

◆ SetUseWholeInputRegion()
