Concrete DataStorage implementation that stores nodes in an in-memory adjacency list graph. More...

#include <mitkStandaloneDataStorage.h>

Inheritance diagram for mitk::StandaloneDataStorage:

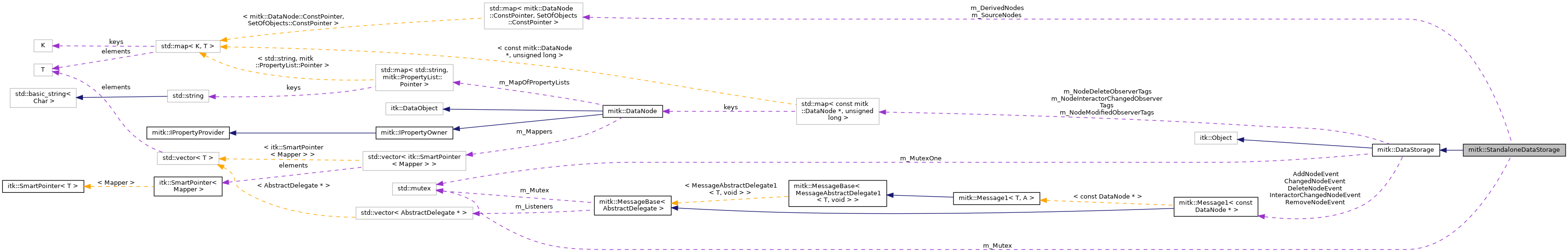

Collaboration diagram for mitk::StandaloneDataStorage:

[legend]

Public Member Functions
	mitkClassMacro (StandaloneDataStorage, mitk::DataStorage)

Pointer	Clone () const

void	Add (mitk::DataNode node, const mitk::DataStorage::SetOfObjects parents=nullptr) override
	Add a DataNode to the storage, optionally with parent (source) nodes. More...

void	Remove (const mitk::DataNode *node) override
	Remove a node from the StandaloneDataStorage. More...

bool	Exists (const mitk::DataNode *node) const override
	Check whether a node exists in this StandaloneDataStorage. More...

SetOfObjects::ConstPointer	GetSources (const mitk::DataNode node, const NodePredicateBase condition=nullptr, bool onlyDirectSources=true) const override
	Return the source (parent) nodes of a given node, optionally filtered. More...

SetOfObjects::ConstPointer	GetDerivations (const mitk::DataNode node, const NodePredicateBase condition=nullptr, bool onlyDirectDerivations=true) const override
	Return the derived (child) nodes of a given node, optionally filtered. More...

SetOfObjects::ConstPointer	GetAll () const override
	Return all nodes managed by this StandaloneDataStorage. More...

virtual void	Add (DataNode node, const DataStorage::SetOfObjects parents=nullptr)=0
	Add a DataNode to the storage, optionally with parent (source) nodes. More...

void	Add (DataNode node, DataNode parent)
	Convenience method to add a node with a single parent. More...

void	Add (DataNode node, const ConstSetOfObjects parents)
	Convenience overload for callers that hold only const node pointers for the parents. More...

Public Member Functions inherited from mitk::DataStorage
	mitkClassMacroItkParent (DataStorage, itk::Object)

void	Add (DataNode node, DataNode parent)
	Convenience method to add a node with a single parent. More...

void	Add (DataNode node, const ConstSetOfObjects parents)
	Convenience overload for callers that hold only const node pointers for the parents. More...

void	Remove (const DataStorage::SetOfObjects *nodes)
	Remove a set of nodes from the DataStorage. More...

void	Remove (const ConstSetOfObjects *nodes)
	Remove a set of const-pointer nodes from the DataStorage. More...

SetOfObjects::ConstPointer	GetSubset (const NodePredicateBase *condition) const
	Return all nodes that satisfy the given predicate condition. More...

DataNode *	GetNode (const NodePredicateBase *condition=nullptr) const
	Convenience method to get the first node that matches the predicate condition. More...

DataNode *	GetNamedNode (const char *name) const
	Convenience method to get the first node with a given name. More...

DataNode *	GetNamedNode (const std::string &name) const
	Convenience method to get the first node with a given name (std::string overload). More...

DataNode *	GetNamedDerivedNode (const char name, const DataNode sourceNode, bool onlyDirectDerivations=true) const
	Convenience method to get the first node with a given name that is derived from a source node. More...

template<class DataType >
DataType *	GetNamedObject (const char *name) const
	Convenience method to get the first data object of a given type with a given name. More...

template<class DataType >
DataType *	GetNamedObject (const std::string &name) const
	Convenience method to get the first data object of a given type with a given name (std::string overload). More...

template<class DataType >
DataType *	GetNamedDerivedObject (const char name, const DataNode sourceNode, bool onlyDirectDerivations=true) const
	Convenience method to get the first data object of a given type with a given name, derived from a source node. More...

std::string	GetUniqueName (const std::string &name, const DataNode *sourceNode=nullptr, bool onlyDirectDerivations=true) const
	Generate a unique node name by appending an incrementing number if necessary. More...

const DataNode::GroupTagList	GetGroupTags () const
	Return all group tags used across all nodes in the DataStorage. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const SetOfObjects input, const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry encompassing the given set of nodes. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const ConstSetOfObjects input, const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry for a set of const node pointers. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char *boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry of all nodes in the DataStorage. More...

TimeGeometry::ConstPointer	ComputeVisibleBoundingGeometry3D (const BaseRenderer renderer=nullptr, const char boolPropertyKey=nullptr)
	Compute the axis-parallel bounding geometry of all visible nodes. More...

BoundingBox::Pointer	ComputeBoundingBox (const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char *boolPropertyKey2=nullptr)
	Compute the axis-parallel bounding box of all nodes in the DataStorage. More...

BoundingBox::Pointer	ComputeVisibleBoundingBox (const BaseRenderer renderer=nullptr, const char boolPropertyKey=nullptr)
	Compute the bounding box of all visible nodes. More...

TimeBounds	ComputeTimeBounds (const char boolPropertyKey, const BaseRenderer renderer, const char *boolPropertyKey2)
	Compute the time bounds of all nodes in the DataStorage. More...

TimeBounds	ComputeTimeBounds (const BaseRenderer renderer, const char boolPropertyKey)
	Compute the time bounds of all visible nodes. More...

void	BlockNodeModifiedEvents (bool block)
	Enable or disable suppression of ChangedNodeEvent emission. More...

Static Public Member Functions
static Pointer	New ()

Public Attributes
std::mutex	m_Mutex
	Mutex protecting the internal adjacency lists for thread-safe access. More...

Public Attributes inherited from mitk::DataStorage
std::mutex	m_MutexOne
	Mutex for thread-safe operations on the DataStorage. More...

DataStorageEvent	AddNodeEvent
	Event emitted after a new node has been added to the DataStorage. More...

DataStorageEvent	RemoveNodeEvent
	Event emitted directly before a node is removed from the DataStorage. More...

DataStorageEvent	ChangedNodeEvent
	Event emitted after a managed node has been modified. More...

DataStorageEvent	DeleteNodeEvent
	Event emitted directly before a managed node is deleted. More...

DataStorageEvent	InteractorChangedNodeEvent
	Event emitted when the DataInteractor of a managed node changes. More...

Protected Types
typedef std::map< mitk::DataNode::ConstPointer, SetOfObjects::ConstPointer >	AdjacencyList
	noncyclical directed graph data structure to store the nodes with their relation More...

Protected Member Functions
	StandaloneDataStorage ()

	~StandaloneDataStorage () override

bool	IsInitialized () const
	convenience method to check if the object has been initialized (i.e. a data tree has been set) More...

SetOfObjects::ConstPointer	GetRelations (const mitk::DataNode node, const AdjacencyList &relation, const NodePredicateBase condition=nullptr, bool onlyDirectlyRelated=true) const
	Traverses the Relation graph and extracts a list of related elements (e.g. Sources or Derivations) More...

void	RemoveFromRelation (const mitk::DataNode *node, AdjacencyList &relation)
	deletes all references to a node in a given relation (used in Remove() and TreeListener) More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Prints the contents of the StandaloneDataStorage to os. Do not call directly, call ->Print() instead. More...

Protected Member Functions inherited from mitk::DataStorage
void	EmitAddNodeEvent (const DataNode *node)
	EmitAddNodeEvent emits the AddNodeEvent. More...

void	EmitRemoveNodeEvent (const DataNode *node)
	EmitRemoveNodeEvent emits the RemoveNodeEvent. More...

void	OnNodeInteractorChanged (itk::Object *caller, const itk::EventObject &event)

void	OnNodeModifiedOrDeleted (const itk::Object *caller, const itk::EventObject &event)
	OnNodeModified listens to modified events of DataNodes. More...

void	AddListeners (const DataNode *_Node)
	Adds a Modified-Listener to the given Node. More...

void	RemoveListeners (const DataNode *_Node)
	Removes a Modified-Listener from the given Node. More...

	DataStorage ()

	~DataStorage () override

SetOfObjects::ConstPointer	FilterSetOfObjects (const SetOfObjects set, const NodePredicateBase condition) const
	Filters a SetOfObjects by the condition. If no condition is provided, the original set is returned. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Prints the contents of the DataStorage to os. Do not call directly, call ->Print() instead. More...

Protected Attributes
AdjacencyList	m_SourceNodes
	Nodes and their relation are stored in m_SourceNodes. More...

AdjacencyList	m_DerivedNodes
	Nodes are stored in reverse relation for easier traversal in the opposite direction of the relation. More...

Protected Attributes inherited from mitk::DataStorage
std::map< const DataNode *, unsigned long >	m_NodeModifiedObserverTags
	Saves Modified-Observer Tags for each node in order to remove the event listeners again. More...

std::map< const DataNode *, unsigned long >	m_NodeInteractorChangedObserverTags

std::map< const DataNode *, unsigned long >	m_NodeDeleteObserverTags
	Saves Delete-Observer Tags for each node in order to remove the event listeners again. More...

bool	m_BlockNodeModifiedEvents
	If this class changes nodes itself, set this to TRUE in order to suppress NodeChangedEvent to be emitted. More...

Additional Inherited Members
Public Types inherited from mitk::DataStorage
typedef itk::VectorContainer< unsigned int, DataNode::Pointer >	SetOfObjects
	Container type used as a result set of query operations such as GetSubset(). More...

typedef itk::VectorContainer< unsigned int, DataNode::ConstPointer >	ConstSetOfObjects
	Container type for const node pointers, used for input parameters where nodes are read-only. More...

typedef Message1< const DataNode * >	DataStorageEvent
	Event type used for all DataStorage notifications, carrying a const DataNode pointer. More...

Detailed Description

Concrete DataStorage implementation that stores nodes in an in-memory adjacency list graph.

StandaloneDataStorage is the standard implementation of mitk::DataStorage. It manages 'was created by' relationships by maintaining two adjacency lists: one for source (parent) nodes and one for derived (child) nodes. The graph structure is non-cyclical and directed.

This class is fully thread-safe; all public methods that access the internal data structures are protected by a mutex.

See also: DataStorage, DataNode

Definition at line 41 of file mitkStandaloneDataStorage.h.

Member Typedef Documentation

◆ AdjacencyList

typedef std::map<mitk::DataNode::ConstPointer, SetOfObjects::ConstPointer> mitk::StandaloneDataStorage::AdjacencyList

protected

noncyclical directed graph data structure to store the nodes with their relation

Definition at line 129 of file mitkStandaloneDataStorage.h.

Constructor & Destructor Documentation

◆ StandaloneDataStorage()

mitk::StandaloneDataStorage::StandaloneDataStorage ( )

protected

◆ ~StandaloneDataStorage()

mitk::StandaloneDataStorage::~StandaloneDataStorage ( )

overrideprotected

Member Function Documentation

◆ Add() [1/4]

void mitk::DataStorage::Add

Convenience overload for callers that hold only const node pointers for the parents.

Converts the ConstSetOfObjects to a SetOfObjects internally and delegates to the virtual Add() method.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parents	Optional set of const parent node pointers. May be nullptr.

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Add(DataNode*, const SetOfObjects*)

◆ Add() [2/4]

virtual void mitk::DataStorage::Add

Add a DataNode to the storage, optionally with parent (source) nodes.

The node is added to the internal graph structure. If parents is provided, 'was created from' relationships are established between the node and its parents. After a successful addition, AddNodeEvent is emitted.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parents	Optional set of parent nodes. May be nullptr.

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Remove, AddNodeEvent

◆ Add() [3/4]

void mitk::DataStorage::Add

Convenience method to add a node with a single parent.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parent	The parent node. May be nullptr (equivalent to adding without parents).

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Add(DataNode*, const SetOfObjects*)

◆ Add() [4/4]

void mitk::StandaloneDataStorage::Add	(	mitk::DataNode *	node,
		const mitk::DataStorage::SetOfObjects *	parents = `nullptr`
	)

overridevirtual

Add a DataNode to the storage, optionally with parent (source) nodes.

Inserts the node into the internal adjacency lists and establishes 'was created from' relationships. Emits AddNodeEvent upon successful addition.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parents	Optional set of parent nodes. May be nullptr.

Exceptions

std::logic_error	if the DataStorage is not initialized.
std::invalid_argument	if node is its own parent or already exists.

See also: Remove, DataStorage::Add

Implements mitk::DataStorage.

◆ Clone()

Pointer mitk::StandaloneDataStorage::Clone ( ) const

◆ Exists()

bool mitk::StandaloneDataStorage::Exists ( const mitk::DataNode * node ) const

overridevirtual

Check whether a node exists in this StandaloneDataStorage.

Parameters

[in] node The node to check.

Returns: true if the node is present.

Implements mitk::DataStorage.

◆ GetAll()

SetOfObjects::ConstPointer mitk::StandaloneDataStorage::GetAll ( ) const

overridevirtual

Return all nodes managed by this StandaloneDataStorage.

Returns: A set containing all DataNodes.

Exceptions

std::logic_error if the DataStorage is not initialized.

Implements mitk::DataStorage.

◆ GetDerivations()

SetOfObjects::ConstPointer mitk::StandaloneDataStorage::GetDerivations	(	const mitk::DataNode *	node,
		const NodePredicateBase *	condition = `nullptr`,
		bool	onlyDirectDerivations = `true`
	)		const

overridevirtual

Return the derived (child) nodes of a given node, optionally filtered.

Returns nodes that were created from (derived from) the given node.

Parameters

[in]	node	The node whose derivations are queried.
[in]	condition	Optional predicate to filter results.
[in]	onlyDirectDerivations	If true (default), only direct children are returned. If false, all transitive derivations are traversed.

Returns: A set of derived DataNodes.

Exceptions

std::invalid_argument if node is nullptr.

See also: GetSources

Implements mitk::DataStorage.

◆ GetRelations()

SetOfObjects::ConstPointer mitk::StandaloneDataStorage::GetRelations	(	const mitk::DataNode *	node,
		const AdjacencyList &	relation,
		const NodePredicateBase *	condition = `nullptr`,
		bool	onlyDirectlyRelated = `true`
	)		const

protected

Traverses the Relation graph and extracts a list of related elements (e.g. Sources or Derivations)

◆ GetSources()

SetOfObjects::ConstPointer mitk::StandaloneDataStorage::GetSources	(	const mitk::DataNode *	node,
		const NodePredicateBase *	condition = `nullptr`,
		bool	onlyDirectSources = `true`
	)		const

overridevirtual

Return the source (parent) nodes of a given node, optionally filtered.

Parameters

[in]	node	The node whose sources are queried.
[in]	condition	Optional predicate to filter results.
[in]	onlyDirectSources	If true (default), only direct parents are returned. If false, all transitive sources are traversed.

Returns: A set of source DataNodes.

Exceptions

std::invalid_argument if node is nullptr.

See also: GetDerivations

Implements mitk::DataStorage.

◆ IsInitialized()

bool mitk::StandaloneDataStorage::IsInitialized ( ) const

protected

convenience method to check if the object has been initialized (i.e. a data tree has been set)

◆ mitkClassMacro()

mitk::StandaloneDataStorage::mitkClassMacro	(	StandaloneDataStorage	,
		mitk::DataStorage
	)

◆ New()

static Pointer mitk::StandaloneDataStorage::New ( )

static

◆ PrintSelf()

void mitk::StandaloneDataStorage::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Prints the contents of the StandaloneDataStorage to os. Do not call directly, call ->Print() instead.

◆ Remove()

void mitk::StandaloneDataStorage::Remove ( const mitk::DataNode * node )

overridevirtual

Remove a node from the StandaloneDataStorage.

Removes the node from both adjacency lists and emits RemoveNodeEvent before removal. If node is nullptr, the call is ignored.

Parameters

[in] node The node to remove.

Exceptions

std::logic_error if the DataStorage is not initialized.

See also: Add

Implements mitk::DataStorage.

◆ RemoveFromRelation()

void mitk::StandaloneDataStorage::RemoveFromRelation	(	const mitk::DataNode *	node,
		AdjacencyList &	relation
	)

protected

deletes all references to a node in a given relation (used in Remove() and TreeListener)

Member Data Documentation

◆ m_DerivedNodes

AdjacencyList mitk::StandaloneDataStorage::m_DerivedNodes

protected

Nodes are stored in reverse relation for easier traversal in the opposite direction of the relation.

Definition at line 158 of file mitkStandaloneDataStorage.h.

◆ m_Mutex

std::mutex mitk::StandaloneDataStorage::m_Mutex

mutable

Mutex protecting the internal adjacency lists for thread-safe access.

Definition at line 124 of file mitkStandaloneDataStorage.h.

◆ m_SourceNodes

AdjacencyList mitk::StandaloneDataStorage::m_SourceNodes

protected

Nodes and their relation are stored in m_SourceNodes.

Definition at line 155 of file mitkStandaloneDataStorage.h.

The documentation for this class was generated from the following file:

mitkStandaloneDataStorage.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AdjacencyList

Constructor & Destructor Documentation

◆ StandaloneDataStorage()

◆ ~StandaloneDataStorage()

Member Function Documentation

◆ Add() [1/4]

◆ Add() [2/4]

◆ Add() [3/4]

◆ Add() [4/4]

◆ Clone()

◆ Exists()

◆ GetAll()

◆ GetDerivations()

◆ GetRelations()

◆ GetSources()

◆ IsInitialized()

◆ mitkClassMacro()

◆ New()

◆ PrintSelf()

◆ Remove()

◆ RemoveFromRelation()

Member Data Documentation

◆ m_DerivedNodes

◆ m_Mutex

◆ m_SourceNodes
