Internal container for image data used by mitk::Image. More...

#include <mitkImageDataItem.h>

Inheritance diagram for mitk::ImageDataItem:

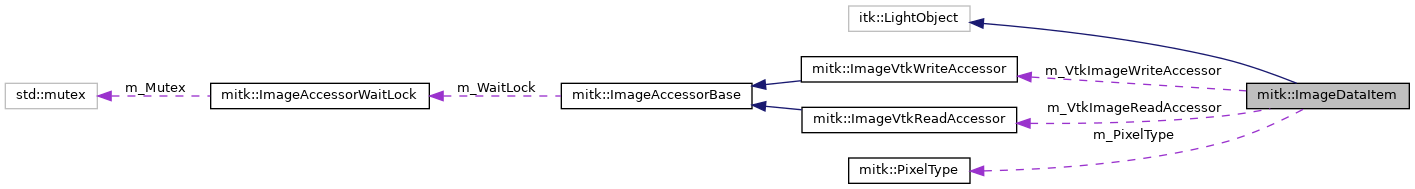

Collaboration diagram for mitk::ImageDataItem:

[legend]

Public Types
typedef itk::SmartPointer< mitk::Image >	ImagePointer
	Smart pointer to Image. More...

typedef itk::SmartPointer< const mitk::Image >	ImageConstPointer
	Smart pointer to const Image. More...

Public Member Functions
	mitkClassMacroItkParent (ImageDataItem, itk::LightObject)

	ImageDataItem (const ImageDataItem &aParent, const mitk::ImageDescriptor::Pointer desc, int timestep, unsigned int dimension, void *data=nullptr, bool manageMemory=false, size_t offset=0)
	Construct a sub-image data item as a child of an existing item. More...

	~ImageDataItem () override
	Destructor. Frees managed memory and VTK resources. More...

	ImageDataItem (const mitk::ImageDescriptor::Pointer desc, int timestep, void *data, bool manageMemory)
	Construct a top-level data item from an image descriptor. More...

	ImageDataItem (const mitk::PixelType &type, int timestep, unsigned int dimension, unsigned int dimensions, void data, bool manageMemory)
	Construct a data item from explicit pixel type and dimension information. More...

	ImageDataItem (const ImageDataItem &other)=delete

ImageDataItem &	operator= (const ImageDataItem &other)=delete

bool	IsComplete () const
	Check whether all sub-items of this data item have been filled. More...

void	SetComplete (bool complete)
	Set the completion status of this data item. More...

int	GetOffset () const
	Get the byte offset of this item within its parent's buffer. More...

PixelType	GetPixelType () const
	Get the pixel type of this data item. More...

void	SetTimestep (int t)
	Set the time step index for this data item. More...

void	SetManageMemory (bool b)
	Set whether this item owns (and will delete) its data buffer. More...

int	GetDimension () const
	Get the number of spatial dimensions. More...

int	GetDimension (int i) const
	Get the size along a specific dimension. More...

ImageDataItem::ConstPointer	GetParent () const
	Get the parent data item, if any. More...

ImageVtkReadAccessor *	GetVtkImageAccessor (ImageConstPointer iP) const
	Get or create a VTK read accessor for this data item. More...

ImageVtkWriteAccessor *	GetVtkImageAccessor (ImagePointer iP)
	Get or create a VTK write accessor for this data item. More...

bool	GetManageMemory () const
	Query whether this item will delete its data buffer on destruction. More...

virtual void	ConstructVtkImageData (ImageConstPointer iP) const
	Build a vtkImageData representation from the raw pixel buffer. More...

size_t	GetSize () const
	Get the total size of this data item in bytes. More...

virtual void	Modified () const
	Mark the internal vtkImageData as modified. More...

Protected Member Functions
void *	GetData () const

Protected Attributes
unsigned char *	m_Data

PixelType *	m_PixelType

bool	m_ManageMemory

vtkImageData *	m_VtkImageData

ImageVtkReadAccessor *	m_VtkImageReadAccessor

ImageVtkWriteAccessor *	m_VtkImageWriteAccessor

int	m_Offset

bool	m_IsComplete

size_t	m_Size

Detailed Description

Internal container for image data used by mitk::Image.

ImageDataItem manages raw pixel buffers and bridges between MITK's Image representation and VTK's vtkImageData. It is primarily used to represent sub-images (e.g. individual slices or volumes of a time series) inside mitk::Image.

This class is an implementation detail; it should not be used directly outside of mitk::Image and its accessor classes.

See also: Image, ImageReadAccessor, ImageWriteAccessor, ImageVtkReadAccessor

Definition at line 44 of file mitkImageDataItem.h.

Member Typedef Documentation

◆ ImageConstPointer

typedef itk::SmartPointer<const mitk::Image> mitk::ImageDataItem::ImageConstPointer

Smart pointer to const Image.

Definition at line 60 of file mitkImageDataItem.h.

◆ ImagePointer

typedef itk::SmartPointer<mitk::Image> mitk::ImageDataItem::ImagePointer

Smart pointer to Image.

Definition at line 59 of file mitkImageDataItem.h.

Constructor & Destructor Documentation

◆ ImageDataItem() [1/4]

mitk::ImageDataItem::ImageDataItem	(	const ImageDataItem &	aParent,
		const mitk::ImageDescriptor::Pointer	desc,
		int	timestep,
		unsigned int	dimension,
		void *	data = `nullptr`,
		bool	manageMemory = `false`,
		size_t	offset = `0`
	)

Construct a sub-image data item as a child of an existing item.

The child shares the parent's data buffer at the given offset.

Parameters

[in]	aParent	The parent ImageDataItem whose buffer is shared.
[in]	desc	Image descriptor providing dimension information.
[in]	timestep	Time step index associated with this item.
[in]	dimension	Number of dimensions for this sub-image.
[in]	data	Optional external data pointer. If non-null and different from the computed parent offset, data is memcpy'd.
[in]	manageMemory	If true and `data` is provided, the external buffer is deleted after copying.
[in]	offset	Byte offset into the parent's data buffer.

◆ ~ImageDataItem()

mitk::ImageDataItem::~ImageDataItem ( )

override

Destructor. Frees managed memory and VTK resources.

◆ ImageDataItem() [2/4]

mitk::ImageDataItem::ImageDataItem	(	const mitk::ImageDescriptor::Pointer	desc,
		int	timestep,
		void *	data,
		bool	manageMemory
	)

Construct a top-level data item from an image descriptor.

Allocates a new data buffer if data is nullptr.

Parameters

[in]	desc	Image descriptor providing pixel type and dimensions.
[in]	timestep	Time step index associated with this item.
[in]	data	Optional external data buffer.
[in]	manageMemory	If true, the provided buffer will be deleted on destruction.

◆ ImageDataItem() [3/4]

mitk::ImageDataItem::ImageDataItem	(	const mitk::PixelType &	type,
		int	timestep,
		unsigned int	dimension,
		unsigned int *	dimensions,
		void *	data,
		bool	manageMemory
	)

Construct a data item from explicit pixel type and dimension information.

Allocates a new data buffer if data is nullptr.

Parameters

[in]	type	The pixel type.
[in]	timestep	Time step index.
[in]	dimension	Number of spatial dimensions.
[in]	dimensions	Array of dimension sizes (must have at least `dimension` elements).
[in]	data	Optional external data buffer.
[in]	manageMemory	If true, the provided buffer will be deleted on destruction.

◆ ImageDataItem() [4/4]

mitk::ImageDataItem::ImageDataItem ( const ImageDataItem & other )

delete

Member Function Documentation

◆ ConstructVtkImageData()

virtual void mitk::ImageDataItem::ConstructVtkImageData ( ImageConstPointer iP ) const

virtual

Build a vtkImageData representation from the raw pixel buffer.

Sets up dimensions, spacing, origin, and scalar arrays matching the pixel type and dimension information of this item.

Parameters

[in] iP Smart pointer to the owning Image (used for spacing).

◆ GetData()

void* mitk::ImageDataItem::GetData ( ) const

inlineprotected

Helper function to allow friend classes to access m_Data without changing their code. Moved to protected visibility because only friends are allowed to access m_Data directly. Other classes should used ImageWriteAccessor::GetData() or ImageReadAccessor::GetData() to get access.

Definition at line 242 of file mitkImageDataItem.h.

◆ GetDimension() [1/2]

int mitk::ImageDataItem::GetDimension ( ) const

inline

Get the number of spatial dimensions.

Returns: The dimension count.

Definition at line 164 of file mitkImageDataItem.h.

Referenced by mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), and mitk::ImagePixelAccessor< TPixel, VDimension >::GetDimension().

◆ GetDimension() [2/2]

int mitk::ImageDataItem::GetDimension ( int i ) const

inline

Get the size along a specific dimension.

Parameters

[in] i The dimension index (0-based).

Returns: The size along dimension i, or 0 if i >= GetDimension().

Definition at line 171 of file mitkImageDataItem.h.

◆ GetManageMemory()

bool mitk::ImageDataItem::GetManageMemory ( ) const

inline

Query whether this item will delete its data buffer on destruction.

Returns: True if memory is managed by this item.

Definition at line 211 of file mitkImageDataItem.h.

◆ GetOffset()

int mitk::ImageDataItem::GetOffset ( ) const

inline

Get the byte offset of this item within its parent's buffer.

Returns: The offset in bytes, or 0 for top-level items.

Definition at line 140 of file mitkImageDataItem.h.

◆ GetParent()

ImageDataItem::ConstPointer mitk::ImageDataItem::GetParent ( ) const

inline

Get the parent data item, if any.

Returns: Smart pointer to the parent, or null for top-level items.

Definition at line 186 of file mitkImageDataItem.h.

◆ GetPixelType()

PixelType mitk::ImageDataItem::GetPixelType ( ) const

inline

Get the pixel type of this data item.

Returns: A copy of the PixelType.

Definition at line 146 of file mitkImageDataItem.h.

◆ GetSize()

size_t mitk::ImageDataItem::GetSize ( ) const

inline

Get the total size of this data item in bytes.

Returns: The byte size (pixel size * number of pixels).

Definition at line 227 of file mitkImageDataItem.h.

◆ GetVtkImageAccessor() [1/2]

ImageVtkReadAccessor* mitk::ImageDataItem::GetVtkImageAccessor ( ImageConstPointer iP ) const

Get or create a VTK read accessor for this data item.

If no vtkImageData has been constructed yet, one is created via ConstructVtkImageData(). For 3D images the VTK origin is set to (0, 0, 0) for historical compatibility (see MITK bug 5050).

Parameters

[in] iP Smart pointer to the owning Image (used for geometry queries).

Returns: Pointer to an ImageVtkReadAccessor wrapping the VTK data.

◆ GetVtkImageAccessor() [2/2]

ImageVtkWriteAccessor* mitk::ImageDataItem::GetVtkImageAccessor ( ImagePointer iP )

Get or create a VTK write accessor for this data item.

Parameters

[in] iP Smart pointer to the owning Image.

Returns: Pointer to an ImageVtkWriteAccessor wrapping the VTK data.

◆ IsComplete()

bool mitk::ImageDataItem::IsComplete ( ) const

inline

Check whether all sub-items of this data item have been filled.

Returns: True if complete.

Definition at line 128 of file mitkImageDataItem.h.

◆ mitkClassMacroItkParent()

mitk::ImageDataItem::mitkClassMacroItkParent	(	ImageDataItem	,
		itk::LightObject
	)

◆ Modified()

virtual void mitk::ImageDataItem::Modified ( ) const

virtual

Mark the internal vtkImageData as modified.

Call this after changing the raw data buffer so that VTK pipelines recognize the update.

◆ operator=()

ImageDataItem& mitk::ImageDataItem::operator= ( const ImageDataItem & other )

delete

◆ SetComplete()

void mitk::ImageDataItem::SetComplete ( bool complete )

inline

Set the completion status of this data item.

Parameters

[in] complete True if all data has been loaded.

Definition at line 134 of file mitkImageDataItem.h.

◆ SetManageMemory()

void mitk::ImageDataItem::SetManageMemory ( bool b )

inline

Set whether this item owns (and will delete) its data buffer.

Parameters

[in] b True if this item should manage the memory.

Definition at line 158 of file mitkImageDataItem.h.

◆ SetTimestep()

void mitk::ImageDataItem::SetTimestep ( int t )

inline

Set the time step index for this data item.

Parameters

[in] t The time step index.

Definition at line 152 of file mitkImageDataItem.h.

Member Data Documentation

◆ m_Data

unsigned char* mitk::ImageDataItem::m_Data

protected

Definition at line 244 of file mitkImageDataItem.h.

◆ m_IsComplete

bool mitk::ImageDataItem::m_IsComplete

protected

Definition at line 255 of file mitkImageDataItem.h.

◆ m_ManageMemory

bool mitk::ImageDataItem::m_ManageMemory

protected

Definition at line 248 of file mitkImageDataItem.h.

◆ m_Offset

int mitk::ImageDataItem::m_Offset

protected

Definition at line 253 of file mitkImageDataItem.h.

◆ m_PixelType

PixelType* mitk::ImageDataItem::m_PixelType

protected

Definition at line 246 of file mitkImageDataItem.h.

◆ m_Size

size_t mitk::ImageDataItem::m_Size

protected

Definition at line 257 of file mitkImageDataItem.h.

◆ m_VtkImageData

vtkImageData* mitk::ImageDataItem::m_VtkImageData

mutableprotected

Definition at line 250 of file mitkImageDataItem.h.

◆ m_VtkImageReadAccessor

ImageVtkReadAccessor* mitk::ImageDataItem::m_VtkImageReadAccessor

mutableprotected

Definition at line 251 of file mitkImageDataItem.h.

◆ m_VtkImageWriteAccessor

ImageVtkWriteAccessor* mitk::ImageDataItem::m_VtkImageWriteAccessor

protected

Definition at line 252 of file mitkImageDataItem.h.

The documentation for this class was generated from the following file:

mitkImageDataItem.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ImageConstPointer

◆ ImagePointer

Constructor & Destructor Documentation

◆ ImageDataItem() [1/4]

◆ ~ImageDataItem()

◆ ImageDataItem() [2/4]

◆ ImageDataItem() [3/4]

◆ ImageDataItem() [4/4]

Member Function Documentation

◆ ConstructVtkImageData()

◆ GetData()

◆ GetDimension() [1/2]

◆ GetDimension() [2/2]

◆ GetManageMemory()

◆ GetOffset()

◆ GetParent()

◆ GetPixelType()

◆ GetSize()

◆ GetVtkImageAccessor() [1/2]

◆ GetVtkImageAccessor() [2/2]

◆ IsComplete()

◆ mitkClassMacroItkParent()

◆ Modified()

◆ operator=()

◆ SetComplete()

◆ SetManageMemory()

◆ SetTimestep()

Member Data Documentation

◆ m_Data

◆ m_IsComplete

◆ m_ManageMemory

◆ m_Offset

◆ m_PixelType

◆ m_Size

◆ m_VtkImageData

◆ m_VtkImageReadAccessor

◆ m_VtkImageWriteAccessor
