#include <mitkImageAccessorBase.h>

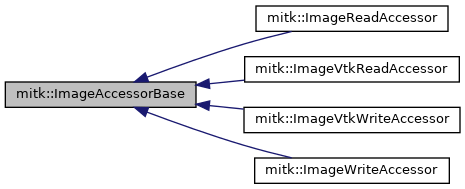

Inheritance diagram for mitk::ImageAccessorBase:

[legend]

Collaboration diagram for mitk::ImageAccessorBase:

Public Types
enum	Options { DefaultBehavior , ExceptionIfLocked , ForceCoherentMemory , IgnoreLock }
	Option flags that control ImageAccessor behavior. More...

typedef itk::SmartPointer< const mitk::Image >	ImageConstPointer
	Const smart pointer type for the associated Image. More...

Public Member Functions
virtual	~ImageAccessorBase ()
	Virtual destructor. Releases the wait lock if no other accessors are waiting. More...

const void *	GetData () const
	Get const access to the raw image data. More...

Protected Member Functions
	ImageAccessorBase (ImageConstPointer iP, const ImageDataItem *iDI=nullptr, int OptionFlags=DefaultBehavior)
	Checks validity of given parameters from inheriting classes and stores those parameters in member variables. More...

void	Increment ()
	Increments m_WaiterCount. A call of this method is prohibited unless the Mutex m_ReadWriteLock in the mitk::Image class is Locked. More...

bool	Overlap (const ImageAccessorBase *iAB)
	Computes if there is an Overlap of the image part between this instantiation and another ImageAccessor object. More...

void	WaitForReleaseOf (ImageAccessorWaitLock *wL)
	Uses the WaitLock to wait for another ImageAccessor. More...

void	PreventRecursiveMutexLock (ImageAccessorBase *iAB)
	Prevents a recursive mutex lock by comparing thread ids of competing image accessors. More...

virtual const Image *	GetImage () const =0

Protected Attributes
itk::ImageRegion< 4 > *	m_SubRegion

void *	m_AddressBegin

void *	m_AddressEnd

int	m_Options
	Stores all extended properties of an ImageAccessor. The different flags in mitk::ImageAccessorBase::Options can be unified by bitwise operations. More...

bool	m_CoherentMemory

ImageAccessorWaitLock *	m_WaitLock
	Pointer to a WaitLock struct, that allows other ImageAccessors to wait for this ImageAccessor. More...

ThreadIDType	m_Thread

Detailed Description

Definition at line 66 of file mitkImageAccessorBase.h.

Member Typedef Documentation

◆ ImageConstPointer

typedef itk::SmartPointer<const mitk::Image> mitk::ImageAccessorBase::ImageConstPointer

Const smart pointer type for the associated Image.

Definition at line 81 of file mitkImageAccessorBase.h.

Member Enumeration Documentation

◆ Options

enum mitk::ImageAccessorBase::Options

Option flags that control ImageAccessor behavior.

These flags can be combined via bitwise OR and passed to accessor constructors.

Enumerator
DefaultBehavior	Default behavior: wait for locked memory to be released.
ExceptionIfLocked	Throw MemoryIsLockedException instead of waiting if the memory is locked.
ForceCoherentMemory	Force the accessed memory to be coherent (contiguous). May cause additional memory allocation and data copying, potentially affecting performance.
IgnoreLock	Bypass the lock mechanism for immediate access. Only valid for read accessors.

Definition at line 89 of file mitkImageAccessorBase.h.

Constructor & Destructor Documentation

◆ ~ImageAccessorBase()

virtual mitk::ImageAccessorBase::~ImageAccessorBase ( )

virtual

Virtual destructor. Releases the wait lock if no other accessors are waiting.

◆ ImageAccessorBase()

mitk::ImageAccessorBase::ImageAccessorBase	(	ImageConstPointer	iP,
		const ImageDataItem *	iDI = `nullptr`,
		int	OptionFlags = `DefaultBehavior`
	)

protected

Checks validity of given parameters from inheriting classes and stores those parameters in member variables.

Member Function Documentation

◆ GetData()

const void* mitk::ImageAccessorBase::GetData ( ) const

inline

Get const access to the raw image data.

Returns: Pointer to the beginning of the accessed image memory region.

Definition at line 110 of file mitkImageAccessorBase.h.

◆ GetImage()

virtual const Image* mitk::ImageAccessorBase::GetImage ( ) const

protectedpure virtual

Implemented in mitk::ImageWriteAccessor, mitk::ImageVtkWriteAccessor, mitk::ImageVtkReadAccessor, and mitk::ImageReadAccessor.

◆ Increment()

void mitk::ImageAccessorBase::Increment ( )

inlineprotected

Increments m_WaiterCount. A call of this method is prohibited unless the Mutex m_ReadWriteLock in the mitk::Image class is Locked.

Definition at line 154 of file mitkImageAccessorBase.h.

References mitk::ImageAccessorWaitLock::m_WaiterCount.

◆ Overlap()

bool mitk::ImageAccessorBase::Overlap ( const ImageAccessorBase * iAB )

protected

Computes if there is an Overlap of the image part between this instantiation and another ImageAccessor object.

Exceptions

mitk::Exception if memory area is incoherent (not supported yet)

◆ PreventRecursiveMutexLock()

void mitk::ImageAccessorBase::PreventRecursiveMutexLock ( ImageAccessorBase * iAB )

protected

Prevents a recursive mutex lock by comparing thread ids of competing image accessors.

◆ WaitForReleaseOf()

void mitk::ImageAccessorBase::WaitForReleaseOf ( ImageAccessorWaitLock * wL )

protected

Uses the WaitLock to wait for another ImageAccessor.

Member Data Documentation

◆ m_AddressBegin

void* mitk::ImageAccessorBase::m_AddressBegin

protected

Points to the beginning of the image part.

Definition at line 136 of file mitkImageAccessorBase.h.

Referenced by mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetConsecutivePixelsAsVector(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetData(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetData(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetPixelByIndex(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetPixelByIndex(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::SetPixelByIndex(), and mitk::ImagePixelWriteAccessor< TPixel, VDimension >::SetPixelByIndexSafe().

◆ m_AddressEnd

void* mitk::ImageAccessorBase::m_AddressEnd

protected

Contains the first address after the image part.

Definition at line 139 of file mitkImageAccessorBase.h.

Referenced by mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), mitk::ImagePixelWriteAccessor< TPixel, VDimension >::GetPixelByIndexSafe(), and mitk::ImagePixelWriteAccessor< TPixel, VDimension >::SetPixelByIndexSafe().

◆ m_CoherentMemory

bool mitk::ImageAccessorBase::m_CoherentMemory

protected

Defines if the accessed image part lies coherently in memory

Definition at line 147 of file mitkImageAccessorBase.h.

◆ m_Options

int mitk::ImageAccessorBase::m_Options

protected

Stores all extended properties of an ImageAccessor. The different flags in mitk::ImageAccessorBase::Options can be unified by bitwise operations.

Definition at line 144 of file mitkImageAccessorBase.h.

◆ m_SubRegion

itk::ImageRegion<4>* mitk::ImageAccessorBase::m_SubRegion

protected

ImageAccessor has access to the image it belongs to. Contains a SubRegion (always represented in maximal possible dimension)

Definition at line 133 of file mitkImageAccessorBase.h.

◆ m_Thread

ThreadIDType mitk::ImageAccessorBase::m_Thread

protected

Definition at line 164 of file mitkImageAccessorBase.h.

◆ m_WaitLock

ImageAccessorWaitLock* mitk::ImageAccessorBase::m_WaitLock

protected

Pointer to a WaitLock struct, that allows other ImageAccessors to wait for this ImageAccessor.

Definition at line 150 of file mitkImageAccessorBase.h.

The documentation for this class was generated from the following file:

mitkImageAccessorBase.h
