#include <mitkProportionalTimeGeometry.h>

Inheritance diagram for mitk::ProportionalTimeGeometry:

[legend]

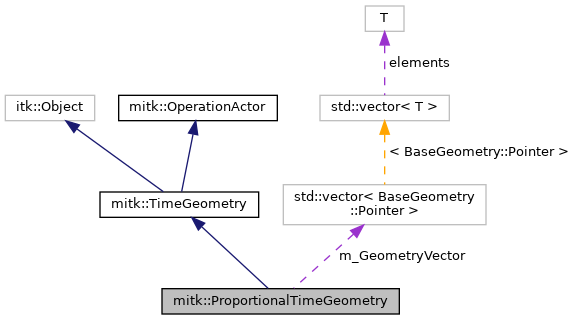

Collaboration diagram for mitk::ProportionalTimeGeometry:

[legend]

Public Types
typedef ProportionalTimeGeometry	self

Public Member Functions
	mitkClassMacro (ProportionalTimeGeometry, TimeGeometry)

	ProportionalTimeGeometry ()

Pointer	Clone () const

TimeStepType	CountTimeSteps () const override
	Returns the number of time steps. More...

TimePointType	GetMinimumTimePoint () const override
	Returns the first time point for which the object is valid. More...

TimePointType	GetMaximumTimePoint () const override
	Returns the last time point for which the object is valid. More...

TimePointType	GetMinimumTimePoint (TimeStepType step) const override
	Returns the first time point for which the object is valid. More...

TimePointType	GetMaximumTimePoint (TimeStepType step) const override
	Returns the last time point for which the object is valid. More...

TimeBounds	GetTimeBounds () const override
	Get the time bounds (in ms) More...

TimeBounds	GetTimeBounds (TimeStepType step) const override
	Get the time bounds for the given TimeStep (in ms) More...

bool	IsValidTimePoint (TimePointType timePoint) const override
	Tests if a given time point is covered by this object. More...

bool	IsValidTimeStep (TimeStepType timeStep) const override
	Test for the given time step if a geometry is available. More...

TimePointType	TimeStepToTimePoint (TimeStepType timeStep) const override
	Converts a time step to a time point. More...

TimeStepType	TimePointToTimeStep (TimePointType timePoint) const override
	Converts a time point to the corresponding time step. More...

BaseGeometry::Pointer	GetGeometryCloneForTimeStep (TimeStepType timeStep) const override
	Returns the geometry which corresponds to the given time step. More...

BaseGeometry::Pointer	GetGeometryForTimePoint (TimePointType timePoint) const override
	Returns the geometry which corresponds to the given time point. More...

BaseGeometry::Pointer	GetGeometryForTimeStep (TimeStepType timeStep) const override
	Returns the geometry which corresponds to the given time step. More...

bool	IsValid () const override
	Tests if all necessary information are set and the object is valid. More...

void	Initialize () override
	Initializes a new object with one time steps which contains an empty geometry. More...

void	Expand (TimeStepType size) override
	Expands the time geometry to the given number of time steps. More...

void	SetTimeStepGeometry (BaseGeometry *geometry, TimeStepType timeStep) override
	Sets the geometry for the given time step. More...

void	ReplaceTimeStepGeometries (const BaseGeometry *geometry) override
	Replaces the geometry instances with clones of the passed geometry. More...

virtual TimePointType	GetFirstTimePoint () const
	Get the time point of the first time step (in ms). More...

virtual void	SetFirstTimePoint (TimePointType _arg)
	Set the time point of the first time step (in ms). More...

virtual TimePointType	GetStepDuration () const
	Get the uniform duration of each time step (in ms). More...

virtual void	SetStepDuration (TimePointType _arg)
	Set the uniform duration of each time step (in ms). More...

void	ClearAllGeometries ()
	Remove all stored geometries, leaving the container empty. More...

void	ReserveSpaceForGeometries (TimeStepType numberOfGeometries)
	Pre-allocate space for a given number of geometries. More...

void	Initialize (const BaseGeometry *geometry, TimeStepType timeSteps)
	Initialize with copies of a given geometry for each time step. More...

void	Initialize (TimeStepType timeSteps)
	Initialize with empty Geometry3D instances for each time step. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Public Member Functions inherited from mitk::TimeGeometry
	mitkClassMacroItkParent (TimeGeometry, itk::Object)

Pointer	Clone () const

	itkCreateAnotherMacro (Self)

Point3D	GetCornerPointInWorld (int id) const
	Get the position of the corner number id (in world coordinates) More...

Point3D	GetCornerPointInWorld (bool xFront=true, bool yFront=true, bool zFront=true) const
	Get the position of a corner (in world coordinates) More...

Point3D	GetCenterInWorld () const
	Get the center of the bounding-box in mm. More...

double	GetDiagonalLength2InWorld () const
	Get the squared length of the diagonal of the bounding-box in mm. More...

double	GetDiagonalLengthInWorld () const
	Get the length of the diagonal of the bounding-box in mm. More...

bool	IsWorldPointInside (const mitk::Point3D &p) const
	Test whether the point p (world coordinates in mm) is inside the bounding box. More...

void	UpdateBoundingBox ()
	Recompute the bounding box to cover all time steps. More...

BoundingBox *	GetBoundingBoxInWorld () const
	Get the bounding box that covers all time steps. More...

BoundingBox::BoundsArrayType	GetBoundsInWorld () const
	Get the bounds array of the aggregate bounding box. More...

ScalarType	GetExtentInWorld (unsigned int direction) const
	Get the extent of the aggregate bounding box in the given direction. More...

void	Update ()
	Update the geometry (bounding box and subclass-specific data). More...

virtual void	UpdateWithoutBoundingBox ()
	Hook for subclass-specific updates that do not involve the bounding box. More...

void	ExecuteOperation (Operation *op) override
	Execute the given operation on all time steps. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	ProportionalTimeGeometry (const ProportionalTimeGeometry &other)

	~ProportionalTimeGeometry () override

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::TimeGeometry
	TimeGeometry ()

	TimeGeometry (const TimeGeometry &other)

	~TimeGeometry () override

Protected Attributes
std::vector< BaseGeometry::Pointer >	m_GeometryVector

TimePointType	m_FirstTimePoint

TimePointType	m_StepDuration

Protected Attributes inherited from mitk::TimeGeometry
BoundingBox::Pointer	m_BoundingBox
	Contains a bounding box which includes all time steps. More...

Detailed Description

Definition at line 38 of file mitkProportionalTimeGeometry.h.

Member Typedef Documentation

◆ self

typedef ProportionalTimeGeometry mitk::ProportionalTimeGeometry::self

Definition at line 44 of file mitkProportionalTimeGeometry.h.

Constructor & Destructor Documentation

◆ ProportionalTimeGeometry() [1/2]

mitk::ProportionalTimeGeometry::ProportionalTimeGeometry ( )

◆ ProportionalTimeGeometry() [2/2]

mitk::ProportionalTimeGeometry::ProportionalTimeGeometry ( const ProportionalTimeGeometry & other )

protected

◆ ~ProportionalTimeGeometry()

mitk::ProportionalTimeGeometry::~ProportionalTimeGeometry ( )

overrideprotected

Member Function Documentation

◆ ClearAllGeometries()

void mitk::ProportionalTimeGeometry::ClearAllGeometries ( )

Remove all stored geometries, leaving the container empty.

◆ Clone()

Pointer mitk::ProportionalTimeGeometry::Clone ( ) const

◆ CountTimeSteps()

TimeStepType mitk::ProportionalTimeGeometry::CountTimeSteps ( ) const

overridevirtual

Returns the number of time steps.

Returns the number of time steps for which geometries are saved. The number of time steps is also the upper bound of the time steps. The minimum time steps is always 0.

Implements mitk::TimeGeometry.

◆ Expand()

void mitk::ProportionalTimeGeometry::Expand ( TimeStepType size )

overridevirtual

Expands the time geometry to the given number of time steps.

Initializes the new time steps with empty geometries if no timesteps in the geometry so far. Otherwise fills the new times steps with clones of the first time step. Shrinking is not supported.

Implements mitk::TimeGeometry.

◆ GetFirstTimePoint()

virtual TimePointType mitk::ProportionalTimeGeometry::GetFirstTimePoint ( ) const

virtual

Get the time point of the first time step (in ms).

Returns: The minimum time point.

◆ GetGeometryCloneForTimeStep()

BaseGeometry::Pointer mitk::ProportionalTimeGeometry::GetGeometryCloneForTimeStep ( TimeStepType timeStep ) const

overridevirtual

Returns the geometry which corresponds to the given time step.

Returns a clone of the geometry which defines the given time step. If the given time step is invalid an null-pointer is returned.

Implements mitk::TimeGeometry.

◆ GetGeometryForTimePoint()

BaseGeometry::Pointer mitk::ProportionalTimeGeometry::GetGeometryForTimePoint ( TimePointType timePoint ) const

overridevirtual

Returns the geometry which corresponds to the given time point.

Returns the geometry which defines the given time point. If the given time point is invalid an null-pointer is returned.

If the returned geometry is changed this will affect the saved geometry.

Implements mitk::TimeGeometry.

◆ GetGeometryForTimeStep()

BaseGeometry::Pointer mitk::ProportionalTimeGeometry::GetGeometryForTimeStep ( TimeStepType timeStep ) const

overridevirtual

Returns the geometry which corresponds to the given time step.

Returns the geometry which defines the given time step. If the given time step is invalid an null-pointer is returned.

If the returned geometry is changed this will affect the saved geometry.

Implements mitk::TimeGeometry.

◆ GetMaximumTimePoint() [1/2]

TimePointType mitk::ProportionalTimeGeometry::GetMaximumTimePoint ( ) const

overridevirtual

Returns the last time point for which the object is valid.

Gives the last time point for which a valid geometry is saved in this time geometry. The time point is given in ms.

Implements mitk::TimeGeometry.

◆ GetMaximumTimePoint() [2/2]

TimePointType mitk::ProportionalTimeGeometry::GetMaximumTimePoint ( TimeStepType step ) const

overridevirtual

Returns the last time point for which the object is valid.

Gives the last time point for the Geometry specified by the given TimeStep. The time point is given in ms.

Implements mitk::TimeGeometry.

◆ GetMinimumTimePoint() [1/2]

TimePointType mitk::ProportionalTimeGeometry::GetMinimumTimePoint ( ) const

overridevirtual

Returns the first time point for which the object is valid.

Returns the first valid time point for this geometry. If only one time steps available it usually goes from -max to +max. The time point is given in ms.

Implements mitk::TimeGeometry.

◆ GetMinimumTimePoint() [2/2]

TimePointType mitk::ProportionalTimeGeometry::GetMinimumTimePoint ( TimeStepType step ) const

overridevirtual

Returns the first time point for which the object is valid.

Returns the first valid time point for the given TimeStep. The time point is given in ms.

Implements mitk::TimeGeometry.

◆ GetStepDuration()

virtual TimePointType mitk::ProportionalTimeGeometry::GetStepDuration ( ) const

virtual

Get the uniform duration of each time step (in ms).

Returns: The step duration.

◆ GetTimeBounds() [1/2]

TimeBounds mitk::ProportionalTimeGeometry::GetTimeBounds ( ) const

overridevirtual

Get the time bounds (in ms)

Implements mitk::TimeGeometry.

◆ GetTimeBounds() [2/2]

TimeBounds mitk::ProportionalTimeGeometry::GetTimeBounds ( TimeStepType step ) const

overridevirtual

Get the time bounds for the given TimeStep (in ms)

Implements mitk::TimeGeometry.

◆ Initialize() [1/3]

void mitk::ProportionalTimeGeometry::Initialize ( )

overridevirtual

Initializes a new object with one time steps which contains an empty geometry.

Reimplemented from mitk::TimeGeometry.

◆ Initialize() [2/3]

void mitk::ProportionalTimeGeometry::Initialize	(	const BaseGeometry *	geometry,
		TimeStepType	timeSteps
	)

Initialize with copies of a given geometry for each time step.

Clones geometry for each of the timeSteps steps. If timeSteps < 2, the time bounds span from -max to +max with infinite duration. Otherwise, the first time point is 0 and the step duration is 1 ms.

Parameters

[in]	geometry	The geometry to clone for each step.
[in]	timeSteps	Number of time steps (minimum 1).

◆ Initialize() [3/3]

void mitk::ProportionalTimeGeometry::Initialize ( TimeStepType timeSteps )

Initialize with empty Geometry3D instances for each time step.

Creates a default Geometry3D and delegates to Initialize(const BaseGeometry*, TimeStepType).

Parameters

[in] timeSteps Number of time steps (minimum 1).

◆ IsValid()

bool mitk::ProportionalTimeGeometry::IsValid ( ) const

overridevirtual

Tests if all necessary information are set and the object is valid.

Implements mitk::TimeGeometry.

◆ IsValidTimePoint()

bool mitk::ProportionalTimeGeometry::IsValidTimePoint ( TimePointType timePoint ) const

overridevirtual

Tests if a given time point is covered by this object.

Returns true if a geometry can be returned for the given time point and falls if not. The time point must be given in ms.

Implements mitk::TimeGeometry.

◆ IsValidTimeStep()

bool mitk::ProportionalTimeGeometry::IsValidTimeStep ( TimeStepType timeStep ) const

overridevirtual

Test for the given time step if a geometry is available.

Returns true if a geometry is defined for the given time step. Otherwise false is returned. The time step is defined as positive number.

Implements mitk::TimeGeometry.

◆ mitkClassMacro()

mitk::ProportionalTimeGeometry::mitkClassMacro	(	ProportionalTimeGeometry	,
		TimeGeometry
	)

◆ mitkCloneMacro()

mitk::ProportionalTimeGeometry::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::ProportionalTimeGeometry::New ( )

static

Referenced by mitk::Image::InitializeByItk().

◆ PrintSelf()

void mitk::ProportionalTimeGeometry::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

override

◆ ReplaceTimeStepGeometries()

void mitk::ProportionalTimeGeometry::ReplaceTimeStepGeometries ( const BaseGeometry * geometry )

overridevirtual

Replaces the geometry instances with clones of the passed geometry.

Replaces the geometries of all time steps with clones of the passed geometry. Replacement strategy depends on the implementation of TimeGeometry sub class.

Remarks: The time points itself stays untouched. Use this method if you want to change the spatial properties of a TimeGeometry and preserve the time "grid".

Implements mitk::TimeGeometry.

◆ ReserveSpaceForGeometries()

void mitk::ProportionalTimeGeometry::ReserveSpaceForGeometries ( TimeStepType numberOfGeometries )

Pre-allocate space for a given number of geometries.

This only reserves memory; it does not create geometry objects.

Parameters

[in] numberOfGeometries The number of slots to reserve.

◆ SetFirstTimePoint()

virtual void mitk::ProportionalTimeGeometry::SetFirstTimePoint ( TimePointType _arg )

virtual

Set the time point of the first time step (in ms).

Parameters

[in] _arg The first time point value.

◆ SetStepDuration()

virtual void mitk::ProportionalTimeGeometry::SetStepDuration ( TimePointType _arg )

virtual

Set the uniform duration of each time step (in ms).

Parameters

[in] _arg The step duration value.

◆ SetTimeStepGeometry()

void mitk::ProportionalTimeGeometry::SetTimeStepGeometry	(	BaseGeometry *	geometry,
		TimeStepType	timeStep
	)

overridevirtual

Sets the geometry for the given time step.

This method does not afflict other time steps, since the geometry for each time step is saved individually.

Implements mitk::TimeGeometry.

◆ TimePointToTimeStep()

TimeStepType mitk::ProportionalTimeGeometry::TimePointToTimeStep ( TimePointType timePoint ) const

overridevirtual

Converts a time point to the corresponding time step.

Converts a time point to a time step in a way that the new time step indicates the same geometry as the time point. If a negative invalid time point is given always time step 0 is returned. If an positive invalid time step is given an invalid time step will be returned.

Implements mitk::TimeGeometry.

◆ TimeStepToTimePoint()

TimePointType mitk::ProportionalTimeGeometry::TimeStepToTimePoint ( TimeStepType timeStep ) const

overridevirtual

Converts a time step to a time point.

Converts a time step to a time point in a way that the new time point indicates the same geometry as the time step. If the original time steps does not point to a valid geometry, a time point is calculated that also does not point to a valid geometry, but no exception is raised.

Implements mitk::TimeGeometry.

Member Data Documentation

◆ m_FirstTimePoint

TimePointType mitk::ProportionalTimeGeometry::m_FirstTimePoint

protected

Definition at line 268 of file mitkProportionalTimeGeometry.h.

◆ m_GeometryVector

std::vector<BaseGeometry::Pointer> mitk::ProportionalTimeGeometry::m_GeometryVector

protected

Definition at line 267 of file mitkProportionalTimeGeometry.h.

◆ m_StepDuration

TimePointType mitk::ProportionalTimeGeometry::m_StepDuration

protected

Definition at line 269 of file mitkProportionalTimeGeometry.h.

The documentation for this class was generated from the following file:

mitkProportionalTimeGeometry.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ self

Constructor & Destructor Documentation

◆ ProportionalTimeGeometry() [1/2]

◆ ProportionalTimeGeometry() [2/2]

◆ ~ProportionalTimeGeometry()

Member Function Documentation

◆ ClearAllGeometries()

◆ Clone()

◆ CountTimeSteps()

◆ Expand()

◆ GetFirstTimePoint()

◆ GetGeometryCloneForTimeStep()

◆ GetGeometryForTimePoint()

◆ GetGeometryForTimeStep()

◆ GetMaximumTimePoint() [1/2]

◆ GetMaximumTimePoint() [2/2]

◆ GetMinimumTimePoint() [1/2]

◆ GetMinimumTimePoint() [2/2]

◆ GetStepDuration()

◆ GetTimeBounds() [1/2]

◆ GetTimeBounds() [2/2]

◆ Initialize() [1/3]

◆ Initialize() [2/3]

◆ Initialize() [3/3]

◆ IsValid()

◆ IsValidTimePoint()

◆ IsValidTimeStep()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ PrintSelf()

◆ ReplaceTimeStepGeometries()

◆ ReserveSpaceForGeometries()

◆ SetFirstTimePoint()

◆ SetStepDuration()

◆ SetTimeStepGeometry()

◆ TimePointToTimeStep()

◆ TimeStepToTimePoint()

Member Data Documentation

◆ m_FirstTimePoint

◆ m_GeometryVector

◆ m_StepDuration
