Wrapper for VTK scalar opacity, gradient opacity, and color transfer functions. More...

#include <mitkTransferFunction.h>

Inheritance diagram for mitk::TransferFunction:

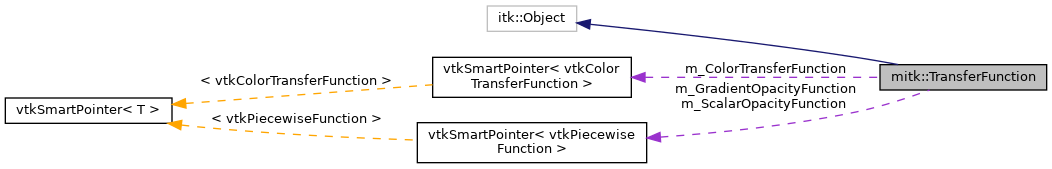

Collaboration diagram for mitk::TransferFunction:

[legend]

Public Types
typedef std::vector< std::pair< double, double > >	ControlPoints
	Type for scalar opacity or gradient opacity control points (x, value). More...

typedef std::vector< std::pair< double, itk::RGBPixel< double > > >	RGBControlPoints
	Type for color transfer function control points (x, RGB). More...

Public Member Functions
	mitkClassMacroItkParent (TransferFunction, itk::DataObject)

Pointer	Clone () const

virtual void	SetMin (int _arg)
	Get/Set min/max of transfer function range for initialization. More...

virtual void	SetMax (int _arg)
	Get/Set min/max of transfer function range for initialization. More...

virtual int	GetMin ()
	Get/Set min/max of transfer function range for initialization. More...

virtual int	GetMax ()
	Get/Set min/max of transfer function range for initialization. More...

virtual vtkPiecewiseFunction *	GetScalarOpacityFunction ()
	Get/Set wrapped vtk transfer function. More...

virtual vtkPiecewiseFunction *	GetGradientOpacityFunction ()
	Get/Set wrapped vtk transfer function. More...

virtual vtkColorTransferFunction *	GetColorTransferFunction ()
	Get/Set wrapped vtk transfer function. More...

virtual void	SetColorTransferFunction (vtkSmartPointer< vtkColorTransferFunction > _arg)

virtual const HistogramGenerator::HistogramType *	GetHistogram ()
	Get histogram used for transfer function initialization. More...

void	InitializeByMitkImage (const mitk::Image *image)
	Initialize all three transfer functions from an mitk::Image histogram. More...

void	InitializeByItkHistogram (const itk::Statistics::Histogram< double > *histogram)
	Initialize all three transfer functions from an ITK histogram. More...

void	InitializeHistogram (const mitk::Image *image)
	Compute and store the histogram and min/max range from an image. More...

void	SetScalarOpacityPoints (TransferFunction::ControlPoints points)
	Replace all scalar opacity control points. More...

void	SetGradientOpacityPoints (TransferFunction::ControlPoints points)
	Replace all gradient opacity control points. More...

void	SetRGBPoints (TransferFunction::RGBControlPoints rgbpoints)
	Replace all color transfer function control points. More...

void	AddScalarOpacityPoint (double x, double value)
	Add a single control point to the scalar opacity function. More...

void	AddGradientOpacityPoint (double x, double value)
	Add a single control point to the gradient opacity function. More...

void	AddRGBPoint (double x, double r, double g, double b)
	Add a single control point to the color transfer function. More...

TransferFunction::ControlPoints &	GetScalarOpacityPoints ()
	Get the scalar opacity control points. More...

TransferFunction::ControlPoints &	GetGradientOpacityPoints ()
	Get the gradient opacity control points. More...

TransferFunction::RGBControlPoints &	GetRGBPoints ()
	Get the color transfer function control points. More...

int	RemoveScalarOpacityPoint (double x)
	Remove a control point from the scalar opacity function. More...

int	RemoveGradientOpacityPoint (double x)
	Remove a control point from the gradient opacity function. More...

int	RemoveRGBPoint (double x)
	Remove a control point from the color transfer function. More...

void	ClearScalarOpacityPoints ()
	Remove all control points from the scalar opacity function. More...

void	ClearGradientOpacityPoints ()
	Remove all control points from the gradient opacity function. More...

void	ClearRGBPoints ()
	Remove all control points from the color transfer function. More...

bool	operator== (Self &other)
	Compare two TransferFunction objects for equality. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	TransferFunction ()

	~TransferFunction () override

	TransferFunction (const Self &other)

	mitkCloneMacro (Self)

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Attributes
vtkSmartPointer< vtkPiecewiseFunction >	m_ScalarOpacityFunction

vtkSmartPointer< vtkPiecewiseFunction >	m_GradientOpacityFunction

vtkSmartPointer< vtkColorTransferFunction >	m_ColorTransferFunction

int	m_Min

int	m_Max

mitk::HistogramGenerator::HistogramType::ConstPointer	m_Histogram

Detailed Description

Wrapper for VTK scalar opacity, gradient opacity, and color transfer functions.

Holds and manages three standard VTK transfer functions: scalar opacity (vtkPiecewiseFunction), gradient opacity (vtkPiecewiseFunction), and color (vtkColorTransferFunction). Provides an interface for adding, removing, and querying control points, as well as initialization from image histograms.

Note: If you want to use this as a property for an mitk::Image, wrap it in a mitk::TransferFunctionProperty and set mitk::RenderingModeProperty to a mode that supports transfer functions (e.g. COLORTRANSFERFUNCTION_COLOR). See the test mitkImageVtkMapper2DTransferFunctionTest.cpp for an example.

See also: TransferFunctionProperty, RenderingModeProperty, LookupTable

Definition at line 49 of file mitkTransferFunction.h.

Member Typedef Documentation

◆ ControlPoints

typedef std::vector<std::pair<double, double> > mitk::TransferFunction::ControlPoints

Type for scalar opacity or gradient opacity control points (x, value).

Definition at line 53 of file mitkTransferFunction.h.

◆ RGBControlPoints

typedef std::vector<std::pair<double, itk::RGBPixel<double> > > mitk::TransferFunction::RGBControlPoints

Type for color transfer function control points (x, RGB).

Definition at line 56 of file mitkTransferFunction.h.

Constructor & Destructor Documentation

◆ TransferFunction() [1/2]

mitk::TransferFunction::TransferFunction ( )

protected

◆ ~TransferFunction()

mitk::TransferFunction::~TransferFunction ( )

overrideprotected

◆ TransferFunction() [2/2]

mitk::TransferFunction::TransferFunction ( const Self & other )

protected

Member Function Documentation

◆ AddGradientOpacityPoint()

void mitk::TransferFunction::AddGradientOpacityPoint	(	double	x,
		double	value
	)

Add a single control point to the gradient opacity function.

Parameters

[in]	x	The gradient magnitude position.
[in]	value	The opacity at this position (0.0 to 1.0).

◆ AddRGBPoint()

void mitk::TransferFunction::AddRGBPoint	(	double	x,
		double	r,
		double	g,
		double	b
	)

Add a single control point to the color transfer function.

Parameters

[in]	x	The scalar value position.
[in]	r	Red component (0.0 to 1.0).
[in]	g	Green component (0.0 to 1.0).
[in]	b	Blue component (0.0 to 1.0).

◆ AddScalarOpacityPoint()

void mitk::TransferFunction::AddScalarOpacityPoint	(	double	x,
		double	value
	)

Add a single control point to the scalar opacity function.

Parameters

[in]	x	The scalar value position.
[in]	value	The opacity at this position (0.0 to 1.0).

◆ ClearGradientOpacityPoints()

void mitk::TransferFunction::ClearGradientOpacityPoints ( )

Remove all control points from the gradient opacity function.

◆ ClearRGBPoints()

void mitk::TransferFunction::ClearRGBPoints ( )

Remove all control points from the color transfer function.

◆ ClearScalarOpacityPoints()

void mitk::TransferFunction::ClearScalarOpacityPoints ( )

Remove all control points from the scalar opacity function.

◆ Clone()

Pointer mitk::TransferFunction::Clone ( ) const

◆ GetColorTransferFunction()

virtual vtkColorTransferFunction* mitk::TransferFunction::GetColorTransferFunction ( )

virtual

Get/Set wrapped vtk transfer function.

◆ GetGradientOpacityFunction()

virtual vtkPiecewiseFunction* mitk::TransferFunction::GetGradientOpacityFunction ( )

virtual

Get/Set wrapped vtk transfer function.

◆ GetGradientOpacityPoints()

TransferFunction::ControlPoints& mitk::TransferFunction::GetGradientOpacityPoints ( )

Get the gradient opacity control points.

Returns: Reference to the internal control point vector.

◆ GetHistogram()

virtual const HistogramGenerator::HistogramType* mitk::TransferFunction::GetHistogram ( )

virtual

Get histogram used for transfer function initialization.

◆ GetMax()

virtual int mitk::TransferFunction::GetMax ( )

virtual

Get/Set min/max of transfer function range for initialization.

◆ GetMin()

virtual int mitk::TransferFunction::GetMin ( )

virtual

Get/Set min/max of transfer function range for initialization.

◆ GetRGBPoints()

TransferFunction::RGBControlPoints& mitk::TransferFunction::GetRGBPoints ( )

Get the color transfer function control points.

Returns: Reference to the internal RGB control point vector.

◆ GetScalarOpacityFunction()

virtual vtkPiecewiseFunction* mitk::TransferFunction::GetScalarOpacityFunction ( )

virtual

Get/Set wrapped vtk transfer function.

◆ GetScalarOpacityPoints()

TransferFunction::ControlPoints& mitk::TransferFunction::GetScalarOpacityPoints ( )

Get the scalar opacity control points.

Returns: Reference to the internal control point vector.

◆ InitializeByItkHistogram()

void mitk::TransferFunction::InitializeByItkHistogram ( const itk::Statistics::Histogram< double > * histogram )

Initialize all three transfer functions from an ITK histogram.

Parameters

[in] histogram The histogram to use for initialization.

◆ InitializeByMitkImage()

void mitk::TransferFunction::InitializeByMitkImage ( const mitk::Image * image )

Initialize all three transfer functions from an mitk::Image histogram.

Parameters

[in] image The image whose histogram drives the initialization.

◆ InitializeHistogram()

void mitk::TransferFunction::InitializeHistogram ( const mitk::Image * image )

Compute and store the histogram and min/max range from an image.

Parameters

[in] image The image from which the histogram is computed.

◆ mitkClassMacroItkParent()

mitk::TransferFunction::mitkClassMacroItkParent	(	TransferFunction	,
		itk::DataObject
	)

◆ mitkCloneMacro()

mitk::TransferFunction::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::TransferFunction::New ( )

static

◆ operator==()

bool mitk::TransferFunction::operator== ( Self & other )

Compare two TransferFunction objects for equality.

Parameters

[in] other The TransferFunction to compare against.

Returns: True if all three transfer functions have identical control points.

◆ PrintSelf()

void mitk::TransferFunction::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ RemoveGradientOpacityPoint()

int mitk::TransferFunction::RemoveGradientOpacityPoint ( double x )

Remove a control point from the gradient opacity function.

Parameters

[in] x The gradient position of the control point to remove.

Returns: The index of the removed point, or -1 if not found.

◆ RemoveRGBPoint()

int mitk::TransferFunction::RemoveRGBPoint ( double x )

Remove a control point from the color transfer function.

Parameters

[in] x The scalar position of the control point to remove.

Returns: The index of the removed point, or -1 if not found.

◆ RemoveScalarOpacityPoint()

int mitk::TransferFunction::RemoveScalarOpacityPoint ( double x )

Remove a control point from the scalar opacity function.

Parameters

[in] x The scalar position of the control point to remove.

Returns: The index of the removed point, or -1 if not found.

◆ SetColorTransferFunction()

virtual void mitk::TransferFunction::SetColorTransferFunction ( vtkSmartPointer< vtkColorTransferFunction > _arg )

virtual

◆ SetGradientOpacityPoints()

void mitk::TransferFunction::SetGradientOpacityPoints ( TransferFunction::ControlPoints points )

Replace all gradient opacity control points.

Parameters

[in] points The new set of (x, opacity) control points.

◆ SetMax()

virtual void mitk::TransferFunction::SetMax ( int _arg )

virtual

Get/Set min/max of transfer function range for initialization.

◆ SetMin()

virtual void mitk::TransferFunction::SetMin ( int _arg )

virtual

Get/Set min/max of transfer function range for initialization.

◆ SetRGBPoints()

void mitk::TransferFunction::SetRGBPoints ( TransferFunction::RGBControlPoints rgbpoints )

Replace all color transfer function control points.

Parameters

[in] rgbpoints The new set of (x, RGB) control points.

◆ SetScalarOpacityPoints()

void mitk::TransferFunction::SetScalarOpacityPoints ( TransferFunction::ControlPoints points )

Replace all scalar opacity control points.

Parameters

[in] points The new set of (x, opacity) control points.

Member Data Documentation

◆ m_ColorTransferFunction

vtkSmartPointer<vtkColorTransferFunction> mitk::TransferFunction::m_ColorTransferFunction

protected

Wrapped VTK color transfer function

Definition at line 220 of file mitkTransferFunction.h.

◆ m_GradientOpacityFunction

vtkSmartPointer<vtkPiecewiseFunction> mitk::TransferFunction::m_GradientOpacityFunction

protected

Wrapped VTK gradient opacity transfer function

Definition at line 217 of file mitkTransferFunction.h.

◆ m_Histogram

mitk::HistogramGenerator::HistogramType::ConstPointer mitk::TransferFunction::m_Histogram

protected

Specified or calculated histogram (used for initialization)

Definition at line 229 of file mitkTransferFunction.h.

◆ m_Max

int mitk::TransferFunction::m_Max

protected

Current range of transfer function (used for initialization)

Definition at line 226 of file mitkTransferFunction.h.

◆ m_Min

int mitk::TransferFunction::m_Min

protected

Current range of transfer function (used for initialization)

Definition at line 223 of file mitkTransferFunction.h.

◆ m_ScalarOpacityFunction

vtkSmartPointer<vtkPiecewiseFunction> mitk::TransferFunction::m_ScalarOpacityFunction

protected

Wrapped VTK scalar opacity transfer function

Definition at line 214 of file mitkTransferFunction.h.

The documentation for this class was generated from the following file:

mitkTransferFunction.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ControlPoints

◆ RGBControlPoints

Constructor & Destructor Documentation

◆ TransferFunction() [1/2]

◆ ~TransferFunction()

◆ TransferFunction() [2/2]

Member Function Documentation

◆ AddGradientOpacityPoint()

◆ AddRGBPoint()

◆ AddScalarOpacityPoint()

◆ ClearGradientOpacityPoints()

◆ ClearRGBPoints()

◆ ClearScalarOpacityPoints()

◆ Clone()

◆ GetColorTransferFunction()

◆ GetGradientOpacityFunction()

◆ GetGradientOpacityPoints()

◆ GetHistogram()

◆ GetMax()

◆ GetMin()

◆ GetRGBPoints()

◆ GetScalarOpacityFunction()

◆ GetScalarOpacityPoints()

◆ InitializeByItkHistogram()

◆ InitializeByMitkImage()

◆ InitializeHistogram()

◆ mitkClassMacroItkParent()

◆ mitkCloneMacro()

◆ New()

◆ operator==()

◆ PrintSelf()

◆ RemoveGradientOpacityPoint()

◆ RemoveRGBPoint()

◆ RemoveScalarOpacityPoint()

◆ SetColorTransferFunction()

◆ SetGradientOpacityPoints()

◆ SetMax()

◆ SetMin()

◆ SetRGBPoints()

◆ SetScalarOpacityPoints()

Member Data Documentation

◆ m_ColorTransferFunction

◆ m_GradientOpacityFunction

◆ m_Histogram

◆ m_Max

◆ m_Min

◆ m_ScalarOpacityFunction
