MITK wrapper for a vtkLookupTable. More...

#include <mitkLookupTable.h>

Inheritance diagram for mitk::LookupTable:

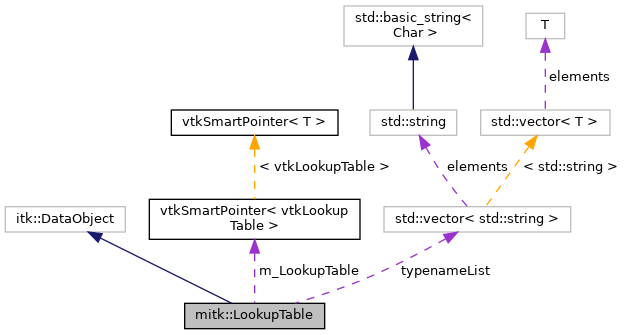

Collaboration diagram for mitk::LookupTable:

[legend]

Public Types
enum	LookupTableType { GRAYSCALE , INVERSE_GRAYSCALE , HOT_IRON , JET , JET_TRANSPARENT , PLASMA , INFERNO , VIRIDIS , MAGMA , LEGACY_BINARY , LEGACY_RAINBOW_COLOR , MULTILABEL , PET_COLOR , PET_20 , PET_BLACK_WHITE , TURBO }
	The LookupTableType enum for different predefined lookup tables. More...

typedef unsigned char	RawLookupTableType
	Convenience typedef for the raw lookup table element type. More...

Public Member Functions
	mitkClassMacroItkParent (LookupTable, itk::DataObject)

Pointer	Clone () const

virtual vtkSmartPointer< vtkLookupTable >	GetVtkLookupTable () const
	Get the internally wrapped vtkLookupTable. More...

virtual RawLookupTableType *	GetRawLookupTable () const
	Get the raw lookup table array from the wrapped vtkLookupTable. More...

virtual void	SetVtkLookupTable (vtkSmartPointer< vtkLookupTable > lut)
	Set the internal vtkLookupTable. More...

virtual void	ChangeOpacityForAll (float opacity)
	Set the opacity (alpha) for all entries in the table. More...

virtual void	ChangeOpacity (int index, float opacity)
	Set the opacity (alpha) for a specific table entry. More...

virtual void	GetColor (double value, double rgb[3])
	Map a scalar value to an RGB color via the lookup table. More...

virtual void	GetTableValue (int index, double rgba[4])
	Get the RGBA tuple at a specific table index. More...

virtual void	SetTableValue (int index, double rgba[4])
	Set the RGBA tuple at a specific table index. More...

virtual void	SetWindow (float _arg)

virtual void	SetLevel (float _arg)

virtual void	SetOpacity (float _arg)

virtual bool	operator== (const mitk::LookupTable &LookupTable) const
	Compare two LookupTable objects for equality. More...

virtual bool	operator!= (const LookupTable &LookupTable) const
	Compare two LookupTable objects for inequality. More...

virtual LookupTable &	operator= (const LookupTable &LookupTable)
	Copy assignment operator. More...

void	UpdateOutputInformation () override
	Update output information by querying the source object. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Check whether the requested region is outside the buffered region. More...

bool	VerifyRequestedRegion () override
	Check whether the requested region is valid. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object. More...

	LookupTable ()
	Default constructor. Builds a GRAYSCALE table by default. More...

	~LookupTable () override
	Destructor. More...

vtkSmartPointer< vtkColorTransferFunction >	CreateColorTransferFunction ()
	Create a vtkColorTransferFunction from this lookup table. More...

vtkSmartPointer< vtkPiecewiseFunction >	CreateOpacityTransferFunction ()
	Create a vtkPiecewiseFunction for opacity from this lookup table. More...

vtkSmartPointer< vtkPiecewiseFunction >	CreateGradientTransferFunction ()
	Create a vtkPiecewiseFunction for gradient opacity from this lookup table. More...

virtual void	SetType (const LookupTableType type)
	Set the lookup table type by enum value. More...

virtual void	SetType (const std::string &typeName)
	Set the lookup table type by name string. More...

virtual LookupTableType	GetActiveType () const
	Get the currently active lookup table type. More...

virtual std::string	GetActiveTypeAsString () const
	Get the currently active lookup table type as a string. More...

Static Public Member Functions
static Pointer	New ()

static int	GetMultiLabelColorCount ()
	Number of curated colors in the MULTILABEL palette. More...

static void	GetMultiLabelColor (int index, double rgb[3])
	RGB of the index-th MULTILABEL color, in [0,1]. More...

Static Public Attributes
static std::vector< std::string >	typenameList
	List of all predefined lookup table type names. More...

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	LookupTable (const Self &other)

	mitkCloneMacro (Self)

virtual void	BuildGrayScaleLookupTable ()

virtual void	BuildLegacyBinaryLookupTable ()

virtual void	BuildLegacyRainbowColorLookupTable ()

virtual void	BuildInverseGrayScaleLookupTable ()

virtual void	BuildHotIronLookupTable ()

virtual void	BuildPlasmaLookupTable ()

virtual void	BuildInfernoLookupTable ()

virtual void	BuildViridisLookupTable ()

virtual void	BuildMagmaLookupTable ()

virtual void	BuildJetLookupTable (bool transparent=false)

virtual void	BuildPETColorLookupTable ()

virtual void	BuildPET20LookupTable ()

virtual void	BuildPETBWLookupTable ()

virtual void	BuildMultiLabelLookupTable ()

virtual void	BuildTurboLookupTable ()

Protected Attributes
vtkSmartPointer< vtkLookupTable >	m_LookupTable

float	m_Window

float	m_Level

float	m_Opacity

LookupTableType	m_Type

Detailed Description

MITK wrapper for a vtkLookupTable.

Wraps a vtkLookupTable and provides convenience methods for creating predefined color lookup tables (grayscale, hot iron, jet, PET, etc.), modifying opacity values, and querying color mappings.

Note: To use this as an image property, wrap it in a mitk::LookupTableProperty and set the mitk::RenderingModeProperty to a mode that supports lookup tables (e.g. LOOKUPTABLE_COLOR). See the documentation of mitk::RenderingModeProperty and the test mitkImageVtkMapper2DLookupTableTest.cpp for examples.

See also: LookupTableProperty, RenderingModeProperty, TransferFunction

Definition at line 44 of file mitkLookupTable.h.

Member Typedef Documentation

◆ RawLookupTableType

typedef unsigned char mitk::LookupTable::RawLookupTableType

Convenience typedef for the raw lookup table element type.

Definition at line 50 of file mitkLookupTable.h.

Member Enumeration Documentation

◆ LookupTableType

enum mitk::LookupTable::LookupTableType

The LookupTableType enum for different predefined lookup tables.

GRAYSCALE Our default level-window (sometimes referred to as window-level by other sources) setup for a test image looks like this:
INVERSE_GRAYSCALE Inverse LookupTable of GRAYSCALE.
HOT_IRON A LookupTable for red colors.
JET A LookupTable for JET color rendering.
LEGACY_BINARY A LookupTable for binary images.
LEGACY_RAINBOW_COLOR A rainbow-like LookupTable.
MULTILABEL A LookupTable for multilabel images.
PET_COLOR A LookupTable for PET color rendering.
PET_20 A LookupTable for PET_20 color rendering.
PET_BLACK_WHITE A LookupTable for PET white to black color rendering.
TURBO An improved rainbow LookupTable for visualization.

The different LookupTableTypes can be applied in the MitkWorkbench via right-clicking on an image and choosing a color map.

Enumerator
GRAYSCALE
INVERSE_GRAYSCALE
HOT_IRON
JET
JET_TRANSPARENT
PLASMA
INFERNO
VIRIDIS
MAGMA
LEGACY_BINARY
LEGACY_RAINBOW_COLOR
MULTILABEL
PET_COLOR
PET_20
PET_BLACK_WHITE
TURBO

Definition at line 248 of file mitkLookupTable.h.

Constructor & Destructor Documentation

◆ LookupTable() [1/2]

mitk::LookupTable::LookupTable ( )

Default constructor. Builds a GRAYSCALE table by default.

◆ ~LookupTable()

mitk::LookupTable::~LookupTable ( )

override

Destructor.

◆ LookupTable() [2/2]

mitk::LookupTable::LookupTable ( const Self & other )

protected

Member Function Documentation

◆ BuildGrayScaleLookupTable()

virtual void mitk::LookupTable::BuildGrayScaleLookupTable ( )

protectedvirtual

◆ BuildHotIronLookupTable()

virtual void mitk::LookupTable::BuildHotIronLookupTable ( )

protectedvirtual

◆ BuildInfernoLookupTable()

virtual void mitk::LookupTable::BuildInfernoLookupTable ( )

protectedvirtual

◆ BuildInverseGrayScaleLookupTable()

virtual void mitk::LookupTable::BuildInverseGrayScaleLookupTable ( )

protectedvirtual

◆ BuildJetLookupTable()

virtual void mitk::LookupTable::BuildJetLookupTable ( bool transparent = false )

protectedvirtual

◆ BuildLegacyBinaryLookupTable()

virtual void mitk::LookupTable::BuildLegacyBinaryLookupTable ( )

protectedvirtual

◆ BuildLegacyRainbowColorLookupTable()

virtual void mitk::LookupTable::BuildLegacyRainbowColorLookupTable ( )

protectedvirtual

◆ BuildMagmaLookupTable()

virtual void mitk::LookupTable::BuildMagmaLookupTable ( )

protectedvirtual

◆ BuildMultiLabelLookupTable()

virtual void mitk::LookupTable::BuildMultiLabelLookupTable ( )

protectedvirtual

◆ BuildPET20LookupTable()

virtual void mitk::LookupTable::BuildPET20LookupTable ( )

protectedvirtual

◆ BuildPETBWLookupTable()

virtual void mitk::LookupTable::BuildPETBWLookupTable ( )

protectedvirtual

◆ BuildPETColorLookupTable()

virtual void mitk::LookupTable::BuildPETColorLookupTable ( )

protectedvirtual

◆ BuildPlasmaLookupTable()

virtual void mitk::LookupTable::BuildPlasmaLookupTable ( )

protectedvirtual

◆ BuildTurboLookupTable()

virtual void mitk::LookupTable::BuildTurboLookupTable ( )

protectedvirtual

◆ BuildViridisLookupTable()

virtual void mitk::LookupTable::BuildViridisLookupTable ( )

protectedvirtual

◆ ChangeOpacity()

virtual void mitk::LookupTable::ChangeOpacity	(	int	index,
		float	opacity
	)

virtual

Set the opacity (alpha) for a specific table entry.

Parameters

[in]	index	Zero-based index into the lookup table.
[in]	opacity	Opacity value between 0.0 (transparent) and 1.0 (opaque).

◆ ChangeOpacityForAll()

virtual void mitk::LookupTable::ChangeOpacityForAll ( float opacity )

virtual

Set the opacity (alpha) for all entries in the table.

Parameters

[in] opacity Opacity value between 0.0 (transparent) and 1.0 (opaque).

◆ Clone()

Pointer mitk::LookupTable::Clone ( ) const

◆ CreateColorTransferFunction()

vtkSmartPointer<vtkColorTransferFunction> mitk::LookupTable::CreateColorTransferFunction ( )

Create a vtkColorTransferFunction from this lookup table.

Returns: Smart pointer to the new color transfer function.

◆ CreateGradientTransferFunction()

vtkSmartPointer<vtkPiecewiseFunction> mitk::LookupTable::CreateGradientTransferFunction ( )

Create a vtkPiecewiseFunction for gradient opacity from this lookup table.

Returns: Smart pointer to the new gradient transfer function.

◆ CreateOpacityTransferFunction()

vtkSmartPointer<vtkPiecewiseFunction> mitk::LookupTable::CreateOpacityTransferFunction ( )

Create a vtkPiecewiseFunction for opacity from this lookup table.

Returns: Smart pointer to the new opacity transfer function.

◆ GetActiveType()

virtual LookupTableType mitk::LookupTable::GetActiveType ( ) const

virtual

Get the currently active lookup table type.

Returns: The active LookupTableType enum value.

◆ GetActiveTypeAsString()

virtual std::string mitk::LookupTable::GetActiveTypeAsString ( ) const

virtual

Get the currently active lookup table type as a string.

Returns: The name of the active type.

◆ GetColor()

virtual void mitk::LookupTable::GetColor	(	double	value,
		double	rgb[3]
	)

virtual

Map a scalar value to an RGB color via the lookup table.

Wraps vtkLookupTable::GetColor().

Parameters

[in]	value	The scalar value to map.
[out]	rgb	Array of 3 doubles filled with RGB values in [0, 1].

◆ GetMultiLabelColor()

static void mitk::LookupTable::GetMultiLabelColor	(	int	index,
		double	rgb[3]
	)

static

RGB of the index-th MULTILABEL color, in [0,1].

Indices 0..GetMultiLabelColorCount()-1 are the curated palette; higher indices are algorithmically generated. The MULTILABEL lookup table and the label-color selection both draw their colors from here, so callers do not have to round-trip through the table.

Exceptions

mitk::Exception if index is negative.

◆ GetMultiLabelColorCount()

static int mitk::LookupTable::GetMultiLabelColorCount ( )

static

Number of curated colors in the MULTILABEL palette.

They occupy lookup-table slots 1..N (slot 0 is the transparent background); higher slots hold algorithmically generated colors. Derived from the color table, so callers never hardcode the count.

◆ GetRawLookupTable()

virtual RawLookupTableType* mitk::LookupTable::GetRawLookupTable ( ) const

virtual

Get the raw lookup table array from the wrapped vtkLookupTable.

Returns: Pointer to the raw RGBA byte array, or nullptr if not built.

◆ GetTableValue()

virtual void mitk::LookupTable::GetTableValue	(	int	index,
		double	rgba[4]
	)

virtual

Get the RGBA tuple at a specific table index.

Wraps vtkLookupTable::GetTableValue().

Parameters

[in]	index	Zero-based index into the table.
[out]	rgba	Array of 4 doubles filled with RGBA values in [0, 1].

◆ GetVtkLookupTable()

virtual vtkSmartPointer<vtkLookupTable> mitk::LookupTable::GetVtkLookupTable ( ) const

virtual

Get the internally wrapped vtkLookupTable.

Returns: Smart pointer to the vtkLookupTable.

◆ mitkClassMacroItkParent()

mitk::LookupTable::mitkClassMacroItkParent	(	LookupTable	,
		itk::DataObject
	)

◆ mitkCloneMacro()

mitk::LookupTable::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::LookupTable::New ( )

static

◆ operator!=()

virtual bool mitk::LookupTable::operator!= ( const LookupTable & LookupTable ) const

virtual

Compare two LookupTable objects for inequality.

Parameters

[in] LookupTable The LookupTable to compare against.

Returns: True if the tables differ.

◆ operator=()

virtual LookupTable& mitk::LookupTable::operator= ( const LookupTable & LookupTable )

virtual

Copy assignment operator.

Necessary because itk::Object makes operator= private.

Parameters

[in] LookupTable The LookupTable to copy from.

Returns: Reference to this object.

Reimplemented in mitk::LabeledImageLookupTable.

◆ operator==()

virtual bool mitk::LookupTable::operator== ( const mitk::LookupTable & LookupTable ) const

virtual

Compare two LookupTable objects for equality.

Parameters

[in] LookupTable The LookupTable to compare against.

Returns: True if both tables contain the same entries.

◆ PrintSelf()

void mitk::LookupTable::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::LookupTable::RequestedRegionIsOutsideOfTheBufferedRegion ( )

override

Check whether the requested region is outside the buffered region.

Returns: The result of VerifyRequestedRegion() negated.

◆ SetLevel()

virtual void mitk::LookupTable::SetLevel ( float _arg )

virtual

◆ SetOpacity()

virtual void mitk::LookupTable::SetOpacity ( float _arg )

virtual

◆ SetRequestedRegion()

void mitk::LookupTable::SetRequestedRegion ( const itk::DataObject * data )

override

Set the requested region from another data object.

No-op for lookup tables since the region mechanism is not supported.

Parameters

[in] data The data object whose region would be copied (ignored).

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::LookupTable::SetRequestedRegionToLargestPossibleRegion ( )

override

Set the requested region to the largest possible region.

No-op for lookup tables since the requested-region mechanism is not supported.

◆ SetTableValue()

virtual void mitk::LookupTable::SetTableValue	(	int	index,
		double	rgba[4]
	)

virtual

Set the RGBA tuple at a specific table index.

Wraps vtkLookupTable::SetTableValue().

Parameters

[in]	index	Zero-based index into the table.
[in]	rgba	Array of 4 doubles with RGBA values in [0, 1].

◆ SetType() [1/2]

virtual void mitk::LookupTable::SetType ( const LookupTableType type )

virtual

Set the lookup table type by enum value.

Rebuilds the internal vtkLookupTable for the given type. Does nothing if the type is already active or if the type is not recognized.

Parameters

[in] type The desired LookupTableType enum value.

◆ SetType() [2/2]

virtual void mitk::LookupTable::SetType ( const std::string & typeName )

virtual

Set the lookup table type by name string.

Looks up typeName in typenameList and delegates to SetType(LookupTableType). Does nothing if the name is not found.

Parameters

[in] typeName Case-sensitive name of the lookup table type.

◆ SetVtkLookupTable()

virtual void mitk::LookupTable::SetVtkLookupTable ( vtkSmartPointer< vtkLookupTable > lut )

virtual

Set the internal vtkLookupTable.

Parameters

[in] lut The vtkLookupTable to wrap.

◆ SetWindow()

virtual void mitk::LookupTable::SetWindow ( float _arg )

virtual

◆ UpdateOutputInformation()

void mitk::LookupTable::UpdateOutputInformation ( )

override

Update output information by querying the source object.

◆ VerifyRequestedRegion()

bool mitk::LookupTable::VerifyRequestedRegion ( )

override

Check whether the requested region is valid.

Always returns true because lookup tables are always processed as a whole.

Returns: True.

Member Data Documentation

◆ m_Level

float mitk::LookupTable::m_Level

protected

Definition at line 329 of file mitkLookupTable.h.

◆ m_LookupTable

vtkSmartPointer<vtkLookupTable> mitk::LookupTable::m_LookupTable

protected

Definition at line 326 of file mitkLookupTable.h.

◆ m_Opacity

float mitk::LookupTable::m_Opacity

protected

Definition at line 330 of file mitkLookupTable.h.

◆ m_Type

LookupTableType mitk::LookupTable::m_Type

protected

Definition at line 332 of file mitkLookupTable.h.

◆ m_Window

float mitk::LookupTable::m_Window

protected

Definition at line 328 of file mitkLookupTable.h.

◆ typenameList

std::vector<std::string> mitk::LookupTable::typenameList

static

List of all predefined lookup table type names.

Definition at line 269 of file mitkLookupTable.h.

The documentation for this class was generated from the following file:

mitkLookupTable.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ RawLookupTableType

Member Enumeration Documentation

◆ LookupTableType

Constructor & Destructor Documentation

◆ LookupTable() [1/2]

◆ ~LookupTable()

◆ LookupTable() [2/2]

Member Function Documentation

◆ BuildGrayScaleLookupTable()

◆ BuildHotIronLookupTable()

◆ BuildInfernoLookupTable()

◆ BuildInverseGrayScaleLookupTable()

◆ BuildJetLookupTable()

◆ BuildLegacyBinaryLookupTable()

◆ BuildLegacyRainbowColorLookupTable()

◆ BuildMagmaLookupTable()

◆ BuildMultiLabelLookupTable()

◆ BuildPET20LookupTable()

◆ BuildPETBWLookupTable()

◆ BuildPETColorLookupTable()

◆ BuildPlasmaLookupTable()

◆ BuildTurboLookupTable()

◆ BuildViridisLookupTable()

◆ ChangeOpacity()

◆ ChangeOpacityForAll()

◆ Clone()

◆ CreateColorTransferFunction()

◆ CreateGradientTransferFunction()

◆ CreateOpacityTransferFunction()

◆ GetActiveType()

◆ GetActiveTypeAsString()

◆ GetColor()

◆ GetMultiLabelColor()

◆ GetMultiLabelColorCount()

◆ GetRawLookupTable()

◆ GetTableValue()

◆ GetVtkLookupTable()

◆ mitkClassMacroItkParent()

◆ mitkCloneMacro()

◆ New()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ PrintSelf()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetLevel()

◆ SetOpacity()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetTableValue()

◆ SetType() [1/2]

◆ SetType() [2/2]

◆ SetVtkLookupTable()

◆ SetWindow()

◆ UpdateOutputInformation()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_Level

◆ m_LookupTable

◆ m_Opacity

◆ m_Type

◆ m_Window

◆ typenameList
