Lookup table for 2D rendering of labeled (segmented) images. More...

#include <mitkLabeledImageLookupTable.h>

Inheritance diagram for mitk::LabeledImageLookupTable:

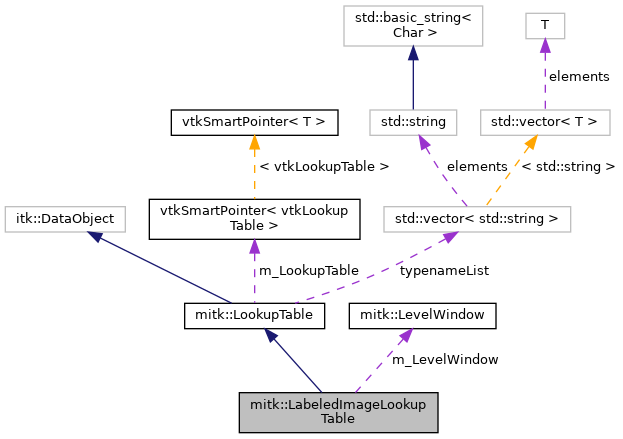

Collaboration diagram for mitk::LabeledImageLookupTable:

[legend]

Public Types
typedef unsigned char	LabelType

Public Types inherited from mitk::LookupTable
enum	LookupTableType { GRAYSCALE , INVERSE_GRAYSCALE , HOT_IRON , JET , JET_TRANSPARENT , PLASMA , INFERNO , VIRIDIS , MAGMA , LEGACY_BINARY , LEGACY_RAINBOW_COLOR , MULTILABEL , PET_COLOR , PET_20 , PET_BLACK_WHITE , TURBO }
	The LookupTableType enum for different predefined lookup tables. More...

typedef unsigned char	RawLookupTableType
	Convenience typedef for the raw lookup table element type. More...

Public Member Functions
	mitkClassMacro (LabeledImageLookupTable, LookupTable)

Pointer	Clone () const

LabeledImageLookupTable &	operator= (const LookupTable &other) override
	Assignment from a generic LookupTable. More...

virtual void	SetColorForLabel (const LabelType &label, const double &r, const double &g, const double &b, const double a=1.0)
	Set the RGBA color for a given label. More...

virtual double *	GetColorForLabel (const LabelType &label)
	Get the RGBA color assigned to a given label. More...

mitk::LevelWindow	GetLevelWindow ()
	Get the LevelWindow settings required for correct 2D color mapping. More...

Public Member Functions inherited from mitk::LookupTable
	mitkClassMacroItkParent (LookupTable, itk::DataObject)

Pointer	Clone () const

virtual vtkSmartPointer< vtkLookupTable >	GetVtkLookupTable () const
	Get the internally wrapped vtkLookupTable. More...

virtual RawLookupTableType *	GetRawLookupTable () const
	Get the raw lookup table array from the wrapped vtkLookupTable. More...

virtual void	SetVtkLookupTable (vtkSmartPointer< vtkLookupTable > lut)
	Set the internal vtkLookupTable. More...

virtual void	ChangeOpacityForAll (float opacity)
	Set the opacity (alpha) for all entries in the table. More...

virtual void	ChangeOpacity (int index, float opacity)
	Set the opacity (alpha) for a specific table entry. More...

virtual void	GetColor (double value, double rgb[3])
	Map a scalar value to an RGB color via the lookup table. More...

virtual void	GetTableValue (int index, double rgba[4])
	Get the RGBA tuple at a specific table index. More...

virtual void	SetTableValue (int index, double rgba[4])
	Set the RGBA tuple at a specific table index. More...

virtual void	SetWindow (float _arg)

virtual void	SetLevel (float _arg)

virtual void	SetOpacity (float _arg)

virtual bool	operator== (const mitk::LookupTable &LookupTable) const
	Compare two LookupTable objects for equality. More...

virtual bool	operator!= (const LookupTable &LookupTable) const
	Compare two LookupTable objects for inequality. More...

void	UpdateOutputInformation () override
	Update output information by querying the source object. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Check whether the requested region is outside the buffered region. More...

bool	VerifyRequestedRegion () override
	Check whether the requested region is valid. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object. More...

	LookupTable ()
	Default constructor. Builds a GRAYSCALE table by default. More...

	~LookupTable () override
	Destructor. More...

vtkSmartPointer< vtkColorTransferFunction >	CreateColorTransferFunction ()
	Create a vtkColorTransferFunction from this lookup table. More...

vtkSmartPointer< vtkPiecewiseFunction >	CreateOpacityTransferFunction ()
	Create a vtkPiecewiseFunction for opacity from this lookup table. More...

vtkSmartPointer< vtkPiecewiseFunction >	CreateGradientTransferFunction ()
	Create a vtkPiecewiseFunction for gradient opacity from this lookup table. More...

virtual void	SetType (const LookupTableType type)
	Set the lookup table type by enum value. More...

virtual void	SetType (const std::string &typeName)
	Set the lookup table type by name string. More...

virtual LookupTableType	GetActiveType () const
	Get the currently active lookup table type. More...

virtual std::string	GetActiveTypeAsString () const
	Get the currently active lookup table type as a string. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::LookupTable
static Pointer	New ()

static int	GetMultiLabelColorCount ()
	Number of curated colors in the MULTILABEL palette. More...

static void	GetMultiLabelColor (int index, double rgb[3])
	RGB of the index-th MULTILABEL color, in [0,1]. More...

Protected Member Functions
	LabeledImageLookupTable ()

	LabeledImageLookupTable (const LabeledImageLookupTable &other)

	~LabeledImageLookupTable () override

virtual void	GenerateRandomColor (double &r, double &g, double &b)

virtual double	GenerateRandomNumber ()

	mitkCloneMacro (LabeledImageLookupTable)

Protected Member Functions inherited from mitk::LookupTable
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	LookupTable (const Self &other)

	mitkCloneMacro (Self)

virtual void	BuildGrayScaleLookupTable ()

virtual void	BuildLegacyBinaryLookupTable ()

virtual void	BuildLegacyRainbowColorLookupTable ()

virtual void	BuildInverseGrayScaleLookupTable ()

virtual void	BuildHotIronLookupTable ()

virtual void	BuildPlasmaLookupTable ()

virtual void	BuildInfernoLookupTable ()

virtual void	BuildViridisLookupTable ()

virtual void	BuildMagmaLookupTable ()

virtual void	BuildJetLookupTable (bool transparent=false)

virtual void	BuildPETColorLookupTable ()

virtual void	BuildPET20LookupTable ()

virtual void	BuildPETBWLookupTable ()

virtual void	BuildMultiLabelLookupTable ()

virtual void	BuildTurboLookupTable ()

Protected Attributes
mitk::LevelWindow	m_LevelWindow

Protected Attributes inherited from mitk::LookupTable
vtkSmartPointer< vtkLookupTable >	m_LookupTable

float	m_Window

float	m_Level

float	m_Opacity

LookupTableType	m_Type

Additional Inherited Members
Static Public Attributes inherited from mitk::LookupTable
static std::vector< std::string >	typenameList
	List of all predefined lookup table type names. More...

Detailed Description

Lookup table for 2D rendering of labeled (segmented) images.

Supports images with up to 256 unsigned labels (0–255). Label 0 is treated as background and is fully transparent by default. All other labels are initialized with random colors.

For correct color mapping in 2D renderers, use the level/window settings returned by GetLevelWindow().

See also: LookupTable

Definition at line 37 of file mitkLabeledImageLookupTable.h.

Member Typedef Documentation

◆ LabelType

typedef unsigned char mitk::LabeledImageLookupTable::LabelType

The data type for a label. Currently only images with labels in the range [0,255] are supported.

Definition at line 55 of file mitkLabeledImageLookupTable.h.

Constructor & Destructor Documentation

◆ LabeledImageLookupTable() [1/2]

mitk::LabeledImageLookupTable::LabeledImageLookupTable ( )

protected

Default constructor. Protected to prevent "normal" creation

◆ LabeledImageLookupTable() [2/2]

mitk::LabeledImageLookupTable::LabeledImageLookupTable ( const LabeledImageLookupTable & other )

protected

◆ ~LabeledImageLookupTable()

mitk::LabeledImageLookupTable::~LabeledImageLookupTable ( )

overrideprotected

Virtual destructor

Member Function Documentation

◆ Clone()

Pointer mitk::LabeledImageLookupTable::Clone ( ) const

◆ GenerateRandomColor()

virtual void mitk::LabeledImageLookupTable::GenerateRandomColor	(	double &	r,
		double &	g,
		double &	b
	)

protectedvirtual

Generates a random rgb color value. Values for rgb are in the range [0,1]

◆ GenerateRandomNumber()

virtual double mitk::LabeledImageLookupTable::GenerateRandomNumber ( )

protectedvirtual

Generates a radnom number drawn from a uniform distribution in the range [0,1].

◆ GetColorForLabel()

virtual double* mitk::LabeledImageLookupTable::GetColorForLabel ( const LabelType & label )

virtual

Get the RGBA color assigned to a given label.

Parameters

[in] label The label value.

Returns: Pointer to a four-element RGBA array with components in [0, 1].

◆ GetLevelWindow()

mitk::LevelWindow mitk::LabeledImageLookupTable::GetLevelWindow ( )

inline

Get the LevelWindow settings required for correct 2D color mapping.

When visualizing labeled images in 2D, use these level/window settings to ensure that scalar values are mapped to the correct colors.

Returns: The configured LevelWindow.

Definition at line 92 of file mitkLabeledImageLookupTable.h.

◆ mitkClassMacro()

mitk::LabeledImageLookupTable::mitkClassMacro	(	LabeledImageLookupTable	,
		LookupTable
	)

Standard mitk typedefs are generated by the mitkClassMacro

◆ mitkCloneMacro()

mitk::LabeledImageLookupTable::mitkCloneMacro ( LabeledImageLookupTable )

protected

◆ New()

static Pointer mitk::LabeledImageLookupTable::New ( )

static

Make this object constructable by the ::New() Method.

◆ operator=()

LabeledImageLookupTable& mitk::LabeledImageLookupTable::operator= ( const LookupTable & other )

overridevirtual

Assignment from a generic LookupTable.

Parameters

[in] other The lookup table to copy from.

Returns: Reference to this object.

Reimplemented from mitk::LookupTable.

◆ SetColorForLabel()

virtual void mitk::LabeledImageLookupTable::SetColorForLabel	(	const LabelType &	label,
		const double &	r,
		const double &	g,
		const double &	b,
		const double	a = `1.0`
	)

virtual

Set the RGBA color for a given label.

Parameters

[in]	label	The pixel value used as a label in the image.
[in]	r	Red component in [0, 1].
[in]	g	Green component in [0, 1].
[in]	b	Blue component in [0, 1].
[in]	a	Alpha component in [0, 1]. Default is 1.0 (fully opaque).

Member Data Documentation

◆ m_LevelWindow

mitk::LevelWindow mitk::LabeledImageLookupTable::m_LevelWindow

protected

Definition at line 119 of file mitkLabeledImageLookupTable.h.

The documentation for this class was generated from the following file:

mitkLabeledImageLookupTable.h
