Property to associate a mitk::LookupTable with a DataNode. More...

#include <mitkLookupTableProperty.h>

Inheritance diagram for mitk::LookupTableProperty:

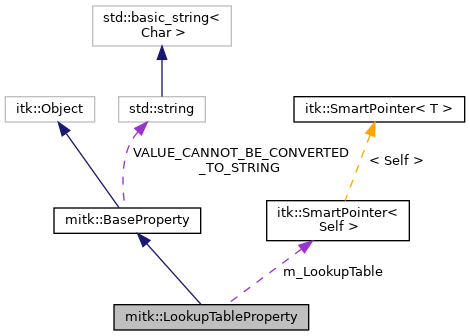

Collaboration diagram for mitk::LookupTableProperty:

[legend]

Public Types
typedef LookupTable::Pointer	ValueType
	The type of the value stored by this property. More...

Public Member Functions
	mitkClassMacro (LookupTableProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro1Param (LookupTableProperty, const mitk::LookupTable::Pointer)

virtual LookupTable *	GetLookupTable ()
	Get the lookup table (ITK macro-generated accessor). More...

ValueType	GetValue () const
	Get the lookup table as a smart pointer. More...

void	SetLookupTable (const mitk::LookupTable::Pointer aLookupTable)
	Set the lookup table. More...

void	SetValue (const ValueType &)
	Set the lookup table (alias for SetLookupTable()). More...

std::string	GetValueAsString () const override
	Return a summary string of the lookup table. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the lookup table to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the lookup table from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	LookupTableProperty ()

	LookupTableProperty (const LookupTableProperty &)

	LookupTableProperty (const mitk::LookupTable::Pointer lut)

	mitkCloneMacro (LookupTableProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
LookupTable::Pointer	m_LookupTable

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property to associate a mitk::LookupTable with a DataNode.

Stores a smart pointer to a LookupTable, which defines a color mapping for rendering images with discrete or continuous color scales.

Note: If you want to use this property to colorize an mitk::Image, make sure to set the mitk::RenderingModeProperty to a mode which supports lookup tables (e.g. LOOKUPTABLE_COLOR). See the documentation of mitk::RenderingModeProperty. For a code example see mitkImageVtkMapper2DLookupTableTest.cpp in Core/Code/Testing.

See also: BaseProperty; LookupTable; RenderingModeProperty

Definition at line 37 of file mitkLookupTableProperty.h.

Member Typedef Documentation

◆ ValueType

typedef LookupTable::Pointer mitk::LookupTableProperty::ValueType

The type of the value stored by this property.

Definition at line 52 of file mitkLookupTableProperty.h.

Constructor & Destructor Documentation

◆ LookupTableProperty() [1/3]

mitk::LookupTableProperty::LookupTableProperty ( )

protected

◆ LookupTableProperty() [2/3]

mitk::LookupTableProperty::LookupTableProperty ( const LookupTableProperty & )

protected

◆ LookupTableProperty() [3/3]

mitk::LookupTableProperty::LookupTableProperty ( const mitk::LookupTable::Pointer lut )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::LookupTableProperty::Clone ( ) const

◆ FromJSON()

bool mitk::LookupTableProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the lookup table from JSON.

Parameters

[in] j The JSON object containing lookup table data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetLookupTable()

virtual LookupTable* mitk::LookupTableProperty::GetLookupTable ( )

virtual

Get the lookup table (ITK macro-generated accessor).

Returns: A pointer to the stored LookupTable.

◆ GetValue()

ValueType mitk::LookupTableProperty::GetValue ( ) const

Get the lookup table as a smart pointer.

Returns: The stored LookupTable smart pointer.

◆ GetValueAsString()

std::string mitk::LookupTableProperty::GetValueAsString ( ) const

overridevirtual

Return a summary string of the lookup table.

Includes the number of colors, the table range, and the first few RGBA entries.

Returns: A string representation of the lookup table.

Reimplemented from mitk::BaseProperty.

◆ mitkClassMacro()

mitk::LookupTableProperty::mitkClassMacro	(	LookupTableProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::LookupTableProperty::mitkCloneMacro ( LookupTableProperty )

protected

◆ mitkNewMacro1Param()

mitk::LookupTableProperty::mitkNewMacro1Param	(	LookupTableProperty	,
		const mitk::LookupTable::Pointer
	)

◆ New()

static Pointer mitk::LookupTableProperty::New ( )

static

◆ operator=()

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetLookupTable()

void mitk::LookupTableProperty::SetLookupTable ( const mitk::LookupTable::Pointer aLookupTable )

Set the lookup table.

Marks the property as modified if the new table differs from the current one.

Parameters

[in] aLookupTable The new LookupTable to set.

◆ SetValue()

void mitk::LookupTableProperty::SetValue ( const ValueType & )

Set the lookup table (alias for SetLookupTable()).

Takes the new LookupTable smart pointer to set.

◆ ToJSON()

bool mitk::LookupTableProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the lookup table to JSON.

Serializes all VTK lookup table parameters including scale, ramp, ranges, and the full RGBA color table.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_LookupTable

LookupTable::Pointer mitk::LookupTableProperty::m_LookupTable

protected

Definition at line 40 of file mitkLookupTableProperty.h.

The documentation for this class was generated from the following file:

mitkLookupTableProperty.h
