mitk::HistogramGenerator Class Reference

Provides an easy way to calculate an itk::Histogram for a mitk::Image. More...

#include <mitkHistogramGenerator.h>

Inheritance diagram for mitk::HistogramGenerator:

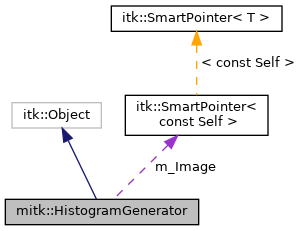

Collaboration diagram for mitk::HistogramGenerator:

Public Types
typedef itk::Statistics::Histogram< double >	HistogramType

Public Member Functions
	mitkClassMacroItkParent (HistogramGenerator, itk::Object)
Pointer	Clone () const
virtual void	SetImage (mitk::Image::ConstPointer _arg)
	Set the input image for histogram computation. More...
virtual void	SetSize (int _arg)
	Set the number of histogram bins. More...
virtual int	GetSize () const
	Get the number of histogram bins. More...
virtual const HistogramType *	GetHistogram ()
	Get the computed histogram. More...
void	ComputeHistogram ()
	Compute the histogram from the input image. More...
float	GetMaximumFrequency () const
	Get the maximum frequency in the computed histogram. More...

Static Public Member Functions
static Pointer	New ()
static float	CalculateMaximumFrequency (const HistogramType *histogram)
	Calculate the maximum frequency in a given histogram. More...

Protected Member Functions
	HistogramGenerator ()
	~HistogramGenerator () override

Protected Attributes
mitk::Image::ConstPointer	m_Image
int	m_Size
HistogramType::ConstPointer	m_Histogram

Detailed Description

Provides an easy way to calculate an itk::Histogram for a mitk::Image.

See also

mitk::Image

Definition at line 28 of file mitkHistogramGenerator.h.

Member Typedef Documentation

HistogramType

typedef itk::Statistics::Histogram<double> mitk::HistogramGenerator::HistogramType

Definition at line 35 of file mitkHistogramGenerator.h.

Constructor & Destructor Documentation

HistogramGenerator()

mitk::HistogramGenerator::HistogramGenerator ( )

protected

~HistogramGenerator()

mitk::HistogramGenerator::~HistogramGenerator ( )

overrideprotected

Member Function Documentation

CalculateMaximumFrequency()

static float mitk::HistogramGenerator::CalculateMaximumFrequency ( const HistogramType *  histogram )

static

Calculate the maximum frequency in a given histogram.

Parameters

histogram

The histogram to analyze.

Returns

The maximum frequency value.

Clone()

Pointer mitk::HistogramGenerator::Clone

(

)

const

ComputeHistogram()

void mitk::HistogramGenerator::ComputeHistogram

(

)

Compute the histogram from the input image.

The histogram is recomputed only if the image has been modified since the last computation.

GetHistogram()

virtual const HistogramType* mitk::HistogramGenerator::GetHistogram ( )

virtual

Get the computed histogram.

GetMaximumFrequency()

float mitk::HistogramGenerator::GetMaximumFrequency

(

)

const

Get the maximum frequency in the computed histogram.

Returns

The maximum frequency value.

GetSize()

virtual int mitk::HistogramGenerator::GetSize ( ) const

virtual

Get the number of histogram bins.

mitkClassMacroItkParent()

mitk::HistogramGenerator::mitkClassMacroItkParent	(	HistogramGenerator	,
		itk::Object
	)

New()

static Pointer mitk::HistogramGenerator::New ( )

static

SetImage()

virtual void mitk::HistogramGenerator::SetImage ( mitk::Image::ConstPointer  _arg )

virtual

Set the input image for histogram computation.

SetSize()

virtual void mitk::HistogramGenerator::SetSize ( int  _arg )

virtual

Set the number of histogram bins.

Member Data Documentation

m_Histogram

HistogramType::ConstPointer mitk::HistogramGenerator::m_Histogram

protected

Definition at line 79 of file mitkHistogramGenerator.h.

m_Image

mitk::Image::ConstPointer mitk::HistogramGenerator::m_Image

protected

Definition at line 77 of file mitkHistogramGenerator.h.

m_Size

int mitk::HistogramGenerator::m_Size

protected

Definition at line 78 of file mitkHistogramGenerator.h.

---

The documentation for this class was generated from the following file:

• mitkHistogramGenerator.h
