Property for storing a text annotation with a 3D position. More...

#include <mitkAnnotationProperty.h>

Inheritance diagram for mitk::AnnotationProperty:

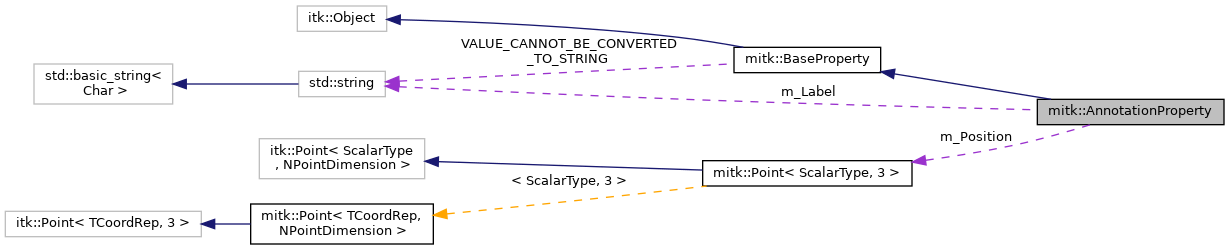

Collaboration diagram for mitk::AnnotationProperty:

[legend]

Public Types
typedef std::string	ValueType
	The type of the label value stored by this property. More...

Public Member Functions
	mitkClassMacro (AnnotationProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro2Param (AnnotationProperty, const char *, const Point3D &)

	mitkNewMacro2Param (AnnotationProperty, const std::string &, const Point3D &)

	mitkNewMacro4Param (AnnotationProperty, const char *, ScalarType, ScalarType, ScalarType)

	mitkNewMacro4Param (AnnotationProperty, const std::string &, ScalarType, ScalarType, ScalarType)

virtual const char *	GetLabel () const
	Get the annotation label text. More...

virtual void	SetLabel (const char *_arg)
	Set the annotation label text. More...

const Point3D &	GetPosition () const
	Get the 3D position of the annotation. More...

void	SetPosition (const Point3D &position)
	Set the 3D position of the annotation. More...

std::string	GetValueAsString () const override
	Return the annotation as a human-readable string. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the annotation to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the annotation from JSON. More...

virtual BaseProperty &	operator= (const BaseProperty &other)

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	AnnotationProperty ()

	AnnotationProperty (const char *label, const Point3D &position)

	AnnotationProperty (const std::string &label, const Point3D &position)

	AnnotationProperty (const char *label, ScalarType x, ScalarType y, ScalarType z)

	AnnotationProperty (const std::string &label, ScalarType x, ScalarType y, ScalarType z)

	AnnotationProperty (const AnnotationProperty &other)

	mitkCloneMacro (AnnotationProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
std::string	m_Label

Point3D	m_Position

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for storing a text annotation with a 3D position.

Combines a text label string with a 3D point position, allowing annotations to be placed at specific locations in world coordinates.

See also: BaseProperty

Definition at line 34 of file mitkAnnotationProperty.h.

Member Typedef Documentation

◆ ValueType

typedef std::string mitk::AnnotationProperty::ValueType

The type of the label value stored by this property.

Definition at line 40 of file mitkAnnotationProperty.h.

Constructor & Destructor Documentation

◆ AnnotationProperty() [1/6]

mitk::AnnotationProperty::AnnotationProperty ( )

protected

◆ AnnotationProperty() [2/6]

mitk::AnnotationProperty::AnnotationProperty	(	const char *	label,
		const Point3D &	position
	)

protected

◆ AnnotationProperty() [3/6]

mitk::AnnotationProperty::AnnotationProperty	(	const std::string &	label,
		const Point3D &	position
	)

protected

◆ AnnotationProperty() [4/6]

mitk::AnnotationProperty::AnnotationProperty	(	const char *	label,
		ScalarType	x,
		ScalarType	y,
		ScalarType	z
	)

protected

◆ AnnotationProperty() [5/6]

mitk::AnnotationProperty::AnnotationProperty	(	const std::string &	label,
		ScalarType	x,
		ScalarType	y,
		ScalarType	z
	)

protected

◆ AnnotationProperty() [6/6]

mitk::AnnotationProperty::AnnotationProperty ( const AnnotationProperty & other )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::AnnotationProperty::Clone ( ) const

◆ FromJSON()

bool mitk::AnnotationProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the annotation from JSON.

Reads "Label" and "Position" fields from the JSON object.

Parameters

[in] j The JSON object containing annotation data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetLabel()

virtual const char* mitk::AnnotationProperty::GetLabel ( ) const

virtual

Get the annotation label text.

Returns: The label string.

◆ GetPosition()

const Point3D& mitk::AnnotationProperty::GetPosition ( ) const

Get the 3D position of the annotation.

Returns: A const reference to the position point.

◆ GetValueAsString()

std::string mitk::AnnotationProperty::GetValueAsString ( ) const

overridevirtual

Return the annotation as a human-readable string.

Returns the label text followed by the 3D position coordinates.

Returns: A string representation of the annotation.

Reimplemented from mitk::BaseProperty.

◆ mitkClassMacro()

mitk::AnnotationProperty::mitkClassMacro	(	AnnotationProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::AnnotationProperty::mitkCloneMacro ( AnnotationProperty )

protected

◆ mitkNewMacro2Param() [1/2]

mitk::AnnotationProperty::mitkNewMacro2Param	(	AnnotationProperty	,
		const char *	,
		const Point3D &
	)

◆ mitkNewMacro2Param() [2/2]

mitk::AnnotationProperty::mitkNewMacro2Param	(	AnnotationProperty	,
		const std::string &	,
		const Point3D &
	)

◆ mitkNewMacro4Param() [1/2]

mitk::AnnotationProperty::mitkNewMacro4Param	(	AnnotationProperty	,
		const char *	,
		ScalarType	,
		ScalarType	,
		ScalarType
	)

◆ mitkNewMacro4Param() [2/2]

mitk::AnnotationProperty::mitkNewMacro4Param	(	AnnotationProperty	,
		const std::string &	,
		ScalarType	,
		ScalarType	,
		ScalarType
	)

◆ New()

static Pointer mitk::AnnotationProperty::New ( )

static

◆ operator=() [1/2]

virtual BaseProperty& mitk::AnnotationProperty::operator= ( const BaseProperty & other )

inlinevirtual

Definition at line 107 of file mitkAnnotationProperty.h.

◆ operator=() [2/2]

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetLabel()

virtual void mitk::AnnotationProperty::SetLabel ( const char * _arg )

virtual

Set the annotation label text.

Parameters

[in] _arg The new label string.

◆ SetPosition()

void mitk::AnnotationProperty::SetPosition ( const Point3D & position )

Set the 3D position of the annotation.

Marks the property as modified if the new position differs from the current one.

Parameters

[in] position The new 3D position.

◆ ToJSON()

bool mitk::AnnotationProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the annotation to JSON.

Serializes both the label and position as a JSON object with "Label" and "Position" fields.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_Label

std::string mitk::AnnotationProperty::m_Label

protected

Definition at line 111 of file mitkAnnotationProperty.h.

◆ m_Position

Point3D mitk::AnnotationProperty::m_Position

protected

Definition at line 112 of file mitkAnnotationProperty.h.

The documentation for this class was generated from the following file:

mitkAnnotationProperty.h
