Property for defining a clipping plane for datasets. More...

#include <mitkClippingProperty.h>

Inheritance diagram for mitk::ClippingProperty:

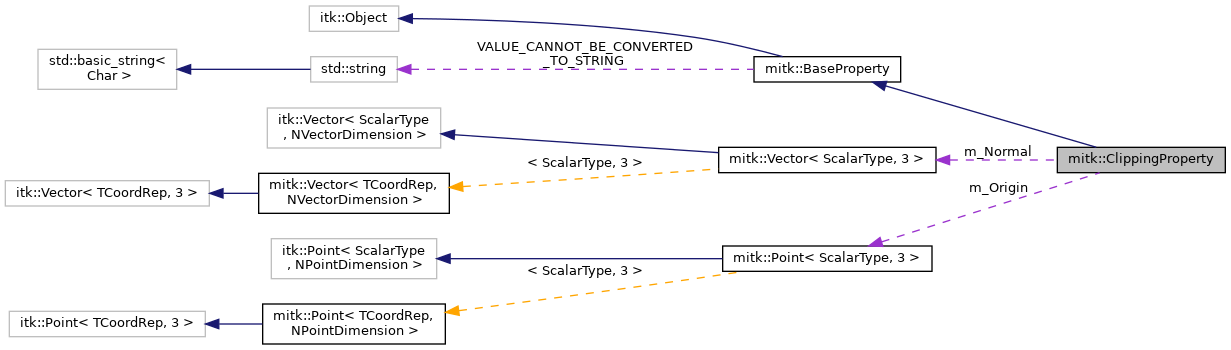

Collaboration diagram for mitk::ClippingProperty:

[legend]

Public Types
typedef std::string	ValueType
	The type used for string-based value representation. More...

Public Member Functions
	mitkClassMacro (ClippingProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro2Param (ClippingProperty, const Point3D &, const Vector3D &)

bool	GetClippingEnabled () const
	Check whether clipping is enabled. More...

void	SetClippingEnabled (bool enabled)
	Enable or disable clipping. More...

const Point3D &	GetOrigin () const
	Get the origin point of the clipping plane. More...

void	SetOrigin (const Point3D &origin)
	Set the origin point of the clipping plane. More...

const Vector3D &	GetNormal () const
	Get the normal vector of the clipping plane. More...

void	SetNormal (const Vector3D &normal)
	Set the normal vector of the clipping plane. More...

std::string	GetValueAsString () const override
	Return the clipping state and plane parameters as a string. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the clipping property to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the clipping property from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	ClippingProperty ()

	ClippingProperty (const ClippingProperty &other)

	ClippingProperty (const Point3D &origin, const Vector3D &normal)

	mitkCloneMacro (ClippingProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
bool	m_ClippingEnabled

Point3D	m_Origin

Vector3D	m_Normal

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for defining a clipping plane for datasets.

Stores a clipping plane defined by an origin point and a normal vector, along with an enabled/disabled flag. When enabled, the clipping plane can be used by renderers to clip the associated data object.

When constructed with an origin and normal, clipping is automatically enabled. The default constructor creates a disabled clipping property with origin and normal at (0, 0, 0).

See also: BaseProperty

Definition at line 39 of file mitkClippingProperty.h.

Member Typedef Documentation

◆ ValueType

typedef std::string mitk::ClippingProperty::ValueType

The type used for string-based value representation.

Definition at line 45 of file mitkClippingProperty.h.

Constructor & Destructor Documentation

◆ ClippingProperty() [1/3]

mitk::ClippingProperty::ClippingProperty ( )

protected

◆ ClippingProperty() [2/3]

mitk::ClippingProperty::ClippingProperty ( const ClippingProperty & other )

protected

◆ ClippingProperty() [3/3]

mitk::ClippingProperty::ClippingProperty	(	const Point3D &	origin,
		const Vector3D &	normal
	)

protected

Member Function Documentation

◆ Clone()

Pointer mitk::ClippingProperty::Clone ( ) const

◆ FromJSON()

bool mitk::ClippingProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the clipping property from JSON.

Reads "Enabled", "Origin", and "Normal" fields.

Parameters

[in] j The JSON object containing clipping data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetClippingEnabled()

bool mitk::ClippingProperty::GetClippingEnabled ( ) const

Check whether clipping is enabled.

Returns: true if clipping is enabled, false otherwise.

◆ GetNormal()

const Vector3D& mitk::ClippingProperty::GetNormal ( ) const

Get the normal vector of the clipping plane.

Returns: A const reference to the normal vector.

◆ GetOrigin()

const Point3D& mitk::ClippingProperty::GetOrigin ( ) const

Get the origin point of the clipping plane.

Returns: A const reference to the origin point.

◆ GetValueAsString()

std::string mitk::ClippingProperty::GetValueAsString ( ) const

overridevirtual

Return the clipping state and plane parameters as a string.

Returns: A string showing the enabled state, origin, and normal.

Reimplemented from mitk::BaseProperty.

◆ mitkClassMacro()

mitk::ClippingProperty::mitkClassMacro	(	ClippingProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::ClippingProperty::mitkCloneMacro ( ClippingProperty )

protected

◆ mitkNewMacro2Param()

mitk::ClippingProperty::mitkNewMacro2Param	(	ClippingProperty	,
		const Point3D &	,
		const Vector3D &
	)

◆ New()

static Pointer mitk::ClippingProperty::New ( )

static

◆ operator=()

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetClippingEnabled()

void mitk::ClippingProperty::SetClippingEnabled ( bool enabled )

Enable or disable clipping.

Marks the property as modified if the state changes.

Parameters

[in] enabled true to enable clipping, false to disable.

◆ SetNormal()

void mitk::ClippingProperty::SetNormal ( const Vector3D & normal )

Set the normal vector of the clipping plane.

Marks the property as modified if the new normal differs from the current one.

Parameters

[in] normal The new normal vector.

◆ SetOrigin()

void mitk::ClippingProperty::SetOrigin ( const Point3D & origin )

Set the origin point of the clipping plane.

Marks the property as modified if the new origin differs from the current one.

Parameters

[in] origin The new origin point.

◆ ToJSON()

bool mitk::ClippingProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the clipping property to JSON.

Serializes "Enabled", "Origin", and "Normal" fields.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_ClippingEnabled

bool mitk::ClippingProperty::m_ClippingEnabled

protected

Definition at line 126 of file mitkClippingProperty.h.

◆ m_Normal

Vector3D mitk::ClippingProperty::m_Normal

protected

Definition at line 129 of file mitkClippingProperty.h.

◆ m_Origin

Point3D mitk::ClippingProperty::m_Origin

protected

Definition at line 128 of file mitkClippingProperty.h.

The documentation for this class was generated from the following file:

mitkClippingProperty.h
