Alternative Vtk-based 3D mapper for mitk::PointSet. More...

#include <mitkEnhancedPointSetVtkMapper3D.h>

Inheritance diagram for mitk::EnhancedPointSetVtkMapper3D:

[legend]

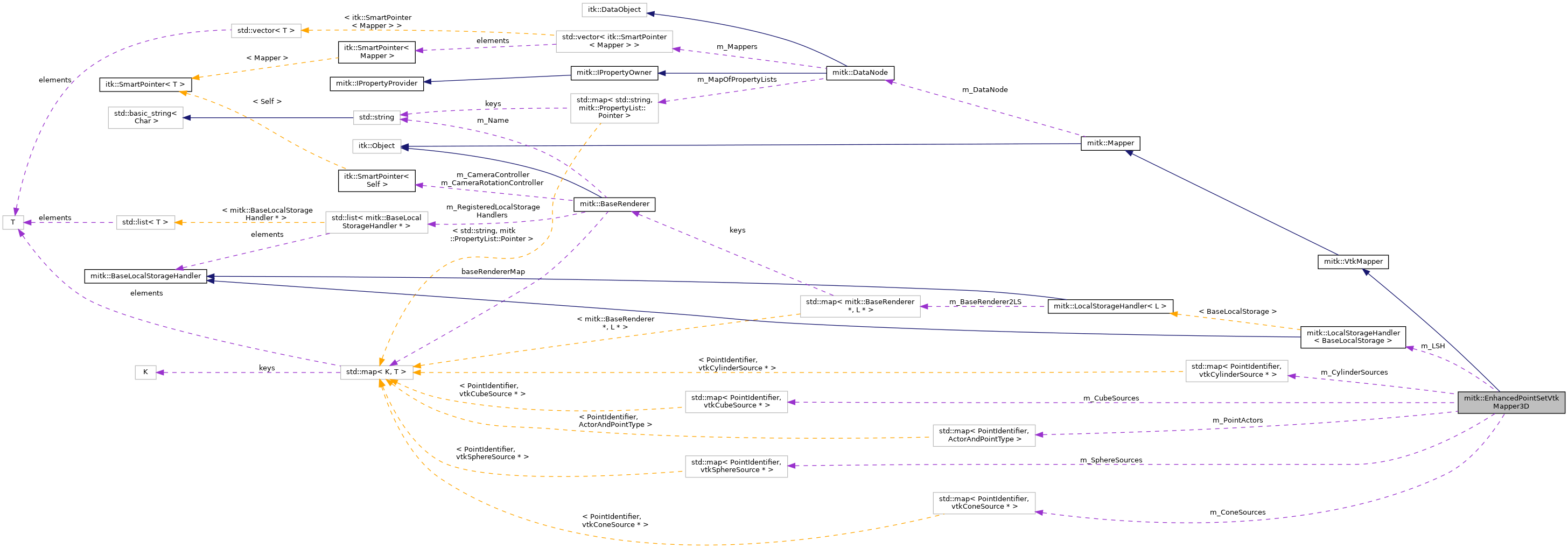

Collaboration diagram for mitk::EnhancedPointSetVtkMapper3D:

[legend]

Public Member Functions
	mitkClassMacro (EnhancedPointSetVtkMapper3D, VtkMapper)

Pointer	Clone () const

virtual const mitk::PointSet *	GetInput ()
	Get the PointSet input data. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Get the VTK prop assembly containing all point actors. More...

void	UpdateVtkTransform (mitk::BaseRenderer *renderer) override
	Update the VTK transform for the given renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default rendering properties for enhanced point set visualization. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH

Protected Types
typedef mitk::PointSet::PointIdentifier	PointIdentifier

typedef std::map< PointIdentifier, vtkSphereSource * >	SphereSourceMap

typedef std::map< PointIdentifier, vtkCubeSource * >	CubeSourceMap

typedef std::map< PointIdentifier, vtkConeSource * >	ConeSourceMap

typedef std::map< PointIdentifier, vtkCylinderSource * >	CylinderSourceMap

typedef std::pair< vtkActor *, mitk::PointSpecificationType >	ActorAndPointType

typedef std::map< PointIdentifier, ActorAndPointType >	ActorMap

Protected Member Functions
	EnhancedPointSetVtkMapper3D ()

	~EnhancedPointSetVtkMapper3D () override

void	RemoveEntryFromSourceMaps (mitk::PointSet::PointIdentifier pointID)

void	DeleteVtkObject (vtkObject *o)

void	UpdateVtkObjects ()

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
SphereSourceMap	m_SphereSources

CubeSourceMap	m_CubeSources

ConeSourceMap	m_ConeSources

CylinderSourceMap	m_CylinderSources

ActorMap	m_PointActors

vtkActor *	m_Contour

vtkTubeFilter *	m_ContourSource

vtkAssembly *	m_PropAssembly

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Alternative Vtk-based 3D mapper for mitk::PointSet.

This class renders mitk::PointSet objects in 3D views. It resembles the standard mitk::PointSetVtkMapper3D, but is designed to enable single points to be rendered with individual appearances.

Instead of assembling one vtkPolyData object containing all points, a list of VTK source objects (spheres, cubes, cones, ...) is maintained. Therefore, the application can change the appearance and/or type of a specific point at runtime, without having to rebuild the

You should use this class instead of the standard mapper if you

change the PointSet very often (by adding or removing points)
need different representations for points (+++)
want to change the point representation frequently (+++)

Note: the class is still in experimental stage, and the points above marked with (+++) are not yet working correctly. Also, drawing lines between points (contour mode) is not yet supported. The class will be extended so that point representations are stored in a lookup table, which is indexed by point data from the rendered PointSet.

Warning: This mapper requires the PointData container to be the same size as the point container.

See also: PointSetVtkMapper3D

Definition at line 63 of file mitkEnhancedPointSetVtkMapper3D.h.

Member Typedef Documentation

◆ ActorAndPointType

typedef std::pair<vtkActor *, mitk::PointSpecificationType> mitk::EnhancedPointSetVtkMapper3D::ActorAndPointType

protected

Definition at line 121 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ ActorMap

typedef std::map<PointIdentifier, ActorAndPointType> mitk::EnhancedPointSetVtkMapper3D::ActorMap

protected

Definition at line 122 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ ConeSourceMap

typedef std::map<PointIdentifier, vtkConeSource *> mitk::EnhancedPointSetVtkMapper3D::ConeSourceMap

protected

Definition at line 118 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ CubeSourceMap

typedef std::map<PointIdentifier, vtkCubeSource *> mitk::EnhancedPointSetVtkMapper3D::CubeSourceMap

protected

Definition at line 117 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ CylinderSourceMap

typedef std::map<PointIdentifier, vtkCylinderSource *> mitk::EnhancedPointSetVtkMapper3D::CylinderSourceMap

protected

Definition at line 119 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ PointIdentifier

typedef mitk::PointSet::PointIdentifier mitk::EnhancedPointSetVtkMapper3D::PointIdentifier

protected

Definition at line 115 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ SphereSourceMap

typedef std::map<PointIdentifier, vtkSphereSource *> mitk::EnhancedPointSetVtkMapper3D::SphereSourceMap

protected

Definition at line 116 of file mitkEnhancedPointSetVtkMapper3D.h.

Constructor & Destructor Documentation

◆ EnhancedPointSetVtkMapper3D()

mitk::EnhancedPointSetVtkMapper3D::EnhancedPointSetVtkMapper3D ( )

protected

◆ ~EnhancedPointSetVtkMapper3D()

mitk::EnhancedPointSetVtkMapper3D::~EnhancedPointSetVtkMapper3D ( )

overrideprotected

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

void mitk::EnhancedPointSetVtkMapper3D::ApplyColorAndOpacityProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor
	)

overrideprotectedvirtual

Apply color and opacity properties read from the PropertyList to the given vtkActor.

Reads the "color" and "opacity" properties from the DataNode and applies them to the actor's vtkProperty.

Parameters

[in]	renderer	The renderer whose property list is queried.
[in]	actor	The vtkActor to apply color and opacity to.

Reimplemented from mitk::VtkMapper.

◆ Clone()

Pointer mitk::EnhancedPointSetVtkMapper3D::Clone ( ) const

◆ DeleteVtkObject()

void mitk::EnhancedPointSetVtkMapper3D::DeleteVtkObject ( vtkObject * o )

protected

◆ GenerateDataForRenderer()

void mitk::EnhancedPointSetVtkMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

◆ GetInput()

virtual const mitk::PointSet* mitk::EnhancedPointSetVtkMapper3D::GetInput ( )

virtual

Get the PointSet input data.

Returns: The PointSet associated with this mapper's data node.

◆ GetVtkProp()

vtkProp* mitk::EnhancedPointSetVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Get the VTK prop assembly containing all point actors.

Parameters

[in] renderer The renderer context.

Returns: The VTK prop assembly for this renderer.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::EnhancedPointSetVtkMapper3D::mitkClassMacro	(	EnhancedPointSetVtkMapper3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::EnhancedPointSetVtkMapper3D::New ( )

static

◆ RemoveEntryFromSourceMaps()

void mitk::EnhancedPointSetVtkMapper3D::RemoveEntryFromSourceMaps ( mitk::PointSet::PointIdentifier pointID )

protected

◆ SetDefaultProperties()

static void mitk::EnhancedPointSetVtkMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default rendering properties for enhanced point set visualization.

Parameters

[in]	node	The data node to configure.
[in]	renderer	The renderer context, or `nullptr` for all renderers.
[in]	overwrite	If `true`, overwrite existing properties.

◆ UpdateVtkObjects()

void mitk::EnhancedPointSetVtkMapper3D::UpdateVtkObjects ( )

protected

◆ UpdateVtkTransform()

void mitk::EnhancedPointSetVtkMapper3D::UpdateVtkTransform ( mitk::BaseRenderer * renderer )

overridevirtual

Update the VTK transform for the given renderer.

Parameters

[in] renderer The renderer to update the transform for.

Reimplemented from mitk::VtkMapper.

Member Data Documentation

◆ m_ConeSources

ConeSourceMap mitk::EnhancedPointSetVtkMapper3D::m_ConeSources

protected

Definition at line 126 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_Contour

vtkActor* mitk::EnhancedPointSetVtkMapper3D::m_Contour

protected

Definition at line 131 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_ContourSource

vtkTubeFilter* mitk::EnhancedPointSetVtkMapper3D::m_ContourSource

protected

Definition at line 132 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_CubeSources

CubeSourceMap mitk::EnhancedPointSetVtkMapper3D::m_CubeSources

protected

Definition at line 125 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_CylinderSources

CylinderSourceMap mitk::EnhancedPointSetVtkMapper3D::m_CylinderSources

protected

Definition at line 127 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_LSH

LocalStorageHandler<BaseLocalStorage> mitk::EnhancedPointSetVtkMapper3D::m_LSH

Definition at line 99 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_PointActors

ActorMap mitk::EnhancedPointSetVtkMapper3D::m_PointActors

protected

Definition at line 128 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_PropAssembly

vtkAssembly* mitk::EnhancedPointSetVtkMapper3D::m_PropAssembly

protected

Definition at line 134 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ m_SphereSources

SphereSourceMap mitk::EnhancedPointSetVtkMapper3D::m_SphereSources

protected

Definition at line 124 of file mitkEnhancedPointSetVtkMapper3D.h.

The documentation for this class was generated from the following file:

mitkEnhancedPointSetVtkMapper3D.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ActorAndPointType

◆ ActorMap

◆ ConeSourceMap

◆ CubeSourceMap

◆ CylinderSourceMap

◆ PointIdentifier

◆ SphereSourceMap

Constructor & Destructor Documentation

◆ EnhancedPointSetVtkMapper3D()

◆ ~EnhancedPointSetVtkMapper3D()

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

◆ Clone()

◆ DeleteVtkObject()

◆ GenerateDataForRenderer()

◆ GetInput()

◆ GetVtkProp()

◆ mitkClassMacro()

◆ New()

◆ RemoveEntryFromSourceMaps()

◆ SetDefaultProperties()

◆ UpdateVtkObjects()

◆ UpdateVtkTransform()

Member Data Documentation

◆ m_ConeSources

◆ m_Contour

◆ m_ContourSource

◆ m_CubeSources

◆ m_CylinderSources

◆ m_LSH

◆ m_PointActors

◆ m_PropAssembly

◆ m_SphereSources
