mitk::GizmoMapper2D Class Reference

2D mapper for mitk::Gizmo. More...

#include <mitkGizmoMapper2D.h>

Inheritance diagram for mitk::GizmoMapper2D:

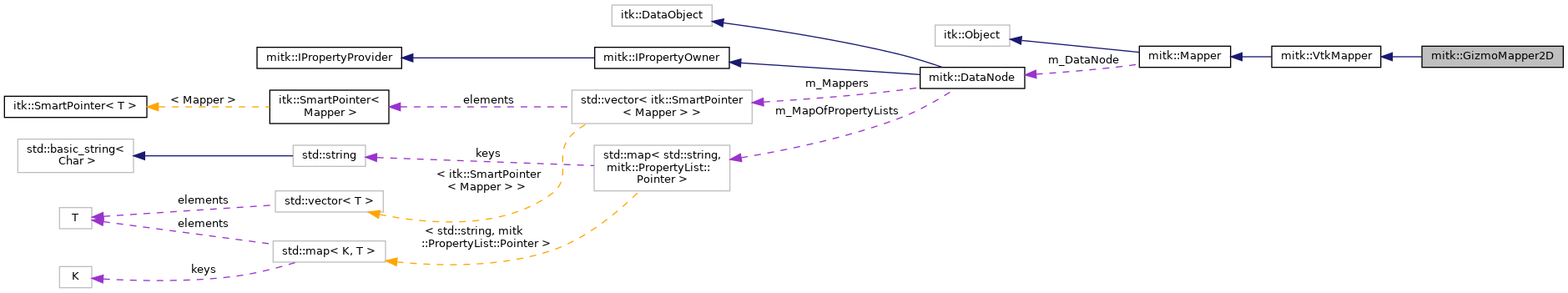

Collaboration diagram for mitk::GizmoMapper2D:

Public Member Functions
	mitkClassMacro (GizmoMapper2D, VtkMapper)
Pointer	Clone () const
vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Return the vtkProp that represents the rendering result. More...
void	ResetMapper (mitk::BaseRenderer *renderer) override
	Reset the mapper, setting its result to invisible. More...
vtkPolyData *	GetVtkPolyData (mitk::BaseRenderer *renderer)
	Return the internal vtkPolyData for the given renderer. More...
Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)
void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...
virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...
virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...
virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...
virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...
virtual bool	HasVtkProp (const vtkProp *prop, BaseRenderer *renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...
virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...
void	ApplyColorAndOpacityProperties (mitk::BaseRenderer *renderer, vtkActor *actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...
virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...
Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...
virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...
virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...
TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...
virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()
static void	SetDefaultProperties (mitk::DataNode *node, mitk::BaseRenderer *renderer=nullptr, bool overwrite=false)
	Provides the given node with a set of default properties. More...
Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()
	~VtkMapper () override
Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...
	~Mapper () override
	virtual destructor in order to derive from this class More...
virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

2D mapper for mitk::Gizmo.

Paints a similar representation as for 3D (see mitk::Gizmo itself). The three axes of the manipulated object are visualized as arrows. They are pickable and will report "move along axis" or "scale" when clicked at the arrow shafts or the arrow tips, respectively.

For usability, the circles for rotation are omitted in 2D because they would most often coincide with the arrows, making distinction difficult.

See also

Gizmo, GizmoInteractor

Definition at line 38 of file mitkGizmoMapper2D.h.

Member Function Documentation

Clone()

Pointer mitk::GizmoMapper2D::Clone

(

)

const

GetVtkPolyData()

vtkPolyData* mitk::GizmoMapper2D::GetVtkPolyData

(

mitk::BaseRenderer *

renderer

)

Return the internal vtkPolyData for the given renderer.

This serves for picking by the associated GizmoInteractor class. The poly data contains scalar values that encode the handle type (e.g., Gizmo::MoveAlongAxisX, Gizmo::ScaleX).

Parameters

renderer

The renderer for which to retrieve the poly data.

Returns

The vtkPolyData used as mapper input for the given renderer.

GetVtkProp()

vtkProp* mitk::GizmoMapper2D::GetVtkProp ( mitk::BaseRenderer *  renderer )

inlineoverridevirtual

Return the vtkProp that represents the rendering result.

Parameters

renderer

The renderer for which to retrieve the vtkProp.

Returns

The vtkActor used for rendering this gizmo in the given renderer.

Implements mitk::VtkMapper.

Definition at line 65 of file mitkGizmoMapper2D.h.

References mitk::LocalStorageHandler< L >::GetLocalStorage().

mitkClassMacro()

mitk::GizmoMapper2D::mitkClassMacro	(	GizmoMapper2D	,
		VtkMapper
	)

New()

static Pointer mitk::GizmoMapper2D::New ( )

static

ResetMapper()

void mitk::GizmoMapper2D::ResetMapper ( mitk::BaseRenderer *  renderer )

overridevirtual

Reset the mapper, setting its result to invisible.

Parameters

renderer

The renderer whose local storage should be reset.

Reimplemented from mitk::Mapper.

SetDefaultProperties()

static void mitk::GizmoMapper2D::SetDefaultProperties ( mitk::DataNode *  node, mitk::BaseRenderer *  renderer = nullptr, bool  overwrite = false  )

static

Provides the given node with a set of default properties.

Configures color, scalar visibility, lookup table for axis coloring, and visibility properties for the gizmo rendering.

Parameters

node	The DataNode to decorate with default properties.
renderer	When not nullptr, generate renderer-specific properties.
overwrite	Whether already existing properties shall be overwritten.

---

The documentation for this class was generated from the following file:

• mitkGizmoMapper2D.h
