A geometry manipulation "gizmo" for interactive 3D transformations. More...

#include <mitkGizmo.h>

Inheritance diagram for mitk::Gizmo:

[legend]

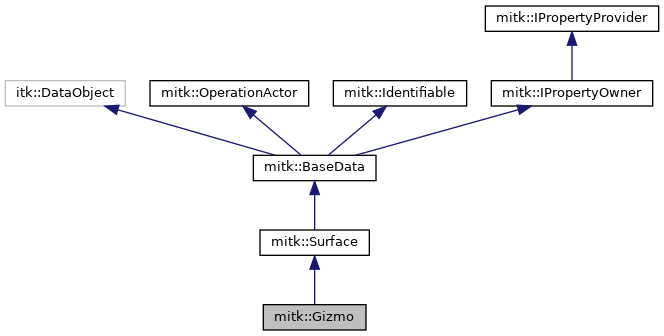

Collaboration diagram for mitk::Gizmo:

[legend]

Public Types
enum	AxisType { AxisX , AxisY , AxisZ }
	Enumeration of the three principal axes. More...

enum	HandleType { MoveFreely , MoveAlongAxisX , MoveAlongAxisY , MoveAlongAxisZ , RotateAroundAxisX , RotateAroundAxisY , RotateAroundAxisZ , ScaleX , ScaleY , ScaleZ , NoHandle }
	Enumeration of interactive handle types for the gizmo. More...

Public Types inherited from mitk::Surface
typedef itk::ImageRegion< 5 >	RegionType
	Region type used for pipeline region negotiation (5-dimensional). More...

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (Gizmo, Surface)

virtual Point3D	GetCenter () const
	Get the center point of the gizmo. More...

virtual void	SetCenter (Point3D _arg)
	Set the center point of the gizmo. More...

virtual Vector3D	GetAxisX () const
	Get the normalized X axis direction vector. More...

virtual void	SetAxisX (Vector3D _arg)
	Set the X axis direction vector. More...

virtual Vector3D	GetAxisY () const
	Get the normalized Y axis direction vector. More...

virtual void	SetAxisY (Vector3D _arg)
	Set the Y axis direction vector. More...

virtual Vector3D	GetAxisZ () const
	Get the normalized Z axis direction vector. More...

virtual void	SetAxisZ (Vector3D _arg)
	Set the Z axis direction vector. More...

virtual Vector3D	GetRadius () const
	Get the radius vector (half-extent per axis in mm). More...

virtual void	SetRadius (Vector3D _arg)
	Set the radius vector (half-extent per axis in mm). More...

virtual bool	GetAllowTranslation () const
	Get whether translation handles are enabled. More...

virtual void	SetAllowTranslation (bool _arg)
	Set whether translation handles are enabled. More...

virtual void	AllowTranslationOn ()
	Toggle whether translation handles are enabled. More...

virtual void	AllowTranslationOff ()

virtual bool	GetAllowRotation () const
	Get whether rotation handles are enabled. More...

virtual void	SetAllowRotation (bool _arg)
	Set whether rotation handles are enabled. More...

virtual void	AllowRotationOn ()
	Toggle whether rotation handles are enabled. More...

virtual void	AllowRotationOff ()

virtual bool	GetAllowScaling () const
	Get whether scaling handles are enabled. More...

virtual void	SetAllowScaling (bool _arg)
	Set whether scaling handles are enabled. More...

virtual void	AllowScalingOn ()
	Toggle whether scaling handles are enabled. More...

virtual void	AllowScalingOff ()

double	GetLongestRadius () const
	Return the longest of the three axis radii. More...

void	UpdateRepresentation ()
	Rebuild the VTK surface representation after property changes. More...

void	FollowGeometry (BaseGeometry *geom)
	Begin observing a geometry for automatic gizmo updates. More...

void	OnFollowedGeometryModified ()
	ITK callback invoked when the followed geometry is modified. More...

HandleType	GetHandleFromPointID (vtkIdType id)
	Identify the gizmo handle that corresponds to a picked VTK point ID. More...

mitk::Gizmo::HandleType	GetHandleFromPointDataValue (double value)
	Identify the gizmo handle from a point data scalar value. More...

Public Member Functions inherited from mitk::Surface
	mitkClassMacro (Surface, BaseData)

Pointer	Clone () const

void	CalculateBoundingBox ()
	Compute the bounding box from all vtkPolyData objects across time steps. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information (geometry, region) from another data object. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this surface (e.g., OpSURFACECHANGED). More...

void	Expand (unsigned int timeSteps=1) override
	Expand the data to the given number of time steps. More...

const RegionType &	GetLargestPossibleRegion () const
	Get the largest possible region. More...

virtual const RegionType &	GetRequestedRegion () const
	Get the requested region. More...

unsigned int	GetSizeOfPolyDataSeries () const
	Get the number of vtkPolyData objects in the time series. More...

virtual vtkPolyData *	GetVtkPolyData (unsigned int t=0) const
	Get the vtkPolyData at time step t. More...

void	Graft (const DataObject *data) override
	Graft data and information from another data object. More...

bool	IsEmptyTimeStep (unsigned int t) const override
	Check whether time step t is empty (has no vtkPolyData). More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print the surface information to the output stream. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the requested region is outside the buffered region. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region to match another data object's requested region. More...

virtual void	SetRequestedRegion (Surface::RegionType *region)
	Set the requested region from a RegionType pointer. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region. More...

virtual void	SetVtkPolyData (vtkPolyData *polydata, unsigned int t=0)
	Set the vtkPolyData for time step t. More...

virtual void	Swap (Surface &other)
	Swap the contents of this surface with another surface. More...

void	Update () override
	Trigger an update of all vtkPolyData objects in the pipeline. More...

void	UpdateOutputInformation () override
	Update the output information (bounding box, geometry). More...

bool	VerifyRequestedRegion () override
	Verify that the requested region is within the largest possible region. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static std::string	HandleTypeToString (HandleType type)
	Convert a HandleType value to a human-readable string. More...

static Pointer	New ()

static DataNode::Pointer	AddGizmoToNode (DataNode node, DataStorage storage)
	Create and attach a gizmo to a data node. More...

static bool	RemoveGizmoFromNode (DataNode node, DataStorage storage)
	Remove a previously attached gizmo from a data node. More...

static bool	HasGizmoAttached (mitk::DataNode node, DataStorage storage)
	Check whether a gizmo is attached to the given node. More...

Static Public Member Functions inherited from mitk::Surface
static Pointer	New ()

Protected Member Functions
	Gizmo ()

	~Gizmo () override

	Gizmo (const Gizmo &)

Gizmo &	operator= (const Gizmo &)

vtkSmartPointer< vtkPolyData >	BuildGizmo ()
	Build the vtkPolyData that visually represents the gizmo. More...

Protected Member Functions inherited from mitk::Surface
	mitkCloneMacro (Self)

	Surface ()

	~Surface () override

	Surface (const Surface &other)

Surface &	operator= (Surface other)

void	ClearData () override
	reset to non-initialized state, release memory More...

void	InitializeEmpty () override
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Additional Inherited Members
Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

A geometry manipulation "gizmo" for interactive 3D transformations.

This class represents the principal axes of some arbitrary BaseGeometry as a visual 3D widget (Surface). The visualization shows three axes (x, y, z), orthogonal rings around each axis, and a small sphere at the center.

The Gizmo is intended to be visualized alongside another data object whose BaseGeometry it follows. It automatically updates its representation in response to ModifiedEvents from the followed geometry, enabling interactive visualization of geometry modifications such as translation, rotation, and scaling.

The gizmo is defined by:

a center point
three normalized axis direction vectors (x, y, z)
a radius vector (half-extent per axis in mm)

The radius determines the size of the axes and the rings around them. Vertex scalar data encodes which HandleType each part of the mesh corresponds to, enabling handle-based picking.

A nice overview of similar / alternative representations can be found in "Schmidt R, Singh K, and Balakrishnan R. Sketching and Composing Widgets for 3D Manipulation. EUROGRAPHICS 2008"

See also: GizmoInteractor; Surface; BaseGeometry

Definition at line 56 of file mitkGizmo.h.

Member Enumeration Documentation

◆ AxisType

enum mitk::Gizmo::AxisType

Enumeration of the three principal axes.

Enumerator
AxisX	The X axis.
AxisY	The Y axis.
AxisZ	The Z axis.

Definition at line 62 of file mitkGizmo.h.

◆ HandleType

enum mitk::Gizmo::HandleType

Enumeration of interactive handle types for the gizmo.

Each value identifies a distinct interactive part of the gizmo visualization. The values are also used as scalar data in the underlying vtkPolyData to enable picking.

Enumerator
MoveFreely	The central sphere for free translation parallel to the camera plane.
MoveAlongAxisX	The X axis shaft for constrained translation along X.
MoveAlongAxisY	The Y axis shaft for constrained translation along Y.
MoveAlongAxisZ	The Z axis shaft for constrained translation along Z.
RotateAroundAxisX	The ring around X for rotation about the X axis.
RotateAroundAxisY	The ring around Y for rotation about the Y axis.
RotateAroundAxisZ	The ring around Z for rotation about the Z axis.
ScaleX	The X axis arrow tips for scaling.
ScaleY	The Y axis arrow tips for scaling.
ScaleZ	The Z axis arrow tips for scaling.
NoHandle	Indicates that no handle was picked.

Definition at line 76 of file mitkGizmo.h.

Constructor & Destructor Documentation

◆ Gizmo() [1/2]

mitk::Gizmo::Gizmo ( )

protected

◆ ~Gizmo()

mitk::Gizmo::~Gizmo ( )

overrideprotected

◆ Gizmo() [2/2]

mitk::Gizmo::Gizmo ( const Gizmo & )

protected

Member Function Documentation

◆ AddGizmoToNode()

static DataNode::Pointer mitk::Gizmo::AddGizmoToNode	(	DataNode *	node,
		DataStorage *	storage
	)

static

Create and attach a gizmo to a data node.

Creates a new Gizmo instance that follows the geometry of the given node, wraps it in a DataNode named "Gizmo", attaches a GizmoInteractor, and optionally adds it to the data storage as a child of node. The manipulated object's opacity is lowered to 0.5 for visual clarity.

Parameters

[in]	node	The node whose geometry the gizmo will visualize and whose geometry the interactor will manipulate. Must not be nullptr and must hold data with a geometry.
[in]	storage	The DataStorage to add the gizmo node to. May be nullptr, in which case the gizmo is not added to any storage.

Returns: A DataNode containing the gizmo, or nullptr if the node has no data or geometry.

See also: RemoveGizmoFromNode; HasGizmoAttached

◆ AllowRotationOff()

virtual void mitk::Gizmo::AllowRotationOff ( )

virtual

◆ AllowRotationOn()

virtual void mitk::Gizmo::AllowRotationOn ( )

virtual

Toggle whether rotation handles are enabled.

◆ AllowScalingOff()

virtual void mitk::Gizmo::AllowScalingOff ( )

virtual

◆ AllowScalingOn()

virtual void mitk::Gizmo::AllowScalingOn ( )

virtual

Toggle whether scaling handles are enabled.

◆ AllowTranslationOff()

virtual void mitk::Gizmo::AllowTranslationOff ( )

virtual

◆ AllowTranslationOn()

virtual void mitk::Gizmo::AllowTranslationOn ( )

virtual

Toggle whether translation handles are enabled.

◆ BuildGizmo()

vtkSmartPointer<vtkPolyData> mitk::Gizmo::BuildGizmo ( )

protected

Build the vtkPolyData that visually represents the gizmo.

Constructs axis shafts, arrow cones, rings, and a center sphere based on the current center, axes, radius, and permission flags. Each part is assigned scalar point data encoding its HandleType.

Returns: A new vtkPolyData with the complete gizmo geometry.

◆ FollowGeometry()

void mitk::Gizmo::FollowGeometry ( BaseGeometry * geom )

Begin observing a geometry for automatic gizmo updates.

Registers an ITK observer on the given geometry's ModifiedEvent. Whenever the geometry changes, the gizmo automatically re-reads center, axes, and radius from the geometry and rebuilds itself.

Parameters

[in] geom The geometry to follow. Must not be nullptr.

Precondition: geom is a valid, initialized BaseGeometry.

Postcondition: The gizmo reflects the current state of geom.

See also: OnFollowedGeometryModified

◆ GetAllowRotation()

virtual bool mitk::Gizmo::GetAllowRotation ( ) const

virtual

Get whether rotation handles are enabled.

◆ GetAllowScaling()

virtual bool mitk::Gizmo::GetAllowScaling ( ) const

virtual

Get whether scaling handles are enabled.

◆ GetAllowTranslation()

virtual bool mitk::Gizmo::GetAllowTranslation ( ) const

virtual

Get whether translation handles are enabled.

◆ GetAxisX()

virtual Vector3D mitk::Gizmo::GetAxisX ( ) const

virtual

Get the normalized X axis direction vector.

◆ GetAxisY()

virtual Vector3D mitk::Gizmo::GetAxisY ( ) const

virtual

Get the normalized Y axis direction vector.

◆ GetAxisZ()

virtual Vector3D mitk::Gizmo::GetAxisZ ( ) const

virtual

Get the normalized Z axis direction vector.

◆ GetCenter()

virtual Point3D mitk::Gizmo::GetCenter ( ) const

virtual

Get the center point of the gizmo.

◆ GetHandleFromPointDataValue()

mitk::Gizmo::HandleType mitk::Gizmo::GetHandleFromPointDataValue ( double value )

Identify the gizmo handle from a point data scalar value.

Maps a double scalar value (as stored in the vtkPolyData point data) to the corresponding HandleType enumeration value.

Parameters

[in] value The scalar value from the point data array.

Returns: The matching HandleType, or NoHandle if no match is found.

See also: GetHandleFromPointID

◆ GetHandleFromPointID()

HandleType mitk::Gizmo::GetHandleFromPointID ( vtkIdType id )

Identify the gizmo handle that corresponds to a picked VTK point ID.

Looks up the scalar data value assigned to the given point in the underlying vtkPolyData and maps it to a HandleType.

Parameters

[in] id The VTK point ID obtained from picking.

Returns: The HandleType for the picked point, or NoHandle if identification fails.

Precondition: The gizmo's vtkPolyData and its point scalars must be valid.

See also: GetHandleFromPointDataValue

◆ GetLongestRadius()

double mitk::Gizmo::GetLongestRadius ( ) const

Return the longest of the three axis radii.

Returns: The maximum value among m_Radius[0], m_Radius[1], and m_Radius[2].

◆ GetRadius()

virtual Vector3D mitk::Gizmo::GetRadius ( ) const

virtual

Get the radius vector (half-extent per axis in mm).

◆ HandleTypeToString()

static std::string mitk::Gizmo::HandleTypeToString ( HandleType type )

static

Convert a HandleType value to a human-readable string.

Useful for logging, debugging, and diagnostic output.

Parameters

[in] type The handle type to convert.

Returns: A string representation of the handle type, or "InvalidHandleType" if the value is unrecognized.

◆ HasGizmoAttached()

static bool mitk::Gizmo::HasGizmoAttached	(	mitk::DataNode *	node,
		DataStorage *	storage
	)

static

Check whether a gizmo is attached to the given node.

Searches for Gizmo-typed child nodes of node in storage.

Parameters

[in]	node	The node to check.
[in]	storage	The DataStorage to search in.

Returns: true if at least one Gizmo child node exists; false otherwise.

See also: AddGizmoToNode; RemoveGizmoFromNode

◆ mitkClassMacro()

mitk::Gizmo::mitkClassMacro	(	Gizmo	,
		Surface
	)

◆ New()

static Pointer mitk::Gizmo::New ( )

static

◆ OnFollowedGeometryModified()

void mitk::Gizmo::OnFollowedGeometryModified ( )

ITK callback invoked when the followed geometry is modified.

Re-reads center, axes, and radius from the followed geometry and calls UpdateRepresentation(). This is registered via FollowGeometry().

See also: FollowGeometry

◆ operator=()

Gizmo& mitk::Gizmo::operator= ( const Gizmo & )

protected

◆ RemoveGizmoFromNode()

static bool mitk::Gizmo::RemoveGizmoFromNode	(	DataNode *	node,
		DataStorage *	storage
	)

static

Remove a previously attached gizmo from a data node.

Finds any Gizmo child nodes of node in storage, removes them, and restores the original opacity of the manipulated object.

Parameters

[in]	node	The node being currently manipulated.
[in]	storage	The DataStorage where the gizmo was added.

Returns: true if at least one gizmo was found and removed; false otherwise.

Note: Pass the same parameters that were provided to AddGizmoToNode().

See also: AddGizmoToNode; HasGizmoAttached

◆ SetAllowRotation()

virtual void mitk::Gizmo::SetAllowRotation ( bool _arg )

virtual

Set whether rotation handles are enabled.

◆ SetAllowScaling()

virtual void mitk::Gizmo::SetAllowScaling ( bool _arg )

virtual

Set whether scaling handles are enabled.

◆ SetAllowTranslation()

virtual void mitk::Gizmo::SetAllowTranslation ( bool _arg )

virtual

Set whether translation handles are enabled.

◆ SetAxisX()

virtual void mitk::Gizmo::SetAxisX ( Vector3D _arg )

virtual

Set the X axis direction vector.

◆ SetAxisY()

virtual void mitk::Gizmo::SetAxisY ( Vector3D _arg )

virtual

Set the Y axis direction vector.

◆ SetAxisZ()

virtual void mitk::Gizmo::SetAxisZ ( Vector3D _arg )

virtual

Set the Z axis direction vector.

◆ SetCenter()

virtual void mitk::Gizmo::SetCenter ( Point3D _arg )

virtual

Set the center point of the gizmo.

◆ SetRadius()

virtual void mitk::Gizmo::SetRadius ( Vector3D _arg )

virtual

Set the radius vector (half-extent per axis in mm).

◆ UpdateRepresentation()

void mitk::Gizmo::UpdateRepresentation ( )

Rebuild the VTK surface representation after property changes.

Call this after modifying center, axes, radius, or permission flags to regenerate the underlying vtkPolyData and update the bounding box.

The documentation for this class was generated from the following file:

mitkGizmo.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AxisType

◆ HandleType

Constructor & Destructor Documentation

◆ Gizmo() [1/2]

◆ ~Gizmo()

◆ Gizmo() [2/2]

Member Function Documentation

◆ AddGizmoToNode()

◆ AllowRotationOff()

◆ AllowRotationOn()

◆ AllowScalingOff()

◆ AllowScalingOn()

◆ AllowTranslationOff()

◆ AllowTranslationOn()

◆ BuildGizmo()

◆ FollowGeometry()

◆ GetAllowRotation()

◆ GetAllowScaling()

◆ GetAllowTranslation()

◆ GetAxisX()

◆ GetAxisY()

◆ GetAxisZ()

◆ GetCenter()

◆ GetHandleFromPointDataValue()

◆ GetHandleFromPointID()

◆ GetLongestRadius()

◆ GetRadius()

◆ HandleTypeToString()

◆ HasGizmoAttached()

◆ mitkClassMacro()

◆ New()

◆ OnFollowedGeometryModified()

◆ operator=()

◆ RemoveGizmoFromNode()

◆ SetAllowRotation()

◆ SetAllowScaling()

◆ SetAllowTranslation()

◆ SetAxisX()

◆ SetAxisY()

◆ SetAxisZ()

◆ SetCenter()

◆ SetRadius()

◆ UpdateRepresentation()
