Mapper to resample and display 2D slices of registration evaluation visualization. More...

#include <mitkRegEvaluationMapper2D.h>

Inheritance diagram for mitk::RegEvaluationMapper2D:

[legend]

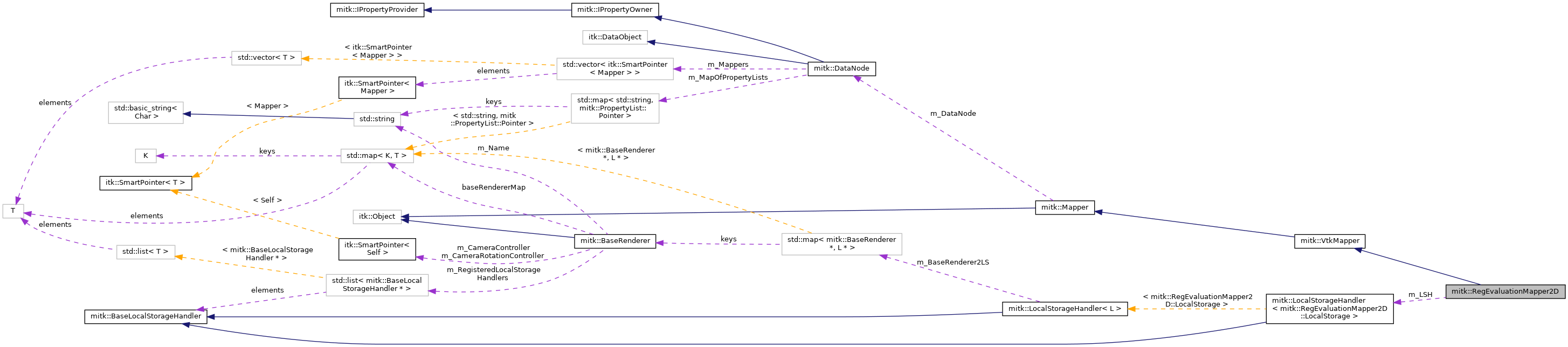

Collaboration diagram for mitk::RegEvaluationMapper2D:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

Public Member Functions
	mitkClassMacro (RegEvaluationMapper2D, VtkMapper)

Pointer	Clone () const

const mitk::DataNode *	GetTargetNode (void)

const mitk::DataNode *	GetMovingNode (void)

const mitk::Image *	GetTargetImage (void)
	Get the target image to map. More...

const mitk::Image *	GetMovingImage (void)
	Get the moving image to map. More...

const mitk::MAPRegistrationWrapper *	GetRegistration (void)
	Get the target image to map. More...

void	Update (mitk::BaseRenderer *renderer) override
	Checks whether this mapper needs to update itself and generate data. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Return the VTK prop (actor, assembly, etc.) for the given renderer. More...

LocalStorage *	GetLocalStorage (mitk::BaseRenderer *renderer)
	Get the LocalStorage corresponding to the current renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set the default properties for general image rendering. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Member Functions
void	TransformActor (mitk::BaseRenderer *renderer)
	Transforms the actor to the actual position in 3D. More...

void	GeneratePlane (mitk::BaseRenderer *renderer, double planeBounds[6])
	Generates a plane according to the size of the resliced image in millimeters. More...

	RegEvaluationMapper2D ()

	~RegEvaluationMapper2D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Does the actual resampling, without rendering the image yet. All the data is generated inside this method. The vtkProp (or Actor) is filled with content (i.e. the resliced image). More...

void	PrepareContour (mitk::DataNode datanode, LocalStorage localStorage)

void	PrepareDifference (LocalStorage *localStorage)

void	PrepareWipe (mitk::DataNode datanode, LocalStorage localStorage, const Point2D &currentIndex2D)

void	PrepareCheckerBoard (mitk::DataNode datanode, LocalStorage localStorage)

void	PrepareColorBlend (LocalStorage *localStorage)

void	PrepareBlend (mitk::DataNode datanode, LocalStorage localStorage)

float	CalculateLayerDepth (mitk::BaseRenderer *renderer)
	This method uses the vtkCamera clipping range and the layer property to calculate the depth of the object (e.g. image or contour). The depth is used to keep the correct order for the final VTK rendering. More...

void	ApplyLookuptable (mitk::BaseRenderer renderer, const mitk::DataNode dataNode, vtkMitkLevelWindowFilter *levelFilter)
	This method applies (or modifies) the lookuptable for all types of images. More...

void	ApplyLevelWindow (mitk::BaseRenderer renderer, const mitk::DataNode dataNode, vtkMitkLevelWindowFilter *levelFilter)
	Apply the level window for the given renderer. More...

void	ApplyOpacity (mitk::BaseRenderer *renderer)
	Set the opacity of the actor. More...

bool	RenderingGeometryIntersectsImage (const PlaneGeometry renderingGeometry, SlicedGeometry3D imageGeometry)
	Calculates whether the given rendering geometry intersects the given SlicedGeometry3D. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Mapper to resample and display 2D slices of registration evaluation visualization.

Definition at line 55 of file mitkRegEvaluationMapper2D.h.

Constructor & Destructor Documentation

◆ RegEvaluationMapper2D()

mitk::RegEvaluationMapper2D::RegEvaluationMapper2D ( )

protected

Default constructor

◆ ~RegEvaluationMapper2D()

mitk::RegEvaluationMapper2D::~RegEvaluationMapper2D ( )

overrideprotected

Default deconstructor

Member Function Documentation

◆ ApplyLevelWindow()

void mitk::RegEvaluationMapper2D::ApplyLevelWindow	(	mitk::BaseRenderer *	renderer,
		const mitk::DataNode *	dataNode,
		vtkMitkLevelWindowFilter *	levelFilter
	)

protected

Apply the level window for the given renderer.

Warning: To use the level window, the property 'LevelWindow' must be set and an 'Image Rendering.Mode' which uses the level window must be set.

Parameters

[in]	renderer	The renderer for which to apply the level window.
[in]	dataNode	The data node providing the level window property.
[in]	levelFilter	The VTK level window filter to configure.

◆ ApplyLookuptable()

void mitk::RegEvaluationMapper2D::ApplyLookuptable	(	mitk::BaseRenderer *	renderer,
		const mitk::DataNode *	dataNode,
		vtkMitkLevelWindowFilter *	levelFilter
	)

protected

This method applies (or modifies) the lookuptable for all types of images.

Warning: To use the lookup table, the property 'Lookup Table' must be set and a 'Image Rendering.Mode' which uses the lookup table must be set.

◆ ApplyOpacity()

void mitk::RegEvaluationMapper2D::ApplyOpacity ( mitk::BaseRenderer * renderer )

protected

Set the opacity of the actor.

◆ CalculateLayerDepth()

float mitk::RegEvaluationMapper2D::CalculateLayerDepth ( mitk::BaseRenderer * renderer )

protected

This method uses the vtkCamera clipping range and the layer property to calculate the depth of the object (e.g. image or contour). The depth is used to keep the correct order for the final VTK rendering.

◆ Clone()

Pointer mitk::RegEvaluationMapper2D::Clone ( ) const

◆ GenerateDataForRenderer()

void mitk::RegEvaluationMapper2D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Does the actual resampling, without rendering the image yet. All the data is generated inside this method. The vtkProp (or Actor) is filled with content (i.e. the resliced image).

After generation, a 4x4 transformation matrix(t) of the current slice is obtained from the vtkResliceImage object via GetReslicesAxis(). This matrix is applied to each textured plane (actor->SetUserTransform(t)) to transform everything to the actual 3D position (cf. the following image).

Reimplemented from mitk::Mapper.

◆ GeneratePlane()

void mitk::RegEvaluationMapper2D::GeneratePlane	(	mitk::BaseRenderer *	renderer,
		double	planeBounds[6]
	)

protected

Generates a plane according to the size of the resliced image in millimeters.

In VTK a vtkPlaneSource is defined through three points. The origin and two points defining the axes of the plane (see VTK documentation). The origin is set to (xMin; yMin; Z), where xMin and yMin are the minimal bounds of the resliced image in space. Z is relevant for blending and the layer property. The center of the plane (C) is also the center of the view plane (cf. the image above).

Note: For the standard MITK view with three 2D render windows showing three different slices, three such planes are generated. All these planes are generated in the XY-plane (even if they depict a YZ-slice of the volume).

◆ GetLocalStorage()

LocalStorage* mitk::RegEvaluationMapper2D::GetLocalStorage ( mitk::BaseRenderer * renderer )

Get the LocalStorage corresponding to the current renderer.

◆ GetMovingImage()

const mitk::Image* mitk::RegEvaluationMapper2D::GetMovingImage ( void )

Get the moving image to map.

◆ GetMovingNode()

const mitk::DataNode* mitk::RegEvaluationMapper2D::GetMovingNode ( void )

◆ GetRegistration()

const mitk::MAPRegistrationWrapper* mitk::RegEvaluationMapper2D::GetRegistration ( void )

Get the target image to map.

◆ GetTargetImage()

const mitk::Image* mitk::RegEvaluationMapper2D::GetTargetImage ( void )

Get the target image to map.

◆ GetTargetNode()

const mitk::DataNode* mitk::RegEvaluationMapper2D::GetTargetNode ( void )

◆ GetVtkProp()

vtkProp* mitk::RegEvaluationMapper2D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Return the VTK prop (actor, assembly, etc.) for the given renderer.

Each subclass must implement this to provide its rendering representation.

Parameters

[in] renderer The renderer for which the prop is requested.

Returns: Pointer to the vtkProp used for rendering.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::RegEvaluationMapper2D::mitkClassMacro	(	RegEvaluationMapper2D	,
		VtkMapper
	)

Standard class typedefs.

◆ New()

static Pointer mitk::RegEvaluationMapper2D::New ( )

static

Method for creation through the object factory.

◆ PrepareBlend()

void mitk::RegEvaluationMapper2D::PrepareBlend	(	mitk::DataNode *	datanode,
		LocalStorage *	localStorage
	)

protected

◆ PrepareCheckerBoard()

void mitk::RegEvaluationMapper2D::PrepareCheckerBoard	(	mitk::DataNode *	datanode,
		LocalStorage *	localStorage
	)

protected

◆ PrepareColorBlend()

void mitk::RegEvaluationMapper2D::PrepareColorBlend ( LocalStorage * localStorage )

protected

◆ PrepareContour()

void mitk::RegEvaluationMapper2D::PrepareContour	(	mitk::DataNode *	datanode,
		LocalStorage *	localStorage
	)

protected

◆ PrepareDifference()

void mitk::RegEvaluationMapper2D::PrepareDifference ( LocalStorage * localStorage )

protected

◆ PrepareWipe()

void mitk::RegEvaluationMapper2D::PrepareWipe	(	mitk::DataNode *	datanode,
		LocalStorage *	localStorage,
		const Point2D &	currentIndex2D
	)

protected

◆ RenderingGeometryIntersectsImage()

bool mitk::RegEvaluationMapper2D::RenderingGeometryIntersectsImage	(	const PlaneGeometry *	renderingGeometry,
		SlicedGeometry3D *	imageGeometry
	)

protected

Calculates whether the given rendering geometry intersects the given SlicedGeometry3D.

This method checks if the given PlaneGeometry intersects the given SlicedGeometry3D. It calculates the distance of the PlaneGeometry to all 8 cornerpoints of the SlicedGeometry3D. If all distances have the same sign (all positive or all negative) there is no intersection. If the distances have different sign, there is an intersection.

Parameters

renderingGeometry
imageGeometry

◆ SetDefaultProperties()

static void mitk::RegEvaluationMapper2D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set the default properties for general image rendering.

◆ TransformActor()

void mitk::RegEvaluationMapper2D::TransformActor ( mitk::BaseRenderer * renderer )

protected

Transforms the actor to the actual position in 3D.

Parameters

renderer The current renderer corresponding to the render window.

◆ Update()

void mitk::RegEvaluationMapper2D::Update ( mitk::BaseRenderer * renderer )

overridevirtual

Checks whether this mapper needs to update itself and generate data.

Reimplemented from mitk::Mapper.

Member Data Documentation

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::RegEvaluationMapper2D::m_LSH

The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows.

Definition at line 167 of file mitkRegEvaluationMapper2D.h.

The documentation for this class was generated from the following file:

mitkRegEvaluationMapper2D.h

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RegEvaluationMapper2D()

◆ ~RegEvaluationMapper2D()

Member Function Documentation

◆ ApplyLevelWindow()

◆ ApplyLookuptable()

◆ ApplyOpacity()

◆ CalculateLayerDepth()

◆ Clone()

◆ GenerateDataForRenderer()

◆ GeneratePlane()

◆ GetLocalStorage()

◆ GetMovingImage()

◆ GetMovingNode()

◆ GetRegistration()

◆ GetTargetImage()

◆ GetTargetNode()

◆ GetVtkProp()

◆ mitkClassMacro()

◆ New()

◆ PrepareBlend()

◆ PrepareCheckerBoard()

◆ PrepareColorBlend()

◆ PrepareContour()

◆ PrepareDifference()

◆ PrepareWipe()

◆ RenderingGeometryIntersectsImage()

◆ SetDefaultProperties()

◆ TransformActor()

◆ Update()

Member Data Documentation

◆ m_LSH
