Wrapper class that adapts MatchPoint registration objects to the MITK data model. More...

#include <mitkMAPRegistrationWrapper.h>

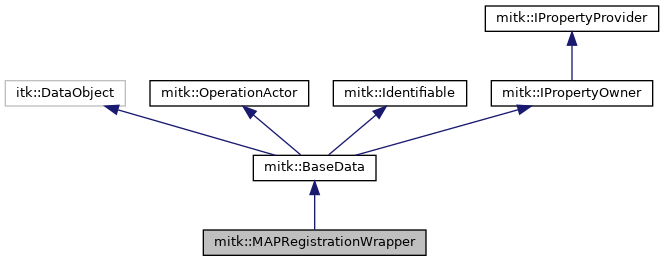

Inheritance diagram for mitk::MAPRegistrationWrapper:

[legend]

Collaboration diagram for mitk::MAPRegistrationWrapper:

[legend]

Public Types
typedef ::map::core::RegistrationBase::TagType	TagType
	Tag key type from the MatchPoint registration metadata. More...

typedef ::map::core::RegistrationBase::ValueType	ValueType
	Tag value type from the MatchPoint registration metadata. More...

typedef ::map::core::RegistrationBase::TagMapType	TagMapType
	Map type associating tag keys with their values. More...

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (MAPRegistrationWrapper, BaseData)

	mitkNewMacro1Param (Self, ::map::core::RegistrationBase *)

Identifiable::UIDType	GetUID () const override
	Returns the unique identifier of the wrapped registration. More...

bool	IsEmptyTimeStep (unsigned int t) const override
	Checks whether the registration is empty at the given time step. More...

bool	IsEmpty () const override
	Checks whether the registration wrapper contains no valid registration. More...

void	SetRequestedRegionToLargestPossibleRegion () override

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override

bool	VerifyRequestedRegion () override

void	SetRequestedRegion (const itk::DataObject *) override

virtual unsigned int	GetMovingDimensions () const
	Gets the number of dimensions of the moving space. More...

virtual unsigned int	GetTargetDimensions () const
	Gets the number of dimensions of the target space. More...

const TagMapType &	GetTags () const
	Returns all metadata tags associated with this registration. More...

bool	GetTagValue (const TagType &tag, ValueType &value) const
	Retrieves the value for a specific metadata tag. More...

bool	HasLimitedTargetRepresentation () const
	Checks whether the inverse mapping kernel has a limited representation in target space. More...

bool	HasLimitedMovingRepresentation () const
	Checks whether the direct mapping kernel has a limited representation in moving space. More...

template<unsigned int VMovingDim, unsigned int VTargetDim>
bool	MapPoint (const ::itk::Point< mitk::ScalarType, VMovingDim > &inPoint, ::itk::Point< mitk::ScalarType, VTargetDim > &outPoint) const
	Maps a point from moving space to target space using the direct mapping kernel. More...

template<unsigned int VMovingDim, unsigned int VTargetDim>
bool	MapPointInverse (const ::itk::Point< mitk::ScalarType, VTargetDim > &inPoint, ::itk::Point< mitk::ScalarType, VMovingDim > &outPoint) const
	Maps a point from target space to moving space using the inverse mapping kernel. More...

mitk::Geometry3D	GetDirectFieldRepresentation () const
	Returns the field representation of the direct mapping kernel as a Geometry3D. More...

mitk::Geometry3D	GetInverseFieldRepresentation () const
	Returns the field representation of the inverse mapping kernel as a Geometry3D. More...

void	PrecomputeDirectMapping ()
	Forces the direct mapping kernel to precompute its deformation field. More...

void	PrecomputeInverseMapping ()
	Forces the inverse mapping kernel to precompute its deformation field. More...

::map::core::RegistrationBase *	GetRegistration ()
	Returns a mutable pointer to the wrapped MatchPoint registration. More...

const ::map::core::RegistrationBase *	GetRegistration () const
	Returns a const pointer to the wrapped MatchPoint registration. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

virtual void	Expand (unsigned int timeSteps)
	Expand the TimeGeometry to a number of time steps. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	MAPRegistrationWrapper (::map::core::RegistrationBase *registration)

	~MAPRegistrationWrapper () override

void	SetUID (const UIDType &uid) override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Attributes
::map::core::RegistrationBase::Pointer	m_spRegistration

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Wrapper class that adapts MatchPoint registration objects to the MITK data model.

MAPRegistrationWrapper wraps a map::core::RegistrationBase instance so that it can be handled as a mitk::BaseData object. This allows registrations to be stored in the MITK DataStorage, displayed in the Data Manager, and visualized via registration mappers.

The wrapper provides convenience methods for point mapping (direct and inverse), field representation queries, and kernel precomputation.

See also: mitk::MITKRegistrationHelper, mitk::ImageMappingHelper, mitk::MITKRegistrationWrapperMapperBase

Definition at line 44 of file mitkMAPRegistrationWrapper.h.

Member Typedef Documentation

◆ TagMapType

typedef ::map::core::RegistrationBase::TagMapType mitk::MAPRegistrationWrapper::TagMapType

Map type associating tag keys with their values.

Definition at line 114 of file mitkMAPRegistrationWrapper.h.

◆ TagType

typedef ::map::core::RegistrationBase::TagType mitk::MAPRegistrationWrapper::TagType

Tag key type from the MatchPoint registration metadata.

Definition at line 110 of file mitkMAPRegistrationWrapper.h.

◆ ValueType

typedef ::map::core::RegistrationBase::ValueType mitk::MAPRegistrationWrapper::ValueType

Tag value type from the MatchPoint registration metadata.

Definition at line 112 of file mitkMAPRegistrationWrapper.h.

Constructor & Destructor Documentation

◆ MAPRegistrationWrapper()

mitk::MAPRegistrationWrapper::MAPRegistrationWrapper ( ::map::core::RegistrationBase * registration )

protected

◆ ~MAPRegistrationWrapper()

mitk::MAPRegistrationWrapper::~MAPRegistrationWrapper ( )

overrideprotected

Member Function Documentation

◆ GetDirectFieldRepresentation()

mitk::Geometry3D mitk::MAPRegistrationWrapper::GetDirectFieldRepresentation ( ) const

Returns the field representation of the direct mapping kernel as a Geometry3D.

The field representation defines the part of the moving space that is guaranteed to be mapped by the direct mapping kernel. This method converts the internal MatchPoint field representation descriptor into a mitk::Geometry3D.

Returns: A Geometry3D describing the supported registration space in the moving domain. Returns a default-constructed Geometry3D if the direct kernel is global (unlimited).

Precondition: A valid registration instance must be set.

◆ GetInverseFieldRepresentation()

mitk::Geometry3D mitk::MAPRegistrationWrapper::GetInverseFieldRepresentation ( ) const

Returns the field representation of the inverse mapping kernel as a Geometry3D.

The field representation defines the part of the target space that is guaranteed to be mapped by the inverse mapping kernel. This method converts the internal MatchPoint field representation descriptor into a mitk::Geometry3D.

Returns: A Geometry3D describing the supported registration space in the target domain. Returns a default-constructed Geometry3D if the inverse kernel is global (unlimited).

Precondition: A valid registration instance must be set.

◆ GetMovingDimensions()

virtual unsigned int mitk::MAPRegistrationWrapper::GetMovingDimensions ( ) const

virtual

Gets the number of dimensions of the moving space.

Returns: The moving dimensionality of the wrapped registration.

Precondition: A valid registration instance must be set.

◆ GetRegistration() [1/2]

::map::core::RegistrationBase* mitk::MAPRegistrationWrapper::GetRegistration ( )

Returns a mutable pointer to the wrapped MatchPoint registration.

Returns: Pointer to the internal RegistrationBase instance.

◆ GetRegistration() [2/2]

const ::map::core::RegistrationBase* mitk::MAPRegistrationWrapper::GetRegistration ( ) const

Returns a const pointer to the wrapped MatchPoint registration.

Returns: Const pointer to the internal RegistrationBase instance.

◆ GetTags()

const TagMapType& mitk::MAPRegistrationWrapper::GetTags ( ) const

Returns all metadata tags associated with this registration.

Returns: A const reference to the TagMapType containing all tags.

Precondition: A valid registration instance must be set.

◆ GetTagValue()

bool mitk::MAPRegistrationWrapper::GetTagValue	(	const TagType &	tag,
		ValueType &	value
	)		const

Retrieves the value for a specific metadata tag.

Parameters

[in]	tag	The tag key to look up.
[out]	value	The value associated with the tag, if found.

Returns: True if the tag was found and the value was set, false otherwise.

Precondition: A valid registration instance must be set.

◆ GetTargetDimensions()

virtual unsigned int mitk::MAPRegistrationWrapper::GetTargetDimensions ( ) const

virtual

Gets the number of dimensions of the target space.

Returns: The target dimensionality of the wrapped registration.

Precondition: A valid registration instance must be set.

◆ GetUID()

Identifiable::UIDType mitk::MAPRegistrationWrapper::GetUID ( ) const

overridevirtual

Returns the unique identifier of the wrapped registration.

Returns: The UID string of the registration instance.

Reimplemented from mitk::Identifiable.

◆ HasLimitedMovingRepresentation()

bool mitk::MAPRegistrationWrapper::HasLimitedMovingRepresentation ( ) const

Checks whether the direct mapping kernel has a limited representation in moving space.

Returns: True if the moving representation is limited (the direct kernel covers only a part of the moving space, so not all direct mapping operations are guaranteed to succeed). False if the representation is unlimited (all direct mappings are guaranteed to succeed).

Precondition: A valid registration instance must be set.

◆ HasLimitedTargetRepresentation()

bool mitk::MAPRegistrationWrapper::HasLimitedTargetRepresentation ( ) const

Checks whether the inverse mapping kernel has a limited representation in target space.

Returns: True if the target representation is limited (the inverse kernel covers only a part of the target space, so not all inverse mapping operations are guaranteed to succeed). False if the representation is unlimited (all inverse mappings are guaranteed to succeed).

Precondition: A valid registration instance must be set.

◆ IsEmpty()

bool mitk::MAPRegistrationWrapper::IsEmpty ( ) const

overridevirtual

Checks whether the registration wrapper contains no valid registration.

Returns: True if no registration is set.

Reimplemented from mitk::BaseData.

◆ IsEmptyTimeStep()

bool mitk::MAPRegistrationWrapper::IsEmptyTimeStep ( unsigned int t ) const

overridevirtual

Checks whether the registration is empty at the given time step.

Parameters

[in] t The time step to check.

Returns: True if no registration is set (m_spRegistration is null).

Reimplemented from mitk::BaseData.

◆ MapPoint()

template<unsigned int VMovingDim, unsigned int VTargetDim>

bool mitk::MAPRegistrationWrapper::MapPoint	(	const ::itk::Point< mitk::ScalarType, VMovingDim > &	inPoint,
		::itk::Point< mitk::ScalarType, VTargetDim > &	outPoint
	)		const

inline

Maps a point from moving space to target space using the direct mapping kernel.

Template Parameters

VMovingDim	Dimensionality of the moving space point.
VTargetDim	Dimensionality of the target space point.

Parameters

[in]	inPoint	The point in moving space to map.
[out]	outPoint	The mapped point in target space (only valid if return is true).

Returns: True if the mapping was successful, false otherwise (e.g. dimension mismatch).

Precondition: A valid registration instance must be set.; The direct mapping kernel must be defined.

Note: The operation may fail if the registration dimensions do not match the point dimensions.

Exceptions

mapDefaultException if the registration pointer is null or has invalid dimensions.

Definition at line 166 of file mitkMAPRegistrationWrapper.h.

◆ MapPointInverse()

template<unsigned int VMovingDim, unsigned int VTargetDim>

bool mitk::MAPRegistrationWrapper::MapPointInverse	(	const ::itk::Point< mitk::ScalarType, VTargetDim > &	inPoint,
		::itk::Point< mitk::ScalarType, VMovingDim > &	outPoint
	)		const

inline

Maps a point from target space to moving space using the inverse mapping kernel.

Template Parameters

VMovingDim	Dimensionality of the moving space point.
VTargetDim	Dimensionality of the target space point.

Parameters

[in]	inPoint	The point in target space to map.
[out]	outPoint	The mapped point in moving space (only valid if return is true).

Returns: True if the mapping was successful, false otherwise (e.g. dimension mismatch).

Precondition: A valid registration instance must be set.

Note: The operation may fail if the registration dimensions do not match the point dimensions.

Exceptions

mapDefaultException if the registration pointer is null or has invalid dimensions.

Definition at line 216 of file mitkMAPRegistrationWrapper.h.

◆ mitkClassMacro()

mitk::MAPRegistrationWrapper::mitkClassMacro	(	MAPRegistrationWrapper	,
		BaseData
	)

◆ mitkNewMacro1Param()

mitk::MAPRegistrationWrapper::mitkNewMacro1Param	(	Self	,
		::map::core::RegistrationBase *
	)

◆ PrecomputeDirectMapping()

void mitk::MAPRegistrationWrapper::PrecomputeDirectMapping ( )

Forces the direct mapping kernel to precompute its deformation field.

This is useful for lazy field-based kernels that defer computation until first use. Calling this method ensures the field is computed immediately.

Precondition: A valid registration instance must be set.

◆ PrecomputeInverseMapping()

void mitk::MAPRegistrationWrapper::PrecomputeInverseMapping ( )

Forces the inverse mapping kernel to precompute its deformation field.

This is useful for lazy field-based kernels that defer computation until first use. Calling this method ensures the field is computed immediately.

Precondition: A valid registration instance must be set.

◆ PrintSelf()

void mitk::MAPRegistrationWrapper::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::MAPRegistrationWrapper::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Empty implementation, since the MAPRegistrationWrapper doesn't support the requested region concept

Implements mitk::BaseData.

◆ SetRequestedRegion()

void mitk::MAPRegistrationWrapper::SetRequestedRegion ( const itk::DataObject * )

overridevirtual

Empty implementation, since the MAPRegistrationWrapper doesn't support the requested region concept

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::MAPRegistrationWrapper::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Empty implementation, since the MAPRegistrationWrapper doesn't support the requested region concept

Implements mitk::BaseData.

◆ SetUID()

void mitk::MAPRegistrationWrapper::SetUID ( const UIDType & uid )

overrideprotectedvirtual

Reimplemented from mitk::Identifiable.

◆ VerifyRequestedRegion()

bool mitk::MAPRegistrationWrapper::VerifyRequestedRegion ( )

overridevirtual

Empty implementation, since the MAPRegistrationWrapper doesn't support the requested region concept

Implements mitk::BaseData.

Member Data Documentation

◆ m_spRegistration

::map::core::RegistrationBase::Pointer mitk::MAPRegistrationWrapper::m_spRegistration

protected

Definition at line 319 of file mitkMAPRegistrationWrapper.h.

The documentation for this class was generated from the following file:

mitkMAPRegistrationWrapper.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ TagMapType

◆ TagType

◆ ValueType

Constructor & Destructor Documentation

◆ MAPRegistrationWrapper()

◆ ~MAPRegistrationWrapper()

Member Function Documentation

◆ GetDirectFieldRepresentation()

◆ GetInverseFieldRepresentation()

◆ GetMovingDimensions()

◆ GetRegistration() [1/2]

◆ GetRegistration() [2/2]

◆ GetTags()

◆ GetTagValue()

◆ GetTargetDimensions()

◆ GetUID()

◆ HasLimitedMovingRepresentation()

◆ HasLimitedTargetRepresentation()

◆ IsEmpty()

◆ IsEmptyTimeStep()

◆ MapPoint()

◆ MapPointInverse()

◆ mitkClassMacro()

◆ mitkNewMacro1Param()

◆ PrecomputeDirectMapping()

◆ PrecomputeInverseMapping()

◆ PrintSelf()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetUID()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_spRegistration
