3D mapper for mitk::MultiLabelSegmentation. More...

#include <mitkMultiLabelSegmentationVtkMapper3D.h>

Inheritance diagram for mitk::MultiLabelSegmentationVtkMapper3D:

[legend]

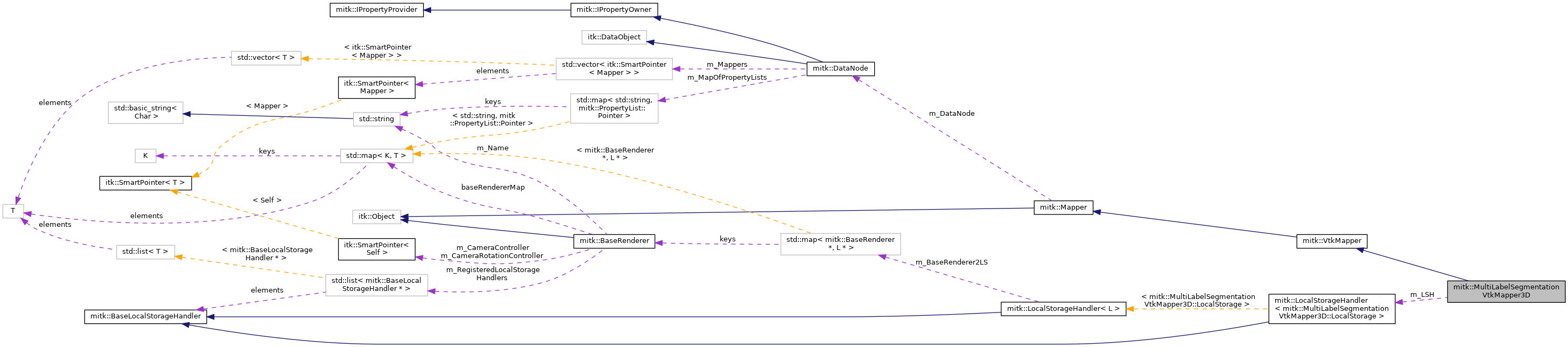

Collaboration diagram for mitk::MultiLabelSegmentationVtkMapper3D:

[legend]

Classes
class	LocalStorage
	Per-renderer cache of VTK actors and the surface-extraction state. More...

Public Member Functions
	mitkClassMacro (MultiLabelSegmentationVtkMapper3D, VtkMapper)

void	Update (mitk::BaseRenderer *renderer) override
	Checks whether this mapper needs to update itself and generate data. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Get the VTK prop for MITK-VTK rendering pipeline. More...

LocalStorage *	GetLocalStorage (mitk::BaseRenderer *renderer)
	Get the LocalStorage corresponding to the current renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set the default properties for multilabel segmentation rendering. More...

static bool	ResolveSmoothed (const mitk::DataNode node, mitk::BaseRenderer renderer)
	Resolve the active surface-smoothing state for a node. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Protected Types
using	OutdatedGroupVectorType = std::vector< std::pair< mitk::MultiLabelSegmentation::GroupIndexType, const mitk::Image * > >
	Type for a vector of outdated group indices paired with their images. More...

Protected Member Functions
	MultiLabelSegmentationVtkMapper3D ()
	Default constructor. More...

	~MultiLabelSegmentationVtkMapper3D () override
	Default destructor. More...

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Drives surface re-extraction and lookup-table refresh for all outdated groups. More...

void	UpdateLookupTable (LocalStorage *localStorage)
	Generates the look up table that should be used. More...

OutdatedGroupVectorType	CheckForOutdatedGroups (mitk::MultiLabelSegmentationVtkMapper3D::LocalStorage ls, mitk::MultiLabelSegmentation seg, bool fadedPipelineChanged)
	Check if groups are outdated or obsolete. More...

void	UpdateSurfaceMapping (LocalStorage *localStorage, const OutdatedGroupVectorType &outdatedData)
	Update the surface mapping for the given outdated groups. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH

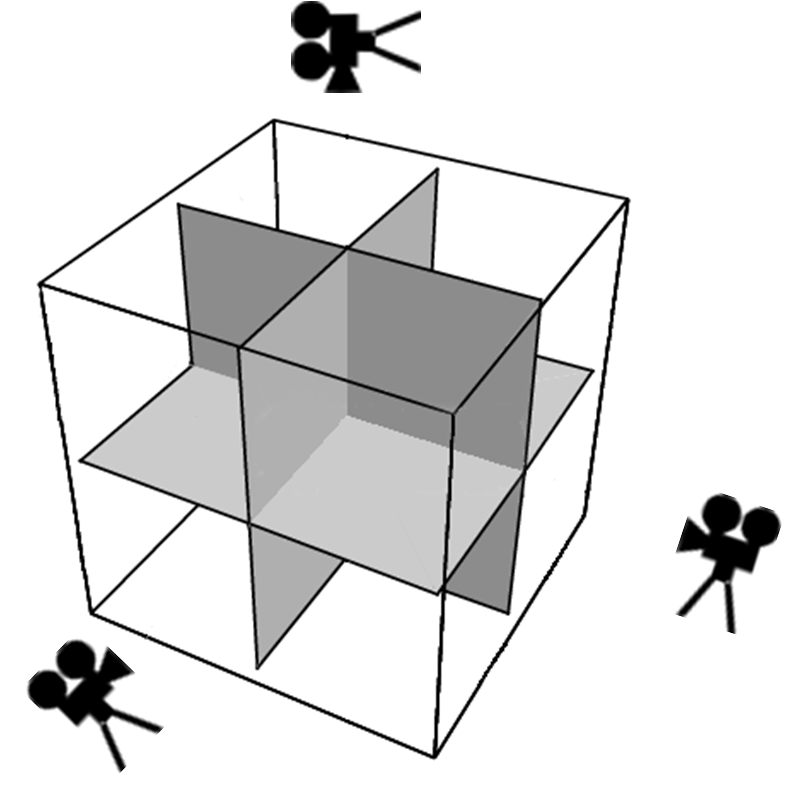

	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

3D mapper for mitk::MultiLabelSegmentation.

Renders all label groups of a multi-label segmentation as smooth polygonal surfaces, using vtkSurfaceNets3D to extract a single shared mesh per group (one execution covers all labels in that group). The internal constrained smoothing filter preserves sharp inter-label boundaries while removing voxel staircasing.

Properties consumed:

"visible" (BoolProperty)
"opacity" (FloatProperty)
"org.mitk.multilabel.3D.hide" (BoolProperty)
"org.mitk.multilabel.3D.smoothed" (BoolProperty)
"/org.mitk.views.segmentation" -> "activate 3D rendering" preference
"/org.mitk.views.segmentation" -> "3D rendering smoothed" preference
"/org.mitk.views.segmentation" -> "opacity factor" preference
LabelHighlightGuard properties to fade non-highlighted labels

Definition at line 64 of file mitkMultiLabelSegmentationVtkMapper3D.h.

Member Typedef Documentation

◆ OutdatedGroupVectorType

using mitk::MultiLabelSegmentationVtkMapper3D::OutdatedGroupVectorType = std::vector<std::pair<mitk::MultiLabelSegmentation::GroupIndexType, const mitk::Image*> >

protected

Type for a vector of outdated group indices paired with their images.

Definition at line 194 of file mitkMultiLabelSegmentationVtkMapper3D.h.

Constructor & Destructor Documentation

◆ MultiLabelSegmentationVtkMapper3D()

mitk::MultiLabelSegmentationVtkMapper3D::MultiLabelSegmentationVtkMapper3D ( )

protected

Default constructor.

◆ ~MultiLabelSegmentationVtkMapper3D()

mitk::MultiLabelSegmentationVtkMapper3D::~MultiLabelSegmentationVtkMapper3D ( )

overrideprotected

Default destructor.

Member Function Documentation

◆ CheckForOutdatedGroups()

OutdatedGroupVectorType mitk::MultiLabelSegmentationVtkMapper3D::CheckForOutdatedGroups	(	mitk::MultiLabelSegmentationVtkMapper3D::LocalStorage *	ls,
		mitk::MultiLabelSegmentation *	seg,
		bool	fadedPipelineChanged
	)

protected

Check if groups are outdated or obsolete.

Obsolete groups will be removed. Outdated groups will be indicated in the output as such. New groups will be added to the local storage and also marked as outdated.

Parameters

ls	The local storage to check.
seg	The multi-label segmentation to check against.
fadedPipelineChanged	Whether the faded pipeline state has changed.

Returns: A vector of outdated group index / image pairs.

◆ GenerateDataForRenderer()

void mitk::MultiLabelSegmentationVtkMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Drives surface re-extraction and lookup-table refresh for all outdated groups.

Reimplemented from mitk::Mapper.

◆ GetLocalStorage()

LocalStorage* mitk::MultiLabelSegmentationVtkMapper3D::GetLocalStorage ( mitk::BaseRenderer * renderer )

Get the LocalStorage corresponding to the current renderer.

◆ GetVtkProp()

vtkProp* mitk::MultiLabelSegmentationVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Get the VTK prop for MITK-VTK rendering pipeline.

Parameters

renderer The renderer to get the prop for.

Returns: The vtkProp for rendering.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::MultiLabelSegmentationVtkMapper3D::mitkClassMacro	(	MultiLabelSegmentationVtkMapper3D	,
		VtkMapper
	)

Standard class typedefs.

◆ New()

static Pointer mitk::MultiLabelSegmentationVtkMapper3D::New ( )

static

Method for creation through the object factory.

◆ ResolveSmoothed()

static bool mitk::MultiLabelSegmentationVtkMapper3D::ResolveSmoothed	(	const mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer
	)

static

Resolve the active surface-smoothing state for a node.

Reads the per-node "org.mitk.multilabel.3D.smoothed" property if set, otherwise falls back to the "/org.mitk.views.segmentation -> 3D rendering smoothed" preference (default true).

Remarks: The 3D-visualization context-menu action (Qmitk3DMultiSegVisStyleAction) mirrors this resolution rule. It is duplicated rather than reused because org.mitk.gui.qt.application must not depend on MitkMultilabel. Keep both implementations in sync if defaults or preference keys change.

◆ SetDefaultProperties()

static void mitk::MultiLabelSegmentationVtkMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set the default properties for multilabel segmentation rendering.

Parameters

node	The data node to set the properties on.
renderer	The renderer for renderer-specific properties, or nullptr for global properties.
overwrite	If true, existing properties will be overwritten.

◆ Update()

void mitk::MultiLabelSegmentationVtkMapper3D::Update ( mitk::BaseRenderer * renderer )

overridevirtual

Checks whether this mapper needs to update itself and generate data.

Reimplemented from mitk::Mapper.

◆ UpdateLookupTable()

void mitk::MultiLabelSegmentationVtkMapper3D::UpdateLookupTable ( LocalStorage * localStorage )

protected

Generates the look up table that should be used.

◆ UpdateSurfaceMapping()

void mitk::MultiLabelSegmentationVtkMapper3D::UpdateSurfaceMapping	(	LocalStorage *	localStorage,
		const OutdatedGroupVectorType &	outdatedData
	)

protected

Update the surface mapping for the given outdated groups.

Parameters

localStorage	The local storage to update.
outdatedData	The outdated group data to process.

Member Data Documentation

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::MultiLabelSegmentationVtkMapper3D::m_LSH

protected

The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows.

Definition at line 216 of file mitkMultiLabelSegmentationVtkMapper3D.h.

The documentation for this class was generated from the following file:

mitkMultiLabelSegmentationVtkMapper3D.h
