VTK-based 2D mapper for rendering a crosshair. More...

#include <mitkCrosshairVtkMapper2D.h>

Inheritance diagram for mitk::CrosshairVtkMapper2D:

[legend]

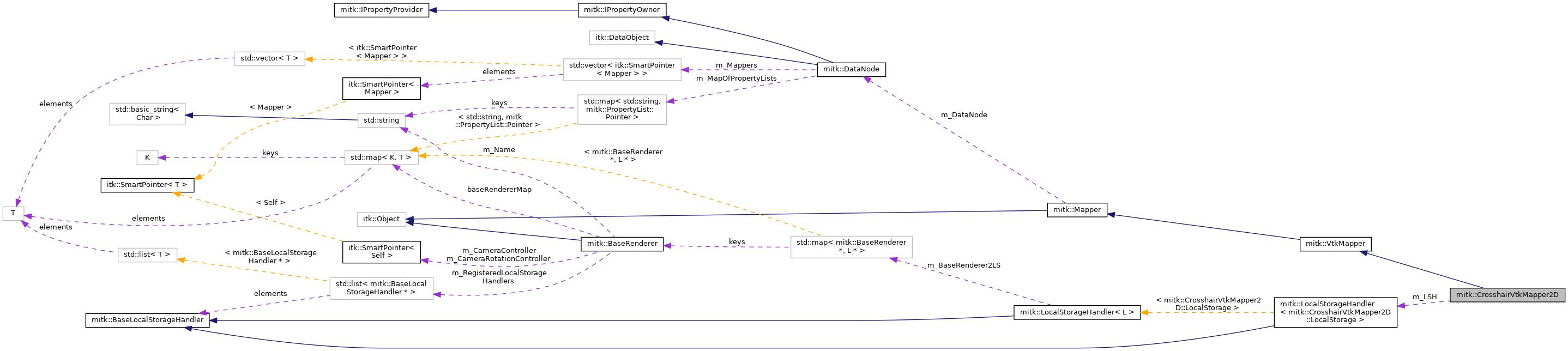

Collaboration diagram for mitk::CrosshairVtkMapper2D:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 2D render windows. More...

Public Member Functions
	mitkClassMacro (CrosshairVtkMapper2D, VtkMapper)

const CrosshairData *	GetInput () const
	Get the input CrosshairData from the data node. More...

void	Update (mitk::BaseRenderer *renderer) override
	Check whether this mapper needs to update itself and generate data. More...

vtkProp *	GetVtkProp (BaseRenderer *renderer) override
	Get the VTK prop assembly for the given renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default properties for the crosshair data node. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Protected Member Functions
	CrosshairVtkMapper2D ()
	Constructor. Initializes the default gap size. More...

	~CrosshairVtkMapper2D () override
	Destructor. More...

void	GenerateDataForRenderer (BaseRenderer *renderer) override
	Apply color and opacity properties and create the VTK crosshair geometry. More...

void	CreateVtkCrosshair (BaseRenderer *renderer)
	Create the VTK crosshair poly data for the given renderer. More...

void	DrawLine (Point3D p0, Point3D p1, vtkCellArray lines, vtkPoints points)
	Draw a line between two 3D points and add it to the given VTK structures. More...

void	ApplyAllProperties (BaseRenderer *renderer)
	Apply all visual properties (color, opacity, line width) to the crosshair actor. More...

void	ApplyColorAndOpacityProperties2D (BaseRenderer renderer, vtkActor2D actor)
	Apply color and opacity properties to a 2D actor. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all LocalStorages for the 2D render windows. More...

const int	defaultGapSize
	The default gap size in pixels for the crosshair center. More...

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

VTK-based 2D mapper for rendering a crosshair.

CrosshairData is used to retrieve the selected position, which is stored in the processed data node. The crosshair is created by drawing lines through the selected position, adding an additional gap in the center of the crosshair, and creating VTK poly data from the created points and lines.

See also: CrosshairData; CrosshairManager

Definition at line 43 of file mitkCrosshairVtkMapper2D.h.

Constructor & Destructor Documentation

◆ CrosshairVtkMapper2D()

mitk::CrosshairVtkMapper2D::CrosshairVtkMapper2D ( )

protected

Constructor. Initializes the default gap size.

◆ ~CrosshairVtkMapper2D()

mitk::CrosshairVtkMapper2D::~CrosshairVtkMapper2D ( )

overrideprotected

Destructor.

Member Function Documentation

◆ ApplyAllProperties()

void mitk::CrosshairVtkMapper2D::ApplyAllProperties ( BaseRenderer * renderer )

protected

Apply all visual properties (color, opacity, line width) to the crosshair actor.

Parameters

[in] renderer The renderer providing property context.

◆ ApplyColorAndOpacityProperties2D()

void mitk::CrosshairVtkMapper2D::ApplyColorAndOpacityProperties2D	(	BaseRenderer *	renderer,
		vtkActor2D *	actor
	)

protected

Apply color and opacity properties to a 2D actor.

Parameters

[in]	renderer	The renderer providing property context.
[in,out]	actor	The vtkActor2D to apply properties to.

◆ CreateVtkCrosshair()

void mitk::CrosshairVtkMapper2D::CreateVtkCrosshair ( BaseRenderer * renderer )

protected

Create the VTK crosshair poly data for the given renderer.

Converts the 3D crosshair position to 2D display coordinates, then draws four line segments with a central gap.

Parameters

[in] renderer The renderer providing coordinate transformations.

◆ DrawLine()

void mitk::CrosshairVtkMapper2D::DrawLine	(	Point3D	p0,
		Point3D	p1,
		vtkCellArray *	lines,
		vtkPoints *	points
	)

protected

Draw a line between two 3D points and add it to the given VTK structures.

Parameters

[in]	p0	The start point.
[in]	p1	The end point.
[in,out]	lines	The cell array to add the line to.
[in,out]	points	The points array to add the endpoints to.

◆ GenerateDataForRenderer()

void mitk::CrosshairVtkMapper2D::GenerateDataForRenderer ( BaseRenderer * renderer )

overrideprotectedvirtual

Apply color and opacity properties and create the VTK crosshair geometry.

Parameters

[in] renderer The renderer to generate data for.

Reimplemented from mitk::Mapper.

◆ GetInput()

const CrosshairData* mitk::CrosshairVtkMapper2D::GetInput ( ) const

Get the input CrosshairData from the data node.

Returns: The CrosshairData associated with this mapper's data node.

◆ GetVtkProp()

vtkProp* mitk::CrosshairVtkMapper2D::GetVtkProp ( BaseRenderer * renderer )

overridevirtual

Get the VTK prop assembly for the given renderer.

Parameters

[in] renderer The renderer whose local storage provides the prop.

Returns: The vtkPropAssembly containing the crosshair actor.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::CrosshairVtkMapper2D::mitkClassMacro	(	CrosshairVtkMapper2D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::CrosshairVtkMapper2D::New ( )

static

◆ SetDefaultProperties()

static void mitk::CrosshairVtkMapper2D::SetDefaultProperties	(	DataNode *	node,
		BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default properties for the crosshair data node.

Sets "Line width" and "Crosshair.Gap Size" properties.

Parameters

[in]	node	The data node to set properties on.
[in]	renderer	The renderer for renderer-specific properties. May be nullptr.
[in]	overwrite	If true, existing properties are overwritten.

◆ Update()

void mitk::CrosshairVtkMapper2D::Update ( mitk::BaseRenderer * renderer )

overridevirtual

Check whether this mapper needs to update itself and generate data.

Skips rendering if the data node is not visible in the given renderer or if the data is not of type CrosshairData.

Parameters

[in] renderer The renderer to update for.

Reimplemented from mitk::Mapper.

Member Data Documentation

◆ defaultGapSize

const int mitk::CrosshairVtkMapper2D::defaultGapSize

protected

The default gap size in pixels for the crosshair center.

Definition at line 157 of file mitkCrosshairVtkMapper2D.h.

◆ m_LSH

LocalStorageHandler<LocalStorage> mitk::CrosshairVtkMapper2D::m_LSH

protected

The LocalStorageHandler holds all LocalStorages for the 2D render windows.

Definition at line 113 of file mitkCrosshairVtkMapper2D.h.

The documentation for this class was generated from the following file:

mitkCrosshairVtkMapper2D.h
