mitk::PlanarFigureVtkMapper3D Class Reference
VTK-based mapper for rendering planar figures in 3D render windows. More...
#include <mitkPlanarFigureVtkMapper3D.h>
Inheritance diagram for mitk::PlanarFigureVtkMapper3D:

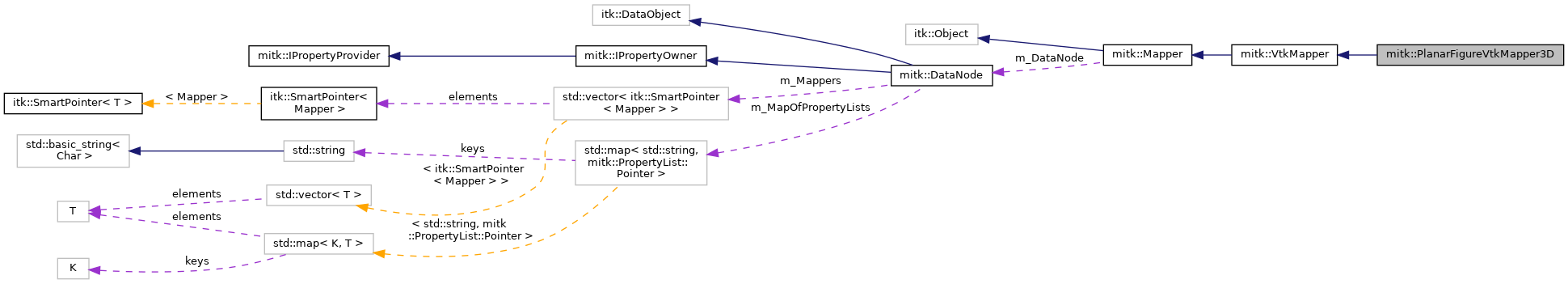

Collaboration diagram for mitk::PlanarFigureVtkMapper3D:
Public Member Functions | |
| mitkClassMacro (PlanarFigureVtkMapper3D, VtkMapper) | |
| Pointer | Clone () const |
| void | ApplyColorAndOpacityProperties (BaseRenderer *renderer, vtkActor *actor) override |
| Apply color and opacity properties read from the PropertyList to the given vtkActor. More... | |
| void | ApplyPlanarFigureProperties (BaseRenderer *renderer, vtkActor *actor) |
| vtkProp * | GetVtkProp (BaseRenderer *renderer) override |
| Return the VTK prop (actor, assembly, etc.) for the given renderer. More... | |
| void | UpdateVtkTransform (BaseRenderer *) override |
| Set the vtkTransform of the m_Prop3D for the current time step of renderer. More... | |
 Public Member Functions inherited from mitk::VtkMapper | |
| mitkClassMacro (VtkMapper, Mapper) | |
| void | MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override |
| Determine the render pass type and call the appropriate render method. More... | |
| virtual void | MitkRenderOverlay (BaseRenderer *renderer) |
| Check visibility and render the overlay pass. More... | |
| virtual void | MitkRenderOpaqueGeometry (BaseRenderer *renderer) |
| Check visibility and render opaque (untransparent) geometry. More... | |
| virtual void | MitkRenderTranslucentGeometry (BaseRenderer *renderer) |
| Check visibility and render translucent (transparent) geometry. More... | |
| virtual void | MitkRenderVolumetricGeometry (BaseRenderer *renderer) |
| Check visibility and render volumetric geometry. More... | |
| virtual bool | HasVtkProp (const vtkProp *prop, BaseRenderer *renderer) |
| Check whether this mapper owns the specified vtkProp for the given renderer. More... | |
| virtual void | ReleaseGraphicsResources (mitk::BaseRenderer *) |
| Release VTK-based graphics resources consumed by this mapper. More... | |
| Public Member Functions inherited from mitk::Mapper | |
| mitkClassMacroItkParent (Mapper, itk::Object) | |
| virtual void | SetDataNode (DataNode *_arg) |
| Set the DataNode containing the data to map. More... | |
| virtual DataNode * | GetDataNode () const |
| Get the DataNode containing the data to map. More... | |
| virtual void | Update (BaseRenderer *renderer) |
| Calculate the time step for the current renderer and generate rendering data. More... | |
| TimeStepType | GetTimestep () const |
| Return the current time step as calculated from the renderer. More... | |
| virtual bool | IsLODEnabled (BaseRenderer *) const |
| Return whether this Mapper currently allows for Level-of-Detail rendering. More... | |
Static Public Member Functions | |
| static void | SetDefaultProperties (DataNode *, BaseRenderer *=nullptr, bool=false) |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::Mapper | |
| static void | SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false) |
| Set default values of properties used by this mapper on the given node. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from mitk::VtkMapper | |
| VtkMapper () | |
| ~VtkMapper () override | |
| Protected Member Functions inherited from mitk::Mapper | |
| Mapper () | |
| explicit constructor which disallows implicit conversions More... | |
| ~Mapper () override | |
| virtual destructor in order to derive from this class More... | |
| virtual void | CalculateTimeStep (BaseRenderer *renderer) |
| Updates the time step, which is sometimes needed in subclasses. More... | |
| virtual void | ResetMapper (BaseRenderer *) |
| Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More... | |
| Protected Attributes inherited from mitk::Mapper | |
| mitk::DataNode * | m_DataNode |
Detailed Description
VTK-based mapper for rendering planar figures in 3D render windows.
Renders the polyline representation of a PlanarFigure as a 3D VTK actor.
- See also
- PlanarFigure
- PlanarFigureMapper2D
Definition at line 31 of file mitkPlanarFigureVtkMapper3D.h.
Member Function Documentation
◆ ApplyColorAndOpacityProperties()
|
overridevirtual |
Apply color and opacity properties read from the PropertyList to the given vtkActor.
Reads the "color" and "opacity" properties from the DataNode and applies them to the actor's vtkProperty.
- Parameters
-
[in] renderer The renderer whose property list is queried. [in] actor The vtkActor to apply color and opacity to.
Reimplemented from mitk::VtkMapper.
◆ ApplyPlanarFigureProperties()
| void mitk::PlanarFigureVtkMapper3D::ApplyPlanarFigureProperties | ( | BaseRenderer * | renderer, |
| vtkActor * | actor | ||
| ) |
◆ Clone()
| Pointer mitk::PlanarFigureVtkMapper3D::Clone | ( | ) | const |
◆ GetVtkProp()
|
overridevirtual |
Return the VTK prop (actor, assembly, etc.) for the given renderer.
Each subclass must implement this to provide its rendering representation.
- Parameters
-
[in] renderer The renderer for which the prop is requested.
- Returns
- Pointer to the vtkProp used for rendering.
Implements mitk::VtkMapper.
◆ mitkClassMacro()
| mitk::PlanarFigureVtkMapper3D::mitkClassMacro | ( | PlanarFigureVtkMapper3D | , |
| VtkMapper | |||
| ) |
◆ New()
|
static |
◆ SetDefaultProperties()
|
static |
◆ UpdateVtkTransform()
|
overridevirtual |
Set the vtkTransform of the m_Prop3D for the current time step of renderer.
Called by mitk::VtkPropRenderer::Update before rendering. This method will transform all actors (e.g. of an vtkAssembly) according the geometry.
- Warning
- This method transforms only props which derive from vtkProp3D. Make sure to use vtkAssembly, if you have multiple props. vtkPropAssembly does not work, since it derives from vtkProp.
Reimplemented from mitk::VtkMapper.
The documentation for this class was generated from the following file:
