VTK-based 2D mapper for rendering a crosshair with the plane geometry. More...

#include <mitkPlaneGeometryDataMapper2D.h>

Inheritance diagram for mitk::PlaneGeometryDataMapper2D:

[legend]

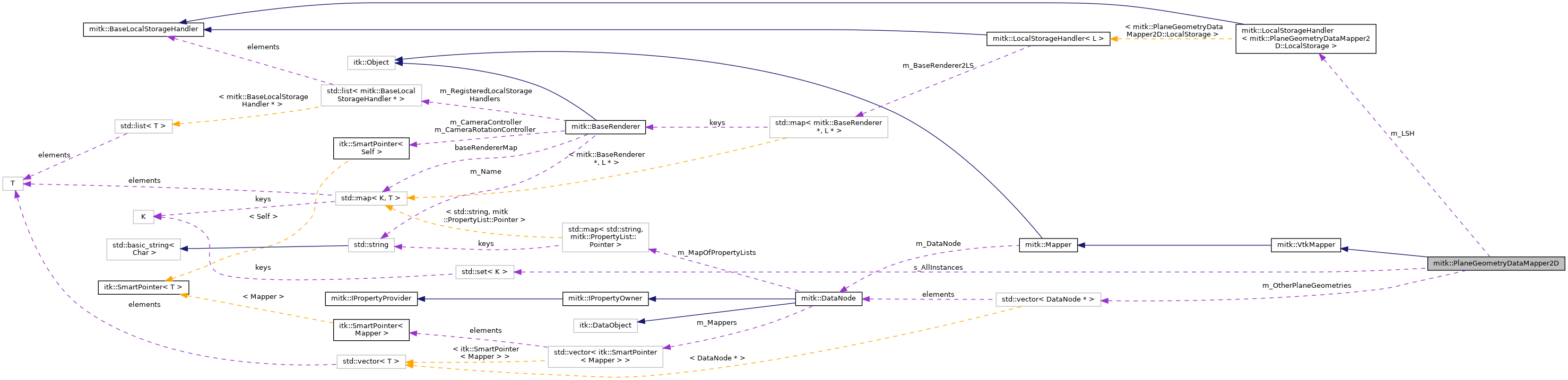

Collaboration diagram for mitk::PlaneGeometryDataMapper2D:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

Public Member Functions
	mitkClassMacro (PlaneGeometryDataMapper2D, VtkMapper)

Pointer	Clone () const

virtual const mitk::PlaneGeometryData *	GetInput () const
	Get the PlaneGeometryData input of this mapper. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Get the VTK prop assembly for the given renderer. More...

virtual void	ApplyAllProperties (BaseRenderer *renderer)
	Apply all visual properties specific to this mapper. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set the default properties for this mapper on the given node. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Types
typedef std::vector< DataNode * >	NodesVectorType

typedef std::set< Self * >	AllInstancesContainer

Protected Member Functions
	PlaneGeometryDataMapper2D ()

	~PlaneGeometryDataMapper2D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Apply color and opacity properties, then create VTK render objects. More...

void	CreateVtkCrosshair (BaseRenderer *renderer)
	Create the VTK crosshair representation for the given renderer. More...

void	DrawLine (Point3D p0, Point3D p1, vtkCellArray lines, vtkPoints points)
	Add a line segment between two 3D points to VTK data structures. More...

void	ApplyColorAndOpacityProperties2D (BaseRenderer renderer, vtkActor2D actor)

void	DrawOrientationArrow (vtkSmartPointer< vtkCellArray > triangles, vtkSmartPointer< vtkPoints > triPoints, double triangleSizeMM, Vector3D &orthogonalVector, Point3D &point1, Point3D &point2)

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Static Protected Member Functions
static bool	TestPointInPlaneGeometry (const PlaneGeometry *planeGeometry, const Point3D &point)
	Test if a point lies within the given PlaneGeometry bounds. More...

static bool	TestPointInReferenceGeometry (const BaseGeometry *referenceGeometry, const Point3D &point)
	Test if a point lies within the given reference geometry bounds. More...

static bool	CutCrossLineWithPlaneGeometry (const PlaneGeometry *planeGeometry, Line3D &crossLine)
	Clip a crosshair line segment to the bounds of the given PlaneGeometry. More...

static bool	CutCrossLineWithReferenceGeometry (const BaseGeometry *referenceGeometry, Line3D &crossLine)
	Clip a crosshair line segment to the bounds of the given reference geometry. More...

Protected Attributes
NodesVectorType	m_OtherPlaneGeometries

bool	m_RenderOrientationArrows

bool	m_ArrowOrientationPositive

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Static Protected Attributes
static AllInstancesContainer	s_AllInstances

Detailed Description

VTK-based 2D mapper for rendering a crosshair with the plane geometry.

This mapper uses the mitkPlaneGeometryData from the three helper objects in the StdMultiWidget to render a crosshair in all 2D render windows. The crosshair is assembled as lines and rendered with a vtkPolyDataMapper. The mapper requires multiple plane geometry to compute the correct crosshair position. The plane bounds are computed using either ReferenceGeometry if it is present or the plane geometry itself otherwise. The mapper offers the following properties: Crosshair.Line width: The thickness of the crosshair. Crosshair.Gap Size: The gap between the lines in pixels. Crosshair.Orientation Decoration: Adds a PlaneOrientationProperty, which indicates the direction of the plane normal. See mitkPlaneOrientationProperty.

See also: PlaneGeometryData; PlaneOrientationProperty

Definition at line 47 of file mitkPlaneGeometryDataMapper2D.h.

Member Typedef Documentation

◆ AllInstancesContainer

typedef std::set<Self *> mitk::PlaneGeometryDataMapper2D::AllInstancesContainer

protected

Definition at line 135 of file mitkPlaneGeometryDataMapper2D.h.

◆ NodesVectorType

typedef std::vector<DataNode *> mitk::PlaneGeometryDataMapper2D::NodesVectorType

protected

Definition at line 132 of file mitkPlaneGeometryDataMapper2D.h.

Constructor & Destructor Documentation

◆ PlaneGeometryDataMapper2D()

mitk::PlaneGeometryDataMapper2D::PlaneGeometryDataMapper2D ( )

protected

◆ ~PlaneGeometryDataMapper2D()

mitk::PlaneGeometryDataMapper2D::~PlaneGeometryDataMapper2D ( )

overrideprotected

Member Function Documentation

◆ ApplyAllProperties()

virtual void mitk::PlaneGeometryDataMapper2D::ApplyAllProperties ( BaseRenderer * renderer )

virtual

Apply all visual properties specific to this mapper.

Parameters

renderer The renderer whose properties to apply.

◆ ApplyColorAndOpacityProperties2D()

void mitk::PlaneGeometryDataMapper2D::ApplyColorAndOpacityProperties2D	(	BaseRenderer *	renderer,
		vtkActor2D *	actor
	)

protected

◆ Clone()

Pointer mitk::PlaneGeometryDataMapper2D::Clone ( ) const

◆ CreateVtkCrosshair()

void mitk::PlaneGeometryDataMapper2D::CreateVtkCrosshair ( BaseRenderer * renderer )

protected

Create the VTK crosshair representation for the given renderer.

◆ CutCrossLineWithPlaneGeometry()

static bool mitk::PlaneGeometryDataMapper2D::CutCrossLineWithPlaneGeometry	(	const PlaneGeometry *	planeGeometry,
		Line3D &	crossLine
	)

staticprotected

Clip a crosshair line segment to the bounds of the given PlaneGeometry.

◆ CutCrossLineWithReferenceGeometry()

static bool mitk::PlaneGeometryDataMapper2D::CutCrossLineWithReferenceGeometry	(	const BaseGeometry *	referenceGeometry,
		Line3D &	crossLine
	)

staticprotected

Clip a crosshair line segment to the bounds of the given reference geometry.

◆ DrawLine()

void mitk::PlaneGeometryDataMapper2D::DrawLine	(	Point3D	p0,
		Point3D	p1,
		vtkCellArray *	lines,
		vtkPoints *	points
	)

protected

Add a line segment between two 3D points to VTK data structures.

◆ DrawOrientationArrow()

void mitk::PlaneGeometryDataMapper2D::DrawOrientationArrow	(	vtkSmartPointer< vtkCellArray >	triangles,
		vtkSmartPointer< vtkPoints >	triPoints,
		double	triangleSizeMM,
		Vector3D &	orthogonalVector,
		Point3D &	point1,
		Point3D &	point2
	)

protected

◆ GenerateDataForRenderer()

void mitk::PlaneGeometryDataMapper2D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Apply color and opacity properties, then create VTK render objects.

Reimplemented from mitk::Mapper.

◆ GetInput()

virtual const mitk::PlaneGeometryData* mitk::PlaneGeometryDataMapper2D::GetInput ( ) const

virtual

Get the PlaneGeometryData input of this mapper.

◆ GetVtkProp()

vtkProp* mitk::PlaneGeometryDataMapper2D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Get the VTK prop assembly for the given renderer.

Parameters

renderer The renderer for which to return the VTK prop.

Returns: The assembled vtkProp containing the crosshair visualization.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::PlaneGeometryDataMapper2D::mitkClassMacro	(	PlaneGeometryDataMapper2D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::PlaneGeometryDataMapper2D::New ( )

static

◆ SetDefaultProperties()

static void mitk::PlaneGeometryDataMapper2D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set the default properties for this mapper on the given node.

Parameters

node	The data node on which to set default properties.
renderer	The renderer context. If nullptr, properties apply to all renderers.
overwrite	If true, existing properties are overwritten.

◆ TestPointInPlaneGeometry()

static bool mitk::PlaneGeometryDataMapper2D::TestPointInPlaneGeometry	(	const PlaneGeometry *	planeGeometry,
		const Point3D &	point
	)

staticprotected

Test if a point lies within the given PlaneGeometry bounds.

◆ TestPointInReferenceGeometry()

static bool mitk::PlaneGeometryDataMapper2D::TestPointInReferenceGeometry	(	const BaseGeometry *	referenceGeometry,
		const Point3D &	point
	)

staticprotected

Test if a point lies within the given reference geometry bounds.

Member Data Documentation

◆ m_ArrowOrientationPositive

bool mitk::PlaneGeometryDataMapper2D::m_ArrowOrientationPositive

protected

Definition at line 139 of file mitkPlaneGeometryDataMapper2D.h.

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::PlaneGeometryDataMapper2D::m_LSH

The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows.

Definition at line 101 of file mitkPlaneGeometryDataMapper2D.h.

◆ m_OtherPlaneGeometries

NodesVectorType mitk::PlaneGeometryDataMapper2D::m_OtherPlaneGeometries

protected

Definition at line 133 of file mitkPlaneGeometryDataMapper2D.h.

◆ m_RenderOrientationArrows

bool mitk::PlaneGeometryDataMapper2D::m_RenderOrientationArrows

protected

Definition at line 138 of file mitkPlaneGeometryDataMapper2D.h.

◆ s_AllInstances

AllInstancesContainer mitk::PlaneGeometryDataMapper2D::s_AllInstances

staticprotected

Definition at line 136 of file mitkPlaneGeometryDataMapper2D.h.

The documentation for this class was generated from the following file:

mitkPlaneGeometryDataMapper2D.h
