VTK-based mapper for volume rendering of 3D image data. More...

#include <mitkVolumeMapperVtkSmart3D.h>

Inheritance diagram for mitk::VolumeMapperVtkSmart3D:

[legend]

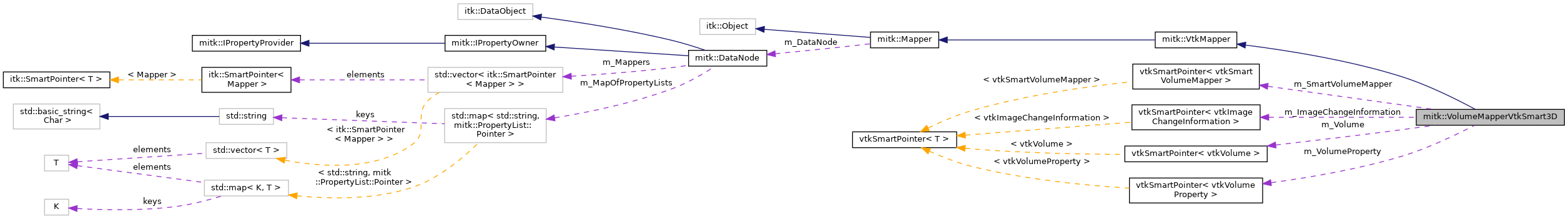

Collaboration diagram for mitk::VolumeMapperVtkSmart3D:

[legend]

Public Member Functions
	mitkClassMacro (VolumeMapperVtkSmart3D, VtkMapper)

Pointer	Clone () const

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Get the VTK volume prop for 3D rendering. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default rendering properties for volume visualization. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Protected Member Functions
	VolumeMapperVtkSmart3D ()

	~VolumeMapperVtkSmart3D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

void	createMapper (vtkImageData *)

void	createVolume ()

void	createVolumeProperty ()

vtkImageData *	GetInputImage ()

void	UpdateTransferFunctions (mitk::BaseRenderer *renderer)

void	UpdateRenderMode (mitk::BaseRenderer *renderer)

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
vtkSmartPointer< vtkVolume >	m_Volume

vtkSmartPointer< vtkImageChangeInformation >	m_ImageChangeInformation

vtkSmartPointer< vtkSmartVolumeMapper >	m_SmartVolumeMapper

vtkSmartPointer< vtkVolumeProperty >	m_VolumeProperty

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

VTK-based mapper for volume rendering of 3D image data.

Uses vtkSmartVolumeMapper which automatically selects the best volume rendering method (GPU ray casting, software ray casting, etc.) based on hardware capabilities. Transfer functions for color and opacity are configured from the DataNode's TransferFunction property.

See also: ImageVtkMapper2D, VtkMapper

Definition at line 45 of file mitkVolumeMapperVtkSmart3D.h.

Constructor & Destructor Documentation

◆ VolumeMapperVtkSmart3D()

mitk::VolumeMapperVtkSmart3D::VolumeMapperVtkSmart3D ( )

protected

◆ ~VolumeMapperVtkSmart3D()

mitk::VolumeMapperVtkSmart3D::~VolumeMapperVtkSmart3D ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::VolumeMapperVtkSmart3D::Clone ( ) const

◆ createMapper()

void mitk::VolumeMapperVtkSmart3D::createMapper ( vtkImageData * )

protected

◆ createVolume()

void mitk::VolumeMapperVtkSmart3D::createVolume ( )

protected

◆ createVolumeProperty()

void mitk::VolumeMapperVtkSmart3D::createVolumeProperty ( )

protected

◆ GenerateDataForRenderer()

void mitk::VolumeMapperVtkSmart3D::GenerateDataForRenderer ( mitk::BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

◆ GetInputImage()

vtkImageData* mitk::VolumeMapperVtkSmart3D::GetInputImage ( )

protected

◆ GetVtkProp()

vtkProp* mitk::VolumeMapperVtkSmart3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Get the VTK volume prop for 3D rendering.

Parameters

[in] renderer The renderer context.

Returns: The VTK volume prop.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::VolumeMapperVtkSmart3D::mitkClassMacro	(	VolumeMapperVtkSmart3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::VolumeMapperVtkSmart3D::New ( )

static

◆ SetDefaultProperties()

static void mitk::VolumeMapperVtkSmart3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default rendering properties for volume visualization.

Parameters

[in]	node	The data node to configure.
[in]	renderer	The renderer context, or `nullptr` for all renderers.
[in]	overwrite	If `true`, overwrite existing properties.

◆ UpdateRenderMode()

void mitk::VolumeMapperVtkSmart3D::UpdateRenderMode ( mitk::BaseRenderer * renderer )

protected

◆ UpdateTransferFunctions()

void mitk::VolumeMapperVtkSmart3D::UpdateTransferFunctions ( mitk::BaseRenderer * renderer )

protected

Member Data Documentation

◆ m_ImageChangeInformation

vtkSmartPointer<vtkImageChangeInformation> mitk::VolumeMapperVtkSmart3D::m_ImageChangeInformation

protected

Definition at line 81 of file mitkVolumeMapperVtkSmart3D.h.

◆ m_SmartVolumeMapper

vtkSmartPointer<vtkSmartVolumeMapper> mitk::VolumeMapperVtkSmart3D::m_SmartVolumeMapper

protected

Definition at line 82 of file mitkVolumeMapperVtkSmart3D.h.

◆ m_Volume

vtkSmartPointer<vtkVolume> mitk::VolumeMapperVtkSmart3D::m_Volume

protected

Definition at line 80 of file mitkVolumeMapperVtkSmart3D.h.

◆ m_VolumeProperty

vtkSmartPointer<vtkVolumeProperty> mitk::VolumeMapperVtkSmart3D::m_VolumeProperty

protected

Definition at line 83 of file mitkVolumeMapperVtkSmart3D.h.

The documentation for this class was generated from the following file:

mitkVolumeMapperVtkSmart3D.h
