mitk::RegistrationManipulationInteractor Class Reference

Data interactor for mouse-based registration manipulation in 2D render windows. More...

#include <mitkRegistrationManipulationInteractor.h>

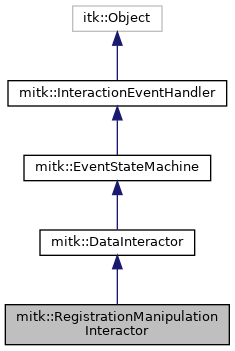

Inheritance diagram for mitk::RegistrationManipulationInteractor:

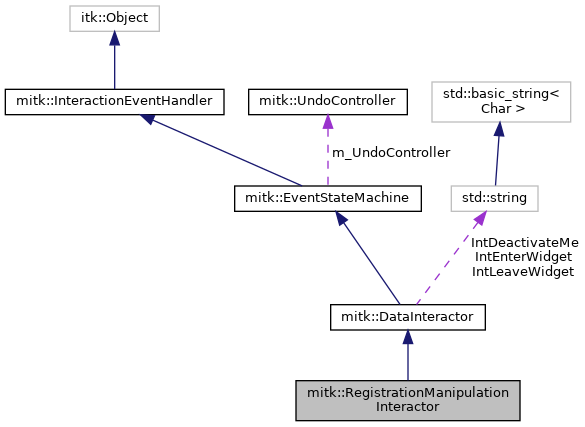

Collaboration diagram for mitk::RegistrationManipulationInteractor:

Classes
struct	RotationDelta

Public Member Functions
	mitkClassMacro (RegistrationManipulationInteractor, DataInteractor)
Pointer	Clone () const
void	SetCenterOfRotation (const Point3D &center)
const Vector3D &	GetTranslationDelta () const
const RotationDelta &	GetRotationDelta () const
const Point3D &	GetSelectPosition () const
void	DisableOriginalInteraction ()
void	EnableOriginalInteraction ()
void	PushManipulationCursor ()
void	PopManipulationCursor ()
Public Member Functions inherited from mitk::DataInteractor
	mitkClassMacro (DataInteractor, EventStateMachine)
Pointer	Clone () const
DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...
virtual void	SetDataNode (DataNode *dataNode)
	Set the DataNode that this interactor operates on. More...
int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...
ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...
Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...
bool	HandleEvent (InteractionEvent *event, DataNode *dataNode)
	Process an incoming interaction event. More...
void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...
void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...
Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...
bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...
EventConfig	GetEventConfig () const
	Returns the current configuration. More...
bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...
bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::DataInteractor
static Pointer	New ()

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType
Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...
static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...
static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...
Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction *, InteractionEvent *, void >	ActionFunctionDelegate
typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate
Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()
	~DataInteractor () override
virtual void	DataNodeChanged ()
	Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode. More...
virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...
virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...
Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()
	~EventStateMachine () override
void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)
void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)
StateMachineState *	GetCurrentState () const
void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...
virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)
virtual void	ExecuteAction (StateMachineAction *action, InteractionEvent *interactionEvent)
virtual bool	FilterEvents (InteractionEvent *interactionEvent, DataNode *dataNode)
void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...
void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...
StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...
Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()
	~InteractionEventHandler () override
PropertyList::Pointer	GetAttributes () const
std::string	MapToEventVariant (InteractionEvent *interactionEvent)
virtual void	ConfigurationChanged ()
Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive
UndoController *	m_UndoController
bool	m_UndoEnabled

Detailed Description

Data interactor for mouse-based registration manipulation in 2D render windows.

The interactor supports in-plane translation and in-plane rotation (around the view plane normal) via modifier+mouse-drag combinations, plus a plain click for navigator position selection:

• Shift + Left-drag: In-plane translation
• Ctrl + Left-drag: In-plane rotation around the center of rotation
• Plain Left-click: Selects the clicked world position as navigator position

While a modifier is held without a pressed mouse button, the interactor foreshadows the upcoming gesture by switching the cursor.

The interactor computes transform deltas and notifies observers via ITK events:

• RegistrationTranslationEvent
• RegistrationRotationEvent
• RegistrationSelectPositionEvent

It does NOT modify any data directly; the receiving widget/plugin is responsible for reading the corresponding delta/position via the matching getter and applying it to the registration transform.

Precondition

The center of rotation must be set before rotation interactions.

The interactor should be registered on a DataNode that is visible in the 2D render windows where interaction is desired.

Definition at line 66 of file mitkRegistrationManipulationInteractor.h.

Member Function Documentation

Clone()

Pointer mitk::RegistrationManipulationInteractor::Clone

(

)

const

DisableOriginalInteraction()

void mitk::RegistrationManipulationInteractor::DisableOriginalInteraction

(

)

Disable the default display interactions (pan, zoom, etc.) to avoid conflicts with this interactor's modifier+mouse-drag combinations. Saves the current DisplayActionEventBroadcast configs for later restoration. Safe to call multiple times; double-disabling is a no-op.

See also

EnableOriginalInteraction

EnableOriginalInteraction()

void mitk::RegistrationManipulationInteractor::EnableOriginalInteraction

(

)

Restore the display interactions that were saved by DisableOriginalInteraction().

See also

DisableOriginalInteraction

GetRotationDelta()

const RotationDelta& mitk::RegistrationManipulationInteractor::GetRotationDelta

(

)

const

Returns

The last computed rotation delta. Valid after RegistrationRotationEvent.

GetSelectPosition()

const Point3D& mitk::RegistrationManipulationInteractor::GetSelectPosition

(

)

const

Returns

The world position where the user clicked for position selection. Valid after RegistrationSelectPositionEvent.

GetTranslationDelta()

const Vector3D& mitk::RegistrationManipulationInteractor::GetTranslationDelta

(

)

const

Returns

The last computed translation delta. Valid after RegistrationTranslationEvent.

mitkClassMacro()

mitk::RegistrationManipulationInteractor::mitkClassMacro	(	RegistrationManipulationInteractor	,
		DataInteractor
	)

New()

static Pointer mitk::RegistrationManipulationInteractor::New ( )

static

PopManipulationCursor()

void mitk::RegistrationManipulationInteractor::PopManipulationCursor

(

)

Pop the base manipulation cursor from the application cursor stack. Call this when the interaction tool is deactivated.

See also

PushManipulationCursor

References mitk::None.

PushManipulationCursor()

void mitk::RegistrationManipulationInteractor::PushManipulationCursor

(

)

Push the base manipulation cursor onto the application cursor stack. Call this when the interaction tool is activated.

See also

PopManipulationCursor

SetCenterOfRotation()

void mitk::RegistrationManipulationInteractor::SetCenterOfRotation

(

const Point3D &

center

)

Set the center of rotation in world coordinates. Used for rotation angle computation.

---

The documentation for this class was generated from the following file:

• mitkRegistrationManipulationInteractor.h
