Base class for algorithms that can run in a background thread. More...

#include <mitkNonBlockingAlgorithm.h>

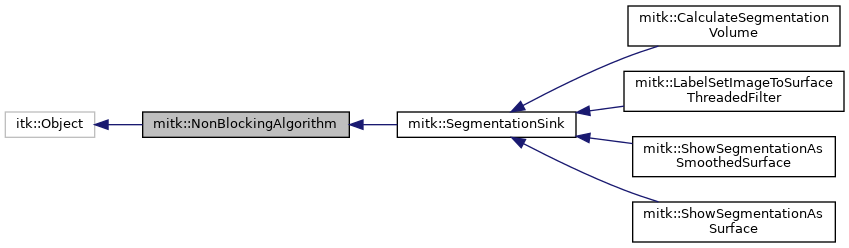

Inheritance diagram for mitk::NonBlockingAlgorithm:

[legend]

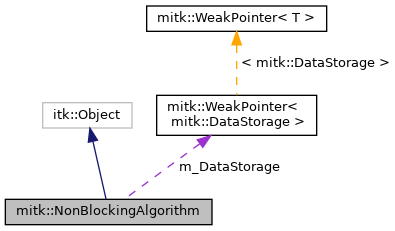

Collaboration diagram for mitk::NonBlockingAlgorithm:

[legend]

Public Member Functions
	mitkClassMacroItkParent (NonBlockingAlgorithm, itk::Object)

void	SetDataStorage (DataStorage &storage)
	Set the DataStorage for this algorithm. More...

DataStorage *	GetDataStorage ()
	Get the DataStorage associated with this algorithm. More...

template<typename T >
void	SetParameter (const char *parameter, const T &value)
	Set a parameter of any normal (value) type. More...

template<typename T >
void	SetPointerParameter (const char *parameter, const itk::SmartPointer< T > &value)
	Set a parameter that holds a smart pointer. More...

void	SetPointerParameter (const char parameter, BaseData value)
	Set a parameter that holds a BaseData pointer (Image, Surface, etc.). More...

template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char parameter, itk::Image< TPixel, VImageDimension > itkImage)
	Set an ITK image as a MITK Image parameter (raw pointer version). More...

template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char *parameter, const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &itkImage)
	Set an ITK image as a MITK Image parameter (smart pointer version). More...

template<typename T >
void	GetParameter (const char *parameter, T &value) const
	Get a parameter of any normal (value) type. More...

template<typename T >
void	GetPointerParameter (const char *parameter, itk::SmartPointer< T > &value) const
	Get a parameter that holds a smart pointer. More...

virtual void	Reset ()
	Reset the algorithm to its initial state. More...

void	StartAlgorithm ()
	Start the algorithm asynchronously in a background thread. More...

void	StartBlockingAlgorithm ()
	Start the algorithm and block until it completes. More...

void	StopAlgorithm ()
	Wait for the running algorithm thread to finish. More...

void	TriggerParameterModified (const itk::EventObject &event)
	Callback invoked when a trigger parameter is modified. More...

void	ThreadedUpdateSuccessful (const itk::EventObject &event)
	GUI-thread callback when the threaded update succeeds. More...

void	ThreadedUpdateFailed (const itk::EventObject &event)
	GUI-thread callback when the threaded update fails. More...

Protected Member Functions
	NonBlockingAlgorithm ()

	~NonBlockingAlgorithm () override

void	DefineTriggerParameter (const char *)

void	UnDefineTriggerParameter (const char *)

virtual void	Initialize (const NonBlockingAlgorithm *other=nullptr)

virtual bool	ReadyToRun ()

virtual bool	ThreadedUpdateFunction ()

virtual void	ThreadedUpdateSuccessful ()

virtual void	ThreadedUpdateFailed ()

Protected Attributes
PropertyList::Pointer	m_Parameters

WeakPointer< DataStorage >	m_DataStorage

Detailed Description

Base class for algorithms that can run in a background thread.

NonBlockingAlgorithm provides a framework for running computations asynchronously. Subclasses implement ThreadedUpdateFunction() with their algorithm logic. The algorithm can be started via StartAlgorithm() (non-blocking) or StartBlockingAlgorithm() (blocking). Upon completion, a ResultAvailable or ProcessingError event is emitted via the GUI thread.

Parameters are stored in a PropertyList and can be set via SetParameter(), SetPointerParameter(), or SetItkImageAsMITKImagePointerParameter(). Trigger parameters can be defined so that modifying them automatically restarts the algorithm.

Note: Use the mitkAlgorithmNewMacro() macro for subclass instantiation, as Initialize() cannot be called from the base constructor (virtual dispatch).

See also: NonBlockingAlgorithmEvent; ResultAvailable; ProcessingError; SegmentationSink

Definition at line 86 of file mitkNonBlockingAlgorithm.h.

Constructor & Destructor Documentation

◆ NonBlockingAlgorithm()

mitk::NonBlockingAlgorithm::NonBlockingAlgorithm ( )

protected

◆ ~NonBlockingAlgorithm()

mitk::NonBlockingAlgorithm::~NonBlockingAlgorithm ( )

overrideprotected

Member Function Documentation

◆ DefineTriggerParameter()

void mitk::NonBlockingAlgorithm::DefineTriggerParameter ( const char * )

protected

◆ GetDataStorage()

DataStorage* mitk::NonBlockingAlgorithm::GetDataStorage ( )

Get the DataStorage associated with this algorithm.

Returns: Pointer to the DataStorage, or nullptr if expired.

◆ GetParameter()

template<typename T >

void mitk::NonBlockingAlgorithm::GetParameter	(	const char *	parameter,
		T &	value
	)		const

inline

Get a parameter of any normal (value) type.

Template Parameters

T	The parameter value type.

Parameters

[in]	parameter	The parameter name.
[out]	value	The retrieved parameter value.

Exceptions

std::invalid_argument if the parameter does not exist.

Definition at line 201 of file mitkNonBlockingAlgorithm.h.

References mitk::GenericProperty< T >::GetValue().

◆ GetPointerParameter()

template<typename T >

void mitk::NonBlockingAlgorithm::GetPointerParameter	(	const char *	parameter,
		itk::SmartPointer< T > &	value
	)		const

inline

Get a parameter that holds a smart pointer.

Template Parameters

T	The type pointed to by the smart pointer.

Parameters

[in]	parameter	The parameter name.
[out]	value	The retrieved smart pointer value.

Exceptions

std::invalid_argument if the parameter does not exist.

Definition at line 229 of file mitkNonBlockingAlgorithm.h.

References mitk::SmartPointerProperty::GetSmartPointer().

◆ Initialize()

virtual void mitk::NonBlockingAlgorithm::Initialize ( const NonBlockingAlgorithm * other = nullptr )

protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, mitk::LabelSetImageToSurfaceThreadedFilter, and mitk::SegmentationSink.

◆ mitkClassMacroItkParent()

mitk::NonBlockingAlgorithm::mitkClassMacroItkParent	(	NonBlockingAlgorithm	,
		itk::Object
	)

◆ ReadyToRun()

virtual bool mitk::NonBlockingAlgorithm::ReadyToRun ( )

protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, mitk::CalculateSegmentationVolume, mitk::LabelSetImageToSurfaceThreadedFilter, and mitk::SegmentationSink.

◆ Reset()

virtual void mitk::NonBlockingAlgorithm::Reset ( )

virtual

Reset the algorithm to its initial state.

Calls Initialize() to re-create default parameters.

◆ SetDataStorage()

void mitk::NonBlockingAlgorithm::SetDataStorage ( DataStorage & storage )

Set the DataStorage for this algorithm.

Parameters

[in] storage Reference to the DataStorage to use.

◆ SetItkImageAsMITKImagePointerParameter() [1/2]

template<typename TPixel , unsigned int VImageDimension>

void mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter	(	const char *	parameter,
		const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &	itkImage
	)

inline

Set an ITK image as a MITK Image parameter (smart pointer version).

The ITK image is imported into a mitk::Image and stored as a pointer parameter.

Template Parameters

TPixel	The pixel type of the ITK image.
VImageDimension	The dimensionality of the ITK image.

Parameters

[in]	parameter	The parameter name.
[in]	itkImage	Smart pointer to the ITK image to store.

Definition at line 182 of file mitkNonBlockingAlgorithm.h.

References mitk::ImportItkImage(), and mitk::Image::New().

◆ SetItkImageAsMITKImagePointerParameter() [2/2]

template<typename TPixel , unsigned int VImageDimension>

void mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter	(	const char *	parameter,
		itk::Image< TPixel, VImageDimension > *	itkImage
	)

inline

Set an ITK image as a MITK Image parameter (raw pointer version).

The ITK image is imported into a mitk::Image and stored as a pointer parameter.

Template Parameters

TPixel	The pixel type of the ITK image.
VImageDimension	The dimensionality of the ITK image.

Parameters

[in]	parameter	The parameter name.
[in]	itkImage	The ITK image to store.

Definition at line 161 of file mitkNonBlockingAlgorithm.h.

References mitk::ImportItkImage(), and mitk::Image::New().

◆ SetParameter()

template<typename T >

void mitk::NonBlockingAlgorithm::SetParameter	(	const char *	parameter,
		const T &	value
	)

inline

Set a parameter of any normal (value) type.

Template Parameters

T	The parameter value type.

Parameters

[in]	parameter	The parameter name.
[in]	value	The parameter value.

Definition at line 112 of file mitkNonBlockingAlgorithm.h.

◆ SetPointerParameter() [1/2]

void mitk::NonBlockingAlgorithm::SetPointerParameter	(	const char *	parameter,
		BaseData *	value
	)

Set a parameter that holds a BaseData pointer (Image, Surface, etc.).

The value is stored internally as a SmartPointerProperty.

Parameters

[in]	parameter	The parameter name.
[in]	value	The BaseData pointer.

◆ SetPointerParameter() [2/2]

template<typename T >

void mitk::NonBlockingAlgorithm::SetPointerParameter	(	const char *	parameter,
		const itk::SmartPointer< T > &	value
	)

inline

Set a parameter that holds a smart pointer.

Template Parameters

T	The type pointed to by the smart pointer.

Parameters

[in]	parameter	The parameter name.
[in]	value	The smart pointer value.

Definition at line 127 of file mitkNonBlockingAlgorithm.h.

References mitk::SmartPointerProperty::New().

◆ StartAlgorithm()

void mitk::NonBlockingAlgorithm::StartAlgorithm ( )

Start the algorithm asynchronously in a background thread.

The algorithm will only start if ReadyToRun() returns true and no kill request is pending. If the thread is already running, additional update requests are queued.

◆ StartBlockingAlgorithm()

void mitk::NonBlockingAlgorithm::StartBlockingAlgorithm ( )

Start the algorithm and block until it completes.

Equivalent to calling StartAlgorithm() followed by StopAlgorithm().

◆ StopAlgorithm()

void mitk::NonBlockingAlgorithm::StopAlgorithm ( )

Wait for the running algorithm thread to finish.

◆ ThreadedUpdateFailed() [1/2]

virtual void mitk::NonBlockingAlgorithm::ThreadedUpdateFailed ( )

protectedvirtual

◆ ThreadedUpdateFailed() [2/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateFailed ( const itk::EventObject & event )

GUI-thread callback when the threaded update fails.

Parameters

[in] event The event object (unused).

◆ ThreadedUpdateFunction()

virtual bool mitk::NonBlockingAlgorithm::ThreadedUpdateFunction ( )

protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, mitk::CalculateSegmentationVolume, mitk::LabelSetImageToSurfaceThreadedFilter, and mitk::SegmentationSink.

◆ ThreadedUpdateSuccessful() [1/2]

virtual void mitk::NonBlockingAlgorithm::ThreadedUpdateSuccessful ( )

protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, and mitk::LabelSetImageToSurfaceThreadedFilter.

◆ ThreadedUpdateSuccessful() [2/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateSuccessful ( const itk::EventObject & event )

GUI-thread callback when the threaded update succeeds.

Parameters

[in] event The event object (unused).

◆ TriggerParameterModified()

void mitk::NonBlockingAlgorithm::TriggerParameterModified ( const itk::EventObject & event )

Callback invoked when a trigger parameter is modified.

Automatically restarts the algorithm.

Parameters

[in] event The modification event (unused).

◆ UnDefineTriggerParameter()

void mitk::NonBlockingAlgorithm::UnDefineTriggerParameter ( const char * )

protected

Member Data Documentation

◆ m_DataStorage

WeakPointer<DataStorage> mitk::NonBlockingAlgorithm::m_DataStorage

protected

Definition at line 319 of file mitkNonBlockingAlgorithm.h.

◆ m_Parameters

PropertyList::Pointer mitk::NonBlockingAlgorithm::m_Parameters

protected

Definition at line 317 of file mitkNonBlockingAlgorithm.h.

The documentation for this class was generated from the following file:

mitkNonBlockingAlgorithm.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ NonBlockingAlgorithm()

◆ ~NonBlockingAlgorithm()

Member Function Documentation

◆ DefineTriggerParameter()

◆ GetDataStorage()

◆ GetParameter()

◆ GetPointerParameter()

◆ Initialize()

◆ mitkClassMacroItkParent()

◆ ReadyToRun()

◆ Reset()

◆ SetDataStorage()

◆ SetItkImageAsMITKImagePointerParameter() [1/2]

◆ SetItkImageAsMITKImagePointerParameter() [2/2]

◆ SetParameter()

◆ SetPointerParameter() [1/2]

◆ SetPointerParameter() [2/2]

◆ StartAlgorithm()

◆ StartBlockingAlgorithm()

◆ StopAlgorithm()

◆ ThreadedUpdateFailed() [1/2]

◆ ThreadedUpdateFailed() [2/2]

◆ ThreadedUpdateFunction()

◆ ThreadedUpdateSuccessful() [1/2]

◆ ThreadedUpdateSuccessful() [2/2]

◆ TriggerParameterModified()

◆ UnDefineTriggerParameter()

Member Data Documentation

◆ m_DataStorage

◆ m_Parameters
