mitk::SegmentationSink Class Reference

A NonBlockingAlgorithm that places segmentation results into the DataStorage. More...

#include <mitkSegmentationSink.h>

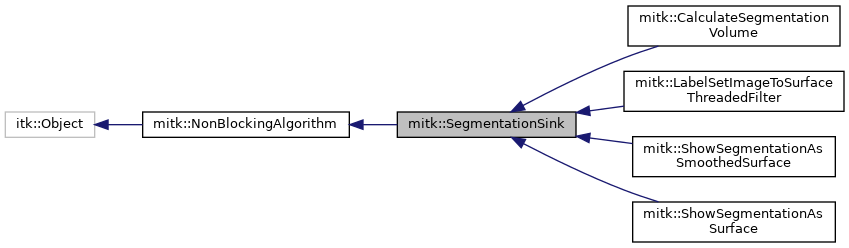

Inheritance diagram for mitk::SegmentationSink:

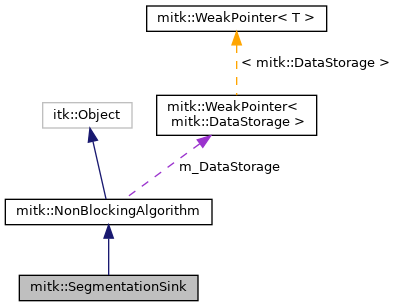

Collaboration diagram for mitk::SegmentationSink:

Public Member Functions
	mitkClassMacro (SegmentationSink, NonBlockingAlgorithm)
	mitkAlgorithmNewMacro (SegmentationSink)
Public Member Functions inherited from mitk::NonBlockingAlgorithm
	mitkClassMacroItkParent (NonBlockingAlgorithm, itk::Object)
void	SetDataStorage (DataStorage &storage)
	Set the DataStorage for this algorithm. More...
DataStorage *	GetDataStorage ()
	Get the DataStorage associated with this algorithm. More...
template<typename T >
void	SetParameter (const char *parameter, const T &value)
	Set a parameter of any normal (value) type. More...
template<typename T >
void	SetPointerParameter (const char *parameter, const itk::SmartPointer< T > &value)
	Set a parameter that holds a smart pointer. More...
void	SetPointerParameter (const char *parameter, BaseData *value)
	Set a parameter that holds a BaseData pointer (Image, Surface, etc.). More...
template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char *parameter, itk::Image< TPixel, VImageDimension > *itkImage)
	Set an ITK image as a MITK Image parameter (raw pointer version). More...
template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char *parameter, const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &itkImage)
	Set an ITK image as a MITK Image parameter (smart pointer version). More...
template<typename T >
void	GetParameter (const char *parameter, T &value) const
	Get a parameter of any normal (value) type. More...
template<typename T >
void	GetPointerParameter (const char *parameter, itk::SmartPointer< T > &value) const
	Get a parameter that holds a smart pointer. More...
virtual void	Reset ()
	Reset the algorithm to its initial state. More...
void	StartAlgorithm ()
	Start the algorithm asynchronously in a background thread. More...
void	StartBlockingAlgorithm ()
	Start the algorithm and block until it completes. More...
void	StopAlgorithm ()
	Wait for the running algorithm thread to finish. More...
void	TriggerParameterModified (const itk::EventObject &event)
	Callback invoked when a trigger parameter is modified. More...
void	ThreadedUpdateSuccessful (const itk::EventObject &event)
	GUI-thread callback when the threaded update succeeds. More...
void	ThreadedUpdateFailed (const itk::EventObject &event)
	GUI-thread callback when the threaded update fails. More...

Protected Member Functions
	SegmentationSink ()
	~SegmentationSink () override
void	Initialize (const NonBlockingAlgorithm *other=nullptr) override
bool	ReadyToRun () override
bool	ThreadedUpdateFunction () override
void	InsertBelowGroupNode (mitk::DataNode *node)
DataNode *	LookForPointerTargetBelowGroupNode (const char *name)
DataNode *	GetGroupNode ()
Protected Member Functions inherited from mitk::NonBlockingAlgorithm
	NonBlockingAlgorithm ()
	~NonBlockingAlgorithm () override
void	DefineTriggerParameter (const char *)
void	UnDefineTriggerParameter (const char *)
virtual void	ThreadedUpdateSuccessful ()
virtual void	ThreadedUpdateFailed ()

Additional Inherited Members
Protected Attributes inherited from mitk::NonBlockingAlgorithm
PropertyList::Pointer	m_Parameters
WeakPointer< DataStorage >	m_DataStorage

Detailed Description

A NonBlockingAlgorithm that places segmentation results into the DataStorage.

SegmentationSink serves as a base class for algorithms that produce segmentation results (binary images, surfaces, etc.) and insert them into the DataStorage below a specified group node. Subclasses override ThreadedUpdateFunction() to perform the actual segmentation computation.

See also

NonBlockingAlgorithm

DataStorage

Definition at line 32 of file mitkSegmentationSink.h.

Constructor & Destructor Documentation

SegmentationSink()

mitk::SegmentationSink::SegmentationSink ( )

protected

~SegmentationSink()

mitk::SegmentationSink::~SegmentationSink ( )

overrideprotected

Member Function Documentation

GetGroupNode()

DataNode* mitk::SegmentationSink::GetGroupNode ( )

protected

Initialize()

void mitk::SegmentationSink::Initialize ( const NonBlockingAlgorithm *  other = nullptr )

overrideprotectedvirtual

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, and mitk::LabelSetImageToSurfaceThreadedFilter.

InsertBelowGroupNode()

void mitk::SegmentationSink::InsertBelowGroupNode ( mitk::DataNode *  node )

protected

LookForPointerTargetBelowGroupNode()

DataNode* mitk::SegmentationSink::LookForPointerTargetBelowGroupNode ( const char *  name )

protected

mitkAlgorithmNewMacro()

mitk::SegmentationSink::mitkAlgorithmNewMacro

(

SegmentationSink

)

mitkClassMacro()

mitk::SegmentationSink::mitkClassMacro	(	SegmentationSink	,
		NonBlockingAlgorithm
	)

ReadyToRun()

bool mitk::SegmentationSink::ReadyToRun ( )

overrideprotectedvirtual

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, mitk::CalculateSegmentationVolume, and mitk::LabelSetImageToSurfaceThreadedFilter.

ThreadedUpdateFunction()

bool mitk::SegmentationSink::ThreadedUpdateFunction ( )

overrideprotectedvirtual

Reimplemented from mitk::NonBlockingAlgorithm.

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::ShowSegmentationAsSmoothedSurface, mitk::CalculateSegmentationVolume, and mitk::LabelSetImageToSurfaceThreadedFilter.

---

The documentation for this class was generated from the following file:

• mitkSegmentationSink.h
