Converts a segmentation image to a surface representation and adds it to the DataStorage. More...

#include <mitkShowSegmentationAsSurface.h>

Inheritance diagram for mitk::ShowSegmentationAsSurface:

[legend]

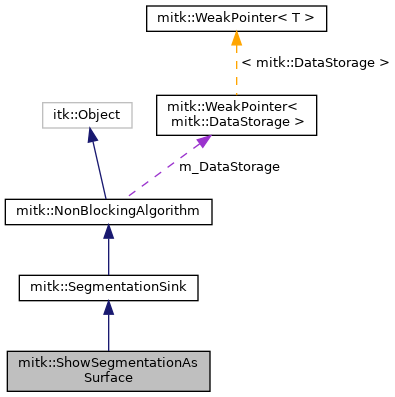

Collaboration diagram for mitk::ShowSegmentationAsSurface:

[legend]

Public Member Functions
	mitkClassMacro (ShowSegmentationAsSurface, SegmentationSink)

	mitkAlgorithmNewMacro (ShowSegmentationAsSurface)

Public Member Functions inherited from mitk::SegmentationSink
	mitkClassMacro (SegmentationSink, NonBlockingAlgorithm)

	mitkAlgorithmNewMacro (SegmentationSink)

Public Member Functions inherited from mitk::NonBlockingAlgorithm
	mitkClassMacroItkParent (NonBlockingAlgorithm, itk::Object)

void	SetDataStorage (DataStorage &storage)
	Set the DataStorage for this algorithm. More...

DataStorage *	GetDataStorage ()
	Get the DataStorage associated with this algorithm. More...

template<typename T >
void	SetParameter (const char *parameter, const T &value)
	Set a parameter of any normal (value) type. More...

template<typename T >
void	SetPointerParameter (const char *parameter, const itk::SmartPointer< T > &value)
	Set a parameter that holds a smart pointer. More...

void	SetPointerParameter (const char parameter, BaseData value)
	Set a parameter that holds a BaseData pointer (Image, Surface, etc.). More...

template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char parameter, itk::Image< TPixel, VImageDimension > itkImage)
	Set an ITK image as a MITK Image parameter (raw pointer version). More...

template<typename TPixel , unsigned int VImageDimension>
void	SetItkImageAsMITKImagePointerParameter (const char *parameter, const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &itkImage)
	Set an ITK image as a MITK Image parameter (smart pointer version). More...

template<typename T >
void	GetParameter (const char *parameter, T &value) const
	Get a parameter of any normal (value) type. More...

template<typename T >
void	GetPointerParameter (const char *parameter, itk::SmartPointer< T > &value) const
	Get a parameter that holds a smart pointer. More...

virtual void	Reset ()
	Reset the algorithm to its initial state. More...

void	StartAlgorithm ()
	Start the algorithm asynchronously in a background thread. More...

void	StartBlockingAlgorithm ()
	Start the algorithm and block until it completes. More...

void	StopAlgorithm ()
	Wait for the running algorithm thread to finish. More...

void	TriggerParameterModified (const itk::EventObject &event)
	Callback invoked when a trigger parameter is modified. More...

void	ThreadedUpdateSuccessful (const itk::EventObject &event)
	GUI-thread callback when the threaded update succeeds. More...

void	ThreadedUpdateFailed (const itk::EventObject &event)
	GUI-thread callback when the threaded update fails. More...

Protected Member Functions
	ShowSegmentationAsSurface ()

	~ShowSegmentationAsSurface () override

void	Initialize (const NonBlockingAlgorithm *other=nullptr) override

bool	ReadyToRun () override

bool	ThreadedUpdateFunction () override

void	ThreadedUpdateSuccessful () override

Protected Member Functions inherited from mitk::SegmentationSink
	SegmentationSink ()

	~SegmentationSink () override

void	InsertBelowGroupNode (mitk::DataNode *node)

DataNode *	LookForPointerTargetBelowGroupNode (const char *name)

DataNode *	GetGroupNode ()

Protected Member Functions inherited from mitk::NonBlockingAlgorithm
	NonBlockingAlgorithm ()

	~NonBlockingAlgorithm () override

void	DefineTriggerParameter (const char *)

void	UnDefineTriggerParameter (const char *)

virtual void	ThreadedUpdateFailed ()

Additional Inherited Members
Protected Attributes inherited from mitk::NonBlockingAlgorithm
PropertyList::Pointer	m_Parameters

WeakPointer< DataStorage >	m_DataStorage

Detailed Description

Converts a segmentation image to a surface representation and adds it to the DataStorage.

Runs the surface generation in a background thread using the NonBlockingAlgorithm framework. Supports both binary images and multi-label segmentation images, where each label is converted to a separate surface.
