Filter for clipping an image with a PlaneGeometry. More...

#include <mitkGeometryClipImageFilter.h>

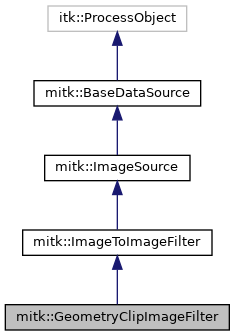

Inheritance diagram for mitk::GeometryClipImageFilter:

[legend]

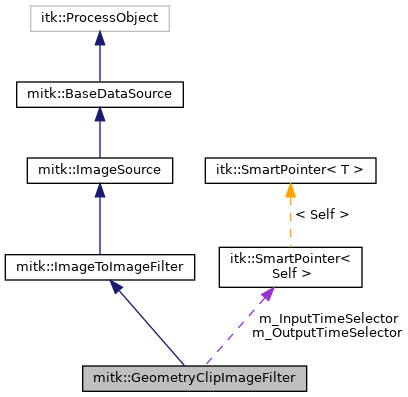

Collaboration diagram for mitk::GeometryClipImageFilter:

[legend]

Public Member Functions
	mitkClassMacro (GeometryClipImageFilter, ImageToImageFilter)

Pointer	Clone () const

void	SetClippingGeometry (const mitk::BaseGeometry *aClippingGeometry)
	Set the clipping geometry (must be a PlaneGeometry). More...

void	SetClippingGeometry (const mitk::TimeGeometry *aClippingGeometry)
	Set the clipping geometry as a TimeGeometry. More...

const mitk::BaseGeometry *	GetClippingGeometry () const
	Get the clipping geometry for a single time step. More...

const mitk::TimeGeometry *	GetClippingTimeGeometry () const
	Get the clipping time geometry (if set). More...

virtual bool	GetClipPartAboveGeometry () const
	Get whether the part above the geometry is clipped (default: true). More...

virtual void	SetClipPartAboveGeometry (bool _arg)
	Set whether the part above or below the geometry shall be clipped (default: true). More...

virtual void	ClipPartAboveGeometryOn ()
	Toggle ClipPartAboveGeometry on/off. More...

virtual void	ClipPartAboveGeometryOff ()

virtual void	SetOutsideValue (ScalarType _arg)
	Set the value for outside (clipped) pixels (default: 0). More...

virtual ScalarType	GetOutsideValue () const
	Get the value for outside (clipped) pixels. More...

virtual void	SetAutoOutsideValue (bool _arg)
	Set whether to automatically use the pixel type minimum as outside value (default: false). More...

virtual bool	GetAutoOutsideValue () const
	Get whether the outside value is automatically determined. More...

virtual void	AutoOutsideValueOn ()
	Toggle AutoOutsideValue on/off. More...

virtual void	AutoOutsideValueOff ()

virtual void	SetAutoOrientLabels (bool _arg)
	Set whether to auto-orient labels like vtkPolyDataNormals. More...

virtual bool	GetAutoOrientLabels () const
	Get whether automatic label orientation is enabled. More...

virtual void	SetLabelBothSides (bool _arg)
	Set whether both sides of the clipping geometry are labeled (default: false). More...

virtual bool	GetLabelBothSides () const
	Get whether both sides labeling is enabled. More...

virtual void	LabelBothSidesOn ()
	Toggle LabelBothSides on/off. More...

virtual void	LabelBothSidesOff ()

virtual void	SetAboveGeometryLabel (ScalarType _arg)
	Set the label value for voxels above the clipping geometry. More...

virtual ScalarType	GetAboveGeometryLabel () const
	Get the label value for voxels above the clipping geometry. More...

virtual void	SetBelowGeometryLabel (ScalarType _arg)
	Set the label value for voxels below the clipping geometry. More...

virtual ScalarType	GetBelowGeometryLabel () const
	Get the label value for voxels below the clipping geometry. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
	GeometryClipImageFilter ()

	~GeometryClipImageFilter () override

void	GenerateInputRequestedRegion () override

void	GenerateOutputInformation () override

void	GenerateData () override

template<typename TPixel , unsigned int VImageDimension>
void	_InternalComputeClippedImage (itk::Image< TPixel, VImageDimension > itkImage, mitk::GeometryClipImageFilter geometryClipper, const mitk::PlaneGeometry *clippingPlaneGeometry)

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
mitk::BaseGeometry::ConstPointer	m_ClippingGeometry

mitk::GeometryData::Pointer	m_ClippingGeometryData

mitk::TimeGeometry::ConstPointer	m_TimeClippingGeometry

mitk::ImageTimeSelector::Pointer	m_InputTimeSelector

mitk::ImageTimeSelector::Pointer	m_OutputTimeSelector

bool	m_ClipPartAboveGeometry
	Defines whether the part above or below the geometry shall be clipped (default: true). More...

ScalarType	m_OutsideValue
	Value for outside pixels (default: 0). Used only if m_AutoOutsideValue is false. More...

bool	m_AutoOutsideValue
	If true, the minimum of the output pixel type is used as outside value (default: false). More...

bool	m_LabelBothSides
	If true, all pixels above and below the geometry are labeled with m_AboveGeometryLabel and m_BelowGeometryLabel. More...

bool	m_AutoOrientLabels
	Orient above like vtkPolyDataNormals does with AutoOrientNormals. More...

ScalarType	m_AboveGeometryLabel
	Label value for pixels above the geometry when m_LabelBothSides is on. More...

ScalarType	m_BelowGeometryLabel
	Label value for pixels below the geometry when m_LabelBothSides is on. More...

itk::TimeStamp	m_TimeOfHeaderInitialization
	Time when header was last initialized. More...

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Filter for clipping an image with a PlaneGeometry.

This filter clips an image along a plane defined by a PlaneGeometry. The clipping geometry can be either a single PlaneGeometry or a TimeGeometry containing PlaneGeometry instances for multiple time steps. Pixels on one side of the plane are set to an outside value (or labeled), while pixels on the other side retain their original values.

The filter supports several modes:

Simple clipping with a constant outside value
Automatic outside value (minimum of the pixel type)
Labeling both sides of the plane with distinct labels

See also: PlaneGeometry; HeightFieldSurfaceClipImageFilter

Definition at line 48 of file mitkGeometryClipImageFilter.h.

Constructor & Destructor Documentation

◆ GeometryClipImageFilter()

mitk::GeometryClipImageFilter::GeometryClipImageFilter ( )

protected

◆ ~GeometryClipImageFilter()

mitk::GeometryClipImageFilter::~GeometryClipImageFilter ( )

overrideprotected

Member Function Documentation

◆ _InternalComputeClippedImage()

template<typename TPixel , unsigned int VImageDimension>

void mitk::GeometryClipImageFilter::_InternalComputeClippedImage	(	itk::Image< TPixel, VImageDimension > *	itkImage,
		mitk::GeometryClipImageFilter *	geometryClipper,
		const mitk::PlaneGeometry *	clippingPlaneGeometry
	)

protected

◆ AutoOutsideValueOff()

virtual void mitk::GeometryClipImageFilter::AutoOutsideValueOff ( )

virtual

◆ AutoOutsideValueOn()

virtual void mitk::GeometryClipImageFilter::AutoOutsideValueOn ( )

virtual

Toggle AutoOutsideValue on/off.

◆ ClipPartAboveGeometryOff()

virtual void mitk::GeometryClipImageFilter::ClipPartAboveGeometryOff ( )

virtual

◆ ClipPartAboveGeometryOn()

virtual void mitk::GeometryClipImageFilter::ClipPartAboveGeometryOn ( )

virtual

Toggle ClipPartAboveGeometry on/off.

◆ Clone()

Pointer mitk::GeometryClipImageFilter::Clone ( ) const

◆ GenerateData()

void mitk::GeometryClipImageFilter::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::GeometryClipImageFilter::GenerateInputRequestedRegion ( )

overrideprotected

◆ GenerateOutputInformation()

void mitk::GeometryClipImageFilter::GenerateOutputInformation ( )

overrideprotected

◆ GetAboveGeometryLabel()

virtual ScalarType mitk::GeometryClipImageFilter::GetAboveGeometryLabel ( ) const

virtual

Get the label value for voxels above the clipping geometry.

Returns: The above-geometry label value.

◆ GetAutoOrientLabels()

virtual bool mitk::GeometryClipImageFilter::GetAutoOrientLabels ( ) const

virtual

Get whether automatic label orientation is enabled.

Returns: True if automatic label orientation is enabled.

◆ GetAutoOutsideValue()

virtual bool mitk::GeometryClipImageFilter::GetAutoOutsideValue ( ) const

virtual

Get whether the outside value is automatically determined.

Returns: True if automatic outside value is enabled.

◆ GetBelowGeometryLabel()

virtual ScalarType mitk::GeometryClipImageFilter::GetBelowGeometryLabel ( ) const

virtual

Get the label value for voxels below the clipping geometry.

Returns: The below-geometry label value.

◆ GetClipPartAboveGeometry()

virtual bool mitk::GeometryClipImageFilter::GetClipPartAboveGeometry ( ) const

virtual

Get whether the part above the geometry is clipped (default: true).

Returns: True if the part above the geometry is clipped.

◆ GetClippingGeometry()

const mitk::BaseGeometry* mitk::GeometryClipImageFilter::GetClippingGeometry ( ) const

Get the clipping geometry for a single time step.

Returns: Const pointer to the clipping BaseGeometry.

◆ GetClippingTimeGeometry()

const mitk::TimeGeometry* mitk::GeometryClipImageFilter::GetClippingTimeGeometry ( ) const

Get the clipping time geometry (if set).

Returns: Const pointer to the clipping TimeGeometry, or nullptr.

◆ GetLabelBothSides()

virtual bool mitk::GeometryClipImageFilter::GetLabelBothSides ( ) const

virtual

Get whether both sides labeling is enabled.

Returns: True if both sides are labeled.

◆ GetOutsideValue()

virtual ScalarType mitk::GeometryClipImageFilter::GetOutsideValue ( ) const

virtual

Get the value for outside (clipped) pixels.

Returns: The outside pixel value.

◆ LabelBothSidesOff()

virtual void mitk::GeometryClipImageFilter::LabelBothSidesOff ( )

virtual

◆ LabelBothSidesOn()

virtual void mitk::GeometryClipImageFilter::LabelBothSidesOn ( )

virtual

Toggle LabelBothSides on/off.

◆ mitkClassMacro()

mitk::GeometryClipImageFilter::mitkClassMacro	(	GeometryClipImageFilter	,
		ImageToImageFilter
	)

◆ New()

static Pointer mitk::GeometryClipImageFilter::New ( )

static

◆ SetAboveGeometryLabel()

virtual void mitk::GeometryClipImageFilter::SetAboveGeometryLabel ( ScalarType _arg )

virtual

Set the label value for voxels above the clipping geometry.

Only used when LabelBothSides is true.

Parameters

[in] _arg The above-geometry label value.

◆ SetAutoOrientLabels()

virtual void mitk::GeometryClipImageFilter::SetAutoOrientLabels ( bool _arg )

virtual

Set whether to auto-orient labels like vtkPolyDataNormals.

Parameters

[in] _arg True to enable automatic label orientation.

◆ SetAutoOutsideValue()

virtual void mitk::GeometryClipImageFilter::SetAutoOutsideValue ( bool _arg )

virtual

Set whether to automatically use the pixel type minimum as outside value (default: false).

Parameters

[in] _arg True to use automatic outside value.

◆ SetBelowGeometryLabel()

virtual void mitk::GeometryClipImageFilter::SetBelowGeometryLabel ( ScalarType _arg )

virtual

Set the label value for voxels below the clipping geometry.

Only used when LabelBothSides is true.

Parameters

[in] _arg The below-geometry label value.

◆ SetClipPartAboveGeometry()

virtual void mitk::GeometryClipImageFilter::SetClipPartAboveGeometry ( bool _arg )

virtual

Set whether the part above or below the geometry shall be clipped (default: true).

Parameters

[in] _arg True to clip above, false to clip below.

◆ SetClippingGeometry() [1/2]

void mitk::GeometryClipImageFilter::SetClippingGeometry ( const mitk::BaseGeometry * aClippingGeometry )

Set the clipping geometry (must be a PlaneGeometry).

Parameters

[in] aClippingGeometry The PlaneGeometry used for clipping.

◆ SetClippingGeometry() [2/2]

void mitk::GeometryClipImageFilter::SetClippingGeometry ( const mitk::TimeGeometry * aClippingGeometry )

Set the clipping geometry as a TimeGeometry.

The TimeGeometry must contain PlaneGeometry instances, one per time step.

Parameters

[in] aClippingGeometry The TimeGeometry containing PlaneGeometry instances.

◆ SetLabelBothSides()

virtual void mitk::GeometryClipImageFilter::SetLabelBothSides ( bool _arg )

virtual

Set whether both sides of the clipping geometry are labeled (default: false).

When enabled, pixels above the geometry receive AboveGeometryLabel and pixels below receive BelowGeometryLabel.

Parameters

[in] _arg True to label both sides.

◆ SetOutsideValue()

virtual void mitk::GeometryClipImageFilter::SetOutsideValue ( ScalarType _arg )

virtual

Set the value for outside (clipped) pixels (default: 0).

Only used when AutoOutsideValue is false.

Parameters

[in] _arg The outside pixel value.

Member Data Documentation

◆ m_AboveGeometryLabel

ScalarType mitk::GeometryClipImageFilter::m_AboveGeometryLabel

protected

Label value for pixels above the geometry when m_LabelBothSides is on.

Definition at line 234 of file mitkGeometryClipImageFilter.h.

◆ m_AutoOrientLabels

bool mitk::GeometryClipImageFilter::m_AutoOrientLabels

protected

Orient above like vtkPolyDataNormals does with AutoOrientNormals.

Definition at line 231 of file mitkGeometryClipImageFilter.h.

◆ m_AutoOutsideValue

bool mitk::GeometryClipImageFilter::m_AutoOutsideValue

protected

If true, the minimum of the output pixel type is used as outside value (default: false).

Definition at line 221 of file mitkGeometryClipImageFilter.h.

◆ m_BelowGeometryLabel

ScalarType mitk::GeometryClipImageFilter::m_BelowGeometryLabel

protected

Label value for pixels below the geometry when m_LabelBothSides is on.

Definition at line 237 of file mitkGeometryClipImageFilter.h.

◆ m_ClipPartAboveGeometry

bool mitk::GeometryClipImageFilter::m_ClipPartAboveGeometry

protected

Defines whether the part above or below the geometry shall be clipped (default: true).

Definition at line 213 of file mitkGeometryClipImageFilter.h.

◆ m_ClippingGeometry

mitk::BaseGeometry::ConstPointer mitk::GeometryClipImageFilter::m_ClippingGeometry

protected

Definition at line 206 of file mitkGeometryClipImageFilter.h.

◆ m_ClippingGeometryData

mitk::GeometryData::Pointer mitk::GeometryClipImageFilter::m_ClippingGeometryData

protected

Definition at line 207 of file mitkGeometryClipImageFilter.h.

◆ m_InputTimeSelector

mitk::ImageTimeSelector::Pointer mitk::GeometryClipImageFilter::m_InputTimeSelector

protected

Definition at line 209 of file mitkGeometryClipImageFilter.h.

◆ m_LabelBothSides

bool mitk::GeometryClipImageFilter::m_LabelBothSides

protected

If true, all pixels above and below the geometry are labeled with m_AboveGeometryLabel and m_BelowGeometryLabel.

Definition at line 226 of file mitkGeometryClipImageFilter.h.

◆ m_OutputTimeSelector

mitk::ImageTimeSelector::Pointer mitk::GeometryClipImageFilter::m_OutputTimeSelector

protected

Definition at line 210 of file mitkGeometryClipImageFilter.h.

◆ m_OutsideValue

ScalarType mitk::GeometryClipImageFilter::m_OutsideValue

protected

Value for outside pixels (default: 0). Used only if m_AutoOutsideValue is false.

Definition at line 218 of file mitkGeometryClipImageFilter.h.

◆ m_TimeClippingGeometry

mitk::TimeGeometry::ConstPointer mitk::GeometryClipImageFilter::m_TimeClippingGeometry

protected

Definition at line 208 of file mitkGeometryClipImageFilter.h.

◆ m_TimeOfHeaderInitialization

itk::TimeStamp mitk::GeometryClipImageFilter::m_TimeOfHeaderInitialization

protected

Time when header was last initialized.

Definition at line 240 of file mitkGeometryClipImageFilter.h.

The documentation for this class was generated from the following file:

mitkGeometryClipImageFilter.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GeometryClipImageFilter()

◆ ~GeometryClipImageFilter()

Member Function Documentation

◆ _InternalComputeClippedImage()

◆ AutoOutsideValueOff()

◆ AutoOutsideValueOn()

◆ ClipPartAboveGeometryOff()

◆ ClipPartAboveGeometryOn()

◆ Clone()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetAboveGeometryLabel()

◆ GetAutoOrientLabels()

◆ GetAutoOutsideValue()

◆ GetBelowGeometryLabel()

◆ GetClipPartAboveGeometry()

◆ GetClippingGeometry()

◆ GetClippingTimeGeometry()

◆ GetLabelBothSides()

◆ GetOutsideValue()

◆ LabelBothSidesOff()

◆ LabelBothSidesOn()

◆ mitkClassMacro()

◆ New()

◆ SetAboveGeometryLabel()

◆ SetAutoOrientLabels()

◆ SetAutoOutsideValue()

◆ SetBelowGeometryLabel()

◆ SetClipPartAboveGeometry()

◆ SetClippingGeometry() [1/2]

◆ SetClippingGeometry() [2/2]

◆ SetLabelBothSides()

◆ SetOutsideValue()

Member Data Documentation

◆ m_AboveGeometryLabel

◆ m_AutoOrientLabels

◆ m_AutoOutsideValue

◆ m_BelowGeometryLabel

◆ m_ClipPartAboveGeometry

◆ m_ClippingGeometry

◆ m_ClippingGeometryData

◆ m_InputTimeSelector

◆ m_LabelBothSides

◆ m_OutputTimeSelector

◆ m_OutsideValue

◆ m_TimeClippingGeometry

◆ m_TimeOfHeaderInitialization
