Filter for clipping an image with an height-field represented by an mitk::Surface. More...

#include <mitkHeightFieldSurfaceClipImageFilter.h>

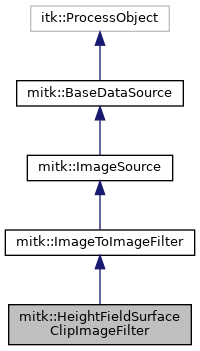

Inheritance diagram for mitk::HeightFieldSurfaceClipImageFilter:

[legend]

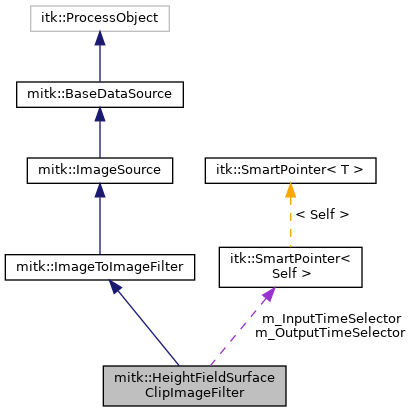

Collaboration diagram for mitk::HeightFieldSurfaceClipImageFilter:

[legend]

Public Types
enum	{ CLIPPING_MODE_CONSTANT , CLIPPING_MODE_MULTIPLYBYFACTOR , CLIPPING_MODE_MULTIPLANE }
	Clipping mode enumeration. More...

typedef std::vector< mitk::Surface * >	ClippingPlaneList
	List of Surface pointers used for multi-plane clipping. More...

Public Types inherited from mitk::ImageToImageFilter
typedef Superclass::OutputImageRegionType	OutputImageRegionType
	Superclass typedefs. More...

typedef mitk::Image	InputImageType
	Some convenient typedefs. More...

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (HeightFieldSurfaceClipImageFilter, ImageToImageFilter)

Pointer	Clone () const

void	SetClippingSurface (Surface *clippingSurface)
	Set the surface defining a height field as a triangle mesh. More...

void	SetClippingSurfaces (ClippingPlaneList planeList)
	Set multiple surfaces for multi-plane clipping. More...

const Surface *	GetClippingSurface () const
	Get the clipping surface. More...

void	SetClippingMode (int mode)
	Set the clipping mode. More...

int	GetClippingMode ()
	Get the current clipping mode. More...

void	SetClippingModeToConstant ()
	Set clipping mode to CLIPPING_MODE_CONSTANT. More...

void	SetClippingModeToMultiplyByFactor ()
	Set clipping mode to CLIPPING_MODE_MULTIPLYBYFACTOR. More...

void	SetClippingModeToMultiPlaneValue ()
	Set clipping mode to CLIPPING_MODE_MULTIPLANE. More...

virtual void	SetClippingConstant (ScalarType _arg)
	Set the constant gray-value for clipping in CONSTANT mode. More...

virtual ScalarType	GetClippingConstant () const
	Get the constant gray-value for clipping in CONSTANT mode. More...

virtual void	SetMultiplicationFactor (ScalarType _arg)
	Set the multiplication factor for clipping in MULTIPLYBYFACTOR mode. More...

virtual ScalarType	GetMultiplicationFactor () const
	Get the multiplication factor for clipping in MULTIPLYBYFACTOR mode. More...

virtual void	SetHeightFieldResolutionX (unsigned int _arg)
	Set the x-resolution of the height-field sampling (default: 256). More...

virtual unsigned int	GetHeightFieldResolutionX () const
	Get the x-resolution of the height-field sampling. More...

virtual void	SetHeightFieldResolutionY (unsigned int _arg)
	Set the y-resolution of the height-field sampling (default: 256). More...

virtual unsigned int	GetHeightFieldResolutionY () const
	Get the y-resolution of the height-field sampling. More...

Public Member Functions inherited from mitk::ImageToImageFilter
	mitkClassMacro (ImageToImageFilter, ImageSource)

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)
	Set the image input of this process object. More...

virtual void	SetInput (unsigned int idx, const InputImageType *image)
	Set the image input at the specified index. More...

InputImageType *	GetInput (void)
	Get the input image (non-const). More...

InputImageType *	GetInput (unsigned int idx)
	Get the input image at the specified index (non-const). More...

const InputImageType *	GetInput (void) const
	Get the input image (const). More...

const InputImageType *	GetInput (unsigned int idx) const
	Get the input image at the specified index (const). More...

Public Member Functions inherited from mitk::ImageSource
	mitkClassMacro (ImageSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Get the output data of this image source object. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()
	Get the output as VTK image data (non-const version). More...

virtual const vtkImageData *	GetVtkImageData () const
	Get the output as VTK image data (const version). More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::ImageSource
static Pointer	New ()
	Method for creation through the object factory. More...

Protected Member Functions
	HeightFieldSurfaceClipImageFilter ()

	~HeightFieldSurfaceClipImageFilter () override

void	GenerateInputRequestedRegion () override

void	GenerateOutputInformation () override

void	GenerateData () override

template<typename TPixel , unsigned int VImageDimension>
void	_InternalComputeClippedImage (itk::Image< TPixel, VImageDimension > itkImage, HeightFieldSurfaceClipImageFilter clipImageFilter, vtkPolyData clippingPolyData, AffineTransform3D imageToPlaneTransform)

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print self information to the given stream. More...

void	GenerateInputRequestedRegion () override
	Determine the input requested region to produce the output requested region. More...

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
ImageTimeSelector::Pointer	m_InputTimeSelector

ImageTimeSelector::Pointer	m_OutputTimeSelector

int	m_ClippingMode

ScalarType	m_ClippingConstant

ScalarType	m_MultiplicationFactor

unsigned	m_MultiPlaneValue

unsigned int	m_HeightFieldResolutionX

unsigned int	m_HeightFieldResolutionY

double	m_MaxHeight

itk::TimeStamp	m_TimeOfHeaderInitialization
	Time when Header was last initialized. More...

Additional Inherited Members
Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Filter for clipping an image with an height-field represented by an mitk::Surface.

The filter assumes that the surface represents a height field as seen from the plane defined by (1.0/0.0/0.0), (0.0/1.0/0.0). All voxels lying on one side of the height field will be clipped, i.e., set to 0. In addition, any voxels which are out of bounds when projected on this plane will be clipped as well.

Definition at line 43 of file mitkHeightFieldSurfaceClipImageFilter.h.

Member Typedef Documentation

◆ ClippingPlaneList

typedef std::vector<mitk::Surface *> mitk::HeightFieldSurfaceClipImageFilter::ClippingPlaneList

List of Surface pointers used for multi-plane clipping.

Definition at line 47 of file mitkHeightFieldSurfaceClipImageFilter.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Clipping mode enumeration.

Defines how clipped voxels are modified:

CLIPPING_MODE_CONSTANT: Replace clipped voxels with a constant value.
CLIPPING_MODE_MULTIPLYBYFACTOR: Multiply clipped voxels by a factor.
CLIPPING_MODE_MULTIPLANE: Use multi-plane labeling.

Enumerator
CLIPPING_MODE_CONSTANT
CLIPPING_MODE_MULTIPLYBYFACTOR
CLIPPING_MODE_MULTIPLANE

Definition at line 81 of file mitkHeightFieldSurfaceClipImageFilter.h.

Constructor & Destructor Documentation

◆ HeightFieldSurfaceClipImageFilter()

mitk::HeightFieldSurfaceClipImageFilter::HeightFieldSurfaceClipImageFilter ( )

protected

◆ ~HeightFieldSurfaceClipImageFilter()

mitk::HeightFieldSurfaceClipImageFilter::~HeightFieldSurfaceClipImageFilter ( )

overrideprotected

Member Function Documentation

◆ _InternalComputeClippedImage()

template<typename TPixel , unsigned int VImageDimension>

void mitk::HeightFieldSurfaceClipImageFilter::_InternalComputeClippedImage	(	itk::Image< TPixel, VImageDimension > *	itkImage,
		HeightFieldSurfaceClipImageFilter *	clipImageFilter,
		vtkPolyData *	clippingPolyData,
		AffineTransform3D *	imageToPlaneTransform
	)

protected

◆ Clone()

Pointer mitk::HeightFieldSurfaceClipImageFilter::Clone ( ) const

◆ GenerateData()

void mitk::HeightFieldSurfaceClipImageFilter::GenerateData ( )

overrideprotected

◆ GenerateInputRequestedRegion()

void mitk::HeightFieldSurfaceClipImageFilter::GenerateInputRequestedRegion ( )

overrideprotected

◆ GenerateOutputInformation()

void mitk::HeightFieldSurfaceClipImageFilter::GenerateOutputInformation ( )

overrideprotected

◆ GetClippingConstant()

virtual ScalarType mitk::HeightFieldSurfaceClipImageFilter::GetClippingConstant ( ) const

virtual

Get the constant gray-value for clipping in CONSTANT mode.

Returns: The clipping constant value.

◆ GetClippingMode()

int mitk::HeightFieldSurfaceClipImageFilter::GetClippingMode ( )

Get the current clipping mode.

Returns: The current clipping mode constant.

◆ GetClippingSurface()

const Surface* mitk::HeightFieldSurfaceClipImageFilter::GetClippingSurface ( ) const

Get the clipping surface.

Returns: Const pointer to the clipping Surface.

◆ GetHeightFieldResolutionX()

virtual unsigned int mitk::HeightFieldSurfaceClipImageFilter::GetHeightFieldResolutionX ( ) const

virtual

Get the x-resolution of the height-field sampling.

Returns: The x-resolution in samples.

◆ GetHeightFieldResolutionY()

virtual unsigned int mitk::HeightFieldSurfaceClipImageFilter::GetHeightFieldResolutionY ( ) const

virtual

Get the y-resolution of the height-field sampling.

Returns: The y-resolution in samples.

◆ GetMultiplicationFactor()

virtual ScalarType mitk::HeightFieldSurfaceClipImageFilter::GetMultiplicationFactor ( ) const

virtual

Get the multiplication factor for clipping in MULTIPLYBYFACTOR mode.

Returns: The multiplication factor.

◆ mitkClassMacro()

mitk::HeightFieldSurfaceClipImageFilter::mitkClassMacro	(	HeightFieldSurfaceClipImageFilter	,
		ImageToImageFilter
	)

◆ New()

static Pointer mitk::HeightFieldSurfaceClipImageFilter::New ( )

static

◆ SetClippingConstant()

virtual void mitk::HeightFieldSurfaceClipImageFilter::SetClippingConstant ( ScalarType _arg )

virtual

Set the constant gray-value for clipping in CONSTANT mode.

Parameters

[in] _arg The constant value to fill clipped voxels with.

◆ SetClippingMode()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingMode ( int mode )

Set the clipping mode.

Parameters

[in] mode One of the CLIPPING_MODE_* constants.

◆ SetClippingModeToConstant()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingModeToConstant ( )

Set clipping mode to CLIPPING_MODE_CONSTANT.

◆ SetClippingModeToMultiPlaneValue()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingModeToMultiPlaneValue ( )

Set clipping mode to CLIPPING_MODE_MULTIPLANE.

◆ SetClippingModeToMultiplyByFactor()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingModeToMultiplyByFactor ( )

Set clipping mode to CLIPPING_MODE_MULTIPLYBYFACTOR.

◆ SetClippingSurface()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingSurface ( Surface * clippingSurface )

Set the surface defining a height field as a triangle mesh.

Parameters

[in] clippingSurface The surface to use for clipping.

◆ SetClippingSurfaces()

void mitk::HeightFieldSurfaceClipImageFilter::SetClippingSurfaces ( ClippingPlaneList planeList )

Set multiple surfaces for multi-plane clipping.

Parameters

[in] planeList A vector of Surface pointers to use for clipping.

◆ SetHeightFieldResolutionX()

virtual void mitk::HeightFieldSurfaceClipImageFilter::SetHeightFieldResolutionX ( unsigned int _arg )

virtual

Set the x-resolution of the height-field sampling (default: 256).

Parameters

[in] _arg The x-resolution in samples.

◆ SetHeightFieldResolutionY()

virtual void mitk::HeightFieldSurfaceClipImageFilter::SetHeightFieldResolutionY ( unsigned int _arg )

virtual

Set the y-resolution of the height-field sampling (default: 256).

Parameters

[in] _arg The y-resolution in samples.

◆ SetMultiplicationFactor()

virtual void mitk::HeightFieldSurfaceClipImageFilter::SetMultiplicationFactor ( ScalarType _arg )

virtual

Set the multiplication factor for clipping in MULTIPLYBYFACTOR mode.

Parameters

[in] _arg The factor to multiply clipped voxels by.

Member Data Documentation

◆ m_ClippingConstant

ScalarType mitk::HeightFieldSurfaceClipImageFilter::m_ClippingConstant

protected

Definition at line 179 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_ClippingMode

int mitk::HeightFieldSurfaceClipImageFilter::m_ClippingMode

protected

Definition at line 177 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_HeightFieldResolutionX

unsigned int mitk::HeightFieldSurfaceClipImageFilter::m_HeightFieldResolutionX

protected

Definition at line 183 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_HeightFieldResolutionY

unsigned int mitk::HeightFieldSurfaceClipImageFilter::m_HeightFieldResolutionY

protected

Definition at line 184 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_InputTimeSelector

ImageTimeSelector::Pointer mitk::HeightFieldSurfaceClipImageFilter::m_InputTimeSelector

protected

Definition at line 174 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_MaxHeight

double mitk::HeightFieldSurfaceClipImageFilter::m_MaxHeight

protected

Definition at line 186 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_MultiPlaneValue

unsigned mitk::HeightFieldSurfaceClipImageFilter::m_MultiPlaneValue

protected

Definition at line 181 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_MultiplicationFactor

ScalarType mitk::HeightFieldSurfaceClipImageFilter::m_MultiplicationFactor

protected

Definition at line 180 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_OutputTimeSelector

ImageTimeSelector::Pointer mitk::HeightFieldSurfaceClipImageFilter::m_OutputTimeSelector

protected

Definition at line 175 of file mitkHeightFieldSurfaceClipImageFilter.h.

◆ m_TimeOfHeaderInitialization

itk::TimeStamp mitk::HeightFieldSurfaceClipImageFilter::m_TimeOfHeaderInitialization

protected

Time when Header was last initialized.

Definition at line 189 of file mitkHeightFieldSurfaceClipImageFilter.h.

The documentation for this class was generated from the following file:

mitkHeightFieldSurfaceClipImageFilter.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ClippingPlaneList

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ HeightFieldSurfaceClipImageFilter()

◆ ~HeightFieldSurfaceClipImageFilter()

Member Function Documentation

◆ _InternalComputeClippedImage()

◆ Clone()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetClippingConstant()

◆ GetClippingMode()

◆ GetClippingSurface()

◆ GetHeightFieldResolutionX()

◆ GetHeightFieldResolutionY()

◆ GetMultiplicationFactor()

◆ mitkClassMacro()

◆ New()

◆ SetClippingConstant()

◆ SetClippingMode()

◆ SetClippingModeToConstant()

◆ SetClippingModeToMultiPlaneValue()

◆ SetClippingModeToMultiplyByFactor()

◆ SetClippingSurface()

◆ SetClippingSurfaces()

◆ SetHeightFieldResolutionX()

◆ SetHeightFieldResolutionY()

◆ SetMultiplicationFactor()

Member Data Documentation

◆ m_ClippingConstant

◆ m_ClippingMode

◆ m_HeightFieldResolutionX

◆ m_HeightFieldResolutionY

◆ m_InputTimeSelector

◆ m_MaxHeight

◆ m_MultiPlaneValue

◆ m_MultiplicationFactor

◆ m_OutputTimeSelector

◆ m_TimeOfHeaderInitialization
