mitk::AbstractFileReader Class Reference

Base class for creating mitk::BaseData objects from files or streams. More...

#include <mitkAbstractFileReader.h>

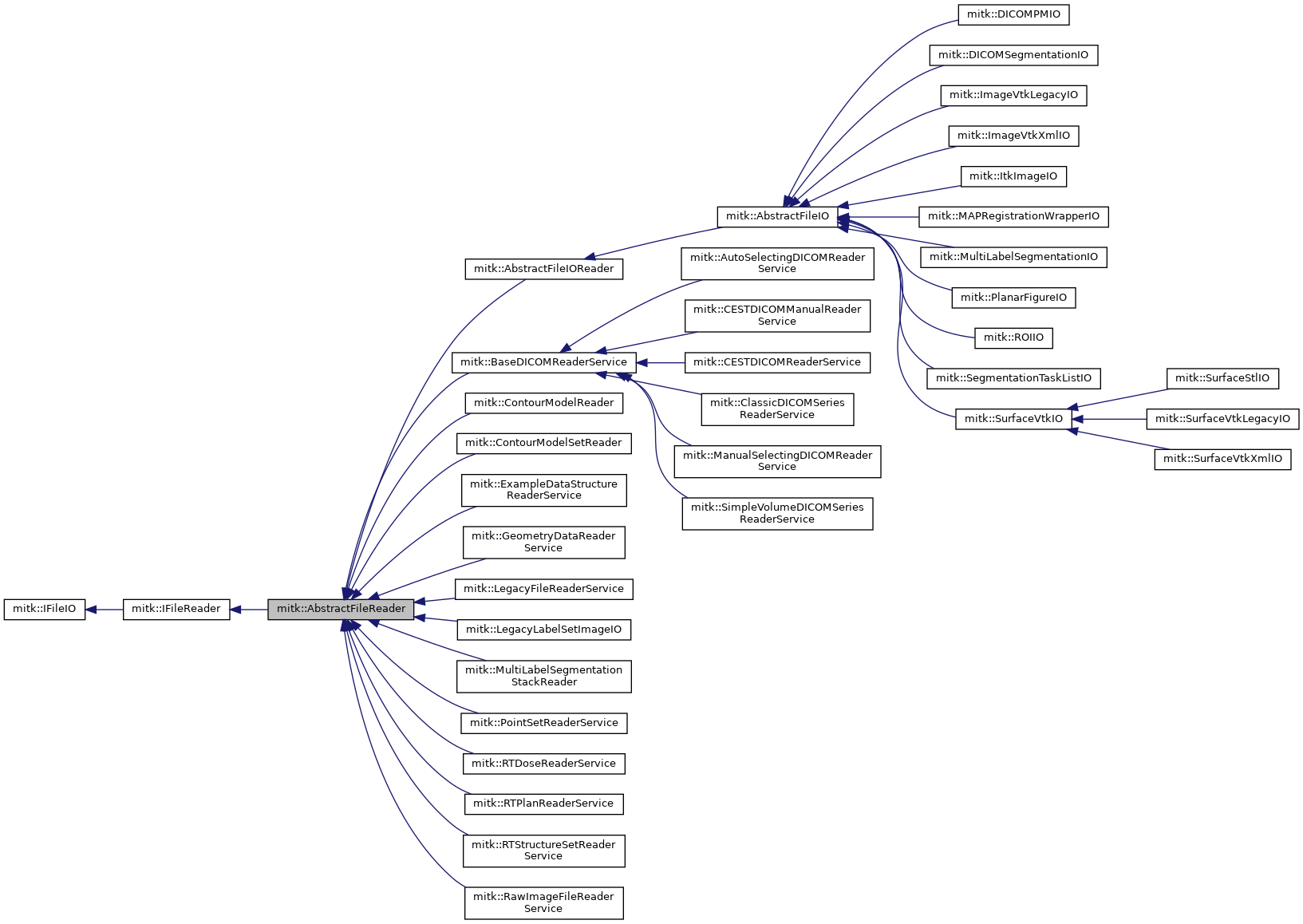

Inheritance diagram for mitk::AbstractFileReader:

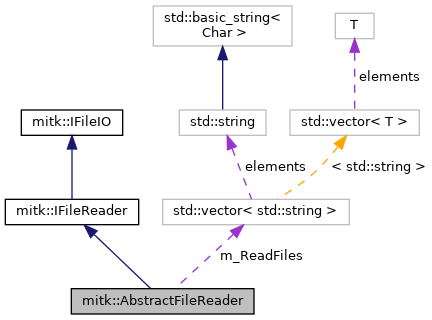

Collaboration diagram for mitk::AbstractFileReader:

Classes
class	InputStream
	An input stream wrapper for reader implementations. More...

Public Member Functions
void	SetInput (const std::string &location) override
	Set the input file path, clearing any previously set input stream. More...
void	SetInput (const std::string &location, std::istream *is) override
	Set an input stream and associated location label. More...
std::string	GetInputLocation () const override
	Get the current input location. More...
std::istream *	GetInputStream () const override
	Get the current input stream. More...
MimeType	GetRegisteredMimeType () const
	Get the mime-type that was registered for this reader. More...
std::vector< itk::SmartPointer< BaseData > >	Read () override
	Read data and create a list of BaseData objects. More...
DataStorage::SetOfObjects::Pointer	Read (mitk::DataStorage &ds) override
	Read data and add it to the given DataStorage. More...
ConfidenceLevel	GetConfidenceLevel () const override
	Determine confidence for reading the current input. More...
Options	GetOptions () const override
	Get the current option values. More...
us::Any	GetOption (const std::string &name) const override
	Get the value of a specific option. More...
void	SetOptions (const Options &options) override
	Set multiple options at once. More...
void	SetOption (const std::string &name, const us::Any &value) override
	Set a single option value. More...
void	AddProgressCallback (const ProgressCallback &callback) override
	Register a progress callback. More...
void	RemoveProgressCallback (const ProgressCallback &callback) override
	Remove a previously registered progress callback. More...
us::ServiceRegistration< IFileReader >	RegisterService (us::ModuleContext *context=us::GetModuleContext())
	Register this reader as a CppMicroServices service. More...
void	UnregisterService ()
	Unregister this reader from the CppMicroServices registry. More...
std::vector< std::string >	GetReadFiles () override
	Get the list of files consumed during the last Read() call. More...
void	SetProperties (const PropertyList *properties) override
	Set base data properties as a source of meta data for reading. More...
Public Member Functions inherited from mitk::IFileReader
	~IFileReader () override
virtual	~IFileReader ()
Public Member Functions inherited from mitk::IFileIO
virtual	~IFileIO ()

Protected Member Functions
	AbstractFileReader ()
	Default constructor. More...
	~AbstractFileReader () override
	AbstractFileReader (const AbstractFileReader &other)
	Copy constructor. More...
	AbstractFileReader (const CustomMimeType &mimeType, const std::string &description)
	Associate this reader instance with the given MIME type. More...
virtual std::vector< itk::SmartPointer< BaseData > >	DoRead ()=0
	Perform the actual reading operation. More...
virtual us::ServiceProperties	GetServiceProperties () const
	Get the service properties for registration. More...
virtual us::ServiceRegistration< CustomMimeType >	RegisterMimeType (us::ModuleContext *context)
	Register a new CustomMimeType service object. More...
void	SetMimeType (const CustomMimeType &mimeType)
	Set the MIME type this reader can handle. More...
const CustomMimeType *	GetMimeType () const
	Get the MIME type this reader can handle. More...
void	SetMimeTypePrefix (const std::string &prefix)
	Set the prefix used for auto-generated MIME type names. More...
std::string	GetMimeTypePrefix () const
	Get the current MIME type name prefix. More...
void	SetDescription (const std::string &description)
	Set the human-readable description of this reader. More...
std::string	GetDescription () const
	Get the human-readable description of this reader. More...
void	SetDefaultOptions (const Options &defaultOptions)
	Set the default options for this reader. More...
Options	GetDefaultOptions () const
	Get the default options for this reader. More...
void	SetRanking (int ranking)
	Set the service ranking for this file reader. More...
int	GetRanking () const
	Get the service ranking for this file reader. More...
std::string	GetLocalFileName () const
	Get a local file name for reading. More...
virtual void	SetDefaultDataNodeProperties (DataNode *node, const std::string &filePath)
	Set default properties on a DataNode after reading. More...
const PropertyList *	GetProperties () const override
	Get the properties set via SetProperties(). More...

Protected Attributes
std::vector< std::string >	m_ReadFiles
	List of files consumed during the last Read() call. Must be filled by DoRead(). More...

Additional Inherited Members
Public Types inherited from mitk::IFileIO
enum	ConfidenceLevel { Unsupported , PartiallySupported , Supported }
	A confidence level describing the reader's or writer's ability to handle the given data or file format. More...
typedef std::map< std::string, us::Any >	Options
	Options for reading or writing data. More...
typedef mitk::MessageAbstractDelegate1< float >	ProgressCallback
	Callback delegate type for progress reporting. More...
Static Public Member Functions inherited from mitk::IFileIO
static std::string	PROP_DESCRIPTION ()
	Service property name for a human-readable description. More...
static std::string	PROP_MIMETYPE ()
	Service property name for the mime-type associated with this reader or writer. More...

Detailed Description

Base class for creating mitk::BaseData objects from files or streams.

AbstractFileReader provides the default implementation of the IFileReader interface. Subclasses only need to implement DoRead() and Clone(). The base class handles service registration via CppMicroServices, mime-type management, option handling, and progress callbacks.

See also

IFileReader

AbstractFileIO

AbstractFileWriter

FileReaderSelector

Definition at line 53 of file mitkAbstractFileReader.h.

Constructor & Destructor Documentation

AbstractFileReader() [1/3]

mitk::AbstractFileReader::AbstractFileReader ( )

protected

Default constructor.

~AbstractFileReader()

mitk::AbstractFileReader::~AbstractFileReader ( )

overrideprotected

AbstractFileReader() [2/3]

mitk::AbstractFileReader::AbstractFileReader ( const AbstractFileReader &  other )

protected

Copy constructor.

Parameters

[in]

other

The reader to copy from.

AbstractFileReader() [3/3]

mitk::AbstractFileReader::AbstractFileReader ( const CustomMimeType &  mimeType, const std::string &  description  )

explicitprotected

Associate this reader instance with the given MIME type.

If mimeType does not provide an extension list, an already registered mime-type object is used. Otherwise, the first entry in the extensions list is used to construct a mime-type name and register it as a new CustomMimeType service object in the default implementation of RegisterMimeType().

Parameters

[in]	mimeType	The mime-type this reader can read.
[in]	description	A human-readable description of this reader.

Exceptions

std::invalid_argument

if mimeType is empty.

See also

RegisterService()

Member Function Documentation

AddProgressCallback()

void mitk::AbstractFileReader::AddProgressCallback ( const ProgressCallback &  callback )

overridevirtual

Register a progress callback.

Parameters

[in]

callback

The callback delegate to add.

Implements mitk::IFileIO.

DoRead()

virtual std::vector<itk::SmartPointer<BaseData> > mitk::AbstractFileReader::DoRead ( )

protectedpure virtual

Perform the actual reading operation.

Subclasses must implement this method. The implementation should call GetInputStream() first and check for a non-null stream to read from. If the input stream is nullptr, use GetInputLocation() to read from a local file-system path.

If the reader cannot use streams directly, use GetLocalFileName() instead.

Returns

A vector of created BaseData objects.

Exceptions

mitk::Exception

if reading fails.

See also

GetLocalFileName()

Read()

Implemented in mitk::SegmentationTaskListIO, mitk::SceneJsonFileReader, mitk::SceneFileReader, mitk::RTStructureSetReaderService, mitk::RTPlanReaderService, mitk::RTDoseReaderService, mitk::ROIIO, mitk::PlanarFigureIO, mitk::MultiLabelSegmentationStackReader, mitk::MultiLabelSegmentationIO, mitk::LegacyLabelSetImageIO, mitk::DICOMSegmentationIO, mitk::MAPRegistrationWrapperIO, mitk::PlyFileReaderService, mitk::ObjFileReaderService, mitk::DICOMPMIO, mitk::BaseDICOMReaderService, mitk::SurfaceVtkXmlIO, mitk::SurfaceVtkLegacyIO, mitk::SurfaceStlIO, mitk::RawImageFileReaderService, mitk::PointSetReaderService, mitk::ImageVtkXmlIO, mitk::ImageVtkLegacyIO, mitk::ItkImageIO, mitk::GeometryDataReaderService, mitk::ContourModelSetReader, mitk::ContourModelReader, and mitk::ExampleDataStructureReaderService.

GetConfidenceLevel()

ConfidenceLevel mitk::AbstractFileReader::GetConfidenceLevel ( ) const

overridevirtual

Determine confidence for reading the current input.

Returns

Supported if the input stream is valid or the input file exists, Unsupported otherwise.

Implements mitk::IFileIO.

Reimplemented in mitk::MultiLabelSegmentationStackReader, mitk::LegacyLabelSetImageIO, and mitk::BaseDICOMReaderService.

Referenced by mitk::AbstractFileIOReader::GetReaderConfidenceLevel().

GetDefaultOptions()

Options mitk::AbstractFileReader::GetDefaultOptions ( ) const

protected

Get the default options for this reader.

Returns

A map of option names to default values.

GetDescription()

std::string mitk::AbstractFileReader::GetDescription ( ) const

protected

Get the human-readable description of this reader.

Returns

The description string.

GetInputLocation()

std::string mitk::AbstractFileReader::GetInputLocation ( ) const

overridevirtual

Get the current input location.

Returns

The file path or label set via SetInput().

Implements mitk::IFileReader.

GetInputStream()

std::istream* mitk::AbstractFileReader::GetInputStream ( ) const

overridevirtual

Get the current input stream.

Returns

The input stream, or nullptr if reading from a file path.

Implements mitk::IFileReader.

GetLocalFileName()

std::string mitk::AbstractFileReader::GetLocalFileName ( ) const

protected

Get a local file name for reading.

This is a convenience method for readers which cannot work natively with input streams. If no input stream has been set, this method returns the result of GetInputLocation(). If an input stream was set via SetInput(std::string, std::istream*), this method writes the stream contents to a temporary file and returns its path.

The temporary file is deleted when SetInput() is called again with a different input stream or when this reader is destroyed.

This method does not validate file names set via SetInput(std::string).

Returns

A file path in the local file-system for reading.

GetMimeType()

const CustomMimeType* mitk::AbstractFileReader::GetMimeType ( ) const

protected

Get the MIME type this reader can handle.

Returns

Pointer to the internal CustomMimeType, or nullptr.

GetMimeTypePrefix()

std::string mitk::AbstractFileReader::GetMimeTypePrefix ( ) const

protected

Get the current MIME type name prefix.

Returns

The prefix string.

GetOption()

us::Any mitk::AbstractFileReader::GetOption ( const std::string &  name ) const

overridevirtual

Get the value of a specific option.

Parameters

[in]

name

The option name.

Returns

The option value.

Implements mitk::IFileIO.

GetOptions()

Options mitk::AbstractFileReader::GetOptions ( ) const

overridevirtual

Get the current option values.

Returns

A map of option names to their current values.

Implements mitk::IFileIO.

GetProperties()

const PropertyList* mitk::AbstractFileReader::GetProperties ( ) const

overrideprotectedvirtual

Get the properties set via SetProperties().

Returns

The current PropertyList, or nullptr if none was set.

Implements mitk::IFileReader.

GetRanking()

int mitk::AbstractFileReader::GetRanking ( ) const

protected

Get the service ranking for this file reader.

Returns

The ranking value.

GetReadFiles()

std::vector< std::string > mitk::AbstractFileReader::GetReadFiles ( )

overridevirtual

Get the list of files consumed during the last Read() call.

Returns

A vector of file paths. Must be populated by the DoRead() implementation.

Implements mitk::IFileReader.

GetRegisteredMimeType()

MimeType mitk::AbstractFileReader::GetRegisteredMimeType

(

)

const

Get the mime-type that was registered for this reader.

Returns

The registered MimeType, which may be invalid if not yet registered.

GetServiceProperties()

virtual us::ServiceProperties mitk::AbstractFileReader::GetServiceProperties ( ) const

protectedvirtual

Get the service properties for registration.

Returns

A map of service property names to values.

Read() [1/2]

std::vector<itk::SmartPointer<BaseData> > mitk::AbstractFileReader::Read ( )

overridevirtual

Read data and create a list of BaseData objects.

The default implementation calls DoRead() and then annotates each resulting BaseData with meta-information about the reader, MIME type, input location, and reader options.

Returns

A vector of created BaseData objects.

Exceptions

mitk::Exception

if reading fails.

Implements mitk::IFileReader.

Reimplemented in mitk::SegmentationTaskListIO, mitk::SceneJsonFileReader, mitk::SceneFileReader, mitk::RTStructureSetReaderService, mitk::RTPlanReaderService, mitk::RTDoseReaderService, mitk::ROIIO, mitk::PlanarFigureIO, mitk::MultiLabelSegmentationIO, mitk::LegacyLabelSetImageIO, mitk::DICOMSegmentationIO, mitk::MAPRegistrationWrapperIO, mitk::PlyFileReaderService, mitk::ObjFileReaderService, mitk::DICOMPMIO, mitk::BaseDICOMReaderService, mitk::SurfaceVtkXmlIO, mitk::SurfaceVtkLegacyIO, mitk::SurfaceStlIO, mitk::PointSetReaderService, mitk::ImageVtkXmlIO, mitk::ImageVtkLegacyIO, mitk::ItkImageIO, mitk::GeometryDataReaderService, mitk::ContourModelSetReader, mitk::ContourModelReader, mitk::CESTDICOMManualReaderService, mitk::CESTDICOMReaderService, mitk::ExampleDataStructureReaderService, mitk::SegmentationTaskListIO, mitk::SceneJsonFileReader, mitk::SceneFileReader, mitk::RTStructureSetReaderService, mitk::RTPlanReaderService, mitk::RTDoseReaderService, mitk::ROIIO, mitk::PlanarFigureIO, mitk::MultiLabelSegmentationIO, mitk::LegacyLabelSetImageIO, mitk::DICOMSegmentationIO, mitk::MAPRegistrationWrapperIO, mitk::PlyFileReaderService, mitk::ObjFileReaderService, mitk::DICOMPMIO, mitk::BaseDICOMReaderService, mitk::SurfaceVtkXmlIO, mitk::SurfaceVtkLegacyIO, mitk::SurfaceStlIO, mitk::PointSetReaderService, mitk::ImageVtkXmlIO, mitk::ImageVtkLegacyIO, mitk::ItkImageIO, mitk::GeometryDataReaderService, mitk::ContourModelSetReader, mitk::ContourModelReader, mitk::CESTDICOMManualReaderService, mitk::CESTDICOMReaderService, and mitk::ExampleDataStructureReaderService.

Read() [2/2]

DataStorage::SetOfObjects::Pointer mitk::AbstractFileReader::Read ( mitk::DataStorage &  ds )

overridevirtual

Read data and add it to the given DataStorage.

Parameters

[in,out]

ds

The DataStorage to add nodes to.

Returns

The set of DataNode objects added to ds.

Exceptions

mitk::Exception

if reading fails.

Implements mitk::IFileReader.

Reimplemented in mitk::SceneJsonFileReader, and mitk::SceneFileReader.

RegisterMimeType()

virtual us::ServiceRegistration<CustomMimeType> mitk::AbstractFileReader::RegisterMimeType ( us::ModuleContext *  context )

protectedvirtual

Register a new CustomMimeType service object.

Called internally from RegisterService(). The default implementation registers a new mime-type service if the mime-type has not been registered yet.

Parameters

[in]

context

The module context for registration.

Returns

The service registration for the CustomMimeType.

Exceptions

std::invalid_argument

if context is nullptr.

RegisterService()

us::ServiceRegistration<IFileReader> mitk::AbstractFileReader::RegisterService

(

us::ModuleContext *

context = us::GetModuleContext()

)

Register this reader as a CppMicroServices service.

Registers this reader with its mime-type in the service registry using a PrototypeServiceFactory, so that each consumer gets its own clone. If no MIME type for the configured extension is already registered, a new MIME type is registered automatically.

Parameters

[in]

context

The module context for service registration. Defaults to the current module context.

Returns

The service registration object, or an invalid registration if the reader could not be registered.

RemoveProgressCallback()

void mitk::AbstractFileReader::RemoveProgressCallback ( const ProgressCallback &  callback )

overridevirtual

Remove a previously registered progress callback.

Parameters

[in]

callback

The callback delegate to remove.

Implements mitk::IFileIO.

SetDefaultDataNodeProperties()

virtual void mitk::AbstractFileReader::SetDefaultDataNodeProperties ( DataNode *  node, const std::string &  filePath  )

protectedvirtual

Set default properties on a DataNode after reading.

Parameters

[in,out]	node	The DataNode to configure.
[in]	filePath	The file path used for reading (used to derive name and path properties).

SetDefaultOptions()

void mitk::AbstractFileReader::SetDefaultOptions ( const Options &  defaultOptions )

protected

Set the default options for this reader.

Parameters

[in]

defaultOptions

A map of option names to default values.

SetDescription()

void mitk::AbstractFileReader::SetDescription ( const std::string &  description )

protected

Set the human-readable description of this reader.

Parameters

[in]

description

The description string.

SetInput() [1/2]

void mitk::AbstractFileReader::SetInput ( const std::string &  location )

overridevirtual

Set the input file path, clearing any previously set input stream.

Parameters

[in]

location

The absolute file-system path to read from.

Implements mitk::IFileReader.

SetInput() [2/2]

void mitk::AbstractFileReader::SetInput ( const std::string &  location, std::istream *  is  )

overridevirtual

Set an input stream and associated location label.

Parameters

[in]	location	A file-system path or custom label.
[in]	is	The input stream, or nullptr to clear.

Implements mitk::IFileReader.

SetMimeType()

void mitk::AbstractFileReader::SetMimeType ( const CustomMimeType &  mimeType )

protected

Set the MIME type this reader can handle.

Parameters

[in]

mimeType

The CustomMimeType to associate with this reader.

SetMimeTypePrefix()

void mitk::AbstractFileReader::SetMimeTypePrefix ( const std::string &  prefix )

protected

Set the prefix used for auto-generated MIME type names.

Parameters

[in]

prefix

The prefix string (e.g. "application/vnd.mitk").

SetOption()

void mitk::AbstractFileReader::SetOption ( const std::string &  name, const us::Any &  value  )

overridevirtual

Set a single option value.

Parameters

[in]	name	The option name.
[in]	value	The new option value.

Implements mitk::IFileIO.

SetOptions()

void mitk::AbstractFileReader::SetOptions ( const Options &  options )

overridevirtual

Set multiple options at once.

Parameters

[in]

options

A map of option names to their new values.

Implements mitk::IFileIO.

SetProperties()

void mitk::AbstractFileReader::SetProperties ( const PropertyList *  properties )

overridevirtual

Set base data properties as a source of meta data for reading.

Parameters

[in]

properties

The PropertyList to use, or nullptr to clear.

See also

IFileReader::SetProperties()

Implements mitk::IFileReader.

SetRanking()

void mitk::AbstractFileReader::SetRanking ( int  ranking )

protected

Set the service ranking for this file reader.

Parameters

[in]

ranking

The ranking value. Default is zero.

The ranking is used to determine which reader to use if several equivalent readers have been found. Use a higher ranking to override a default reader from MITK in your own project.

UnregisterService()

void mitk::AbstractFileReader::UnregisterService

(

)

Unregister this reader from the CppMicroServices registry.

Member Data Documentation

m_ReadFiles

std::vector< std::string > mitk::AbstractFileReader::m_ReadFiles

protected

List of files consumed during the last Read() call. Must be filled by DoRead().

Definition at line 376 of file mitkAbstractFileReader.h.

---

The documentation for this class was generated from the following file:

• mitkAbstractFileReader.h
