Base class for writing mitk::BaseData objects to files or streams. More...

#include <mitkAbstractFileWriter.h>

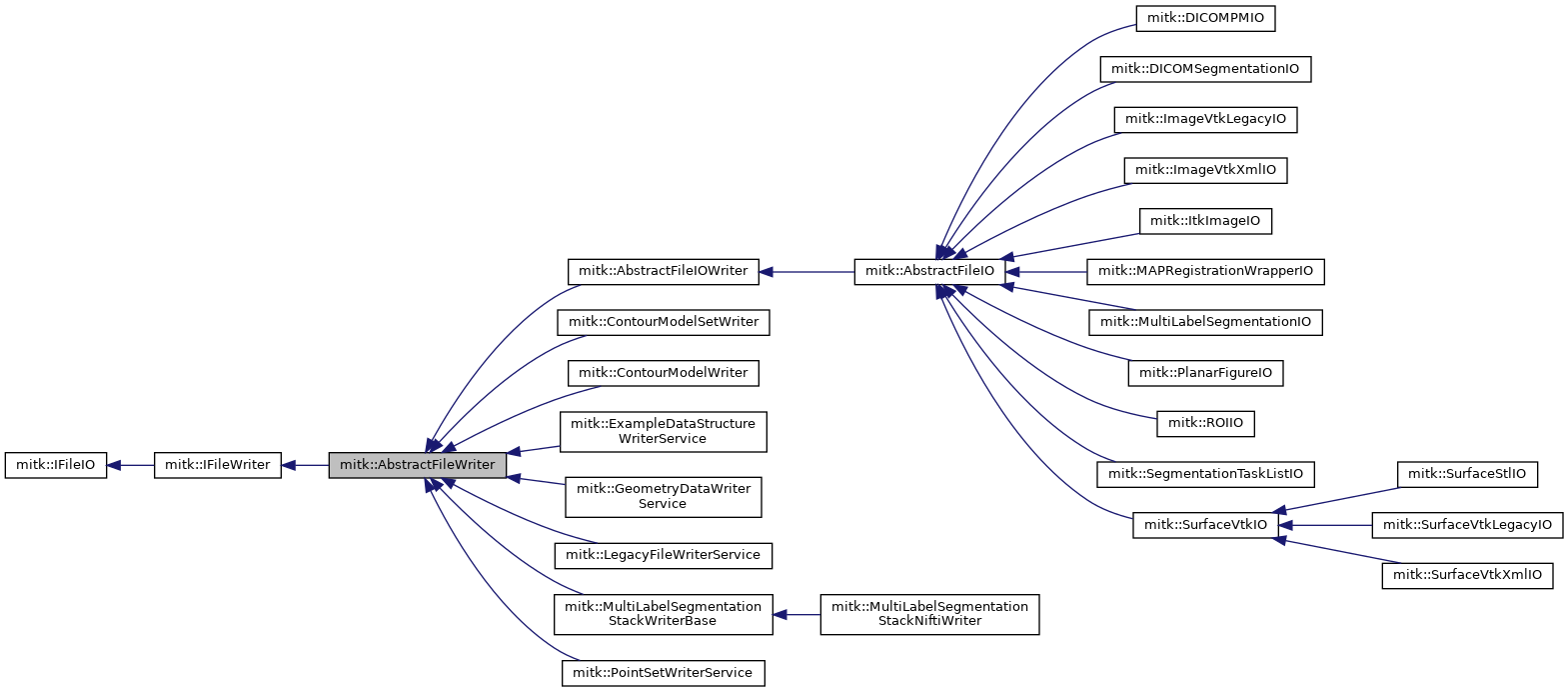

Inheritance diagram for mitk::AbstractFileWriter:

[legend]

Collaboration diagram for mitk::AbstractFileWriter:

Classes
class	LocalFile
	A local file representation for writers that cannot use streams. More...

class	OutputStream
	An output stream wrapper for writer implementations. More...

Public Member Functions
void	SetInput (const BaseData *data) override
	Set the input data for writing. More...

const BaseData *	GetInput () const override
	Get the input data. More...

void	SetOutputLocation (const std::string &location) override
	Set the output file-system path, clearing any output stream. More...

std::string	GetOutputLocation () const override
	Get the current output location. More...

void	SetOutputStream (const std::string &location, std::ostream *os) override
	Set an output stream and associated location label. More...

std::ostream *	GetOutputStream () const override
	Get the current output stream. More...

void	Write () override=0
	Write the base data to the specified location or output stream. More...

ConfidenceLevel	GetConfidenceLevel () const override
	Determine confidence for writing the current input data. More...

MimeType	GetRegisteredMimeType () const
	Get the MIME type that was registered for this writer. More...

Options	GetOptions () const override
	Get the current option values. More...

us::Any	GetOption (const std::string &name) const override
	Get the value of a specific option. More...

void	SetOptions (const Options &options) override
	Set multiple options at once. More...

void	SetOption (const std::string &name, const us::Any &value) override
	Set a single option value. More...

void	AddProgressCallback (const ProgressCallback &callback) override
	Register a progress callback. More...

void	RemoveProgressCallback (const ProgressCallback &callback) override
	Remove a previously registered progress callback. More...

us::ServiceRegistration< IFileWriter >	RegisterService (us::ModuleContext *context=us::GetModuleContext())
	Register this writer as a CppMicroServices service. More...

void	UnregisterService ()
	Unregister this writer from the CppMicroServices registry. More...

Public Member Functions inherited from mitk::IFileWriter
	~IFileWriter () override

Public Member Functions inherited from mitk::IFileIO
virtual	~IFileIO ()

Protected Member Functions
	~AbstractFileWriter () override

	AbstractFileWriter (const AbstractFileWriter &other)
	Copy constructor. More...

	AbstractFileWriter (const std::string &baseDataType)
	Construct a writer for the given BaseData type name. More...

	AbstractFileWriter (const std::string &baseDataType, const CustomMimeType &mimeType, const std::string &description)
	Construct a writer for the given BaseData type, MIME type, and description. More...

virtual us::ServiceProperties	GetServiceProperties () const
	Get the service properties for registration. More...

virtual us::ServiceRegistration< CustomMimeType >	RegisterMimeType (us::ModuleContext *context)
	Register a new CustomMimeType service object. More...

void	SetMimeType (const CustomMimeType &mimeType)
	Set the MIME type this writer can handle. More...

const CustomMimeType *	GetMimeType () const
	Get the MIME type this writer can handle. More...

void	SetMimeTypePrefix (const std::string &prefix)
	Set the prefix used for auto-generated MIME type names. More...

std::string	GetMimeTypePrefix () const
	Get the current MIME type name prefix. More...

void	SetDescription (const std::string &description)
	Set a human-readable description of this writer. More...

std::string	GetDescription () const
	Get the human-readable description of this writer. More...

void	SetDefaultOptions (const Options &defaultOptions)
	Set the default options for this writer. More...

Options	GetDefaultOptions () const
	Get the default options for this writer. More...

void	SetRanking (int ranking)
	Set the service ranking for this file writer. More...

int	GetRanking () const
	Get the service ranking for this file writer. More...

void	SetBaseDataType (const std::string &baseDataType)
	Set the name of the mitk::BaseData sub-class this writer supports. More...

virtual std::string	GetBaseDataType () const
	Get the name of the mitk::BaseData sub-class this writer supports. More...

void	ValidateOutputLocation () const
	Validate the output location or stream. More...

Additional Inherited Members
Public Types inherited from mitk::IFileIO
enum	ConfidenceLevel { Unsupported , PartiallySupported , Supported }
	A confidence level describing the reader's or writer's ability to handle the given data or file format. More...

typedef std::map< std::string, us::Any >	Options
	Options for reading or writing data. More...

typedef mitk::MessageAbstractDelegate1< float >	ProgressCallback
	Callback delegate type for progress reporting. More...

Static Public Member Functions inherited from mitk::IFileWriter
static std::string	PROP_BASEDATA_TYPE ()
	Service property name for the supported mitk::BaseData sub-class. More...

Static Public Member Functions inherited from mitk::IFileIO
static std::string	PROP_DESCRIPTION ()
	Service property name for a human-readable description. More...

static std::string	PROP_MIMETYPE ()
	Service property name for the mime-type associated with this reader or writer. More...

Detailed Description

Base class for writing mitk::BaseData objects to files or streams.

In general, all file writers should derive from this class to ensure that the implementation is exposed to the CppMicroServices framework and is automatically available throughout MITK. Subclasses need to implement Write() and Clone().

See also: IFileWriter; AbstractFileIO; AbstractFileReader; FileWriterSelector

Definition at line 54 of file mitkAbstractFileWriter.h.

Constructor & Destructor Documentation

◆ ~AbstractFileWriter()

mitk::AbstractFileWriter::~AbstractFileWriter ( )

overrideprotected

◆ AbstractFileWriter() [1/3]

mitk::AbstractFileWriter::AbstractFileWriter ( const AbstractFileWriter & other )

protected

Copy constructor.

Parameters

[in] other The writer to copy from.

◆ AbstractFileWriter() [2/3]

mitk::AbstractFileWriter::AbstractFileWriter ( const std::string & baseDataType )

protected

Construct a writer for the given BaseData type name.

Parameters

[in] baseDataType The class name of the BaseData sub-class this writer supports.

◆ AbstractFileWriter() [3/3]

mitk::AbstractFileWriter::AbstractFileWriter	(	const std::string &	baseDataType,
		const CustomMimeType &	mimeType,
		const std::string &	description
	)

protected

Construct a writer for the given BaseData type, MIME type, and description.

Parameters

[in]	baseDataType	The class name of the BaseData sub-class this writer supports.
[in]	mimeType	The MIME type this writer produces.
[in]	description	A human-readable description of this writer.

Member Function Documentation

◆ AddProgressCallback()

void mitk::AbstractFileWriter::AddProgressCallback ( const ProgressCallback & callback )

overridevirtual

Register a progress callback.

Parameters

[in] callback The callback delegate to add.

Implements mitk::IFileIO.

◆ GetBaseDataType()

virtual std::string mitk::AbstractFileWriter::GetBaseDataType ( ) const

protectedvirtual

Get the name of the mitk::BaseData sub-class this writer supports.

Returns: The BaseData type name.

◆ GetConfidenceLevel()

ConfidenceLevel mitk::AbstractFileWriter::GetConfidenceLevel ( ) const

overridevirtual

Determine confidence for writing the current input data.

Returns: Supported if the input data's class hierarchy matches the writer's BaseData type, Unsupported otherwise.

Implements mitk::IFileIO.

Reimplemented in mitk::MultiLabelSegmentationStackWriterBase.

Referenced by mitk::AbstractFileIOWriter::GetWriterConfidenceLevel().

◆ GetDefaultOptions()

Options mitk::AbstractFileWriter::GetDefaultOptions ( ) const

protected

Get the default options for this writer.

Returns: A map of option names to default values.

◆ GetDescription()

std::string mitk::AbstractFileWriter::GetDescription ( ) const

protected

Get the human-readable description of this writer.

Returns: The description string.

◆ GetInput()

const BaseData* mitk::AbstractFileWriter::GetInput ( ) const

overridevirtual

Get the input data.

Returns: Pointer to the BaseData, or nullptr if none was set.

Implements mitk::IFileWriter.

◆ GetMimeType()

const CustomMimeType* mitk::AbstractFileWriter::GetMimeType ( ) const

protected

Get the MIME type this writer can handle.

Returns: Pointer to the internal CustomMimeType, or nullptr.

◆ GetMimeTypePrefix()

std::string mitk::AbstractFileWriter::GetMimeTypePrefix ( ) const

protected

Get the current MIME type name prefix.

Returns: The prefix string.

◆ GetOption()

us::Any mitk::AbstractFileWriter::GetOption ( const std::string & name ) const

overridevirtual

Get the value of a specific option.

Parameters

[in] name The option name.

Returns: The option value.

Implements mitk::IFileIO.

◆ GetOptions()

Options mitk::AbstractFileWriter::GetOptions ( ) const

overridevirtual

Get the current option values.

Returns: A map of option names to their current values.

Implements mitk::IFileIO.

◆ GetOutputLocation()

std::string mitk::AbstractFileWriter::GetOutputLocation ( ) const

overridevirtual

Get the current output location.

Returns: The file path or label set via SetOutputLocation() or SetOutputStream().

Implements mitk::IFileWriter.

◆ GetOutputStream()

std::ostream* mitk::AbstractFileWriter::GetOutputStream ( ) const

overridevirtual

Get the current output stream.

Returns: The output stream, or nullptr if writing to a file path.

Implements mitk::IFileWriter.

◆ GetRanking()

int mitk::AbstractFileWriter::GetRanking ( ) const

protected

Get the service ranking for this file writer.

Returns: The ranking value.

◆ GetRegisteredMimeType()

MimeType mitk::AbstractFileWriter::GetRegisteredMimeType ( ) const

Get the MIME type that was registered for this writer.

Returns: The registered MimeType, which may be invalid if not yet registered.

◆ GetServiceProperties()

virtual us::ServiceProperties mitk::AbstractFileWriter::GetServiceProperties ( ) const

protectedvirtual

Get the service properties for registration.

Returns: A map of service property names to values.

◆ RegisterMimeType()

virtual us::ServiceRegistration<CustomMimeType> mitk::AbstractFileWriter::RegisterMimeType ( us::ModuleContext * context )

protectedvirtual

Register a new CustomMimeType service object.

Called internally from RegisterService(). The default implementation registers a new mime-type service if the mime-type has not been registered yet.

Parameters

[in] context The module context for registration.

Returns: The service registration for the CustomMimeType.

Exceptions

std::invalid_argument if context is nullptr.

◆ RegisterService()

us::ServiceRegistration<IFileWriter> mitk::AbstractFileWriter::RegisterService ( us::ModuleContext * context = us::GetModuleContext() )

Register this writer as a CppMicroServices service.

Registers this writer with its mime-type in the service registry using a PrototypeServiceFactory, so that each consumer gets its own clone.

Parameters

[in] context The module context for service registration. Defaults to the current module context.

Returns: The service registration object, or an invalid registration if the writer could not be registered.

◆ RemoveProgressCallback()

void mitk::AbstractFileWriter::RemoveProgressCallback ( const ProgressCallback & callback )

overridevirtual

Remove a previously registered progress callback.

Parameters

[in] callback The callback delegate to remove.

Implements mitk::IFileIO.

◆ SetBaseDataType()

void mitk::AbstractFileWriter::SetBaseDataType ( const std::string & baseDataType )

protected

Set the name of the mitk::BaseData sub-class this writer supports.

Parameters

[in] baseDataType The class name, as returned by BaseData::GetNameOfClass().

◆ SetDefaultOptions()

void mitk::AbstractFileWriter::SetDefaultOptions ( const Options & defaultOptions )

protected

Set the default options for this writer.

Parameters

[in] defaultOptions A map of option names to default values.

◆ SetDescription()

void mitk::AbstractFileWriter::SetDescription ( const std::string & description )

protected

Set a human-readable description of this writer.

Parameters

[in] description The description string, used in file dialogs.

◆ SetInput()

void mitk::AbstractFileWriter::SetInput ( const BaseData * data )

overridevirtual

Set the input data for writing.

Parameters

[in] data The BaseData object to write.

Implements mitk::IFileWriter.

◆ SetMimeType()

void mitk::AbstractFileWriter::SetMimeType ( const CustomMimeType & mimeType )

protected

Set the MIME type this writer can handle.

Parameters

[in] mimeType The CustomMimeType to associate with this writer.

◆ SetMimeTypePrefix()

void mitk::AbstractFileWriter::SetMimeTypePrefix ( const std::string & prefix )

protected

Set the prefix used for auto-generated MIME type names.

Parameters

[in] prefix The prefix string (e.g. "application/vnd.mitk").

◆ SetOption()

void mitk::AbstractFileWriter::SetOption	(	const std::string &	name,
		const us::Any &	value
	)

overridevirtual

Set a single option value.

Parameters

[in]	name	The option name.
[in]	value	The new option value.

Implements mitk::IFileIO.

◆ SetOptions()

void mitk::AbstractFileWriter::SetOptions ( const Options & options )

overridevirtual

Set multiple options at once.

Parameters

[in] options A map of option names to their new values.

Implements mitk::IFileIO.

◆ SetOutputLocation()

void mitk::AbstractFileWriter::SetOutputLocation ( const std::string & location )

overridevirtual

Set the output file-system path, clearing any output stream.

Parameters

[in] location The file path to write to.

Implements mitk::IFileWriter.

◆ SetOutputStream()

void mitk::AbstractFileWriter::SetOutputStream	(	const std::string &	location,
		std::ostream *	os
	)

overridevirtual

Set an output stream and associated location label.

Parameters

[in]	location	A file-system path or custom label.
[in]	os	The output stream, or `nullptr` to clear.

Implements mitk::IFileWriter.

◆ SetRanking()

void mitk::AbstractFileWriter::SetRanking ( int ranking )

protected

Set the service ranking for this file writer.

Parameters

[in] ranking The ranking value. Default is zero.

The ranking is used to determine which writer to use if several equivalent writers have been found. Use a higher ranking to override a default writer from MITK in your own project.

◆ UnregisterService()

void mitk::AbstractFileWriter::UnregisterService ( )

Unregister this writer from the CppMicroServices registry.

◆ ValidateOutputLocation()

void mitk::AbstractFileWriter::ValidateOutputLocation ( ) const

protected

Validate the output location or stream.

Exceptions

mitk::Exception if neither an output location nor an output stream is set.

◆ Write()

void mitk::AbstractFileWriter::Write ( )

overridepure virtual

Write the base data to the specified location or output stream.

Subclasses must implement this method. Call GetOutputStream() first and check for a non-null stream to write to. If the output stream is nullptr, use GetOutputLocation() to write to a local file-system path.

If the writer cannot use streams directly, use LocalFile to retrieve a temporary local file name instead.

Exceptions

mitk::Exception if writing fails.

See also: LocalFile; IFileWriter::Write()

Implements mitk::IFileWriter.

Implemented in mitk::PlyFileWriterService, mitk::PointSetWriterService, mitk::GeometryDataWriterService, mitk::ContourModelWriter, mitk::ContourModelSetWriter, mitk::ExampleDataStructureWriterService, mitk::SegmentationTaskListIO, mitk::ROIIO, mitk::PlanarFigureIO, mitk::MultiLabelSegmentationStackWriterBase, mitk::MultiLabelSegmentationIO, mitk::DICOMSegmentationIO, mitk::MAPRegistrationWrapperIO, mitk::PlyFileWriterService, mitk::DICOMPMIO, mitk::SurfaceVtkXmlIO, mitk::SurfaceVtkLegacyIO, mitk::SurfaceStlIO, mitk::PointSetWriterService, mitk::ImageVtkXmlIO, mitk::ImageVtkLegacyIO, mitk::ItkImageIO, mitk::GeometryDataWriterService, mitk::ContourModelWriter, mitk::ContourModelSetWriter, and mitk::ExampleDataStructureWriterService.

The documentation for this class was generated from the following file:

mitkAbstractFileWriter.h

Classes

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~AbstractFileWriter()

◆ AbstractFileWriter() [1/3]

◆ AbstractFileWriter() [2/3]

◆ AbstractFileWriter() [3/3]

Member Function Documentation

◆ AddProgressCallback()

◆ GetBaseDataType()

◆ GetConfidenceLevel()

◆ GetDefaultOptions()

◆ GetDescription()

◆ GetInput()

◆ GetMimeType()

◆ GetMimeTypePrefix()

◆ GetOption()

◆ GetOptions()

◆ GetOutputLocation()

◆ GetOutputStream()

◆ GetRanking()

◆ GetRegisteredMimeType()

◆ GetServiceProperties()

◆ RegisterMimeType()

◆ RegisterService()

◆ RemoveProgressCallback()

◆ SetBaseDataType()

◆ SetDefaultOptions()

◆ SetDescription()

◆ SetInput()

◆ SetMimeType()

◆ SetMimeTypePrefix()

◆ SetOption()

◆ SetOptions()

◆ SetOutputLocation()

◆ SetOutputStream()

◆ SetRanking()

◆ UnregisterService()

◆ ValidateOutputLocation()

◆ Write()
