The common interface of all MITK file writers. More...

#include <mitkIFileWriter.h>

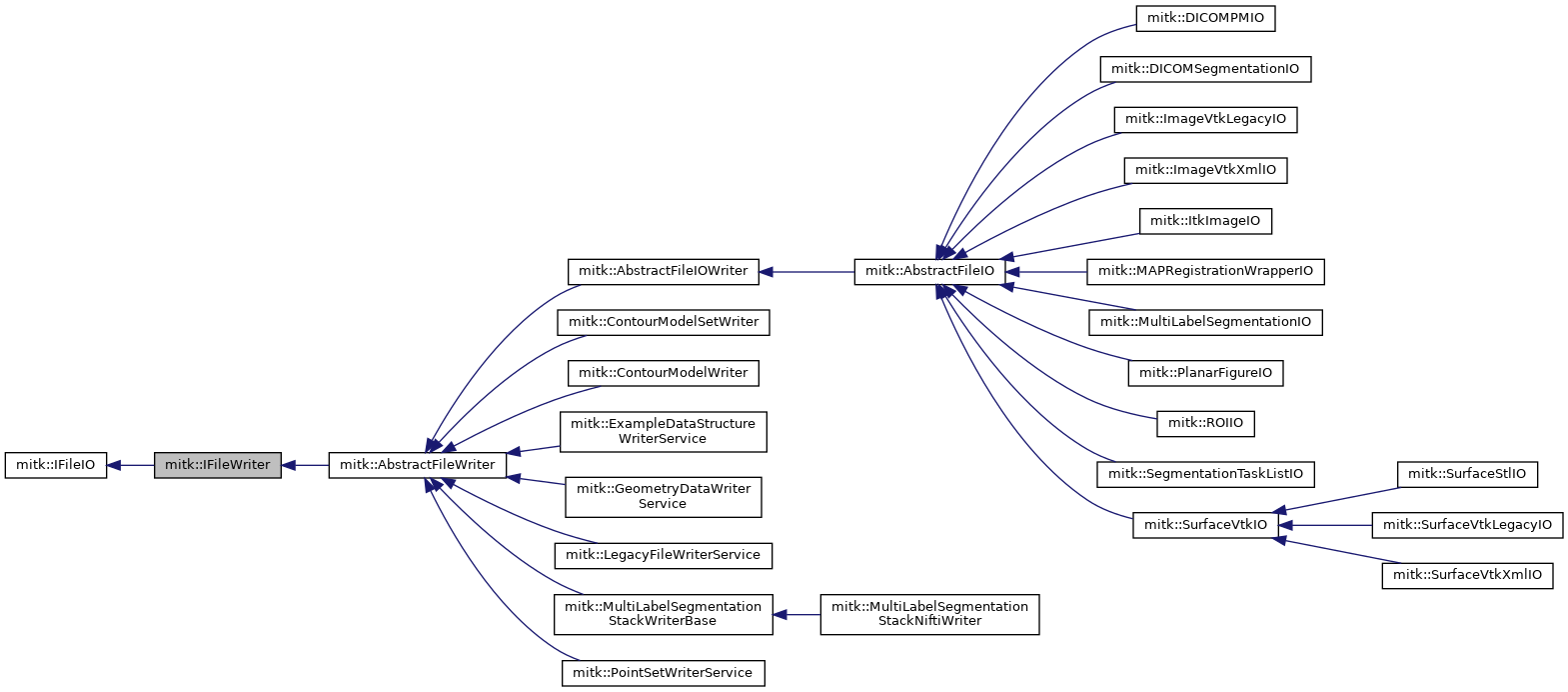

Inheritance diagram for mitk::IFileWriter:

[legend]

Collaboration diagram for mitk::IFileWriter:

Public Member Functions
	~IFileWriter () override

virtual void	SetInput (const BaseData *data)=0
	Set the input data for writing. More...

virtual const BaseData *	GetInput () const =0
	Get the input data set via SetInput(). More...

virtual void	SetOutputLocation (const std::string &location)=0
	Set the output location. More...

virtual std::string	GetOutputLocation () const =0
	Get the current output location. More...

virtual void	SetOutputStream (const std::string &location, std::ostream *os)=0
	Set an output stream for writing. More...

virtual std::ostream *	GetOutputStream () const =0
	Get the output stream. More...

virtual void	Write ()=0
	Write the input data to the output location or stream. More...

Public Member Functions inherited from mitk::IFileIO
virtual	~IFileIO ()

virtual ConfidenceLevel	GetConfidenceLevel () const =0
	Get the confidence level of this reader or writer for the current input. More...

virtual Options	GetOptions () const =0
	Get the current options map. More...

virtual us::Any	GetOption (const std::string &name) const =0
	Get the value of a specific option. More...

virtual void	SetOptions (const Options &options)=0
	Set multiple options at once. More...

virtual void	SetOption (const std::string &name, const us::Any &value)=0
	Set the value of a specific option. More...

virtual void	AddProgressCallback (const ProgressCallback &callback)=0
	Register a progress callback. More...

virtual void	RemoveProgressCallback (const ProgressCallback &callback)=0
	Remove a previously registered progress callback. More...

Static Public Member Functions
static std::string	PROP_BASEDATA_TYPE ()
	Service property name for the supported mitk::BaseData sub-class. More...

Static Public Member Functions inherited from mitk::IFileIO
static std::string	PROP_DESCRIPTION ()
	Service property name for a human-readable description. More...

static std::string	PROP_MIMETYPE ()
	Service property name for the mime-type associated with this reader or writer. More...

Additional Inherited Members
Public Types inherited from mitk::IFileIO
enum	ConfidenceLevel { Unsupported , PartiallySupported , Supported }
	A confidence level describing the reader's or writer's ability to handle the given data or file format. More...

typedef std::map< std::string, us::Any >	Options
	Options for reading or writing data. More...

typedef mitk::MessageAbstractDelegate1< float >	ProgressCallback
	Callback delegate type for progress reporting. More...

Detailed Description

The common interface of all MITK file writers.

Implementations of this interface must be registered as a service to make themselves available via the service registry. If the implementation is stateful, the service should be registered using a PrototypeServiceFactory.

The file writer implementation is associated with a mime-type, specified in the service property PROP_MIMETYPE(), and a mitk::BaseData sub-class as specified in the PROP_BASEDATA_TYPE() service property. The specified mime-type should have a corresponding CustomMimeType service object, registered by the writer or some other party.

It is recommended to derive new implementations from AbstractFileWriter or AbstractFileIO (if both reader and writer are implemented), which provide correct service registration semantics.

A more in-depth explanation is available on the concepts pages in the developer manual.

See also: AbstractFileWriter; AbstractFileIO; CustomMimeType; FileWriterSelector; IFileReader

Definition at line 56 of file mitkIFileWriter.h.

Constructor & Destructor Documentation

◆ ~IFileWriter()

mitk::IFileWriter::~IFileWriter ( )

override

Member Function Documentation

◆ GetInput()

virtual const BaseData* mitk::IFileWriter::GetInput ( ) const

pure virtual

Get the input data set via SetInput().

Returns: Pointer to the BaseData object, or nullptr if none was set.

Implemented in mitk::AbstractFileWriter.

◆ GetOutputLocation()

virtual std::string mitk::IFileWriter::GetOutputLocation ( ) const

pure virtual

Get the current output location.

Returns: The output location string.

If no stream is set (i.e. GetOutputStream() returns nullptr), the returned location string is required to represent a file-system path.

Implemented in mitk::AbstractFileWriter.

◆ GetOutputStream()

virtual std::ostream* mitk::IFileWriter::GetOutputStream ( ) const

pure virtual

Get the output stream.

Returns: The currently set output stream, or nullptr if no stream was set.

Implemented in mitk::AbstractFileWriter.

◆ PROP_BASEDATA_TYPE()

static std::string mitk::IFileWriter::PROP_BASEDATA_TYPE ( )

static

Service property name for the supported mitk::BaseData sub-class.

The property value must be of type std::string and should correspond to the class name returned by BaseData::GetNameOfClass().

Returns: The property name string.

◆ SetInput()

virtual void mitk::IFileWriter::SetInput ( const BaseData * data )

pure virtual

Set the input data for writing.

Parameters

[in] data Pointer to the BaseData object to be written.

Implemented in mitk::AbstractFileWriter.

◆ SetOutputLocation()

virtual void mitk::IFileWriter::SetOutputLocation ( const std::string & location )

pure virtual

Set the output location.

Parameters

[in] location A file-system path where data shall be written.

The location argument specifies a file-system path where the input data must be written. This method must remove any previously set output stream.

Implemented in mitk::AbstractFileWriter.

◆ SetOutputStream()

virtual void mitk::IFileWriter::SetOutputStream	(	const std::string &	location,
		std::ostream *	os
	)

pure virtual

Set an output stream for writing.

Parameters

[in]	location	A custom label for the output stream, or a file-system path.
[in]	os	The output stream, or `nullptr` to clear the stream.

If os is nullptr, this clears the current output stream and location is interpreted as a file-system path. Otherwise, location is a custom label describing the output stream os.

Implemented in mitk::AbstractFileWriter.

◆ Write()

virtual void mitk::IFileWriter::Write ( )

pure virtual

Write the input data to the output location or stream.

If GetOutputStream() returns a non-null value, this method must use the returned stream object to write the data set via SetInput(). If no output stream was set, the data must be written to the path returned by GetOutputLocation().

Exceptions

mitk::Exception if the data could not be written.

Implemented in mitk::PlyFileWriterService, mitk::PointSetWriterService, mitk::GeometryDataWriterService, mitk::AbstractFileWriter, mitk::ContourModelWriter, mitk::ContourModelSetWriter, mitk::ExampleDataStructureWriterService, mitk::SegmentationTaskListIO, mitk::ROIIO, mitk::PlanarFigureIO, mitk::MultiLabelSegmentationStackWriterBase, mitk::MultiLabelSegmentationIO, mitk::DICOMSegmentationIO, mitk::MAPRegistrationWrapperIO, mitk::PlyFileWriterService, mitk::DICOMPMIO, mitk::SurfaceVtkXmlIO, mitk::SurfaceVtkLegacyIO, mitk::SurfaceStlIO, mitk::PointSetWriterService, mitk::ImageVtkXmlIO, mitk::ImageVtkLegacyIO, mitk::ItkImageIO, mitk::GeometryDataWriterService, mitk::ContourModelWriter, mitk::ContourModelSetWriter, and mitk::ExampleDataStructureWriterService.

The documentation for this struct was generated from the following file:

mitkIFileWriter.h
