Service wrapper for generic CEST DICOM loading with manual meta data configuration. More...

#include <mitkCESTGenericDICOMReaderService.h>

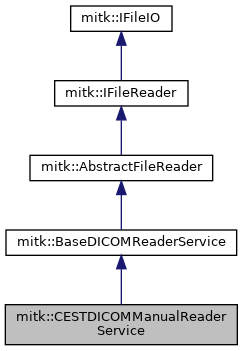

Inheritance diagram for mitk::CESTDICOMManualReaderService:

[legend]

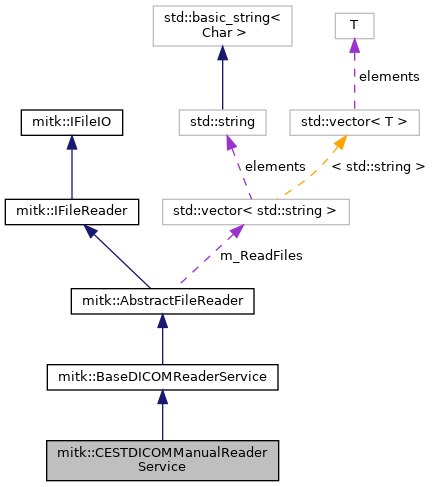

Collaboration diagram for mitk::CESTDICOMManualReaderService:

[legend]

Public Member Functions
	CESTDICOMManualReaderService (const CustomMimeType &mimeType, const std::string &description)
	Construct with a specific MIME type and description. More...

std::vector< itk::SmartPointer< BaseData > >	Read () override
	Read the specified file or input stream and return its contents. More...

Options	GetOptions () const override
	Return the available reader options including CEST-specific parameters. More...

us::Any	GetOption (const std::string &name) const override
	Return the value of a specific reader option. More...

std::vector< itk::SmartPointer< BaseData > >	Read () override
	Read DICOM files and enrich the result with CEST meta data. More...

DataStorage::SetOfObjects::Pointer	Read (mitk::DataStorage &ds) override
	Read DICOM files and enrich the result with CEST meta data. More...

Public Member Functions inherited from mitk::BaseDICOMReaderService
IFileReader::ConfidenceLevel	GetConfidenceLevel () const override
	Determine the confidence level for reading a given file. More...

std::vector< itk::SmartPointer< BaseData > >	Read () override
	Read data and create a list of BaseData objects. More...

DataStorage::SetOfObjects::Pointer	Read (mitk::DataStorage &ds) override
	Read data and add it to the given DataStorage. More...

Public Member Functions inherited from mitk::AbstractFileReader
void	SetInput (const std::string &location) override
	Set the input file path, clearing any previously set input stream. More...

void	SetInput (const std::string &location, std::istream *is) override
	Set an input stream and associated location label. More...

std::string	GetInputLocation () const override
	Get the current input location. More...

std::istream *	GetInputStream () const override
	Get the current input stream. More...

MimeType	GetRegisteredMimeType () const
	Get the mime-type that was registered for this reader. More...

DataStorage::SetOfObjects::Pointer	Read (mitk::DataStorage &ds) override
	Read data and add it to the given DataStorage. More...

Options	GetOptions () const override
	Get the current option values. More...

us::Any	GetOption (const std::string &name) const override
	Get the value of a specific option. More...

void	SetOptions (const Options &options) override
	Set multiple options at once. More...

void	SetOption (const std::string &name, const us::Any &value) override
	Set a single option value. More...

void	AddProgressCallback (const ProgressCallback &callback) override
	Register a progress callback. More...

void	RemoveProgressCallback (const ProgressCallback &callback) override
	Remove a previously registered progress callback. More...

us::ServiceRegistration< IFileReader >	RegisterService (us::ModuleContext *context=us::GetModuleContext())
	Register this reader as a CppMicroServices service. More...

void	UnregisterService ()
	Unregister this reader from the CppMicroServices registry. More...

std::vector< std::string >	GetReadFiles () override
	Get the list of files consumed during the last Read() call. More...

void	SetProperties (const PropertyList *properties) override
	Set base data properties as a source of meta data for reading. More...

Public Member Functions inherited from mitk::IFileReader
	~IFileReader () override

virtual	~IFileReader ()

Public Member Functions inherited from mitk::IFileIO
virtual	~IFileIO ()

Protected Member Functions
	CESTDICOMManualReaderService (const CESTDICOMManualReaderService &)=default

CESTDICOMManualReaderService &	operator= (const CESTDICOMManualReaderService &)=delete

std::string	GetCESTMetaFilePath () const
	Return the path to the CEST meta JSON file in the same directory as the DICOM files. More...

std::string	GetTRECFilePath () const
	Return the path to the TREC file in the same directory as the DICOM files. More...

std::string	GetLISTFilePath () const
	Return the path to the LIST file in the same directory as the DICOM files. More...

mitk::DICOMFileReader::Pointer	GetReader (const mitk::StringList &relevantFiles) const override
	Return the reader instance that should be used for loading. More...

Protected Member Functions inherited from mitk::BaseDICOMReaderService
	BaseDICOMReaderService (const std::string &description)
	Construct with the default DICOM MIME type and a description string. More...

	BaseDICOMReaderService (const mitk::CustomMimeType &customType, const std::string &description)
	Construct with a custom MIME type and a description string. More...

std::vector< itk::SmartPointer< BaseData > >	DoRead () override
	Perform the actual reading of DICOM data. More...

mitk::StringList	GetDICOMFilesInSameDirectory () const
	Returns the list of all DICOM files in the same directory as this->GetLocalFileName(). More...

void	SetOnlyRegardOwnSeries (bool onlyRegardOwnSeries)
	Set whether only files from the same DICOM series should be loaded. More...

bool	GetOnlyRegardOwnSeries () const
	Get whether only files from the same DICOM series are loaded. More...

Protected Member Functions inherited from mitk::AbstractFileReader
	AbstractFileReader ()
	Default constructor. More...

	~AbstractFileReader () override

	AbstractFileReader (const AbstractFileReader &other)
	Copy constructor. More...

	AbstractFileReader (const CustomMimeType &mimeType, const std::string &description)
	Associate this reader instance with the given MIME type. More...

virtual us::ServiceProperties	GetServiceProperties () const
	Get the service properties for registration. More...

virtual us::ServiceRegistration< CustomMimeType >	RegisterMimeType (us::ModuleContext *context)
	Register a new CustomMimeType service object. More...

void	SetMimeType (const CustomMimeType &mimeType)
	Set the MIME type this reader can handle. More...

const CustomMimeType *	GetMimeType () const
	Get the MIME type this reader can handle. More...

void	SetMimeTypePrefix (const std::string &prefix)
	Set the prefix used for auto-generated MIME type names. More...

std::string	GetMimeTypePrefix () const
	Get the current MIME type name prefix. More...

void	SetDescription (const std::string &description)
	Set the human-readable description of this reader. More...

std::string	GetDescription () const
	Get the human-readable description of this reader. More...

void	SetDefaultOptions (const Options &defaultOptions)
	Set the default options for this reader. More...

Options	GetDefaultOptions () const
	Get the default options for this reader. More...

void	SetRanking (int ranking)
	Set the service ranking for this file reader. More...

int	GetRanking () const
	Get the service ranking for this file reader. More...

std::string	GetLocalFileName () const
	Get a local file name for reading. More...

virtual void	SetDefaultDataNodeProperties (DataNode *node, const std::string &filePath)
	Set default properties on a DataNode after reading. More...

const PropertyList *	GetProperties () const override
	Get the properties set via SetProperties(). More...

Additional Inherited Members
Public Types inherited from mitk::IFileIO
enum	ConfidenceLevel { Unsupported , PartiallySupported , Supported }
	A confidence level describing the reader's or writer's ability to handle the given data or file format. More...

typedef std::map< std::string, us::Any >	Options
	Options for reading or writing data. More...

typedef mitk::MessageAbstractDelegate1< float >	ProgressCallback
	Callback delegate type for progress reporting. More...

Static Public Member Functions inherited from mitk::IFileIO
static std::string	PROP_DESCRIPTION ()
	Service property name for a human-readable description. More...

static std::string	PROP_MIMETYPE ()
	Service property name for the mime-type associated with this reader or writer. More...

Protected Attributes inherited from mitk::AbstractFileReader
std::vector< std::string >	m_ReadFiles
	List of files consumed during the last Read() call. Must be filled by DoRead(). More...

Detailed Description

Service wrapper for generic CEST DICOM loading with manual meta data configuration.

Auto-selects the best DICOMFileReader from the DICOM module using mitk::DICOMFileReaderSelector and loads CEST-relevant meta data from a provided cest_meta.json file or from user-supplied reader options.

Definition at line 27 of file mitkCESTGenericDICOMReaderService.h.

Constructor & Destructor Documentation

◆ CESTDICOMManualReaderService() [1/2]

mitk::CESTDICOMManualReaderService::CESTDICOMManualReaderService	(	const CustomMimeType &	mimeType,
		const std::string &	description
	)

Construct with a specific MIME type and description.

Parameters

mimeType	The custom MIME type this reader handles.
description	Human-readable description of this reader service.

◆ CESTDICOMManualReaderService() [2/2]

mitk::CESTDICOMManualReaderService::CESTDICOMManualReaderService ( const CESTDICOMManualReaderService & )

protecteddefault

Member Function Documentation

◆ GetCESTMetaFilePath()

std::string mitk::CESTDICOMManualReaderService::GetCESTMetaFilePath ( ) const

protected

Return the path to the CEST meta JSON file in the same directory as the DICOM files.

◆ GetLISTFilePath()

std::string mitk::CESTDICOMManualReaderService::GetLISTFilePath ( ) const

protected

Return the path to the LIST file in the same directory as the DICOM files.

◆ GetOption()

us::Any mitk::CESTDICOMManualReaderService::GetOption ( const std::string & name ) const

overridevirtual

Return the value of a specific reader option.

Parameters

name	The option name to query.

Returns: The option value.

Implements mitk::IFileIO.

◆ GetOptions()

Options mitk::CESTDICOMManualReaderService::GetOptions ( ) const

overridevirtual

Return the available reader options including CEST-specific parameters.

Implements mitk::IFileIO.

◆ GetReader()

mitk::DICOMFileReader::Pointer mitk::CESTDICOMManualReaderService::GetReader ( const mitk::StringList & relevantFiles ) const

overrideprotectedvirtual

Return the reader instance that should be used for loading.

Parameters

relevantFiles List of file paths to consider for reader selection.

Returns: A configured DICOMFileReader instance.

Implements mitk::BaseDICOMReaderService.

◆ GetTRECFilePath()

std::string mitk::CESTDICOMManualReaderService::GetTRECFilePath ( ) const

protected

Return the path to the TREC file in the same directory as the DICOM files.

◆ operator=()

CESTDICOMManualReaderService& mitk::CESTDICOMManualReaderService::operator= ( const CESTDICOMManualReaderService & )

protecteddelete

◆ Read() [1/3]

std::vector<itk::SmartPointer<BaseData> > mitk::AbstractFileReader::Read

overridevirtual

Read DICOM files and enrich the result with CEST meta data.

Uses the AbstractFileReader Read function and adds extra steps for parsing CEST meta data from JSON files or reader options.

Returns: A vector of loaded BaseData objects with CEST properties.

Reimplemented from mitk::AbstractFileReader.

◆ Read() [2/3]

std::vector<itk::SmartPointer<BaseData> > mitk::CESTDICOMManualReaderService::Read ( )

overridevirtual

Read the specified file or input stream and return its contents.

Returns: A list of created BaseData objects.

If GetInputStream() returns a non-null value, this method must use the returned stream object to read the data from. If no input stream was set, the data must be read from the path returned by GetInputLocation().

Exceptions

mitk::Exception if the data could not be read.

Implements mitk::IFileReader.

◆ Read() [3/3]

DataStorage::SetOfObjects::Pointer mitk::AbstractFileReader::Read

overridevirtual

Read DICOM files and enrich the result with CEST meta data.

Uses the AbstractFileReader Read function and adds extra steps for parsing CEST meta data from JSON files or reader options.

Returns: A vector of loaded BaseData objects with CEST properties.

Reimplemented from mitk::AbstractFileReader.

The documentation for this class was generated from the following file:

mitkCESTGenericDICOMReaderService.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CESTDICOMManualReaderService() [1/2]

◆ CESTDICOMManualReaderService() [2/2]

Member Function Documentation

◆ GetCESTMetaFilePath()

◆ GetLISTFilePath()

◆ GetOption()

◆ GetOptions()

◆ GetReader()

◆ GetTRECFilePath()

◆ operator=()

◆ Read() [1/3]

◆ Read() [2/3]

◆ Read() [3/3]
