mitk::RTDoseReaderService Class Reference
RTDoseReaderService reads DICOM files of modality RTDOSE. More...
#include <mitkRTDoseReaderService.h>
Inheritance diagram for mitk::RTDoseReaderService:

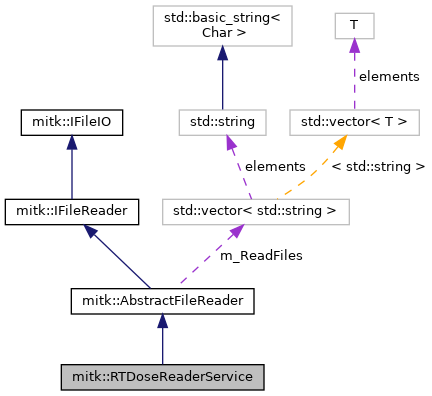

Collaboration diagram for mitk::RTDoseReaderService:
Public Member Functions | |
| RTDoseReaderService (const RTDoseReaderService &other) | |
| RTDoseReaderService () | |
| ~RTDoseReaderService () override | |
| std::vector< itk::SmartPointer< BaseData > > | Read () override |
| Reads a path or stream and creates a list of BaseData objects. More... | |
| DataStorage::SetOfObjects::Pointer | Read (mitk::DataStorage &ds) override |
| Reads a path or stream and creates a list of BaseData objects. More... | |
 Public Member Functions inherited from mitk::AbstractFileReader | |
| void | SetInput (const std::string &location) override |
| Set the input location. More... | |
| void | SetInput (const std::string &location, std::istream *is) override |
| Set an input stream to read from. More... | |
| std::string | GetInputLocation () const override |
| Get the current input location. More... | |
| std::istream * | GetInputStream () const override |
| Get the input stream. More... | |
| MimeType | GetRegisteredMimeType () const |
| DataStorage::SetOfObjects::Pointer | Read (mitk::DataStorage &ds) override |
| Reads the specified file or input stream, loading its contents into the provided DataStorage. More... | |
| ConfidenceLevel | GetConfidenceLevel () const override |
| The confidence level of the reader or writer implementation. More... | |
| Options | GetOptions () const override |
| returns a list of the supported options More... | |
| us::Any | GetOption (const std::string &name) const override |
| void | SetOptions (const Options &options) override |
| void | SetOption (const std::string &name, const us::Any &value) override |
| void | AddProgressCallback (const ProgressCallback &callback) override |
| void | RemoveProgressCallback (const ProgressCallback &callback) override |
| us::ServiceRegistration< IFileReader > | RegisterService (us::ModuleContext *context=us::GetModuleContext()) |
| void | UnregisterService () |
| std::vector< std::string > | GetReadFiles () override |
| void | SetProperties (const PropertyList *properties) override |
| Optionally provide base data properties as a source of meta data. More... | |
| Public Member Functions inherited from mitk::IFileReader | |
| ~IFileReader () override | |
| virtual | ~IFileReader () |
| Public Member Functions inherited from mitk::IFileIO | |
| virtual | ~IFileIO () |
Protected Member Functions | |
| std::vector< itk::SmartPointer< BaseData > > | DoRead () override |
| Reads a dicom dataset from a RTDOSE file The method reads the PixelData from the DicomRT dose file and scales them with a factor for getting Gray-values instead of pixel-values. The Gray-values are stored in a mitkImage with a vtkColorTransferFunc. Relative values are used for coloring the image. The relative values are relative to a PrescriptionDose defined in the RT-Plan. If there is no RT-Plan file PrescriptionDose is set to 80% of the maximum dose. More... | |
| Protected Member Functions inherited from mitk::AbstractFileReader | |
| AbstractFileReader () | |
| ~AbstractFileReader () override | |
| AbstractFileReader (const AbstractFileReader &other) | |
| AbstractFileReader (const CustomMimeType &mimeType, const std::string &description) | |
| virtual us::ServiceProperties | GetServiceProperties () const |
| virtual us::ServiceRegistration< CustomMimeType > | RegisterMimeType (us::ModuleContext *context) |
| void | SetMimeType (const CustomMimeType &mimeType) |
| const CustomMimeType * | GetMimeType () const |
| void | SetMimeTypePrefix (const std::string &prefix) |
| std::string | GetMimeTypePrefix () const |
| void | SetDescription (const std::string &description) |
| std::string | GetDescription () const |
| void | SetDefaultOptions (const Options &defaultOptions) |
| Options | GetDefaultOptions () const |
| void | SetRanking (int ranking) |
| Set the service ranking for this file reader. More... | |
| int | GetRanking () const |
| std::string | GetLocalFileName () const |
| Get a local file name for reading. More... | |
| virtual void | SetDefaultDataNodeProperties (DataNode *node, const std::string &filePath) |
| const PropertyList * | GetProperties () const override |
Additional Inherited Members | |
| Public Types inherited from mitk::IFileIO | |
| enum | ConfidenceLevel { Unsupported , PartiallySupported , Supported } |
| A confidence level describing the confidence of the reader or writer in handling the given data. More... | |
| typedef std::map< std::string, us::Any > | Options |
| Options for reading or writing data. More... | |
| typedef mitk::MessageAbstractDelegate1< float > | ProgressCallback |
| Static Public Member Functions inherited from mitk::IFileIO | |
| static std::string | PROP_DESCRIPTION () |
| Service property name for a description. More... | |
| static std::string | PROP_MIMETYPE () |
| Service property name for the mime-type associated with this file writer. More... | |
| Protected Attributes inherited from mitk::AbstractFileReader | |
| std::vector< std::string > | m_ReadFiles |
Detailed Description
RTDoseReaderService reads DICOM files of modality RTDOSE.
Definition at line 28 of file mitkRTDoseReaderService.h.
Constructor & Destructor Documentation
◆ RTDoseReaderService() [1/2]
| mitk::RTDoseReaderService::RTDoseReaderService | ( | const RTDoseReaderService & | other | ) |
◆ RTDoseReaderService() [2/2]
| mitk::RTDoseReaderService::RTDoseReaderService | ( | ) |
◆ ~RTDoseReaderService()
|
override |
Member Function Documentation
◆ DoRead()
|
overrideprotectedvirtual |
Reads a dicom dataset from a RTDOSE file The method reads the PixelData from the DicomRT dose file and scales them with a factor for getting Gray-values instead of pixel-values. The Gray-values are stored in a mitkImage with a vtkColorTransferFunc. Relative values are used for coloring the image. The relative values are relative to a PrescriptionDose defined in the RT-Plan. If there is no RT-Plan file PrescriptionDose is set to 80% of the maximum dose.
Implements mitk::AbstractFileReader.
◆ Read() [1/2]
|
overridevirtual |
Reads a path or stream and creates a list of BaseData objects.
The default implementation of this method (1) calls DoRead() (Implement the specific reader operation there) and (2) it adds general meta information about the loading process.
Reimplemented from mitk::AbstractFileReader.
◆ Read() [2/2]
|
overridevirtual |
Reads a path or stream and creates a list of BaseData objects.
The default implementation of this method (1) calls DoRead() (Implement the specific reader operation there) and (2) it adds general meta information about the loading process.
Reimplemented from mitk::AbstractFileReader.
The documentation for this class was generated from the following file:
