Paintbrush tool for InteractiveSegmentation. More...

#include <mitkPaintbrushTool.h>

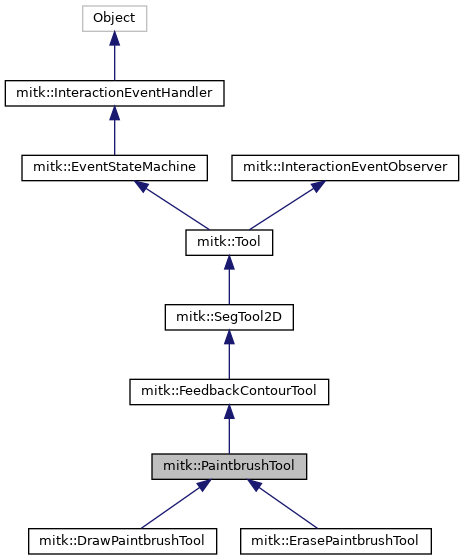

Inheritance diagram for mitk::PaintbrushTool:

[legend]

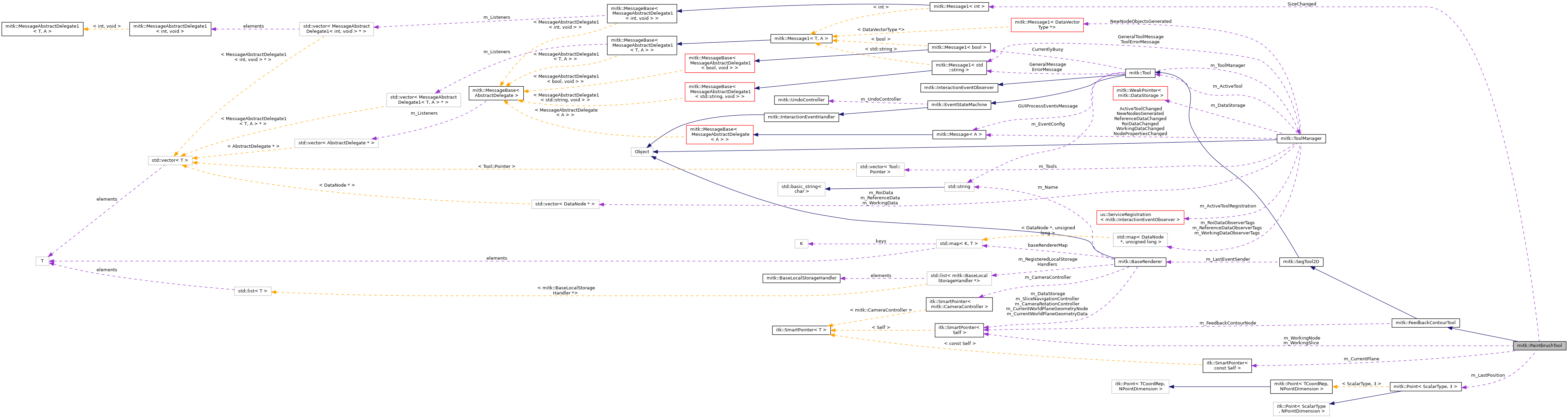

Collaboration diagram for mitk::PaintbrushTool:

[legend]

Public Member Functions
	mitkClassMacro (PaintbrushTool, FeedbackContourTool)

void	SetSize (int value)

Public Member Functions inherited from mitk::FeedbackContourTool
	mitkClassMacro (FeedbackContourTool, SegTool2D)

Public Member Functions inherited from mitk::SegTool2D
	mitkClassMacro (SegTool2D, Tool)

void	SetShowMarkerNodes (bool)

void	SetEnable3DInterpolation (bool)
	Enables or disables the 3D interpolation after writing back the 2D segmentation result, and defaults to true. More...

Public Member Functions inherited from mitk::Tool
	mitkClassMacro (Tool, EventStateMachine)

virtual const char **	GetXPM () const =0
	Returns an icon in the XPM format. More...

virtual std::string	GetIconPath () const
	Returns the path of an icon. More...

virtual us::ModuleResource	GetCursorIconResource () const
	Returns the path of a cursor icon. More...

virtual us::ModuleResource	GetIconResource () const
	Returns the tool button icon of the tool wrapped by a usModuleResource. More...

virtual const char *	GetName () const =0
	Returns the name of this tool. Make it short! More...

virtual const char *	GetGroup () const
	Name of a group. More...

virtual void	InitializeStateMachine ()

virtual itk::Object::Pointer	GetGUI (const std::string &toolkitPrefix, const std::string &toolkitPostfix)
	Interface for GUI creation. More...

virtual NodePredicateBase::ConstPointer	GetReferenceDataPreference () const

virtual NodePredicateBase::ConstPointer	GetWorkingDataPreference () const

DataNode::Pointer	CreateEmptySegmentationNode (const Image *original, const std::string &organName, const mitk::Color &color)

DataNode::Pointer	CreateSegmentationNode (Image *image, const std::string &organName, const mitk::Color &color)

virtual bool	CanHandle (BaseData *referenceData) const

Public Member Functions inherited from mitk::EventStateMachine
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()

void	Enable ()

bool	IsEnabled () const

Public Attributes
Message1< int >	SizeChanged

Public Attributes inherited from mitk::Tool
Message	GUIProcessEventsMessage
	To let GUI process new events (e.g. qApp->processEvents() ) More...

Message1< std::string >	ErrorMessage
	To send error messages (to be shown by some GUI) More...

Message1< bool >	CurrentlyBusy
	To send whether the tool is busy (to be shown by some GUI) More...

Message1< std::string >	GeneralMessage
	To send general messages (to be shown by some GUI) More...

Protected Member Functions
	PaintbrushTool (int paintingPixelValue=1)

	~PaintbrushTool () override

void	ConnectActionsAndFunctions () override

void	Activated () override
	Called when the tool gets activated. More...

void	Deactivated () override
	Called when the tool gets deactivated. More...

virtual void	OnMousePressed (StateMachineAction , InteractionEvent )

virtual void	OnMouseMoved (StateMachineAction , InteractionEvent )

virtual void	OnPrimaryButtonPressedMoved (StateMachineAction , InteractionEvent )

virtual void	MouseMoved (mitk::InteractionEvent *interactionEvent, bool leftMouseButtonPressed)

virtual void	OnMouseReleased (StateMachineAction , InteractionEvent )

virtual void	OnInvertLogic (StateMachineAction , InteractionEvent )

void	UpdateContour (const InteractionPositionEvent *)

mitk::Point2D	upperLeft (mitk::Point2D p)

void	CheckIfCurrentSliceHasChanged (const InteractionPositionEvent *event)

void	OnToolManagerWorkingDataModified ()

Protected Member Functions inherited from mitk::FeedbackContourTool
	FeedbackContourTool ()

	FeedbackContourTool (const char *)

	~FeedbackContourTool () override

ContourModel *	GetFeedbackContour ()

void	SetFeedbackContour (ContourModel::Pointer)

void	SetFeedbackContourVisible (bool)

void	SetFeedbackContourColor (float r, float g, float b)
	Provide values from 0.0 (black) to 1.0 (full color) More...

void	SetFeedbackContourColorDefault ()

ContourModel::Pointer	ProjectContourTo2DSlice (Image slice, ContourModel contourIn3D, bool correctionForIpSegmentation=false, bool constrainToInside=true)
	Projects a contour onto an image point by point. Converts from world to index coordinates. More...

ContourModel::Pointer	BackProjectContourFrom2DSlice (const BaseGeometry sliceGeometry, ContourModel contourIn2D, bool correctionForIpSegmentation=false)
	Projects a slice index coordinates of a contour back into world coordinates. More...

void	FillContourInSlice (ContourModel projectedContour, Image sliceImage, int paintingPixelValue=1)
	Fill a contour in a 2D slice with a specified pixel value. More...

void	FillContourInSlice (ContourModel projectedContour, unsigned int timeStep, Image sliceImage, int paintingPixelValue=1)
	Fill a contour in a 2D slice with a specified pixel value at a given time step. More...

Protected Member Functions inherited from mitk::SegTool2D
	SegTool2D ()

	SegTool2D (const char , const us::Module interactorModule=nullptr)

	~SegTool2D () override

bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode) override
	Filters events that cannot be handle by 2D segmentation tools. More...

Image::Pointer	GetAffectedImageSliceAs2DImage (const InteractionPositionEvent positionEvent, const Image image, unsigned int component=0)
	Extract the slice of an image that the user just scribbles on. The given component denotes the vector component of a dwi-image. More...

Image::Pointer	GetAffectedImageSliceAs2DImage (const PlaneGeometry planeGeometry, const Image image, unsigned int timeStep, unsigned int component=0)
	Extract the slice of an image cut by given plane. The given component denotes the vector component of a dwi-image. More...

Image::Pointer	GetAffectedWorkingSlice (const InteractionPositionEvent *)
	Extract the slice of the currently selected working image that the user just scribbles on. More...

Image::Pointer	GetAffectedReferenceSlice (const InteractionPositionEvent *)
	Extract the slice of the currently selected reference image that the user just scribbles on. More...

void	WriteBackSegmentationResult (const InteractionPositionEvent , Image )

void	WriteBackSegmentationResult (const PlaneGeometry planeGeometry, Image , unsigned int timeStep)

void	WriteBackSegmentationResult (const std::vector< SliceInformation > &sliceList, bool writeSliceToVolume=true)

void	WritePreviewOnWorkingImage (Image targetSlice, Image sourceSlice, Image *workingImage, int paintingPixelValue, int timestep)

void	WriteSliceToVolume (const SliceInformation &sliceInfo)

int	AddContourmarker ()
	Adds a new node called Contourmarker to the datastorage which holds a mitk::PlanarFigure. By selecting this node the slicestack will be reoriented according to the PlanarFigure's Geometry. More...

void	InteractiveSegmentationBugMessage (const std::string &message)

Protected Member Functions inherited from mitk::Tool
virtual void	SetToolManager (ToolManager *)

void	ConnectActionsAndFunctions () override

	Tool ()

	Tool (const char , const us::Module interactorModule=nullptr)

	~Tool () override

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override

bool	FilterEvents (InteractionEvent , DataNode ) override

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor (if modified by the SlicesCoordinator) to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Protected Attributes
int	m_PaintingPixelValue

ContourModel::Pointer	m_MasterContour

int	m_LastContourSize

Image::Pointer	m_WorkingSlice

PlaneGeometry::ConstPointer	m_CurrentPlane

DataNode::Pointer	m_WorkingNode

mitk::Point3D	m_LastPosition

Protected Attributes inherited from mitk::FeedbackContourTool
ContourModel::Pointer	m_FeedbackContour

DataNode::Pointer	m_FeedbackContourNode

bool	m_FeedbackContourVisible

Protected Attributes inherited from mitk::SegTool2D
BaseRenderer *	m_LastEventSender

unsigned int	m_LastEventSlice

Protected Attributes inherited from mitk::Tool
std::string	m_EventConfig
	Let subclasses change their event configuration. More...

ToolManager *	m_ToolManager

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Static Protected Attributes
static int	m_Size

Additional Inherited Members
Public Types inherited from mitk::Tool
typedef mitk::Label::PixelType	DefaultSegmentationDataType

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Member Functions inherited from mitk::SegTool2D
static bool	DetermineAffectedImageSlice (const Image image, const PlaneGeometry plane, int &affectedDimension, int &affectedSlice)
	Calculates for a given Image and PlaneGeometry, which slice of the image (in index corrdinates) is meant by the plane. More...

static void	UpdateSurfaceInterpolation (const Image slice, const Image workingImage, const PlaneGeometry *plane, bool detectIntersection)
	Updates the surface interpolation by extracting the contour form the given slice. More...

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Detailed Description

Paintbrush tool for InteractiveSegmentation.

See also: FeedbackContourTool; ExtractImageFilter; OverwriteSliceImageFilter

Simple paintbrush drawing tool. Right now there are only circular pens of varying size.

Warning: Only to be instantiated by mitk::ToolManager.

Author: maleike

Definition at line 44 of file mitkPaintbrushTool.h.

Constructor & Destructor Documentation

◆ PaintbrushTool()

mitk::PaintbrushTool::PaintbrushTool ( int paintingPixelValue = 1 )

protected

Definition at line 28 of file mitkPaintbrushTool.cpp.

References m_CurrentPlane, m_MasterContour, m_WorkingNode, mitk::BoolProperty::New(), mitk::LevelWindowProperty::New(), mitk::ContourModel::New(), and mitk::DataNode::New().

◆ ~PaintbrushTool()

mitk::PaintbrushTool::~PaintbrushTool ( )

overrideprotected

Definition at line 42 of file mitkPaintbrushTool.cpp.

Member Function Documentation

◆ Activated()

void mitk::PaintbrushTool::Activated ( )

overrideprotectedvirtual

Called when the tool gets activated.

Derived tools should call their parents implementation at the beginning of the overriding function.

Reimplemented from mitk::FeedbackContourTool.

Definition at line 55 of file mitkPaintbrushTool.cpp.

References m_Size, mitk::Tool::m_ToolManager, OnToolManagerWorkingDataModified(), mitk::Message1< T, A >::Send(), mitk::FeedbackContourTool::SetFeedbackContourVisible(), SizeChanged, and mitk::ToolManager::WorkingDataChanged.

◆ CheckIfCurrentSliceHasChanged()

void mitk::PaintbrushTool::CheckIfCurrentSliceHasChanged ( const InteractionPositionEvent * event )

protected

Checks if the current slice has changed

Definition at line 525 of file mitkPaintbrushTool.cpp.

References mitk::DataStorage::Add(), mitk::Equal(), mitk::DataStorage::Exists(), mitk::SegTool2D::GetAffectedImageSliceAs2DImage(), mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::ToolManager::GetDataStorage(), mitk::BaseGeometry::GetIndexToWorldTransform(), mitk::BaseRenderer::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), mitk::InteractionEvent::GetSender(), mitk::ToolManager::GetWorkingData(), image, m_CurrentPlane, mitk::Tool::m_ToolManager, m_WorkingNode, m_WorkingSlice, mitk::MatrixEqualElementWise(), mitk::BoolProperty::New(), mitk::FloatProperty::New(), mitk::StringProperty::New(), mitk::LevelWindowProperty::New(), mitk::DataNode::New(), mitk::DataStorage::Remove(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by MouseMoved().

◆ ConnectActionsAndFunctions()

void mitk::PaintbrushTool::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Is called after loading a statemachine. Overwrite this function in specific interactor implementations. Connect actions and functions using the CONNECT_FUNCTION macro within this function.

Reimplemented from mitk::EventStateMachine.

Definition at line 46 of file mitkPaintbrushTool.cpp.

References CONNECT_FUNCTION, OnInvertLogic(), OnMouseMoved(), OnMousePressed(), OnMouseReleased(), and OnPrimaryButtonPressedMoved().
