Key-value list holding instances of BaseProperty. More...

#include <mitkPropertyList.h>

Inheritance diagram for mitk::PropertyList:

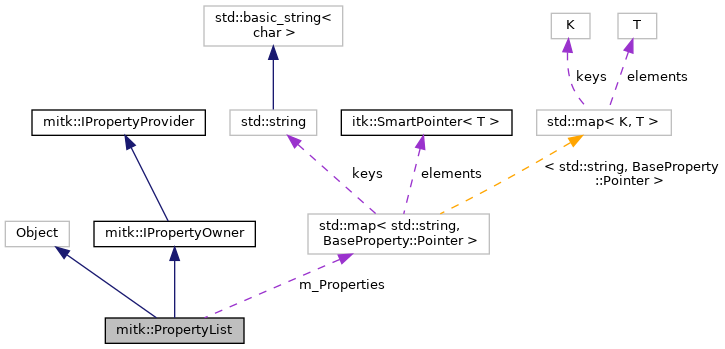

Collaboration diagram for mitk::PropertyList:

[legend]

Public Types
typedef PropertyList	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, BaseProperty::Pointer >	PropertyMap

typedef std::pair< std::string, BaseProperty::Pointer >	PropertyMapElementType

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

Pointer	Clone () const

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Query keys of existing properties. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Query names of existing contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Add new or change existent property. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Removes a property. If the property does not exist, nothing will be done. More...

mitk::BaseProperty *	GetProperty (const std::string &propertyKey) const
	Get a property by its name. More...

void	ReplaceProperty (const std::string &propertyKey, BaseProperty *property)
	Set a property object in the list/map by reference. More...

void	ConcatenatePropertyList (PropertyList *pList, bool replace=false)
	Set a property object in the list/map by reference. More...

template<typename T >
bool	GetPropertyValue (const char *propertyKey, T &value) const
	Convenience access method for GenericProperty<T> properties (T being the type of the second parameter) More...

bool	GetBoolProperty (const char *propertyKey, bool &boolValue) const
	Convenience method to access the value of a BoolProperty. More...

bool	Get (const char *propertyKey, bool &boolValue) const
	ShortCut for the above method. More...

void	SetBoolProperty (const char *propertyKey, bool boolValue)
	Convenience method to set the value of a BoolProperty. More...

void	Set (const char *propertyKey, bool boolValue)
	ShortCut for the above method. More...

bool	GetIntProperty (const char *propertyKey, int &intValue) const
	Convenience method to access the value of an IntProperty. More...

bool	Get (const char *propertyKey, int &intValue) const
	ShortCut for the above method. More...

void	SetIntProperty (const char *propertyKey, int intValue)
	Convenience method to set the value of an IntProperty. More...

void	Set (const char *propertyKey, int intValue)
	ShortCut for the above method. More...

bool	GetFloatProperty (const char *propertyKey, float &floatValue) const
	Convenience method to access the value of a FloatProperty. More...

bool	Get (const char *propertyKey, float &floatValue) const
	ShortCut for the above method. More...

void	SetFloatProperty (const char *propertyKey, float floatValue)
	Convenience method to set the value of a FloatProperty. More...

void	Set (const char *propertyKey, float floatValue)
	ShortCut for the above method. More...

bool	GetDoubleProperty (const char *propertyKey, double &doubleValue) const
	Convenience method to access the value of a DoubleProperty. More...

bool	Get (const char *propertyKey, double &doubleValue) const
	ShortCut for the above method. More...

void	SetDoubleProperty (const char *propertyKey, double doubleValue)
	Convenience method to set the value of a DoubleProperty. More...

void	Set (const char *propertyKey, double doubleValue)
	ShortCut for the above method. More...

bool	GetStringProperty (const char *propertyKey, std::string &stringValue) const
	Convenience method to access the value of a StringProperty. More...

bool	Get (const char *propertyKey, std::string &stringValue) const
	ShortCut for the above method. More...

void	SetStringProperty (const char propertyKey, const char stringValue)
	Convenience method to set the value of a StringProperty. More...

void	Set (const char propertyKey, const char stringValue)
	ShortCut for the above method. More...

void	Set (const char *propertyKey, const std::string &stringValue)
	ShortCut for the above method. More...

unsigned long	GetMTime () const override
	Get the timestamp of the last change of the map or the last change of one of the properties store in the list (whichever is later). More...

bool	DeleteProperty (const std::string &propertyKey)
	Remove a property from the list/map. More...

const PropertyMap *	GetMap () const

bool	IsEmpty () const

virtual void	Clear ()

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Protected Member Functions
	PropertyList ()

	PropertyList (const PropertyList &other)

	~PropertyList () override

Protected Attributes
PropertyMap	m_Properties
	Map of properties. More...

Detailed Description

Key-value list holding instances of BaseProperty.

This list is meant to hold an arbitrary list of "properties", which should describe the object associated with this list.

Usually you will use PropertyList as part of a DataNode object - in this context the properties describe the data object held by the DataNode (e.g. whether the object is rendered at all, which color is used for rendering, what name should be displayed for the object, etc.)

The values in the list are not fixed, you may introduce any kind of property that seems useful - all you have to do is inherit from BaseProperty.

The list is organized as a key-value pairs, i.e.

"name" : pointer to a StringProperty
"visible" : pointer to a BoolProperty
"color" : pointer to a ColorProperty
"volume" : pointer to a FloatProperty

Please see the documentation of SetProperty and ReplaceProperty for two quite different semantics. Normally SetProperty is what you want - this method will try to change the value of an existing property and will not allow you to replace e.g. a ColorProperty with an IntProperty.

Please also regard, that the key of a property must be a none empty string. This is a precondition. Setting properties with empty keys will raise an exception.

Definition at line 64 of file mitkPropertyList.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::PropertyList::ConstPointer

Definition at line 67 of file mitkPropertyList.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::PropertyList::Pointer

Definition at line 67 of file mitkPropertyList.h.

◆ PropertyMap

typedef std::map<std::string, BaseProperty::Pointer> mitk::PropertyList::PropertyMap

Map structure to hold the properties: the map key is a string, the value consists of the actual property object (BaseProperty).

Definition at line 73 of file mitkPropertyList.h.

◆ PropertyMapElementType

typedef std::pair<std::string, BaseProperty::Pointer> mitk::PropertyList::PropertyMapElementType

Definition at line 80 of file mitkPropertyList.h.

◆ Self

typedef PropertyList mitk::PropertyList::Self

Definition at line 67 of file mitkPropertyList.h.

◆ Superclass

typedef itk::Object mitk::PropertyList::Superclass

Definition at line 67 of file mitkPropertyList.h.

Constructor & Destructor Documentation

◆ PropertyList() [1/2]

mitk::PropertyList::PropertyList ( )

protected

Definition at line 142 of file mitkPropertyList.cpp.

◆ PropertyList() [2/2]

mitk::PropertyList::PropertyList ( const PropertyList & other )

protected

Definition at line 146 of file mitkPropertyList.cpp.

References m_Properties.

◆ ~PropertyList()

mitk::PropertyList::~PropertyList ( )

overrideprotected

Definition at line 154 of file mitkPropertyList.cpp.

References Clear().

Member Function Documentation

◆ Clear()

void mitk::PropertyList::Clear ( )

virtual

Definition at line 195 of file mitkPropertyList.cpp.

References m_Properties.

Referenced by mitk::SceneReaderV1::ClearNodePropertyListWithExceptions(), mitk::PersistenceService::GetPropertyList(), mitk::DataNode::SetData(), and ~PropertyList().

◆ Clone()

Pointer mitk::PropertyList::Clone ( ) const

Referenced by mitk::LabelSet::AddLabel().

◆ ConcatenatePropertyList()

void mitk::PropertyList::ConcatenatePropertyList	(	PropertyList *	pList,
		bool	replace = `false`
	)

Set a property object in the list/map by reference.

Definition at line 213 of file mitkPropertyList.cpp.

References GetMap(), ReplaceProperty(), and SetProperty().

Referenced by mitk::SceneReaderV1::ClearNodePropertyListWithExceptions(), and mitk::DicomSeriesReader::LoadDicom().

◆ DeleteProperty()

bool mitk::PropertyList::DeleteProperty ( const std::string & propertyKey )

Remove a property from the list/map.

Definition at line 181 of file mitkPropertyList.cpp.

References m_Properties.

Referenced by mitk::Gizmo::RemoveGizmoFromNode(), and mitk::RenderWindowLayerController::RemoveLayerNode().

◆ Get() [1/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		bool &	boolValue
	)		const

ShortCut for the above method.

Definition at line 337 of file mitkPropertyList.cpp.

References GetBoolProperty().

◆ Get() [2/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		int &	intValue
	)		const

ShortCut for the above method.

Definition at line 342 of file mitkPropertyList.cpp.

References GetIntProperty().

◆ Get() [3/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		float &	floatValue
	)		const

ShortCut for the above method.

Definition at line 347 of file mitkPropertyList.cpp.

References GetFloatProperty().

◆ Get() [4/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		double &	doubleValue
	)		const

ShortCut for the above method.

Definition at line 352 of file mitkPropertyList.cpp.

References GetDoubleProperty().

◆ Get() [5/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		std::string &	stringValue
	)		const

ShortCut for the above method.

Definition at line 357 of file mitkPropertyList.cpp.

References GetStringProperty().

◆ GetBoolProperty()

bool mitk::PropertyList::GetBoolProperty	(	const char *	propertyKey,
		bool &	boolValue
	)		const

Convenience method to access the value of a BoolProperty.

Definition at line 237 of file mitkPropertyList.cpp.

References GetProperty(), and mitk::GenericProperty< T >::GetValue().

Referenced by Get(), mitk::ColorBarAnnotation::GetAnnotationTextScaling(), mitk::ScaleLegendAnnotation::GetBottomAxisVisibility(), mitk::ColorBarAnnotation::GetDrawAnnotations(), mitk::ColorBarAnnotation::GetDrawTickLabels(), mitk::ScaleLegendAnnotation::GetLeftAxisVisibility(), mitk::ScaleLegendAnnotation::GetLegendVisibility(), mitk::Label::GetLocked(), mitk::ScaleLegendAnnotation::GetRightAxisVisibility(), mitk::ScaleLegendAnnotation::GetTopAxisVisibility(), and mitk::Label::GetVisible().

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::PropertyList::GetClassHierarchy ( ) const

inlinevirtual

Definition at line 67 of file mitkPropertyList.h.

◆ GetClassName()

virtual const char* mitk::PropertyList::GetClassName ( ) const

virtual

◆ GetConstProperty()

mitk::BaseProperty::ConstPointer mitk::PropertyList::GetConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)		const

overridevirtual

Get property by its key.

Parameters

[in]	propertyKey	Key of property.
[in]	contextName	Optional, default is empty string (default context). Search in specified context.
[in]	fallBackOnDefaultContext	Optional, default is true. Also search in default context if property was not found in given context.

Returns: Found property, nullptr otherwise.

Implements mitk::IPropertyProvider.

Definition at line 19 of file mitkPropertyList.cpp.

References m_Properties.

◆ GetDoubleProperty()

bool mitk::PropertyList::GetDoubleProperty	(	const char *	propertyKey,
		double &	doubleValue
	)		const

Convenience method to access the value of a DoubleProperty.

Definition at line 362 of file mitkPropertyList.cpp.

References GetProperty(), and mitk::GenericProperty< T >::GetValue().

Referenced by Get(), mitk::ScaleLegendAnnotation::GetCornerOffsetFactor(), and mitk::ScaleLegendAnnotation::GetFontFactor().

◆ GetFloatProperty()

bool mitk::PropertyList::GetFloatProperty	(	const char *	propertyKey,
		float &	floatValue
	)		const

Convenience method to access the value of a FloatProperty.

Definition at line 263 of file mitkPropertyList.cpp.

References GetProperty(), and mitk::GenericProperty< T >::GetValue().

Referenced by mitk::SurfaceVtkMapper2D::FixupLegacyProperties(), Get(), and mitk::Label::GetOpacity().

◆ GetIntProperty()

bool mitk::PropertyList::GetIntProperty	(	const char *	propertyKey,
		int &	intValue
	)		const

Convenience method to access the value of an IntProperty.

Definition at line 250 of file mitkPropertyList.cpp.

References GetProperty(), and mitk::GenericProperty< T >::GetValue().

Referenced by mitk::SurfaceVtkMapper2D::FixupLegacyProperties(), Get(), mitk::ScaleLegendAnnotation::GetBottomBorderOffset(), mitk::ScaleLegendAnnotation::GetLeftBorderOffset(), mitk::ColorBarAnnotation::GetMaxNumberOfColors(), mitk::ColorBarAnnotation::GetNumberOfLabels(), mitk::ColorBarAnnotation::GetOrientation(), mitk::ScaleLegendAnnotation::GetRightBorderOffset(), and mitk::ScaleLegendAnnotation::GetTopBorderOffset().

◆ GetMap()

const PropertyMap* mitk::PropertyList::GetMap ( ) const

inline

Definition at line 233 of file mitkPropertyList.h.

Referenced by mitk::DataStorageSelection::AddListener(), mitk::SurfaceVtkMapper3D::ApplyAllProperties(), CheckAllPropertiesAreInOtherList(), ConcatenatePropertyList(), mitk::Equal(), mitk::DataStorage::GetGroupTags(), mitk::LabelSetIOHelper::GetLabelAsTiXmlElement(), mitk::GetPropertyByDICOMTagPath(), mitk::PersistenceService::GetPropertyList(), mitk::Label::Label(), mitk::DataStorageCompare::Report(), TestAllProperties(), and mitk::PropertyListsXmlFileReaderAndWriter::WriteLists().

◆ GetMTime()

unsigned long mitk::PropertyList::GetMTime ( ) const

override

Get the timestamp of the last change of the map or the last change of one of the properties store in the list (whichever is later).

Consider the list as changed when any of the properties has changed recently.

Definition at line 162 of file mitkPropertyList.cpp.

References m_Properties.

Referenced by mitk::SplineVtkMapper3D::GenerateDataForRenderer(), mitk::PointSetVtkMapper3D::GenerateDataForRenderer(), mitk::RegEvaluationMapper2D::GenerateDataForRenderer(), mitk::ContourModelMapper2D::Update(), mitk::ContourModelMapper3D::Update(), mitk::ContourModelSetMapper3D::Update(), mitk::LabelSetImageVtkMapper2D::Update(), mitk::RegEvaluationMapper2D::Update(), mitk::DoseImageVtkMapper2D::Update(), mitk::ImageVtkMapper2D::Update(), and mitk::SurfaceVtkMapper2D::Update().

◆ GetNonConstProperty()

mitk::BaseProperty * mitk::PropertyList::GetNonConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)

overridevirtual

Get property by its key.

Parameters

[in]	propertyKey	Key of property.
[in]	contextName	Optional, default is empty string (default context). Search in specified context.
[in]	fallBackOnDefaultContext	Optional, default is true. Also search in default context if property was not found in given context.

Returns: Found property, nullptr otherwise.

Implements mitk::IPropertyOwner.

Definition at line 59 of file mitkPropertyList.cpp.

References GetProperty().

◆ GetProperty()

mitk::BaseProperty * mitk::PropertyList::GetProperty ( const std::string & propertyKey ) const

Get a property by its name.

Definition at line 48 of file mitkPropertyList.cpp.

References m_Properties.

Referenced by mitk::PointSetVtkMapper3D::ApplyAllProperties(), mitk::SceneReaderV1::ClearNodePropertyListWithExceptions(), mitk::PointSetVtkMapper3D::CreateVTKRenderObjects(), mitk::DICOMQIPropertyHelper::DeriveDICOMSourceProperties(), mitk::PointSetVtkMapper2D::GenerateDataForRenderer(), mitk::GetBackwardsCompatibleDICOMProperty(), GetBoolProperty(), mitk::Label::GetCenterOfMassCoordinates(), mitk::Label::GetCenterOfMassIndex(), mitk::Label::GetColor(), GetDoubleProperty(), GetFloatProperty(), GetIntProperty(), mitk::Label::GetLayer(), mitk::ColorBarAnnotation::GetLookupTable(), GetNonConstProperty(), GetStringProperty(), mitk::Label::GetValue(), mitk::Label::Label(), mitk::PlaneGeometryDataVtkMapper3D::ProcessNode(), mitk::DICOMSegmentationIO::Read(), mitk::DataStorageCompare::Report(), mitk::Label::SetCenterOfMassCoordinates(), mitk::Label::SetCenterOfMassIndex(), mitk::Label::SetColor(), mitk::Label::SetLayer(), mitk::Label::SetLocked(), mitk::Label::SetOpacity(), mitk::Label::SetValue(), and mitk::Label::SetVisible().

◆ GetPropertyContextNames()

std::vector< std::string > mitk::PropertyList::GetPropertyContextNames ( ) const

overridevirtual

Query names of existing contexts.

Returns: List of context names.

Implements mitk::IPropertyProvider.

Definition at line 43 of file mitkPropertyList.cpp.

◆ GetPropertyKeys()

std::vector< std::string > mitk::PropertyList::GetPropertyKeys	(	const std::string &	contextName = `""`,
		bool	includeDefaultContext = `false`
	)		const

overridevirtual

Query keys of existing properties.

Parameters

[in]	contextName	Optional, default is empty string (default context). Search in specified context.
[in]	includeDefaultContext	Optional, default is false. Include default context.

Returns: List of property keys.

Implements mitk::IPropertyProvider.

Definition at line 30 of file mitkPropertyList.cpp.

References m_Properties.

◆ GetPropertyValue()

template<typename T >

bool mitk::PropertyList::GetPropertyValue	(	const char *	propertyKey,
		T &	value
	)		const

inline

Convenience access method for GenericProperty<T> properties (T being the type of the second parameter)

Returns: true property was found

Definition at line 117 of file mitkPropertyList.h.

References mitk::GenericProperty< T >::GetValue(), Json::intValue, and Json::stringValue.

Referenced by mitk::NavigationDataDisplacementFilter::SetParameters(), and mitk::CameraVisualization::SetParameters().

◆ GetStaticNameOfClass()

static const char* mitk::PropertyList::GetStaticNameOfClass ( )

inlinestatic

Definition at line 67 of file mitkPropertyList.h.

◆ GetStringProperty()

bool mitk::PropertyList::GetStringProperty	(	const char *	propertyKey,
		std::string &	stringValue
	)		const

Convenience method to access the value of a StringProperty.

Definition at line 276 of file mitkPropertyList.cpp.

References GetProperty(), and mitk::StringProperty::GetValue().

Referenced by Get(), mitk::GetBackwardsCompatibleDICOMProperty(), mitk::LogoAnnotation::GetLogoImagePath(), and mitk::Label::GetName().

◆ IsEmpty()

bool mitk::PropertyList::IsEmpty ( ) const

inline

Definition at line 234 of file mitkPropertyList.h.

Referenced by mitk::SceneIO::SaveScene().

◆ New()

static Pointer mitk::PropertyList::New ( )

static

Method for creation through the object factory.

Referenced by mitk::Action::AddProperty(), mitk::Annotation::Annotation(), mitk::SceneReaderV1::ClearNodePropertyListWithExceptions(), mitk::PropertyListDeserializerV1::Deserialize(), mitk::NavigationDataDisplacementFilter::GetParameters(), mitk::CameraVisualization::GetParameters(), mitk::NavigationDataSource::GetParameters(), mitk::IGTLMessageSource::GetParameters(), mitk::PersistenceService::GetPropertyList(), mitk::DataNode::GetPropertyList(), mitk::RenderingManager::InitializePropertyList(), mitk::pa::InSilicoTissueVolume::InSilicoTissueVolume(), mitkDICOMPreloadedVolumeTest(), mitkEventConfigTest(), mitkPropertyListTest(), mitkPropertySerializationTest(), mitk::NonBlockingAlgorithm::NonBlockingAlgorithm(), mitk::StateMachineTransition::operator==(), mitk::CustomTagParser::ParseDicomProperty(), mitk::CustomTagParser::ParseDicomPropertyString(), QmitkOverlayController::QmitkOverlayController(), mitk::PropertyListsXmlFileReaderAndWriter::ReadLists(), mitk::SceneIO::SaveScene(), mitk::PropertyListSerializer::Serialize(), mitk::DICOMSegmentationPropertyHelper::SetDICOMSegmentProperties(), mitk::XML2EventParser::StartElement(), mitk::StateMachineTransition::StateMachineTransition(), and mitk::ToFCameraDevice::ToFCameraDevice().

◆ RemoveProperty()

void mitk::PropertyList::RemoveProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Removes a property. If the property does not exist, nothing will be done.

Parameters

[in]	propertyKey	Key of property.
[in]	contextName	Optional, default is empty string (default context). Context in which the property is removed.
[in]	fallBackOnDefaultContext	Optional, default is false. Remove property in default context if given context does not exist.

Precondition: If a context is specified by contextName, this context must be known by the owner or fallBackOnDefaultContext must be true. If violated an mitk::Exception is thrown.; propertyKey must be a none empty string. If violated an mitk::Exception is thrown.

Implements mitk::IPropertyOwner.

Definition at line 129 of file mitkPropertyList.cpp.

References m_Properties.

◆ ReplaceProperty()

void mitk::PropertyList::ReplaceProperty	(	const std::string &	propertyKey,
		BaseProperty *	property
	)

Set a property object in the list/map by reference.

The actual OBJECT holding the value of the property is replaced by this function. This is useful if you want to change the type of the property, like from BoolProperty to StringProperty. Another use is to share one and the same property object among several ProperyList/DataNode objects, which makes them appear synchronized.

Definition at line 110 of file mitkPropertyList.cpp.

References m_Properties.

Referenced by ConcatenatePropertyList(), mitk::SurfaceVtkMapper2D::FixupLegacyProperties(), and mitk::DataNode::ReplaceProperty().

◆ Set() [1/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		bool	boolValue
	)

ShortCut for the above method.

Definition at line 307 of file mitkPropertyList.cpp.

References SetBoolProperty().

◆ Set() [2/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		int	intValue
	)

ShortCut for the above method.

Definition at line 312 of file mitkPropertyList.cpp.

References SetIntProperty().

◆ Set() [3/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		float	floatValue
	)

ShortCut for the above method.

Definition at line 317 of file mitkPropertyList.cpp.

References SetFloatProperty().

◆ Set() [4/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		double	doubleValue
	)

ShortCut for the above method.

Definition at line 322 of file mitkPropertyList.cpp.

References SetDoubleProperty().

◆ Set() [5/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		const char *	stringValue
	)

ShortCut for the above method.

Definition at line 327 of file mitkPropertyList.cpp.

References SetStringProperty().

◆ Set() [6/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		const std::string &	stringValue
	)

ShortCut for the above method.

Definition at line 332 of file mitkPropertyList.cpp.

References SetStringProperty().

◆ SetBoolProperty()

void mitk::PropertyList::SetBoolProperty	(	const char *	propertyKey,
		bool	boolValue
	)

Convenience method to set the value of a BoolProperty.

Definition at line 292 of file mitkPropertyList.cpp.

References mitk::BoolProperty::New(), and SetProperty().

Referenced by mitk::RenderWindowLayerController::HideDataNodeInAllRenderer(), Set(), mitk::Label::SetLocked(), and mitk::Label::SetVisible().

◆ SetDoubleProperty()

void mitk::PropertyList::SetDoubleProperty	(	const char *	propertyKey,
		double	doubleValue
	)

Convenience method to set the value of a DoubleProperty.

Definition at line 373 of file mitkPropertyList.cpp.

References mitk::DoubleProperty::New(), and SetProperty().

Referenced by Set().

◆ SetFloatProperty()

void mitk::PropertyList::SetFloatProperty	(	const char *	propertyKey,
		float	floatValue
	)

Convenience method to set the value of a FloatProperty.

Definition at line 297 of file mitkPropertyList.cpp.

References mitk::FloatProperty::New(), and SetProperty().

Referenced by Set(), and mitk::Label::SetOpacity().

◆ SetIntProperty()

void mitk::PropertyList::SetIntProperty	(	const char *	propertyKey,
		int	intValue
	)

Convenience method to set the value of an IntProperty.

Definition at line 287 of file mitkPropertyList.cpp.

References mitk::IntProperty::New(), and SetProperty().

Referenced by Set().

◆ SetProperty()

void mitk::PropertyList::SetProperty	(	const std::string &	propertyKey,
		BaseProperty *	property,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Add new or change existent property.

Parameters

[in]	propertyKey	Key of property.
[in]	property	The actual property.
[in]	contextName	Optional, default is empty string (default context). Context in which the property is set.
[in]	fallBackOnDefaultContext	Optional, default is false. Set property in default context if given context does not exist.

Precondition: If a context is specified by contextName, this context must be known by the owner or fallBackOnDefaultContext must be true. If violated an mitk::Exception is thrown.; propertyKey must be a none empty string. If violated an mitk::Exception is thrown.

Implements mitk::IPropertyOwner.

Reimplemented in mitk::Label.

Definition at line 64 of file mitkPropertyList.cpp.

References m_Properties, MITK_ERROR, and mitkThrow.

◆ SetStringProperty()

void mitk::PropertyList::SetStringProperty	(	const char *	propertyKey,
		const char *	stringValue
	)

Convenience method to set the value of a StringProperty.

Definition at line 302 of file mitkPropertyList.cpp.

References mitk::StringProperty::New(), and SetProperty().

Referenced by Set(), and mitk::Label::SetName().

Member Data Documentation

◆ m_Properties

PropertyMap mitk::PropertyList::m_Properties

protected

Map of properties.

Definition at line 246 of file mitkPropertyList.h.

Referenced by Clear(), DeleteProperty(), GetConstProperty(), GetMTime(), GetProperty(), GetPropertyKeys(), PropertyList(), RemoveProperty(), ReplaceProperty(), and SetProperty().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ Pointer

◆ PropertyMap

◆ PropertyMapElementType

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ PropertyList() [1/2]

◆ PropertyList() [2/2]

◆ ~PropertyList()

Member Function Documentation

◆ Clear()

◆ Clone()

◆ ConcatenatePropertyList()

◆ DeleteProperty()

◆ Get() [1/5]

◆ Get() [2/5]

◆ Get() [3/5]

◆ Get() [4/5]

◆ Get() [5/5]

◆ GetBoolProperty()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetConstProperty()

◆ GetDoubleProperty()

◆ GetFloatProperty()

◆ GetIntProperty()

◆ GetMap()

◆ GetMTime()

◆ GetNonConstProperty()

◆ GetProperty()

◆ GetPropertyContextNames()

◆ GetPropertyKeys()

◆ GetPropertyValue()

◆ GetStaticNameOfClass()

◆ GetStringProperty()

◆ IsEmpty()

◆ New()

◆ RemoveProperty()

◆ ReplaceProperty()

◆ Set() [1/6]

◆ Set() [2/6]

◆ Set() [3/6]

◆ Set() [4/6]

◆ Set() [5/6]

◆ Set() [6/6]

◆ SetBoolProperty()

◆ SetDoubleProperty()

◆ SetFloatProperty()

◆ SetIntProperty()

◆ SetProperty()

◆ SetStringProperty()

Member Data Documentation

◆ m_Properties
