#include <mitkGenericProperty.h>
Public Types | |
| typedef GenericProperty | Self |
| typedef BaseProperty | Superclass |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer< const Self > | ConstPointer |
| typedef T | ValueType |
 Public Types inherited from mitk::BaseProperty | |
| typedef BaseProperty | Self |
| typedef itk::Object | Superclass |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer< const Self > | ConstPointer |
Public Member Functions | |
| virtual std::vector< std::string > | GetClassHierarchy () const override |
| virtual const char * | GetClassName () const |
| Pointer | Clone () const |
| virtual void | SetValue (T _arg) |
| virtual T | GetValue () const |
| std::string | GetValueAsString () const override |
| Public Member Functions inherited from mitk::BaseProperty | |
| Pointer | Clone () const |
| bool | operator== (const BaseProperty &property) const |
| Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More... | |
| BaseProperty & | operator= (const BaseProperty &property) |
| Assigns property to this BaseProperty instance. More... | |
| bool | AssignProperty (const BaseProperty &property) |
| Assigns property to this BaseProperty instance. More... | |
Static Public Member Functions | |
| static const char * | GetStaticNameOfClass () |
| static Pointer | New (T _arg) |
| Static Public Member Functions inherited from mitk::BaseProperty | |
| static const char * | GetStaticNameOfClass () |
Protected Member Functions | |
| GenericProperty () | |
| GenericProperty (T x) | |
| GenericProperty (const GenericProperty &other) | |
| Protected Member Functions inherited from mitk::BaseProperty | |
| BaseProperty () | |
| BaseProperty (const BaseProperty &other) | |
| ~BaseProperty () override | |
Protected Attributes | |
| T | m_Value |
Additional Inherited Members | |
| Static Public Attributes inherited from mitk::BaseProperty | |
| static const std::string | VALUE_CANNOT_BE_CONVERTED_TO_STRING |
| Default return value if a property which can not be returned as string. More... | |
Detailed Description
template<typename T>
class mitk::GenericProperty< T >
@ brief Template class for generating properties for int, float, bool, etc.
This class template can be instantiated for all classes/internal types that fulfills these requirements:
- an operator<< so that the properties value can be put into a std::stringstream
- an operator== so that two properties can be checked for equality
Note: you must use the macro mitkSpecializeGenericProperty to provide specializations for concrete types (e.g. BoolProperty). Please see mitkProperties.h for examples. If you don't use the mitkSpecializeGenericProperty Macro, GetNameOfClass() returns a wrong name.
Definition at line 45 of file mitkGenericProperty.h.
Member Typedef Documentation
◆ ConstPointer
| typedef itk::SmartPointer<const Self> mitk::GenericProperty< T >::ConstPointer |
Definition at line 48 of file mitkGenericProperty.h.
◆ Pointer
| typedef itk::SmartPointer<Self> mitk::GenericProperty< T >::Pointer |
Definition at line 48 of file mitkGenericProperty.h.
◆ Self
| typedef GenericProperty mitk::GenericProperty< T >::Self |
Definition at line 48 of file mitkGenericProperty.h.
◆ Superclass
| typedef BaseProperty mitk::GenericProperty< T >::Superclass |
Definition at line 48 of file mitkGenericProperty.h.
◆ ValueType
| typedef T mitk::GenericProperty< T >::ValueType |
Definition at line 50 of file mitkGenericProperty.h.
Constructor & Destructor Documentation
◆ GenericProperty() [1/3]
|
inlineprotected |
Definition at line 67 of file mitkGenericProperty.h.
◆ GenericProperty() [2/3]
|
inlineprotected |
Definition at line 68 of file mitkGenericProperty.h.
◆ GenericProperty() [3/3]
|
inlineprotected |
Definition at line 69 of file mitkGenericProperty.h.
Member Function Documentation
◆ Clone()
| Pointer mitk::GenericProperty< T >::Clone | ( | ) | const |
◆ GetClassHierarchy()
|
inlineoverridevirtual |
Reimplemented from mitk::BaseProperty.

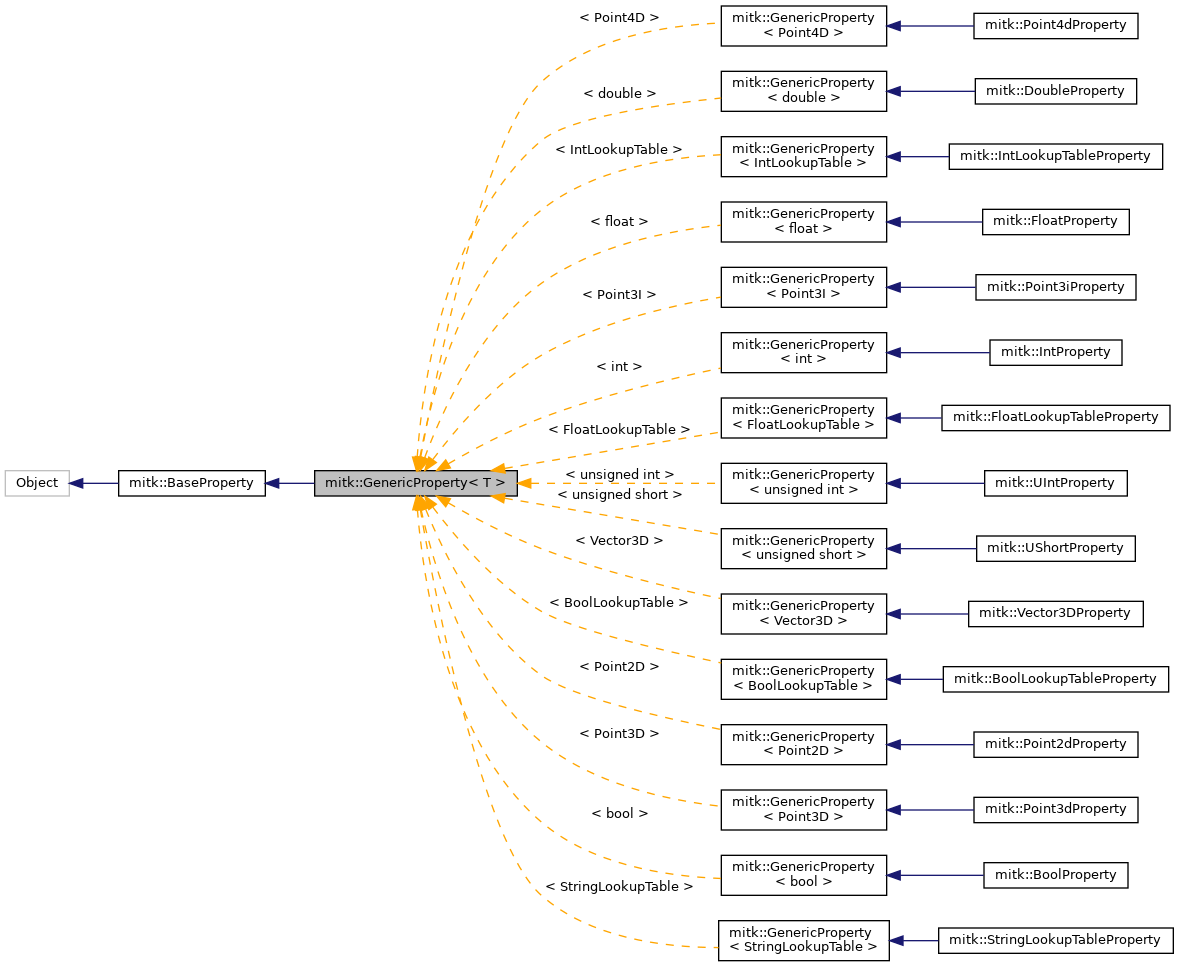

Reimplemented in mitk::StringLookupTableProperty, mitk::IntLookupTableProperty, mitk::BoolLookupTableProperty, mitk::FloatLookupTableProperty, mitk::Point3iProperty, mitk::Point4dProperty, mitk::Point3dProperty, mitk::Point2dProperty, mitk::Vector3DProperty, mitk::DoubleProperty, mitk::FloatProperty, mitk::UShortProperty, mitk::UIntProperty, mitk::IntProperty, and mitk::BoolProperty.
Definition at line 48 of file mitkGenericProperty.h.
◆ GetClassName()
|
virtual |
Reimplemented from mitk::BaseProperty.
Reimplemented in mitk::StringLookupTableProperty, mitk::IntLookupTableProperty, mitk::BoolLookupTableProperty, mitk::FloatLookupTableProperty, mitk::Point3iProperty, mitk::Point4dProperty, mitk::Point3dProperty, mitk::Point2dProperty, mitk::Vector3DProperty, mitk::DoubleProperty, mitk::FloatProperty, mitk::UShortProperty, mitk::UIntProperty, mitk::IntProperty, and mitk::BoolProperty.
◆ GetStaticNameOfClass()
|
inlinestatic |
Definition at line 48 of file mitkGenericProperty.h.
◆ GetValue()
|
virtual |
Referenced by mitk::ImageStatisticsHolder::ComputeImageStatistics(), mitk::PlaneGeometryDataMapper2D::CreateVtkCrosshair(), mitk::PlaneGeometryDataMapper2D::DetermineThickSliceMode(), QmitkNumberPropertyView::DisplayNumber(), QmitkNumberPropertyEditor::DisplayNumber(), QmitkPropertyListPopup::fillPopup(), mitk::ImageVtkMapper2D::GenerateDataForRenderer(), mitk::DoseImageVtkMapper2D::GenerateDataForRenderer(), mitk::PropertyList::GetBoolProperty(), mitk::Label::GetCenterOfMassCoordinates(), mitk::Label::GetCenterOfMassIndex(), mitk::PropertyList::GetDoubleProperty(), mitk::PropertyList::GetFloatProperty(), mitk::GetGridGeometryFromNode(), mitk::PropertyList::GetIntProperty(), mitk::Label::GetLayer(), mitk::NonBlockingAlgorithm::GetParameter(), mitk::PropertyList::GetPropertyValue(), mitk::Annotation::GetPropertyValue(), mitk::DataNode::GetPropertyValue(), mitk::PlanarCross::GetSingleLineMode(), mitk::PlanarFigure::IsClosed(), and mitk::PropertyListsXmlFileReaderAndWriter::PropertyToXmlElem().
◆ GetValueAsString()
|
inlineoverridevirtual |
Reimplemented from mitk::BaseProperty.
Definition at line 57 of file mitkGenericProperty.h.
◆ New()
|
inlinestatic |
Definition at line 49 of file mitkGenericProperty.h.
◆ SetValue()
|
virtual |
Referenced by QmitkPropertyListPopup::onBoolPropertyClicked(), QmitkNumberPropertyEditor::onValueChanged(), QmitkPropertyListPopup::onVisibleClicked(), mitk::Label::SetCenterOfMassCoordinates(), mitk::Label::SetCenterOfMassIndex(), mitk::Label::SetLayer(), mitk::Label::SetLocked(), mitk::Label::SetOpacity(), mitk::Label::SetValue(), and mitk::Label::SetVisible().
Member Data Documentation
◆ m_Value
|
protected |
Definition at line 70 of file mitkGenericProperty.h.
The documentation for this class was generated from the following file:
