mitk::ColorProperty Class Reference

The ColorProperty class RGB color property. More...

#include <mitkColorProperty.h>

Inheritance diagram for mitk::ColorProperty:

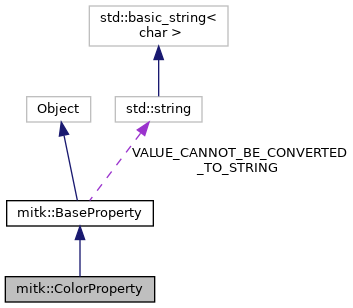

Collaboration diagram for mitk::ColorProperty:

Public Types
typedef ColorProperty	Self
typedef BaseProperty	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef mitk::Color	ValueType
Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
const mitk::Color &	GetColor () const
const mitk::Color &	GetValue () const
std::string	GetValueAsString () const override
void	SetColor (const mitk::Color &color)
void	SetValue (const mitk::Color &color)
void	SetColor (float red, float green, float blue)
Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const
bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...
BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...
bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
static Pointer	New (const float *_arg)
static Pointer	New (const mitk::Color &_arg)
static Pointer	New (const float _arga, const float _argb, const float _argc)
Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ColorProperty ()
	ColorProperty (const ColorProperty &other)
	ColorProperty (const float red, const float green, const float blue)
	ColorProperty (const float color[3])
	ColorProperty (const mitk::Color &color)
Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()
	BaseProperty (const BaseProperty &other)
	~BaseProperty () override

Protected Attributes
mitk::Color	m_Color

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

The ColorProperty class RGB color property.

Note

If you want to apply the mitk::ColorProperty to an mitk::Image make sure to set the mitk::RenderingModeProperty to a mode which supports color (e.g. LEVELWINDOW_COLOR). For an example how to use the mitk::ColorProperty see mitkImageVtkMapper2DColorTest.cpp in Core.

Definition at line 47 of file mitkColorProperty.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::ColorProperty::ConstPointer

Definition at line 63 of file mitkColorProperty.h.

Pointer

typedef itk::SmartPointer<Self> mitk::ColorProperty::Pointer

Definition at line 63 of file mitkColorProperty.h.

Self

typedef ColorProperty mitk::ColorProperty::Self

Definition at line 63 of file mitkColorProperty.h.

Superclass

typedef BaseProperty mitk::ColorProperty::Superclass

Definition at line 63 of file mitkColorProperty.h.

ValueType

typedef mitk::Color mitk::ColorProperty::ValueType

Definition at line 67 of file mitkColorProperty.h.

Constructor & Destructor Documentation

ColorProperty() [1/5]

mitk::ColorProperty::ColorProperty ( )

protected

Definition at line 16 of file mitkColorProperty.cpp.

ColorProperty() [2/5]

mitk::ColorProperty::ColorProperty ( const ColorProperty &  other )

protected

Definition at line 20 of file mitkColorProperty.cpp.

ColorProperty() [3/5]

mitk::ColorProperty::ColorProperty ( const float  red, const float  green, const float  blue  )

protected

Definition at line 28 of file mitkColorProperty.cpp.

References m_Color.

ColorProperty() [4/5]

mitk::ColorProperty::ColorProperty ( const float  color[3] )

protected

Definition at line 24 of file mitkColorProperty.cpp.

ColorProperty() [5/5]

mitk::ColorProperty::ColorProperty ( const mitk::Color &  color )

protected

Definition at line 33 of file mitkColorProperty.cpp.

References m_Color.

Member Function Documentation

Clone()

Pointer mitk::ColorProperty::Clone

(

)

const

GetClassHierarchy()

virtual std::vector<std::string> mitk::ColorProperty::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 63 of file mitkColorProperty.h.

GetClassName()

virtual const char* mitk::ColorProperty::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseProperty.

GetColor()

const mitk::Color & mitk::ColorProperty::GetColor

(

)

const

Definition at line 48 of file mitkColorProperty.cpp.

References m_Color.

Referenced by QmitkColorPropertyView::DisplayColor(), QmitkPropertyListPopup::fillPopup(), mitk::Label::GetColor(), GetValue(), QmitkColorPropertyEditor::mousePressEvent(), and QmitkPropertyListPopup::onColorClicked().

GetStaticNameOfClass()

static const char* mitk::ColorProperty::GetStaticNameOfClass ( )

inlinestatic

Definition at line 63 of file mitkColorProperty.h.

GetValue()

const mitk::Color & mitk::ColorProperty::GetValue

(

)

const

Definition at line 80 of file mitkColorProperty.cpp.

References GetColor().

Referenced by GetValueAsString().

GetValueAsString()

std::string mitk::ColorProperty::GetValueAsString ( ) const

overridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 73 of file mitkColorProperty.cpp.

References GetValue().

New() [1/4]

static Pointer mitk::ColorProperty::New ( )

static

Referenced by mitk::OtsuTool3D::Activated(), mitk::BinaryThresholdTool::BinaryThresholdTool(), mitk::BinaryThresholdULTool::BinaryThresholdULTool(), QmitkSurfaceBasedInterpolatorWidget::ChangeSurfaceColor(), QmitkSlicesInterpolator::ChangeSurfaceColor(), mitk::LiveWireTool2D::ClearSegmentation(), mitk::PickingTool::ConfirmSegmentation(), mitk::ExampleInteractor::ConnectActionsAndFunctions(), QmitkBoundingObjectWidget::CreateBoundingObject(), mitk::Tool::CreateSegmentationNode(), mitk::AffineBaseDataInteractor3D::DataNodeChanged(), mitk::BoundingShapeInteractor::DataNodeChanged(), mitk::UnstructuredGridMapper2D::GenerateDataForRenderer(), QmitkScalarBarOverlay::GetProperties(), QmitkDataNodeColorAction::InitializeWithDataNode(), mitk::PointSetDataInteractor::InitMove(), mitk::ContourModelGLMapper2DBase::InternalDrawContour(), mitkImageVtkMapper2DColorTest(), mitkPropertySerializationTest(), mitkViewportRenderingTest(), mitk::PickingTool::PickingTool(), QmitkSlicesInterpolator::QmitkSlicesInterpolator(), QmitkSurfaceBasedInterpolatorWidget::QmitkSurfaceBasedInterpolatorWidget(), mitk::RTStructureSetReaderService::Read(), mitk::BoundingShapeInteractor::RestoreNodeProperties(), QmitkAdaptiveRegionGrowingToolGUI::RunSegmentation(), SaveSliceOrImageAsPNG(), mitk::Label::SetColor(), mitk::Annotation::SetColor(), mitk::DataNode::SetColor(), mitk::PlanarFigureObjectFactory::SetDefaultProperties(), mitk::ContourModelGLMapper2D::SetDefaultProperties(), mitk::GizmoMapper2D::SetDefaultProperties(), mitk::ContourModelSetGLMapper2D::SetDefaultProperties(), mitk::UnstructuredGridVtkMapper3D::SetDefaultProperties(), mitk::SurfaceVtkMapper2D::SetDefaultProperties(), mitk::EnhancedPointSetVtkMapper3D::SetDefaultProperties(), mitk::ContourModelMapper2D::SetDefaultProperties(), mitk::ContourModelSetMapper3D::SetDefaultProperties(), mitk::ContourModelMapper3D::SetDefaultProperties(), mitk::SurfaceVtkMapper3D::SetDefaultProperties(), mitk::PointSetVtkMapper3D::SetDefaultProperties(), mitk::PlanarFigureMapper2D::SetDefaultProperties(), mitk::RegEvaluationMapper2D::SetDefaultProperties(), mitk::ImageVtkMapper2D::SetDefaultProperties(), mitk::DoseImageVtkMapper2D::SetDefaultProperties(), mitk::FeedbackContourTool::SetFeedbackContourColor(), mitk::FeedbackContourTool::SetFeedbackContourColorDefault(), QmitkInteractiveTransformationWidget::SetToolToEdit(), QmitkNavigationToolCreationWidget::ShowToolPreview(), QmitkSurfaceBasedInterpolatorWidget::StopUpdateInterpolationTimer(), QmitkSlicesInterpolator::StopUpdateInterpolationTimer(), TestDataStorage(), mitk::ShowSegmentationAsSmoothedSurface::ThreadedUpdateSuccessful(), mitk::ShowSegmentationAsSurface::ThreadedUpdateSuccessful(), and QmitkTextOverlay::UpdateFontProperties().

New() [2/4]

static Pointer mitk::ColorProperty::New ( const float *  _arg )

inlinestatic

Definition at line 65 of file mitkColorProperty.h.

New() [3/4]

static Pointer mitk::ColorProperty::New ( const mitk::Color &  _arg )

inlinestatic

Definition at line 66 of file mitkColorProperty.h.

New() [4/4]

static Pointer mitk::ColorProperty::New ( const float  _arga, const float  _argb, const float  _argc  )

inlinestatic

Definition at line 67 of file mitkColorProperty.h.

SetColor() [1/2]

void mitk::ColorProperty::SetColor

(

const mitk::Color &

color

)

Definition at line 53 of file mitkColorProperty.cpp.

References m_Color.

Referenced by QmitkPropertyListPopup::onColorClicked(), mitk::Label::SetColor(), SetColor(), and SetValue().

SetColor() [2/2]

void mitk::ColorProperty::SetColor	(	float	red,
		float	green,
		float	blue
	)

Definition at line 67 of file mitkColorProperty.cpp.

References SetColor().

SetValue()

void mitk::ColorProperty::SetValue

(

const mitk::Color &

color

)

Definition at line 62 of file mitkColorProperty.cpp.

References SetColor().

Member Data Documentation

m_Color

mitk::Color mitk::ColorProperty::m_Color

protected

Definition at line 50 of file mitkColorProperty.h.

Referenced by ColorProperty(), GetColor(), and SetColor().

---

The documentation for this class was generated from the following files:

• mitkColorProperty.h
• mitkColorProperty.cpp
