Image class for storing images. More...

#include <mitkImage.h>

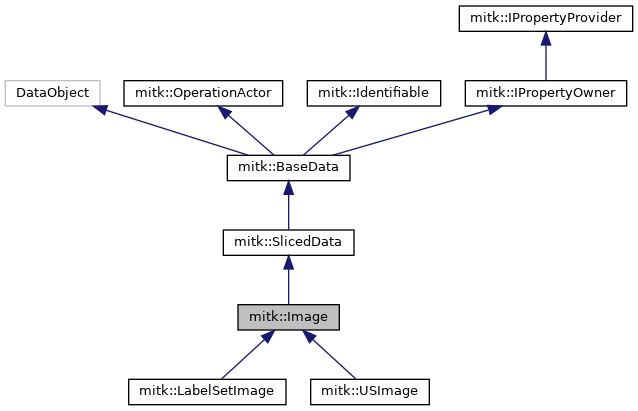

Inheritance diagram for mitk::Image:

[legend]

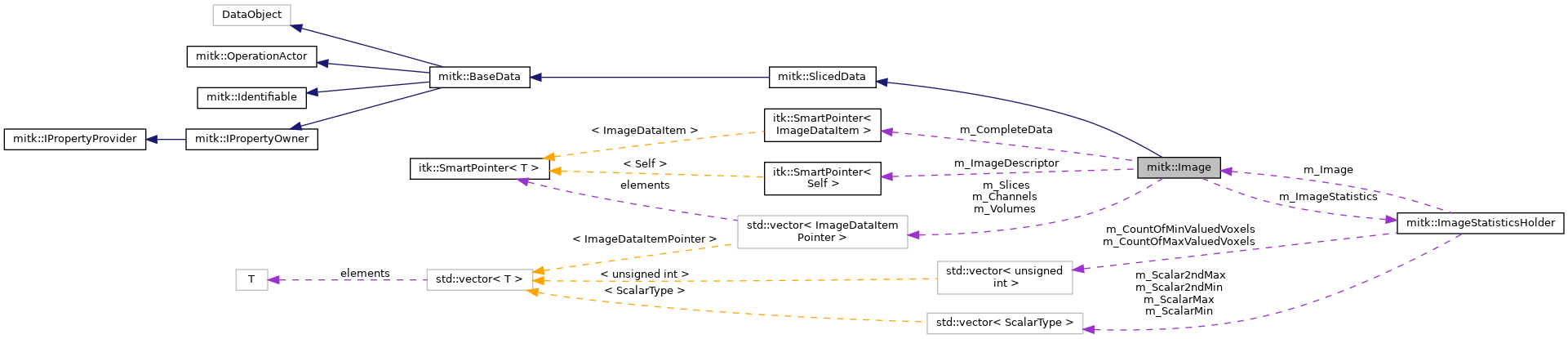

Collaboration diagram for mitk::Image:

[legend]

Public Types
enum	ImportMemoryManagementType { CopyMemory, ManageMemory, ReferenceMemory, DontManageMemory }

typedef Image	Self

typedef SlicedData	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::SmartPointer< ImageDataItem >	ImageDataItemPointer

typedef itk::Statistics::Histogram< double >	HistogramType

typedef mitk::ImageStatisticsHolder *	StatisticsHolderPointer

typedef std::vector< ImageDataItemPointer >	ImageDataItemPointerArray
	Vector container of SmartPointers to ImageDataItems; Class is only for internal usage to allow convenient access to all slices over iterators; See documentation of ImageDataItem for details. More...

Public Types inherited from mitk::SlicedData
typedef SlicedData	Self

typedef BaseData	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::ImageRegion< RegionDimension >	RegionType

typedef itk::Index< RegionDimension >	IndexType

typedef IndexType::IndexValueType	IndexValueType

typedef itk::Offset< RegionDimension >	OffsetType

typedef OffsetType::OffsetValueType	OffsetValueType

typedef itk::Size< RegionDimension >	SizeType

typedef SizeType::SizeValueType	SizeValueType

Public Types inherited from mitk::BaseData
typedef BaseData	Self

typedef itk::DataObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Identifiable
using	UIDType = std::string

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

const mitk::PixelType	GetPixelType (int n=0) const
	Returns the PixelType of channel n. More...

unsigned int	GetDimension () const
	Get dimension of the image. More...

unsigned int	GetDimension (int i) const
	Get the size of dimension i (e.g., i=0 results in the number of pixels in x-direction). More...

virtual void *	GetData ()
	Get the data vector of the complete image, i.e., of all channels linked together. More...

double	GetPixelValueByIndex (const itk::Index< 3 > &position, unsigned int timestep=0, unsigned int component=0)
	Get the pixel value at one specific index position. More...

double	GetPixelValueByWorldCoordinate (const mitk::Point3D &position, unsigned int timestep=0, unsigned int component=0)
	Get the pixel value at one specific world position. More...

virtual vtkImageData *	GetVtkImageData (int t=0, int n=0)
	Get a volume at a specific time t of channel n as a vtkImageData. More...

virtual const vtkImageData *	GetVtkImageData (int t=0, int n=0) const

bool	IsSliceSet (int s=0, int t=0, int n=0) const override
	Get the complete image, i.e., all channels linked together, as a mitkIpPicDescriptor. More...

bool	IsVolumeSet (int t=0, int n=0) const override
	Check whether volume at time t in channel n is set. More...

bool	IsChannelSet (int n=0) const override
	Check whether the channel n is set. More...

virtual bool	SetSlice (const void *data, int s=0, int t=0, int n=0)
	Set data as slice s at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a slice (at least is not smaller than a slice), since there is no chance to check this. More...

virtual bool	SetVolume (const void *data, int t=0, int n=0)
	Set data as volume at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a volume (at least is not smaller than a volume), since there is no chance to check this. More...

virtual bool	SetChannel (const void *data, int n=0)
	Set data in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a channel (at least is not smaller than a channel), since there is no chance to check this. More...

virtual bool	SetImportSlice (void *data, int s=0, int t=0, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data as slice s at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a slice (at least is not smaller than a slice), since there is no chance to check this. More...

virtual bool	SetImportVolume (void *data, int t=0, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data as volume at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a volume (at least is not smaller than a volume), since there is no chance to check this. More...

virtual bool	SetImportVolume (const void *const_data, int t=0, int n=0)

virtual bool	SetImportChannel (void *data, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a channel (at least is not smaller than a channel), since there is no chance to check this. More...

virtual void	Initialize (const mitk::PixelType &type, unsigned int dimension, const unsigned int *dimensions, unsigned int channels=1)

virtual void	Initialize (const mitk::PixelType &type, const mitk::BaseGeometry &geometry, unsigned int channels=1, int tDim=1)

virtual void	Initialize (const mitk::PixelType &, const mitk::TimeSlicedGeometry *, unsigned int, int)

virtual void	Initialize (const mitk::PixelType &type, const mitk::TimeGeometry &geometry, unsigned int channels=1, int tDim=-1)
	Initialize new (or re-initialize) image information by a TimeGeometry. More...

virtual void	Initialize (const mitk::PixelType &type, int sDim, const mitk::PlaneGeometry &geometry2d, bool flipped, unsigned int channels=1, int tDim=1)

virtual void	Initialize (const mitk::PixelType &type, int sDim, const mitk::PlaneGeometry &geometry2d, unsigned int channels=1, int tDim=1)

virtual void	Initialize (const mitk::Image *image)

virtual void	Initialize (const mitk::ImageDescriptor::Pointer inDesc)

virtual void	Initialize (vtkImageData *vtkimagedata, int channels=1, int tDim=-1, int sDim=-1, int pDim=-1)

template<typename itkImageType >
void	InitializeByItk (const itkImageType *itkimage, int channels=1, int tDim=-1, int sDim=-1)

virtual bool	IsValidSlice (int s=0, int t=0, int n=0) const
	Check whether slice s at time t in channel n is valid, i.e., is (or can be) inside of the image. More...

virtual bool	IsValidVolume (int t=0, int n=0) const
	Check whether volume at time t in channel n is valid, i.e., is (or can be) inside of the image. More...

virtual bool	IsValidChannel (int n=0) const
	Check whether the channel n is valid, i.e., is (or can be) inside of the image. More...

bool	IsRotated () const
	Returns true if an image is rotated, i.e. its geometry's transformation matrix has nonzero elements besides the diagonal. Non-diagonal elements are checked if larger then 1/1000 of the matrix' trace. More...

unsigned int *	GetDimensions () const
	Get the sizes of all dimensions as an integer-array. More...

ImageDescriptor::Pointer	GetImageDescriptor () const

ChannelDescriptor	GetChannelDescriptor (int id=0) const

void	SetGeometry (BaseGeometry *aGeometry3D) override
	Sets a geometry to an image. More...

virtual ImageDataItemPointer	GetSliceData (int s=0, int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	GetVolumeData (int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	GetChannelData (int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

ScalarType	GetScalarValueMin (int t=0) const
	(DEPRECATED) Get the minimum for scalar images More...

ScalarType	GetScalarValueMax (int t=0) const
	(DEPRECATED) Get the maximum for scalar images More...

ScalarType	GetScalarValue2ndMin (int t=0) const
	(DEPRECATED) Get the second smallest value for scalar images More...

ScalarType	GetScalarValueMinNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the smallest value for scalar images, but do not recompute it first More...

ScalarType	GetScalarValue2ndMinNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the second smallest value for scalar images, but do not recompute it first More...

ScalarType	GetScalarValue2ndMax (int t=0) const
	(DEPRECATED) Get the second largest value for scalar images More...

ScalarType	GetScalarValueMaxNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the largest value for scalar images, but do not recompute it first More...

ScalarType	GetScalarValue2ndMaxNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the second largest value for scalar images, but do not recompute it first More...

ScalarType	GetCountOfMinValuedVoxels (int t=0) const
	(DEPRECATED) Get the count of voxels with the smallest scalar value in the dataset More...

ScalarType	GetCountOfMaxValuedVoxels (int t=0) const
	(DEPRECATED) Get the count of voxels with the largest scalar value in the dataset More...

unsigned int	GetCountOfMaxValuedVoxelsNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the count of voxels with the largest scalar value in the dataset More...

unsigned int	GetCountOfMinValuedVoxelsNoRecompute (unsigned int t=0) const
	(DEPRECATED) Get the count of voxels with the smallest scalar value in the dataset More...

StatisticsHolderPointer	GetStatistics () const
	Returns a pointer to the ImageStatisticsHolder object that holds all statistics information for the image. More...

Public Member Functions inherited from mitk::SlicedData
	itkStaticConstMacro (RegionDimension, unsigned int, 5)

void	UpdateOutputInformation () override

void	PrepareForNewData () override

void	SetRequestedRegionToLargestPossibleRegion () override

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override

bool	VerifyRequestedRegion () override
	Verify that the RequestedRegion is within the LargestPossibleRegion. More...

void	SetRequestedRegion (const itk::DataObject *data) override

virtual void	SetRequestedRegion (SlicedData::RegionType *region)

void	SetLargestPossibleRegion (SlicedData::RegionType *region)
	Sets the largest possible region. The largest possible region is the entire region occupied by the data object. Note that the largest possible region should always be bigger then the requested region of a certain operation. More...

const RegionType &	GetLargestPossibleRegion () const

virtual const RegionType &	GetRequestedRegion () const

void	CopyInformation (const itk::DataObject *data) override

unsigned int	GetNumberOfChannels () const
	Get the number of channels. More...

SlicedGeometry3D *	GetSlicedGeometry (unsigned int t=0) const
	Convenience access method for the geometry, which is of type SlicedGeometry3D (or a sub-class of it). More...

const SlicedGeometry3D *	GetUpdatedSlicedGeometry (unsigned int t=0)
	Convenience access method for the geometry, which is of type SlicedGeometry3D (or a sub-class of it). More...

void	SetGeometry (BaseGeometry *aGeometry3D) override
	Set the BaseGeometry of the data, which will be referenced (not copied!). It has to be a sub-class of SlicedGeometry3D. More...

void	SetOrigin (const Point3D &origin) override
	Convenience method for setting the origin of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (const ScalarType aSpacing[])
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (mitk::Vector3D aSpacing)
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

Public Member Functions inherited from mitk::BaseData
BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Query keys of existing properties. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Query names of existing contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Add new or change existent property. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Removes a property. If the property does not exist, nothing will be done. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

const mitk::TimeGeometry *	GetTimeSlicedGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data. More...

const mitk::TimeGeometry *	GetUpdatedTimeSliceGeometry ()
	Return the TimeGeometry of the data. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time t. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the geometry, which is a TimeGeometry, of the data as non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData (the geometry in particular) so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized, i.e., at least the Geometry and other header data has been set. More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether object contains data (at a specified time), e.g., a set of points may be empty. More...

virtual bool	IsEmpty () const
	Check whether object contains data (at least at one point in time), e.g., a set of points may be empty. More...

void	ExecuteOperation (Operation *operation) override
	overwrite if the Data can be called by an Interactor (StateMachine). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided Geometry as Geometry of the data. Assumes the data object has only 1 time step ( is a 3D object ) and creates a new TimeGeometry. If an TimeGeometry has already been set for the object, it will be replaced after calling this function. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get the property (instance of BaseProperty) with key propertyKey from the PropertyList, and set it to this, respectively;. More...

void	SetProperty (const char propertyKey, BaseProperty property)

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry As the base data has not a data vector given by itself, the number of time steps is defined over the time sliced geometry. In sub classes, a better implementation could be over the length of the data vector. More...

unsigned long	GetMTime () const override
	Get the modified time of the last change of the contents this data object or its geometry. More...

void	Graft (const DataObject *) override

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()

	Identifiable (const UIDType &uid)

	Identifiable (const Identifiable &)=delete

	Identifiable (Identifiable &&) noexcept

virtual	~Identifiable ()

Identifiable &	operator= (const Identifiable &)=delete

Identifiable &	operator= (Identifiable &&other) noexcept

UIDType	GetUID () const
	Get unique ID of an object. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::SlicedData
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::BaseData
static const char *	GetStaticNameOfClass ()

Protected Types
typedef itk::MutexLockHolder< itk::SimpleFastMutexLock >	MutexHolder

Protected Member Functions
virtual itk::LightObject::Pointer	InternalClone () const override

int	GetSliceIndex (int s=0, int t=0, int n=0) const

int	GetVolumeIndex (int t=0, int n=0) const

void	ComputeOffsetTable ()

virtual bool	IsValidTimeStep (int t) const

void	Expand (unsigned int timeSteps) override
	Expands the TimeGeometry to a number of TimeSteps. More...

virtual ImageDataItemPointer	AllocateSliceData (int s=0, int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	AllocateVolumeData (int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	AllocateChannelData (int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

	Image ()

	Image (const Image &other)

	~Image () override

void	Clear () override
	Calls ClearData() and InitializeEmpty();. More...

void	Initialize () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::SlicedData
	SlicedData ()

	SlicedData (const SlicedData &other)

	~SlicedData () override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	InitializeTimeSlicedGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Attributes
ImageDataItemPointerArray	m_Channels

ImageDataItemPointerArray	m_Volumes

ImageDataItemPointerArray	m_Slices

itk::SimpleFastMutexLock	m_ImageDataArraysLock

unsigned int	m_Dimension

unsigned int *	m_Dimensions

ImageDescriptor::Pointer	m_ImageDescriptor

vcl_size_t *	m_OffsetTable

ImageDataItemPointer	m_CompleteData

StatisticsHolderPointer	m_ImageStatistics

Protected Attributes inherited from mitk::SlicedData
RegionType	m_LargestPossibleRegion

RegionType	m_RequestedRegion

bool	m_RequestedRegionInitialized

RegionType	m_BufferedRegion

bool	m_UseLargestPossibleRegion

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Image class for storing images.

Can be asked for header information, the data vector, the mitkIpPicDescriptor struct or vtkImageData objects. If not the complete data is required, the appropriate SubImageSelector class should be used for access. Image organizes sets of slices (s x 2D), volumes (t x 3D) and channels (n x ND). Channels are for different kind of data, e.g., morphology in channel 0, velocities in channel 1. All channels must have the same Geometry! In particular, the dimensions of all channels are the same, only the pixel-type may differ between channels.

For importing ITK images use of mitk::ITKImageImport is recommended, see Adaptor Classes.

For ITK v3.8 and older: Converting coordinates from the ITK physical coordinate system (which does not support rotated images) to the MITK world coordinate system should be performed via the BaseGeometry of the Image, see BaseGeometry::WorldToItkPhysicalPoint.

For more information, see MITK Image .

Examples:: Step3.cpp, and Step6.cpp.

Definition at line 72 of file mitkImage.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::Image::ConstPointer

Definition at line 84 of file mitkImage.h.

◆ HistogramType

typedef itk::Statistics::Histogram<double> mitk::Image::HistogramType

Definition at line 92 of file mitkImage.h.

◆ ImageDataItemPointer

typedef itk::SmartPointer<ImageDataItem> mitk::Image::ImageDataItemPointer

Smart Pointer type to a ImageDataItem.

Definition at line 88 of file mitkImage.h.

◆ ImageDataItemPointerArray

typedef std::vector<ImageDataItemPointer> mitk::Image::ImageDataItemPointerArray

Vector container of SmartPointers to ImageDataItems; Class is only for internal usage to allow convenient access to all slices over iterators; See documentation of ImageDataItem for details.

Definition at line 116 of file mitkImage.h.

◆ MutexHolder

typedef itk::MutexLockHolder<itk::SimpleFastMutexLock> mitk::Image::MutexHolder

protected

Definition at line 648 of file mitkImage.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::Image::Pointer

Definition at line 84 of file mitkImage.h.

◆ Self

typedef Image mitk::Image::Self

Definition at line 84 of file mitkImage.h.

◆ StatisticsHolderPointer

typedef mitk::ImageStatisticsHolder* mitk::Image::StatisticsHolderPointer

Definition at line 93 of file mitkImage.h.

◆ Superclass

typedef SlicedData mitk::Image::Superclass

Definition at line 84 of file mitkImage.h.

Member Enumeration Documentation

◆ ImportMemoryManagementType

enum mitk::Image::ImportMemoryManagementType

Enumerator
CopyMemory
ManageMemory
ReferenceMemory
DontManageMemory

Definition at line 104 of file mitkImage.h.

Constructor & Destructor Documentation

◆ Image() [1/2]

mitk::Image::Image ( )

protected

Definition at line 38 of file mitkImage.cpp.

References FILL_C_ARRAY, m_Dimensions, mitk::BaseData::m_Initialized, and MAX_IMAGE_DIMENSIONS.

◆ Image() [2/2]

mitk::Image::Image ( const Image & other )

protected

Definition at line 52 of file mitkImage.cpp.

References mitk::TimeGeometry::Clone(), FILL_C_ARRAY, GetDimension(), GetDimensions(), GetPixelType(), mitk::BaseData::GetTimeGeometry(), GetVolumeData(), Initialize(), m_Dimensions, MAX_IMAGE_DIMENSIONS, mitk::BaseData::SetTimeGeometry(), and SetVolume().

◆ ~Image()

mitk::Image::~Image ( )

overrideprotected

Definition at line 90 of file mitkImage.cpp.

References Clear(), m_ImageStatistics, and m_OffsetTable.

Member Function Documentation

◆ AllocateChannelData()

mitk::Image::ImageDataItemPointer mitk::Image::AllocateChannelData	(	int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

Definition at line 1281 of file mitkImage.cpp.

References CopyMemory, m_Channels, m_ImageDataArraysLock, m_ImageDescriptor, m_OffsetTable, and ManageMemory.

Referenced by SetImportChannel().

◆ AllocateSliceData()

mitk::Image::ImageDataItemPointer mitk::Image::AllocateSliceData	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

Definition at line 1169 of file mitkImage.cpp.

References GetSliceIndex(), GetVolumeIndex(), m_Channels, m_ImageDataArraysLock, m_ImageDescriptor, m_OffsetTable, m_Slices, m_Volumes, and ManageMemory.

Referenced by SetImportSlice().

◆ AllocateVolumeData()

mitk::Image::ImageDataItemPointer mitk::Image::AllocateVolumeData	(	int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

Definition at line 1234 of file mitkImage.cpp.

References CopyMemory, GetVolumeIndex(), m_Channels, m_Dimensions, m_ImageDataArraysLock, m_ImageDescriptor, m_OffsetTable, m_Volumes, and ManageMemory.

Referenced by SetImportVolume().

◆ Clear()

void mitk::Image::Clear ( )

overrideprotectedvirtual

Calls ClearData() and InitializeEmpty();.

Warning: Only use in subclasses that reimplemented these methods. Just calling Clear from BaseData will reset an object to a not initialized, invalid state.

Reimplemented from mitk::BaseData.

Definition at line 1314 of file mitkImage.cpp.

References mitk::BaseData::Clear(), and m_Dimensions.

Referenced by Initialize(), and ~Image().

◆ Clone()

Pointer mitk::Image::Clone ( ) const

Referenced by mitk::LabelSetImage::AddLayer(), mitk::ImageWriter::GenerateData(), mitk::LabelSetImage::LabelSetImage(), mitk::ImageMappingHelper::refineGeometry(), and mitk::SegTool2D::UpdateSurfaceInterpolation().

◆ ComputeOffsetTable()

void mitk::Image::ComputeOffsetTable ( )

protected

Definition at line 1124 of file mitkImage.cpp.

References m_Dimension, m_Dimensions, and m_OffsetTable.

Referenced by Initialize().

◆ Expand()

void mitk::Image::Expand ( unsigned int timeSteps )

overrideprotectedvirtual

Expands the TimeGeometry to a number of TimeSteps.

The method expands the TimeGeometry to the given number of TimeSteps, filling newly created elements with empty geometries. Sub-classes should override this method to handle the elongation of their data vectors, too. Note that a shrinking is neither possible nor intended.

Reimplemented from mitk::BaseData.

Definition at line 1148 of file mitkImage.cpp.

References mitk::BaseData::Expand().

Referenced by mitk::ImageStatisticsHolder::Expand().

◆ GetChannelData()

mitk::Image::ImageDataItemPointer mitk::Image::GetChannelData	(	int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

Warning: for internal use only

Definition at line 457 of file mitkImage.cpp.

References mitk::BaseData::GetSource(), GetVolumeIndex(), IsValidChannel(), m_Channels, m_Dimension, m_Dimensions, m_ImageDataArraysLock, m_ImageDescriptor, m_OffsetTable, mitk::SlicedData::m_RequestedRegion, mitk::SlicedData::m_RequestedRegionInitialized, m_Slices, m_Volumes, ManageMemory, and offset.

Referenced by mitk::ImageToIGTLMessageFilter::GenerateData(), GetData(), and SetImportChannel().

◆ GetChannelDescriptor()

ChannelDescriptor mitk::Image::GetChannelDescriptor ( int id = 0 ) const

inline

Definition at line 529 of file mitkImage.h.

References DEPRECATED.

Referenced by QmitkAdaptiveRegionGrowingToolGUI::OnPointAdded().

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::Image::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::SlicedData.

Definition at line 84 of file mitkImage.h.

◆ GetClassName()

virtual const char* mitk::Image::GetClassName ( ) const

virtual

Reimplemented from mitk::SlicedData.

◆ GetCountOfMaxValuedVoxels()

mitk::ScalarType mitk::Image::GetCountOfMaxValuedVoxels ( int t = 0 ) const

(DEPRECATED) Get the count of voxels with the largest scalar value in the dataset

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1442 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetCountOfMaxValuedVoxels(), and m_ImageStatistics.

◆ GetCountOfMaxValuedVoxelsNoRecompute()

unsigned int mitk::Image::GetCountOfMaxValuedVoxelsNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the count of voxels with the largest scalar value in the dataset

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1447 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetCountOfMaxValuedVoxelsNoRecompute(), and m_ImageStatistics.

◆ GetCountOfMinValuedVoxels()

mitk::ScalarType mitk::Image::GetCountOfMinValuedVoxels ( int t = 0 ) const

(DEPRECATED) Get the count of voxels with the smallest scalar value in the dataset

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1437 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetCountOfMinValuedVoxels(), and m_ImageStatistics.

◆ GetCountOfMinValuedVoxelsNoRecompute()

unsigned int mitk::Image::GetCountOfMinValuedVoxelsNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the count of voxels with the smallest scalar value in the dataset

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1452 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetCountOfMinValuedVoxelsNoRecompute(), and m_ImageStatistics.

◆ GetData()

void * mitk::Image::GetData ( )

virtual

Get the data vector of the complete image, i.e., of all channels linked together.

If you only want to access a slice, volume at a specific time or single channel use one of the SubImageSelector classes.

Deprecated:: (as of 2012_09) Please use image accessors instead: See Doxygen/Related-Pages/Concepts/Image. This method can be replaced by ImageWriteAccessor::GetData() or ImageReadAccessor::GetData()

Definition at line 118 of file mitkImage.cpp.

References GetChannelData(), mitk::BaseData::GetSource(), m_CompleteData, m_ImageDescriptor, and mitk::BaseData::m_Initialized.

Referenced by GetPixelValueByIndex(), mitk_GetMemoryViewFromImage(), and mitk_SetImageFromArray().

◆ GetDimension() [1/2]

unsigned int mitk::Image::GetDimension ( ) const

Get dimension of the image.

Definition at line 106 of file mitkImage.cpp.

References m_Dimension.

Referenced by QmitkSlicesInterpolator::AcceptAllInterpolations(), mitk::LabelSetImage::AddLayer(), mitk::SurfaceVtkMapper3D::ApplyAllProperties(), mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), mitk::ImageToOpenCVImageFilter::CheckImage(), mitk::MaskedAlgorithmHelper::CheckSupport(), mitk::MultiComponentImageDataComparisonFilter::CompareMultiComponentImage(), mitk::BoundingShapeCropper::ComputeData(), mitk::Tool::CreateEmptySegmentationNode(), mitk::LabelSetImage::CreateLabelMask(), mitk::SegTool2D::DetermineAffectedImageSlice(), QmitkPythonVariableStackTableModel::dropMimeData(), mitk::TestDICOMLoading::DumpImageInformation(), mitk::Equal(), mitk::ImageToIGTLMessageFilter::GenerateData(), mitk::DoseImageVtkMapper2D::GenerateDataForRenderer(), mitk::HeightFieldSurfaceClipImageFilter::GenerateOutputInformation(), QmitkSemanticRelationsUIHelper::GetPixmapFromImageNode(), GetPixmapFromImageNode(), mitk::DICOMSegmentationIO::GetWriterConfidenceLevel(), Image(), mitk::LabelSetImage::Initialize(), mitk::ContourModelSetToImageFilter::InitializeOutputEmpty(), mitk_GetMemoryViewFromImage(), mitk_SetImageFromArray(), QmitkSurfaceBasedInterpolatorWidget::OnToolManagerWorkingDataModified(), QmitkSliceBasedInterpolatorWidget::OnToolManagerWorkingDataModified(), mitk::AccessItkImageFunctor< X, VDimension, T1, T2, T3 >::operator()(), PrintSelf(), ReadVoxelInternal(), mitk::SegmentationInterpolationController::ScanWholeVolume(), mitk::LabelSetImage::SetActiveLayer(), mitk::LevelWindow::SetAuto(), mitk::SliceBasedInterpolationController::SetChangedSlice(), mitk::SegmentationInterpolationController::SetChangedVolume(), mitk::CompressedImageContainer::SetImage(), mitk::ToFCompositeFilter::SetInput(), mitk::ToFImageRecorderFilter::SetInput(), mitk::SegmentationInterpolationController::SetSegmentationVolume(), mitk::ImageSource::SplitRequestedRegion(), mitk::LabelSetImage::UpdateCenterOfMass(), and mitk::ImageWriter::WriteByITK().

◆ GetDimension() [2/2]

unsigned int mitk::Image::GetDimension ( int i ) const

Get the size of dimension i (e.g., i=0 results in the number of pixels in x-direction).

See also: GetDimensions()

Definition at line 111 of file mitkImage.cpp.

References m_Dimension, and m_Dimensions.

◆ GetDimensions()

unsigned int * mitk::Image::GetDimensions ( ) const

Get the sizes of all dimensions as an integer-array.

See also: GetDimension(int i);

Definition at line 1309 of file mitkImage.cpp.

References m_Dimensions.

Referenced by mitk::LabelSetImage::AddLayer(), mitk::pa::SpectralUnmixingFilterBase::AddRelativeErrorSettings(), mitk::LabelSetImage::Concatenate(), mitk::PythonService::CopyToPythonAsCvImage(), mitk::PythonService::CopyToPythonAsSimpleItkImage(), Image(), mitk::LabelSetImage::Initialize(), mitk::LevelWindow::SetAuto(), mitk::pa::SpectralUnmixingSO2::Verbose(), and mitk::ImageWriter::WriteByITK().

◆ GetImageDescriptor()

ImageDescriptor::Pointer mitk::Image::GetImageDescriptor ( ) const

inline

Definition at line 528 of file mitkImage.h.

Referenced by QmitkSlicesInterpolator::AcceptAllInterpolations(), and mitk::LabelSetImage::AddLayer().

◆ GetPixelType()

const mitk::PixelType mitk::Image::GetPixelType ( int n = 0 ) const

Returns the PixelType of channel n.

Definition at line 101 of file mitkImage.cpp.

References m_ImageDescriptor.

Referenced by mitk::LabelSetImage::AddLayer(), mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), mitk::MultiComponentImageDataComparisonFilter::CompareMultiComponentImage(), mitk::BoundingObjectCutter::ComputeData(), mitk::ImageStatisticsHolder::ComputeImageStatistics(), mitk::ConcentrationCurveGenerator::ConvertSignalToConcentrationCurve(), mitk::PythonService::CopyToPythonAsCvImage(), mitk::PythonService::CopyToPythonAsSimpleItkImage(), mitk::TestDICOMLoading::DumpImageInformation(), mitk::Equal(), mitk::ImageToIGTLMessageFilter::GenerateData(), mitk::RGBToRGBACastImageFilter::GenerateData(), mitk::MultiComponentImageDataComparisonFilter::GenerateData(), mitk::CompareImageDataFilter::GenerateData(), mitk::DoseImageVtkMapper2D::GenerateDataForRenderer(), mitk::ContourModelSetToImageFilter::GenerateOutputInformation(), mitk::SurfaceToImageFilter::GenerateOutputInformation(), mitk::HeightFieldSurfaceClipImageFilter::GenerateOutputInformation(), mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetConsecutivePixelsAsVector(), mitk::BoundingObjectCutter::GetOutputPixelType(), mitk::AutoCropImageFilter::GetOutputPixelType(), mitk::BoundingShapeCropper::GetOutputPixelType(), QmitkSemanticRelationsUIHelper::GetPixmapFromImageNode(), GetPixmapFromImageNode(), Image(), Initialize(), mitk::ContourModelSetToImageFilter::InitializeOutputEmpty(), QmitkDataNodeComponentAction::InitializeWithDataNode(), mitk::RGBToRGBACastImageFilter::IsRGBImage(), mitk::ImageMappingHelper::map(), mitk_GetMemoryViewFromImage(), mitk_SetImageFromArray(), QmitkSlicesInterpolator::OnAccept3DInterpolationClicked(), mitk::ReadVoxel(), mitk::LevelWindow::SetAuto(), mitk::CompressedImageContainer::SetImage(), mitk::SurfaceToImageFilter::Stencil3DImage(), and mitk::ImageWriter::WriteByITK().

◆ GetPixelValueByIndex()

double mitk::Image::GetPixelValueByIndex	(	const itk::Index< 3 > &	position,
		unsigned int	timestep = `0`,
		unsigned int	component = `0`
	)

Get the pixel value at one specific index position.

The pixel type is always being converted to double.

Deprecated:: (as of 2012_09) Please use image accessors instead: See Doxygen/Related-Pages/Concepts/Image. This method can be replaced by a method from ImagePixelWriteAccessor or ImagePixelReadAccessor

Definition at line 159 of file mitkImage.cpp.

References AccessPixel(), GetData(), mitk::PixelType::GetNumberOfComponents(), mitk::BaseData::GetTimeSteps(), m_ImageDescriptor, MITK_WARN, mitkPixelTypeMultiplex3, and offset.

Referenced by GetPixelValueByWorldCoordinate().

◆ GetPixelValueByWorldCoordinate()

double mitk::Image::GetPixelValueByWorldCoordinate	(	const mitk::Point3D &	position,
		unsigned int	timestep = `0`,
		unsigned int	component = `0`
	)

Get the pixel value at one specific world position.

The pixel type is always being converted to double. Please consider using image accessors instead: See Doxygen/Related-Pages/Concepts/Image. This method can be replaced by a templated method from ImagePixelWriteAccessor or ImagePixelReadAccessor

Definition at line 199 of file mitkImage.cpp.

References mitk::BaseData::GetGeometry(), GetPixelValueByIndex(), mitk::BaseData::GetTimeSteps(), and mitk::BaseGeometry::WorldToIndex().

◆ GetScalarValue2ndMax()

mitk::ScalarType mitk::Image::GetScalarValue2ndMax ( int t = 0 ) const

(DEPRECATED) Get the second largest value for scalar images

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1422 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValue2ndMax(), and m_ImageStatistics.

◆ GetScalarValue2ndMaxNoRecompute()

mitk::ScalarType mitk::Image::GetScalarValue2ndMaxNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the second largest value for scalar images, but do not recompute it first

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1432 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValue2ndMaxNoRecompute(), and m_ImageStatistics.

◆ GetScalarValue2ndMin()

mitk::ScalarType mitk::Image::GetScalarValue2ndMin ( int t = 0 ) const

(DEPRECATED) Get the second smallest value for scalar images

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1407 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValue2ndMin(), and m_ImageStatistics.

◆ GetScalarValue2ndMinNoRecompute()

mitk::ScalarType mitk::Image::GetScalarValue2ndMinNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the second smallest value for scalar images, but do not recompute it first

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1417 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValue2ndMinNoRecompute(), and m_ImageStatistics.

◆ GetScalarValueMax()

mitk::ScalarType mitk::Image::GetScalarValueMax ( int t = 0 ) const

(DEPRECATED) Get the maximum for scalar images

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1401 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValueMax(), and m_ImageStatistics.

◆ GetScalarValueMaxNoRecompute()

mitk::ScalarType mitk::Image::GetScalarValueMaxNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the largest value for scalar images, but do not recompute it first

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1427 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValueMaxNoRecompute(), and m_ImageStatistics.

◆ GetScalarValueMin()

mitk::ScalarType mitk::Image::GetScalarValueMin ( int t = 0 ) const

(DEPRECATED) Get the minimum for scalar images

Definition at line 1395 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValueMin(), and m_ImageStatistics.

◆ GetScalarValueMinNoRecompute()

mitk::ScalarType mitk::Image::GetScalarValueMinNoRecompute ( unsigned int t = 0 ) const

(DEPRECATED) Get the smallest value for scalar images, but do not recompute it first

Warning: This method is deprecated and will not be available in the future. Use the GetStatistics instead

Definition at line 1412 of file mitkImage.cpp.

References mitk::ImageStatisticsHolder::GetScalarValueMinNoRecompute(), and m_ImageStatistics.

◆ GetSliceData()

mitk::Image::ImageDataItemPointer mitk::Image::GetSliceData	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

Warning: for internal use only

Definition at line 243 of file mitkImage.cpp.

References GetSliceIndex(), mitk::BaseData::GetSource(), GetVolumeIndex(), IsValidSlice(), m_Channels, m_Dimensions, m_ImageDataArraysLock, m_ImageDescriptor, m_OffsetTable, mitk::SlicedData::m_RequestedRegion, mitk::SlicedData::m_RequestedRegionInitialized, m_Slices, m_Volumes, and ManageMemory.

Referenced by ReadVoxelInternal(), SetImportSlice(), and mitk::ToFCompositeFilter::SetInput().

◆ GetSliceIndex()

int mitk::Image::GetSliceIndex	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

protected

Definition at line 1155 of file mitkImage.cpp.

References IsValidSlice(), and m_Dimensions.

Referenced by AllocateSliceData(), GetSliceData(), GetVolumeData(), IsSliceSet(), and IsVolumeSet().

◆ GetStaticNameOfClass()

static const char* mitk::Image::GetStaticNameOfClass ( )

inlinestatic

Definition at line 84 of file mitkImage.h.

Referenced by mitk::ImageWriter::GetSupportedBaseData(), and mitk::BaseDataCompare::RegisterCoreEquals().

◆ GetStatistics()

StatisticsHolderPointer mitk::Image::GetStatistics ( ) const

inline

Returns a pointer to the ImageStatisticsHolder object that holds all statistics information for the image.

All Get-methods for statistics properties formerly accessible directly from an Image object are now moved to the new ImageStatisticsHolder object.

Definition at line 646 of file mitkImage.h.

Referenced by QmitkAdaptiveRegionGrowingToolGUI::OnPointAdded(), mitk::LevelWindow::SetAuto(), QmitkAdaptiveRegionGrowingToolGUI::SetInputImageNode(), and mitk::LevelWindow::SetToImageRange().

◆ GetVolumeData()

mitk::Image::ImageDataItemPointer mitk::Image::GetVolumeData	(	int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

◆ GetVolumeIndex()

int mitk::Image::GetVolumeIndex	(	int	t = `0`,
		int	n = `0`
	)		const

protected

Definition at line 1162 of file mitkImage.cpp.

References IsValidVolume(), and m_Dimensions.

Referenced by AllocateSliceData(), AllocateVolumeData(), GetChannelData(), GetSliceData(), GetVolumeData(), IsSliceSet(), and IsVolumeSet().

◆ GetVtkImageData() [1/2]

vtkImageData * mitk::Image::GetVtkImageData	(	int	t = `0`,
		int	n = `0`
	)

virtual

Get a volume at a specific time t of channel n as a vtkImageData.

Definition at line 217 of file mitkImage.cpp.

References mitk::BaseData::GetSource(), GetVolumeData(), and mitk::BaseData::m_Initialized.

Referenced by mitk::SurfaceVtkMapper3D::ApplyAllProperties(), mitk::ContourModelUtils::FillContourInSlice(), mitk::LabeledImageToSurfaceFilter::GenerateData(), mitk::ExtractSliceFilter::GenerateData(), mitk::GPUVolumeMapper3D::GenerateDataForRenderer(), mitk::VolumeMapperVtkSmart3D::GetInputImage(), mitk::ImageSource::GetVtkImageData(), mitk::GPUVolumeMapper3D::IsRenderable(), QmitkSlicesInterpolator::OnAcceptInterpolationClicked(), and writeVti().

◆ GetVtkImageData() [2/2]

const vtkImageData * mitk::Image::GetVtkImageData	(	int	t = `0`,
		int	n = `0`
	)		const

virtual

Definition at line 230 of file mitkImage.cpp.

References mitk::BaseData::GetSource(), GetVolumeData(), and mitk::BaseData::m_Initialized.

◆ Initialize() [1/10]

void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		unsigned int	dimension,
		const unsigned int *	dimensions,
		unsigned int	channels = `1`
	)

virtual

initialize new (or re-initialize) image information

Warning: Initialize() by pic assumes a plane, evenly spaced geometry starting at (0,0,0).

Definition at line 838 of file mitkImage.cpp.

References Clear(), ComputeOffsetTable(), FILL_C_ARRAY, mitk::SlicedData::GetNumberOfChannels(), Initialize(), m_Channels, m_Dimension, m_Dimensions, m_ImageDescriptor, mitk::BaseData::m_Initialized, mitk::SlicedData::m_LargestPossibleRegion, m_Slices, m_Volumes, MAX_IMAGE_DIMENSIONS, mitk::ImageDescriptor::New(), mitk::ProportionalTimeGeometry::New(), mitk::SlicedGeometry3D::New(), mitk::PlaneGeometry::New(), and mitk::BaseData::SetTimeGeometry().

Referenced by mitk::HeightFieldSurfaceClipImageFilter::GenerateOutputInformation().

◆ Initialize() [2/10]

void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		const mitk::BaseGeometry &	geometry,
		unsigned int	channels = `1`,
		int	tDim = `1`
	)

virtual

initialize new (or re-initialize) image information by a BaseGeometry

Parameters

tDim	defines the number of time steps for which the Image should be initialized

Definition at line 919 of file mitkImage.cpp.

References mitk::BaseGeometry::Clone(), Initialize(), and mitk::ProportionalTimeGeometry::New().

◆ Initialize() [3/10]

virtual void mitk::Image::Initialize	(	const mitk::PixelType &	,
		const mitk::TimeSlicedGeometry *	,
		unsigned	int,
		int
	)

inlinevirtual

initialize new (or re-initialize) image information by a TimeGeometry

Parameters

tDim	defines the number of time steps for which the Image should be initialized

Deprecated:: (as of 2013_09) Please use TimeGeometry instead of TimeSlicedGeometry. For more information see http://www.mitk.org/Development/Refactoring%20of%20the%20Geometry%20Classes%20-%20Part%201

Definition at line 289 of file mitkImage.h.

References DEPRECATED, and image.

◆ Initialize() [4/10]

void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		const mitk::TimeGeometry &	geometry,
		unsigned int	channels = `1`,
		int	tDim = `-1`
	)

virtual

Initialize new (or re-initialize) image information by a TimeGeometry.

Parameters

tDim	override time dimension if the value is bigger than 0 (Default -1)

Definition at line 929 of file mitkImage.cpp.

References mitk::TimeGeometry::Clone(), mitk::TimeGeometry::CountTimeSteps(), mitk::TimeGeometry::GetGeometryCloneForTimeStep(), mitk::TimeGeometry::GetGeometryForTimeStep(), Initialize(), MITK_WARN, mitk::SlicedData::SetGeometry(), and mitk::BaseData::SetTimeGeometry().

◆ Initialize() [5/10]

void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		int	sDim,
		const mitk::PlaneGeometry &	geometry2d,
		bool	flipped,
		unsigned int	channels = `1`,
		int	tDim = `1`
	)

virtual

initialize new (or re-initialize) image information by a PlaneGeometry and number of slices

Initializes the bounding box according to the width/height of the PlaneGeometry and sDim via SlicedGeometry3D::InitializeEvenlySpaced. The spacing is calculated from the PlaneGeometry.

See also: SlicedGeometry3D::InitializeEvenlySpaced

Deprecated:: (as of 2016_11) Use a left-handed or right-handed PlaneGeometry to define the direction of the image stack instead of the flipped parameter

Definition at line 1000 of file mitkImage.cpp.

References mitkThrow.

◆ Initialize() [6/10]

void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		int	sDim,
		const mitk::PlaneGeometry &	geometry2d,
		unsigned int	channels = `1`,
		int	tDim = `1`
	)

virtual

Definition at line 1010 of file mitkImage.cpp.

References mitk::PlaneGeometry::Clone(), Initialize(), and mitk::SlicedGeometry3D::New().

◆ Initialize() [7/10]

void mitk::Image::Initialize ( const mitk::Image * image )

virtual

initialize new (or re-initialize) image information by another mitk-image. Only the header is used, not the data vector!

Reimplemented in mitk::LabelSetImage.

Definition at line 1021 of file mitkImage.cpp.

References GetPixelType(), mitk::BaseData::GetTimeGeometry(), and Initialize().

◆ Initialize() [8/10]

void mitk::Image::Initialize ( const mitk::ImageDescriptor::Pointer inDesc )

virtual

Definition at line 828 of file mitkImage.cpp.

References Initialize(), and m_ImageDescriptor.

◆ Initialize() [9/10]

void mitk::Image::Initialize	(	vtkImageData *	vtkimagedata,
		int	channels = `1`,
		int	tDim = `-1`,
		int	sDim = `-1`,
		int	pDim = `-1`
	)

virtual

initialize new (or re-initialize) image information by pic. Dimensions and Geometry3D /PlaneGeometry are set according to the tags in pic. Only the header is used, not the data vector! Use SetPicVolume(pic) to set the data vector.

Parameters

tDim	override time dimension (n[3]) in pic (if >0)
sDim	override z-space dimension (n[2]) in pic (if >0)

Warning: Initialize() by pic assumes a plane, evenly spaced geometry starting at (0,0,0). initialize new (or re-initialize) image information by vtkimagedata, a vtk-image. Only the header is used, not the data vector! Use SetVolume(vtkimage->GetScalarPointer()) to set the data vector.

Parameters

tDim	override time dimension in vtkimagedata (if >0 and <)
sDim	override z-space dimension in vtkimagedata (if >0 and <)
pDim	override y-space dimension in vtkimagedata (if >0 and <)

Definition at line 1026 of file mitkImage.cpp.

References mitk::FillVector3D(), mitk::SlicedGeometry3D::GetPlaneGeometry(), mitk::SlicedData::GetSlicedGeometry(), Initialize(), m_Dimension, m_Dimensions, mitk::MakePixelType(), mitk::ProportionalTimeGeometry::New(), mitk::BaseGeometry::SetOrigin(), mitk::BaseGeometry::SetSpacing(), and mitk::BaseData::SetTimeGeometry().

◆ Initialize() [10/10]

void mitk::Image::Initialize ( )

overrideprotected

Definition at line 803 of file mitkImage.cpp.

References m_Channels, m_CompleteData, m_ImageStatistics, m_Slices, m_Volumes, and mitk::SlicedData::SetRequestedRegionToLargestPossibleRegion().

Referenced by Image(), Initialize(), mitk::LabelSetImage::InitializeByLabeledImage(), and mitk::USImage::USImage().

◆ InitializeByItk()

template<typename itkImageType >

void mitk::Image::InitializeByItk	(	const itkImageType *	itkimage,
		int	channels = `1`,
		int	tDim = `-1`,
		int	sDim = `-1`
	)

inline

initialize new (or re-initialize) image information by itkimage, a templated itk-image. Only the header is used, not the data vector! Use SetVolume(itkimage->GetBufferPointer()) to set the data vector.

Parameters

tDim	override time dimension in itkimage (if >0 and <)
sDim	override z-space dimension in itkimage (if >0 and <)

Definition at line 366 of file mitkImage.h.

References mitk::eps, mitk::FillVector3D(), mitk::BaseGeometry::GetIndexToWorldTransform(), mitk::SlicedGeometry3D::InitializeEvenlySpaced(), MITK_DEBUG, MITK_ERROR, MITK_WARN, mitk::BaseGeometry::SetOrigin(), and mitk::BaseGeometry::SetSpacing().

◆ InternalClone()

virtual itk::LightObject::Pointer mitk::Image::InternalClone ( ) const

inlineoverrideprotectedvirtual

Definition at line 648 of file mitkImage.h.

◆ IsChannelSet()

bool mitk::Image::IsChannelSet ( int n = 0 ) const

overridevirtual

Check whether the channel n is set.

Implements mitk::SlicedData.

Definition at line 636 of file mitkImage.cpp.

References IsValidChannel(), m_Channels, m_Dimensions, and m_ImageDataArraysLock.

Referenced by SetImportChannel().

◆ IsRotated()

bool mitk::Image::IsRotated ( ) const

Returns true if an image is rotated, i.e. its geometry's transformation matrix has nonzero elements besides the diagonal. Non-diagonal elements are checked if larger then 1/1000 of the matrix' trace.

Definition at line 1367 of file mitkImage.cpp.

References mitk::BaseData::GetGeometry(), mitk::BaseGeometry::GetIndexToWorldTransform(), and k().

Referenced by mitk::RegEvaluationMapper2D::SetDefaultProperties().

◆ IsSliceSet()

bool mitk::Image::IsSliceSet	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

overridevirtual

Get the complete image, i.e., all channels linked together, as a mitkIpPicDescriptor.

If you only want to access a slice, volume at a specific time or single channel use one of the SubImageSelector classes. Check whether slice s at time t in channel n is set

Implements mitk::SlicedData.

Definition at line 572 of file mitkImage.cpp.

References GetSliceIndex(), GetVolumeIndex(), IsValidSlice(), m_Channels, m_ImageDataArraysLock, m_Slices, and m_Volumes.

Referenced by SetImportSlice().

◆ IsValidChannel()

bool mitk::Image::IsValidChannel ( int n = 0 ) const

virtual

Check whether the channel n is valid, i.e., is (or can be) inside of the image.

Definition at line 1116 of file mitkImage.cpp.

References IsValidSlice(), and mitk::BaseData::m_Initialized.

Referenced by GetChannelData(), IsChannelSet(), and SetImportChannel().

◆ IsValidSlice()

bool mitk::Image::IsValidSlice	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

virtual

Check whether slice s at time t in channel n is valid, i.e., is (or can be) inside of the image.

Definition at line 1099 of file mitkImage.cpp.

References mitk::SlicedData::GetNumberOfChannels(), m_Dimensions, and mitk::BaseData::m_Initialized.

Referenced by GetSliceData(), GetSliceIndex(), IsSliceSet(), IsValidChannel(), IsValidVolume(), and SetImportSlice().

◆ IsValidTimeStep()

bool mitk::Image::IsValidTimeStep ( int t ) const

protectedvirtual

Definition at line 1143 of file mitkImage.cpp.

References m_Dimension, and m_Dimensions.

Referenced by mitk::ImageStatisticsHolder::ComputeImageStatistics(), mitk::ImageStatisticsHolder::Expand(), and mitk::ImageStatisticsHolder::IsValidTimeStep().

◆ IsValidVolume()

bool mitk::Image::IsValidVolume	(	int	t = `0`,
		int	n = `0`
	)		const

virtual

Check whether volume at time t in channel n is valid, i.e., is (or can be) inside of the image.

Definition at line 1108 of file mitkImage.cpp.

References IsValidSlice(), and mitk::BaseData::m_Initialized.

Referenced by GetVolumeData(), GetVolumeIndex(), IsVolumeSet(), and SetImportVolume().

◆ IsVolumeSet()

bool mitk::Image::IsVolumeSet	(	int	t = `0`,
		int	n = `0`
	)		const

overridevirtual

Check whether volume at time t in channel n is set.

Implements mitk::SlicedData.

Definition at line 602 of file mitkImage.cpp.

References GetSliceIndex(), GetVolumeIndex(), IsValidVolume(), m_Channels, m_Dimensions, m_ImageDataArraysLock, m_Slices, and m_Volumes.

Referenced by mitk::ExtractSliceFilter::GenerateData(), and SetImportVolume().

◆ New()

static Pointer mitk::Image::New ( )

static

Referenced by QmitkSlicesInterpolator::AcceptAllInterpolations(), mitk::ToFNrrdImageWriter::Add(), mitk::LabelSetImage::AddLayer(), mitk::pa::SpectralUnmixingFilterBase::AddOutputs(), mitk::PhotoacousticFilterService::ApplyBeamforming(), mitk::PhotoacousticFilterService::ApplyCropping(), Assert_ItkImportWithinAccessByItkSucceded_ReturnsTrue(), mitk::ConcentrationCurveGenerator::CalculateAverageBaselineImage(), CalculateGreyLevelDistanceZoneFeatures(), mitk::PixelManipulationTool::CalculateImage(), mitk::CastToMitkImage(), CheckIntersectionPointsOfTwoGeometry3D(), CheckIntersectionWithPointCloud(), CheckIntersectionWithRotatedGeometry(), CheckIntersectionWithRotatedGeometry90(), CheckPlanesInsideBoundingBox(), CheckPlanesInsideBoundingBoxOnlyOnOneSlice(), CheckPlanesOutsideOfBoundingBox(), mitk::CLUtil::ClosingBinary(), mitk::FastMarchingTool::ConfirmSegmentation(), mitk::ConcentrationCurveGenerator::Convert(), mitk::OpenCVToMitkImageFilter::ConvertCVMatToMitkImage(), mitk::pa::InSilicoTissueVolume::ConvertToMitkImage(), mitk::PythonService::CopyCvImageFromPython(), mitk::PythonService::CopySimpleItkImageFromPython(), mitk::CreateDistanceImageFromSurfaceFilter::CreateDistanceImageFromSurfaceFilter(), mitk::LabelSetImage::CreateLabelMask(), mitk::ROIBasedParameterFitImageGenerator::DoImageGeneration(), mitk::ImageLiveWireContourModelFilter::DumpMaskImage(), mitk::CompareImageDataFilter::EstimateValueDifference(), ExecuteMultiResolution(), ExecuteSpecificWaveletTransformation(), mitk::PhotoacousticFilterService::ExtendImage(), ExtractSlicesFromImages(), mitk::ModelSignalImageGenerator::Generate(), mitk::CastToFloatImageFilter::GenerateData(), mitk::FeatureBasedEdgeDetectionFilter::GenerateData(), mitk::BeamformingFilter::GenerateData(), mitk::MaskAndCutRoiImageFilter::GenerateData(), mitk::OverwriteSliceImageFilter::GenerateData(), mitk::ImageGenerationHelper::GenerateDynamicImageMITK(), mitk::GenerateDynamicTestImageMITK(), mitk::ImageGenerator::GenerateGradientImage(), GenerateGradientWithDimXImage(), mitk::ImageGenerator::GenerateImageFromReference(), GenerateMaskImage(), generateModelFitTestNode(), generateModelFitTestStorage(), mitk::ImageGenerator::GenerateRandomImage(), mitk::GenerateTestFrame(), mitk::GenerateTestMaskMITK(), GetEmptyTestImageWithGeometry(), mitk::ToFOpenCVImageGrabber::GetImage(), mitk::CompressedImageContainer::GetImage(), mitk::MaskGenerator::GetMask(), mitk::PhotoacousticMotionCorrectionFilter::GetMatrix(), mitk::USImageSource::GetNextImage(), mitk::USTelemedImageSource::GetNextRawImage(), mitk::IGTLMessageToUSImageFilter::GetNextRawImage(), mitk::USDiPhASImageSource::GetNextRawImage(), mitk::DataCollection::GetProbabilityMap(), mitk::BooleanOperation::GetResult(), mitk::HotspotMaskGenerator::HotspotMaskGenerator(), mitk::IgnorePixelMaskGenerator::IgnorePixelMaskGenerator(), mitk::USDiPhASImageSource::ImageDataCallback(), mitk::ImageMaskGenerator::ImageMaskGenerator(), mitk::OclImage::InitializeMITKImage(), mitk::LabelSetImageToSurfaceFilter::InternalProcessing(), mitk::ShapeBasedInterpolationAlgorithm::Interpolate(), mitk::AutoCropImageFilter::ITKCrop3DImage(), mitk::DicomSeriesReader::LoadDicom(), LocalHistograms(), LocalHistograms2(), localStatistic(), main(), mitk::ImageSource::MakeOutput(), mitk::ImageMappingHelper::map(), mitkImageTest(), mitkLevelWindowTest(), mitkModelFitUIDHelperTest(), mitkPropertySerializationTest(), mitkRegistrationBaseTest(), mitkSimpleHistogramTest(), mitk::CESTImageNormalizationFilter::NormalizeTimeSteps(), mitk::RegionGrowingTool::OnMouseMoved(), mitk::RegionGrowingTool::OnMousePressedOutside(), mitk::CorrectorTool2D::OnMouseReleased(), mitk::PhotoacousticMotionCorrectionFilter::PhotoacousticMotionCorrectionFilter(), mitk::PlanarFigureMaskGenerator::PlanarFigureMaskGenerator(), ProcessFeatureImages(), mitk::ImageVtkXmlIO::Read(), mitk::ImageVtkLegacyIO::Read(), mitk::RawImageFileReaderService::Read(), mitk::ItkImageIO::Read(), mitk::LabelSetImageIO::Read(), mitk::RTPlanReaderService::Read(), mitk::TransformationOperation::ResampleImage(), ResampleImageToReferenceFunction(), mitk::pa::VolumeManipulator::RescaleImage(), mitk::CreateDistanceImageFromSurfaceFilter::Reset(), mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter(), mitk::USDiPhASImageSource::SetRecordingStatus(), mitk::ImageMaskGenerator::SetTimeStep(), mitk::BinaryThresholdTool::SetupPreviewNode(), mitk::BinaryThresholdULTool::SetupPreviewNode(), mitk::pa::SpectralUnmixingSO2::SpectralUnmixingSO2(), mitk::SurfaceToImageFilter::Stencil3DImage(), StoreResultImages(), mitk::ShowSegmentationAsSmoothedSurface::ThreadedUpdateFunction(), mitk::ToFDebugHelper::ToFDebugHelper::ShowCVDistanceImage(), mitk::OclImage::TransferDataToCPU(), mitk::CLUtil::Transform(), mitk::RawImageFileReader::TypedGenerateData(), mitk::FastMarchingTool3D::Update(), mitk::FastMarchingTool::Update(), mitk::USDevice::USDevice(), mitk::USDiPhASImageSource::USDiPhASImageSource(), Valid_ImageExpandedByTimestep_ReturnsTrue(), mitk::pa::Volume::Volume(), and mitk::RTDoseReaderService::~RTDoseReaderService().

◆ PrintSelf()

void mitk::Image::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Definition at line 1336 of file mitkImage.cpp.

References mitk::PixelType::GetBitsPerComponent(), mitk::PixelType::GetComponentTypeAsString(), GetDimension(), mitk::PixelType::GetNumberOfComponents(), mitk::PixelType::GetPixelTypeAsString(), mitk::PixelType::GetSize(), m_Dimension, m_ImageDescriptor, mitk::BaseData::m_Initialized, and mitk::BaseData::PrintSelf().

◆ SetChannel()

bool mitk::Image::SetChannel	(	const void *	data,
		int	n = `0`
	)

virtual

Set data in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a channel (at least is not smaller than a channel), since there is no chance to check this.

The data is copied to an array managed by the image. If the image shall reference the data, use SetImportChannel with ImportMemoryManagementType set to ReferenceMemory. For importing ITK images use of mitk:: ITKImageImport is recommended.

See also: SetPicChannel, SetImportChannel

Definition at line 675 of file mitkImage.cpp.

References CopyMemory, and SetImportChannel().

◆ SetGeometry()

void mitk::Image::SetGeometry ( BaseGeometry * aGeometry3D )

overridevirtual

Sets a geometry to an image.

Reimplemented from mitk::BaseData.

Definition at line 1321 of file mitkImage.cpp.

References mitk::TimeGeometry::CountTimeSteps(), mitk::TimeGeometry::GetGeometryForTimeStep(), mitk::BaseGeometry::GetImageGeometry(), mitk::BaseData::GetTimeGeometry(), MITK_INFO, and mitk::SlicedData::SetGeometry().

Referenced by mitk::HeightFieldSurfaceClipImageFilter::GenerateOutputInformation().

◆ SetImportChannel()

bool mitk::Image::SetImportChannel	(	void *	data,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a channel (at least is not smaller than a channel), since there is no chance to check this.

The data is managed according to the parameter importMemoryManagement.

See also: SetPicChannel

Definition at line 761 of file mitkImage.cpp.

References AllocateChannelData(), GetChannelData(), IsChannelSet(), IsValidChannel(), m_ImageDescriptor, and m_OffsetTable.

Referenced by SetChannel().

◆ SetImportSlice()

bool mitk::Image::SetImportSlice	(	void *	data,
		int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data as slice s at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a slice (at least is not smaller than a slice), since there is no chance to check this.

The data is managed according to the parameter importMemoryManagement.

See also: SetPicSlice

Definition at line 681 of file mitkImage.cpp.

References AllocateSliceData(), GetSliceData(), IsSliceSet(), IsValidSlice(), m_ImageDescriptor, and m_OffsetTable.

Referenced by SetSlice().

◆ SetImportVolume() [1/2]

bool mitk::Image::SetImportVolume	(	void *	data,
		int	t = `0`,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data as volume at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a volume (at least is not smaller than a volume), since there is no chance to check this.

The data is managed according to the parameter importMemoryManagement.

See also: SetPicVolume

Definition at line 716 of file mitkImage.cpp.

References AllocateVolumeData(), GetVolumeData(), IsValidVolume(), IsVolumeSet(), m_ImageDescriptor, and m_OffsetTable.

Referenced by SetImportVolume(), and SetVolume().

◆ SetImportVolume() [2/2]

bool mitk::Image::SetImportVolume	(	const void *	const_data,
		int	t = `0`,
		int	n = `0`
	)

virtual

Definition at line 756 of file mitkImage.cpp.

References CopyMemory, and SetImportVolume().

◆ SetSlice()

bool mitk::Image::SetSlice	(	const void *	data,
		int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)

virtual

Set data as slice s at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a slice (at least is not smaller than a slice), since there is no chance to check this.

The data is copied to an array managed by the image. If the image shall reference the data, use SetImportSlice with ImportMemoryManagementType set to ReferenceMemory. For importing ITK images use of mitk:: ITKImageImport is recommended.

See also: SetPicSlice, SetImportSlice, SetImportVolume

Definition at line 663 of file mitkImage.cpp.

References CopyMemory, and SetImportSlice().

◆ SetVolume()

bool mitk::Image::SetVolume	(	const void *	data,
		int	t = `0`,
		int	n = `0`
	)

virtual

Set data as volume at time t in channel n. It is in the responsibility of the caller to ensure that the data vector data is really a volume (at least is not smaller than a volume), since there is no chance to check this.

The data is copied to an array managed by the image. If the image shall reference the data, use SetImportVolume with ImportMemoryManagementType set to ReferenceMemory. For importing ITK images use of mitk:: ITKImageImport is recommended.

See also: SetPicVolume, SetImportVolume

Definition at line 669 of file mitkImage.cpp.

References CopyMemory, and SetImportVolume().

Referenced by mitk::ContourModelUtils::FillContourInSlice(), Image(), ITKSetVolume(), mitk::BinaryThresholdTool::ITKThresholding(), ITKThresholding(), mitk::BinaryThresholdTool::ITKThresholdingOldBinary(), ITKThresholdingOldBinary(), QmitkSlicesInterpolator::OnAccept3DInterpolationClicked(), and mitk::USImage::USImage().

Member Data Documentation

◆ m_Channels

ImageDataItemPointerArray mitk::Image::m_Channels

mutableprotected

Definition at line 688 of file mitkImage.h.

Referenced by AllocateChannelData(), AllocateSliceData(), AllocateVolumeData(), GetChannelData(), GetSliceData(), GetVolumeData(), Initialize(), IsChannelSet(), IsSliceSet(), and IsVolumeSet().

◆ m_CompleteData

ImageDataItemPointer mitk::Image::m_CompleteData

protected

Definition at line 700 of file mitkImage.h.

Referenced by GetData(), and Initialize().

◆ m_Dimension

unsigned int mitk::Image::m_Dimension

protected

Definition at line 693 of file mitkImage.h.

Referenced by ComputeOffsetTable(), GetChannelData(), GetDimension(), Initialize(), IsValidTimeStep(), and PrintSelf().

◆ m_Dimensions

unsigned int* mitk::Image::m_Dimensions

protected

Definition at line 695 of file mitkImage.h.

Referenced by AllocateVolumeData(), Clear(), ComputeOffsetTable(), GetChannelData(), GetDimension(), GetDimensions(), GetSliceData(), GetSliceIndex(), GetVolumeData(), GetVolumeIndex(), Image(), Initialize(), IsChannelSet(), IsValidSlice(), IsValidTimeStep(), and IsVolumeSet().

◆ m_ImageDataArraysLock

itk::SimpleFastMutexLock mitk::Image::m_ImageDataArraysLock

mutableprotected

Definition at line 691 of file mitkImage.h.

Referenced by AllocateChannelData(), AllocateSliceData(), AllocateVolumeData(), GetChannelData(), GetSliceData(), GetVolumeData(), IsChannelSet(), IsSliceSet(), and IsVolumeSet().

◆ m_ImageDescriptor

ImageDescriptor::Pointer mitk::Image::m_ImageDescriptor

protected

Definition at line 697 of file mitkImage.h.

Referenced by AllocateChannelData(), AllocateSliceData(), AllocateVolumeData(), GetChannelData(), GetData(), GetPixelType(), GetPixelValueByIndex(), GetSliceData(), GetVolumeData(), Initialize(), PrintSelf(), SetImportChannel(), SetImportSlice(), and SetImportVolume().

◆ m_ImageStatistics

StatisticsHolderPointer mitk::Image::m_ImageStatistics

protected

Definition at line 704 of file mitkImage.h.

Referenced by GetCountOfMaxValuedVoxels(), GetCountOfMaxValuedVoxelsNoRecompute(), GetCountOfMinValuedVoxels(), GetCountOfMinValuedVoxelsNoRecompute(), GetScalarValue2ndMax(), GetScalarValue2ndMaxNoRecompute(), GetScalarValue2ndMin(), GetScalarValue2ndMinNoRecompute(), GetScalarValueMax(), GetScalarValueMaxNoRecompute(), GetScalarValueMin(), GetScalarValueMinNoRecompute(), Initialize(), and ~Image().

◆ m_OffsetTable

vcl_size_t* mitk::Image::m_OffsetTable

protected

Definition at line 699 of file mitkImage.h.

Referenced by AllocateChannelData(), AllocateSliceData(), AllocateVolumeData(), ComputeOffsetTable(), GetChannelData(), GetSliceData(), GetVolumeData(), SetImportChannel(), SetImportSlice(), SetImportVolume(), and ~Image().

◆ m_Slices

ImageDataItemPointerArray mitk::Image::m_Slices

mutableprotected

Definition at line 690 of file mitkImage.h.

Referenced by AllocateSliceData(), GetChannelData(), GetSliceData(), GetVolumeData(), Initialize(), IsSliceSet(), and IsVolumeSet().

◆ m_Volumes

ImageDataItemPointerArray mitk::Image::m_Volumes

mutableprotected

Definition at line 689 of file mitkImage.h.

Referenced by AllocateSliceData(), AllocateVolumeData(), GetChannelData(), GetSliceData(), GetVolumeData(), Initialize(), IsSliceSet(), and IsVolumeSet().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ HistogramType

◆ ImageDataItemPointer

◆ ImageDataItemPointerArray

◆ MutexHolder

◆ Pointer

◆ Self

◆ StatisticsHolderPointer

◆ Superclass

Member Enumeration Documentation

◆ ImportMemoryManagementType

Constructor & Destructor Documentation

◆ Image() [1/2]

◆ Image() [2/2]

◆ ~Image()

Member Function Documentation

◆ AllocateChannelData()

◆ AllocateSliceData()

◆ AllocateVolumeData()

◆ Clear()

◆ Clone()

◆ ComputeOffsetTable()

◆ Expand()

◆ GetChannelData()

◆ GetChannelDescriptor()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetCountOfMaxValuedVoxels()

◆ GetCountOfMaxValuedVoxelsNoRecompute()

◆ GetCountOfMinValuedVoxels()

◆ GetCountOfMinValuedVoxelsNoRecompute()

◆ GetData()

◆ GetDimension() [1/2]

◆ GetDimension() [2/2]

◆ GetDimensions()

◆ GetImageDescriptor()

◆ GetPixelType()

◆ GetPixelValueByIndex()

◆ GetPixelValueByWorldCoordinate()

◆ GetScalarValue2ndMax()

◆ GetScalarValue2ndMaxNoRecompute()

◆ GetScalarValue2ndMin()

◆ GetScalarValue2ndMinNoRecompute()

◆ GetScalarValueMax()

◆ GetScalarValueMaxNoRecompute()

◆ GetScalarValueMin()

◆ GetScalarValueMinNoRecompute()

◆ GetSliceData()

◆ GetSliceIndex()

◆ GetStaticNameOfClass()

◆ GetStatistics()

◆ GetVolumeData()

◆ GetVolumeIndex()

◆ GetVtkImageData() [1/2]

◆ GetVtkImageData() [2/2]

◆ Initialize() [1/10]

◆ Initialize() [2/10]

◆ Initialize() [3/10]

◆ Initialize() [4/10]

◆ Initialize() [5/10]

◆ Initialize() [6/10]

◆ Initialize() [7/10]

◆ Initialize() [8/10]

◆ Initialize() [9/10]

◆ Initialize() [10/10]

◆ InitializeByItk()

◆ InternalClone()

◆ IsChannelSet()

◆ IsRotated()

◆ IsSliceSet()

◆ IsValidChannel()

◆ IsValidSlice()
