Manages and coordinates instances of mitk::Tool. More...

#include <mitkToolManager.h>

Inheritance diagram for mitk::ToolManager:

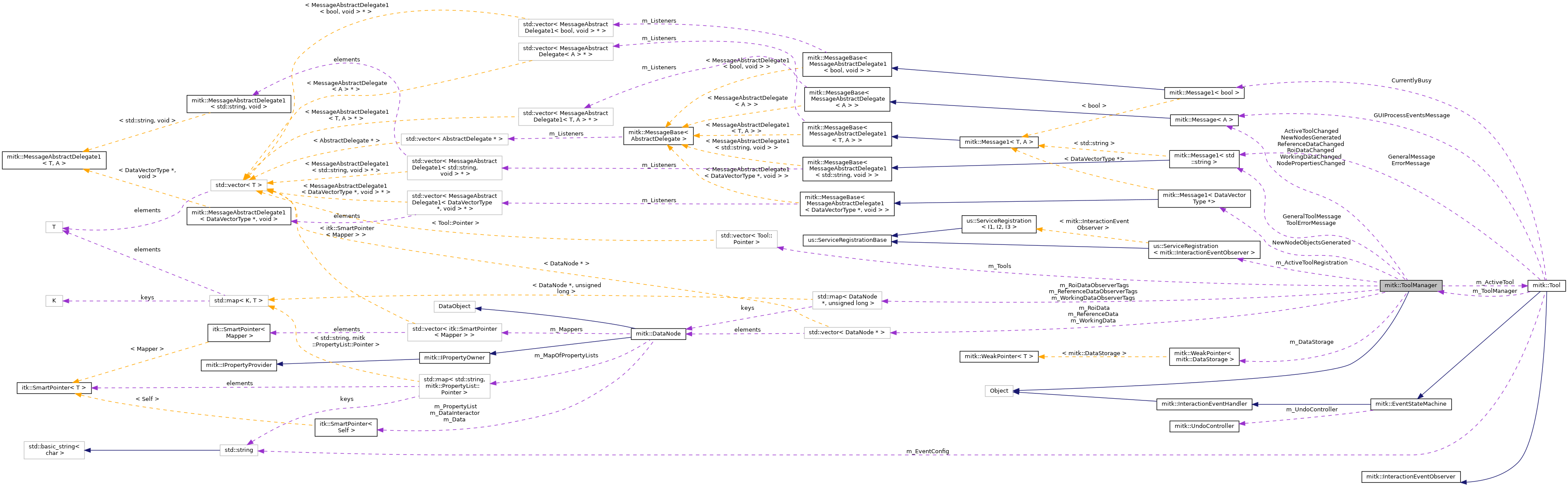

Collaboration diagram for mitk::ToolManager:

[legend]

Public Types
typedef std::vector< Tool::Pointer >	ToolVectorType

typedef std::vector< Tool::ConstPointer >	ToolVectorTypeConst

typedef std::vector< DataNode * >	DataVectorType

typedef std::map< DataNode *, unsigned long >	NodeTagMapType

Public Member Functions
	mitkClassMacroItkParent (ToolManager, itk::Object)

	mitkNewMacro1Param (ToolManager, DataStorage *)

const ToolVectorTypeConst	GetTools ()
	Gives you a list of all tools. This is const on purpose. More...

int	GetToolID (const Tool *tool)

Tool *	GetToolById (int id)

bool	ActivateTool (int id)

template<class T >
int	GetToolIdByToolType ()

int	GetActiveToolID ()

Tool *	GetActiveTool ()

void	SetReferenceData (DataVectorType)

void	SetReferenceData (DataNode *)

void	SetWorkingData (DataVectorType)

void	SetWorkingData (DataNode *)

void	SetRoiData (DataVectorType)

void	SetRoiData (DataNode *)

DataVectorType	GetReferenceData ()

DataNode *	GetReferenceData (int)

DataVectorType	GetWorkingData ()

DataNode *	GetWorkingData (unsigned int)

DataVectorType	GetRoiData ()

DataNode *	GetRoiData (int idx)

DataStorage *	GetDataStorage ()

void	SetDataStorage (DataStorage &storage)

void	RegisterClient ()

void	UnregisterClient ()

void	InitializeTools ()
	Initialize all classes derived from mitk::Tool by itkObjectFactoy. More...

void	OnOneOfTheReferenceDataDeletedConst (const itk::Object *caller, const itk::EventObject &e)

void	OnOneOfTheReferenceDataDeleted (itk::Object *caller, const itk::EventObject &e)

void	OnOneOfTheWorkingDataDeletedConst (const itk::Object *caller, const itk::EventObject &e)

void	OnOneOfTheWorkingDataDeleted (itk::Object *caller, const itk::EventObject &e)

void	OnOneOfTheRoiDataDeletedConst (const itk::Object *caller, const itk::EventObject &e)

void	OnOneOfTheRoiDataDeleted (itk::Object *caller, const itk::EventObject &e)

void	OnToolErrorMessage (std::string s)

void	OnGeneralToolMessage (std::string s)

Public Attributes
Message	NodePropertiesChanged

Message	NewNodesGenerated

Message1< DataVectorType * >	NewNodeObjectsGenerated

Message	ActiveToolChanged

Message	ReferenceDataChanged

Message	WorkingDataChanged

Message	RoiDataChanged

Message1< std::string >	ToolErrorMessage

Message1< std::string >	GeneralToolMessage

Protected Member Functions
	ToolManager (DataStorage *storage)

	~ToolManager () override

void	OnNodeRemoved (const mitk::DataNode *node)
	Callback for NodeRemove events. More...

Detailed Description

Manages and coordinates instances of mitk::Tool.

See also: QmitkToolSelectionBox; QmitkToolReferenceDataSelectionBox; QmitkToolWorkingDataSelectionBox; Tool; QmitkSegmentationView

There is a separate page describing the general design of QmitkSegmentationView: Technical design of QmitkSegmentation

This class creates and manages several instances of mitk::Tool.

ToolManager creates instances of mitk::Tool by asking the itk::ObjectFactory to list all known implementations of mitk::Tool. As a result, one has to implement both a subclass of mitk::Tool and a matching subclass of itk::ObjectFactoryBase that is registered to the top-level itk::ObjectFactory. For an example, see mitkContourToolFactory.h. (this limitiation of one-class-one-factory is due to the implementation of itk::ObjectFactory). In MITK, the right place to register the factories to itk::ObjectFactory is the mitk::QMCoreObjectFactory or mitk::SBCoreObjectFactory.

ToolManager knows a set of "reference" DataNodes and a set of "working" DataNodes. The first application are segmentation tools, where the reference is the original image and the working data the (kind of) binary segmentation. However, ToolManager is implemented more generally, so that there could be other tools that work, e.g., with surfaces.

There is a set of events that are sent by ToolManager. At the moment these are TODO update documentation:
- mitk::ToolReferenceDataChangedEvent whenever somebody calls SetReferenceData. Most of the time this actually means that the data has changed, but there might be cases where the same data is passed to SetReferenceData a second time, so don't rely on the assumption that something actually changed.
- mitk::ToolSelectedEvent is sent when a (truly) different tool was activated. In reaction to this event you can ask for the active Tool using GetActiveTool or GetActiveToolID (where nullptr or -1 indicate that NO tool is active at the moment).

Design descisions:

Not a singleton, because there could be two functionalities using tools, each one with different reference/working data.

$Author$

Definition at line 82 of file mitkToolManager.h.

Member Typedef Documentation

◆ DataVectorType

typedef std::vector<DataNode *> mitk::ToolManager::DataVectorType

Definition at line 87 of file mitkToolManager.h.

◆ NodeTagMapType

typedef std::map<DataNode *, unsigned long> mitk::ToolManager::NodeTagMapType

Definition at line 88 of file mitkToolManager.h.

◆ ToolVectorType

typedef std::vector<Tool::Pointer> mitk::ToolManager::ToolVectorType

Definition at line 85 of file mitkToolManager.h.

◆ ToolVectorTypeConst

typedef std::vector<Tool::ConstPointer> mitk::ToolManager::ToolVectorTypeConst

Definition at line 86 of file mitkToolManager.h.

Constructor & Destructor Documentation

◆ ToolManager()

mitk::ToolManager::ToolManager ( DataStorage * storage )

protected

You may specify a list of tool "groups" that should be available for this ToolManager. Every Tool can report its group as a string. This constructor will try to find the tool's group inside the supplied string. If there is a match, the tool is accepted. Effectively, you can provide a human readable list like "default, lymphnodevolumetry, oldERISstuff".

Definition at line 27 of file mitkToolManager.cpp.

References mitk::CoreObjectFactory::GetInstance(), and InitializeTools().

◆ ~ToolManager()

mitk::ToolManager::~ToolManager ( )

overrideprotected

Definition at line 35 of file mitkToolManager.cpp.

References ActiveToolChanged, mitk::Tool::Deactivated(), GetDataStorage(), m_ActiveTool, m_ActiveToolID, m_ActiveToolRegistration, m_ReferenceDataObserverTags, m_WorkingData, m_WorkingDataObserverTags, OnNodeRemoved(), mitk::MessageBase< AbstractDelegate >::RemoveListener(), mitk::DataStorage::RemoveNodeEvent, and mitk::Message< A >::Send().

Member Function Documentation

◆ ActivateTool()

bool mitk::ToolManager::ActivateTool ( int id )

Parameters

id	The tool to activate. Provide -1 for disabling any tools. Counting starts with 0. Registeres a listner for NodeRemoved event at DataStorage (see mitk::ToolManager::OnNodeRemoved).

Definition at line 130 of file mitkToolManager.cpp.

References mitk::Tool::Activated(), ActiveToolChanged, mitk::MessageBase< AbstractDelegate >::AddListener(), mitk::Tool::Deactivated(), GetDataStorage(), us::GetModuleContext(), GetReferenceData(), GetToolById(), m_ActiveTool, m_ActiveToolID, m_ActiveToolRegistration, m_RegisteredClients, OnNodeRemoved(), ModuleContext::RegisterService(), mitk::DataStorage::RemoveNodeEvent, and mitk::Message< A >::Send().

Referenced by mitk::BinaryThresholdTool::AcceptCurrentThresholdValue(), mitk::BinaryThresholdULTool::AcceptCurrentThresholdValue(), mitk::PixelManipulationTool::Activated(), mitk::SegmentationsProcessingTool::Activated(), mitk::BinaryThresholdTool::Activated(), mitk::BinaryThresholdULTool::Activated(), mitk::BinaryThresholdTool::CancelThresholding(), mitk::BinaryThresholdULTool::CancelThresholding(), mitk::FastMarchingTool3D::ConfirmSegmentation(), mitk::FastMarchingTool::ConfirmSegmentation(), QmitkSurfaceStampWidget::OnStamp(), QmitkMaskStampWidget::QmitkMaskStampWidget(), QmitkSurfaceStampWidget::QmitkSurfaceStampWidget(), SetWorkingData(), and QmitkLabelSetWidget::UpdateControls().

◆ GetActiveTool()

mitk::Tool * mitk::ToolManager::GetActiveTool ( )

Returns: nullptr for "No tool is active"

Definition at line 456 of file mitkToolManager.cpp.

References m_ActiveTool.

◆ GetActiveToolID()

int mitk::ToolManager::GetActiveToolID ( )

Returns: -1 for "No tool is active"

Definition at line 451 of file mitkToolManager.cpp.

References m_ActiveToolID.

◆ GetDataStorage()

mitk::DataStorage * mitk::ToolManager::GetDataStorage ( )

Definition at line 423 of file mitkToolManager.cpp.

References m_DataStorage.

Referenced by mitk::FastMarchingTool3D::Activated(), mitk::FastMarchingTool::Activated(), ActivateTool(), mitk::SegTool2D::AddContourmarker(), mitk::PixelManipulationTool::AddImageToDataStorage(), mitk::PaintbrushTool::CheckIfCurrentSliceHasChanged(), mitk::LiveWireTool2D::ClearSegmentation(), mitk::BinaryThresholdTool::Deactivated(), mitk::BinaryThresholdULTool::Deactivated(), mitk::PaintbrushTool::Deactivated(), mitk::FeedbackContourTool::Deactivated(), mitk::FastMarchingTool3D::Deactivated(), mitk::FastMarchingTool::Deactivated(), mitk::WatershedTool::DoIt(), mitk::PickingTool::GetDataStorage(), mitk::AutoSegmentationTool::GetTargetSegmentationNode(), mitk::PaintbrushTool::OnMousePressed(), mitk::FeedbackContourTool::SetFeedbackContourVisible(), mitk::BinaryThresholdTool::SetupPreviewNode(), mitk::BinaryThresholdULTool::SetupPreviewNode(), mitk::LiveWireTool2D::~LiveWireTool2D(), and ~ToolManager().

◆ GetReferenceData() [1/2]

mitk::ToolManager::DataVectorType mitk::ToolManager::GetReferenceData ( )

Definition at line 384 of file mitkToolManager.cpp.

References m_ReferenceData.

Referenced by mitk::PixelManipulationTool::Activated(), mitk::BinaryThresholdTool::Activated(), mitk::BinaryThresholdULTool::Activated(), mitk::FastMarchingTool3D::Activated(), mitk::FastMarchingTool::Activated(), ActivateTool(), mitk::WatershedTool::DoIt(), mitk::SegTool2D::GetAffectedReferenceSlice(), mitk::PickingTool::GetReferenceData(), mitk::AutoSegmentationTool::GetTargetSegmentationNode(), mitk::FastMarchingTool3D::Initialize(), mitk::FastMarchingTool::Initialize(), and mitk::RegionGrowingTool::OnMousePressedOutside().

◆ GetReferenceData() [2/2]

mitk::DataNode * mitk::ToolManager::GetReferenceData ( int idx )

Definition at line 389 of file mitkToolManager.cpp.

References m_ReferenceData.

◆ GetRoiData() [1/2]

mitk::ToolManager::DataVectorType mitk::ToolManager::GetRoiData ( )

Definition at line 406 of file mitkToolManager.cpp.

References m_RoiData.

Referenced by mitk::PixelManipulationTool::CalculateImage(), mitk::BinaryThresholdTool::OnRoiDataChanged(), and mitk::BinaryThresholdULTool::OnRoiDataChanged().

◆ GetRoiData() [2/2]

mitk::DataNode * mitk::ToolManager::GetRoiData ( int idx )

Definition at line 411 of file mitkToolManager.cpp.

References m_RoiData.

◆ GetToolById()

mitk::Tool * mitk::ToolManager::GetToolById ( int id )

Definition at line 118 of file mitkToolManager.cpp.

References m_Tools.

Referenced by ActivateTool(), QmitkSurfaceBasedInterpolatorWidget::OnShowMarkers(), and QmitkSurfaceBasedInterpolatorWidget::OnToggleWidgetActivation().

◆ GetToolID()

int mitk::ToolManager::GetToolID ( const Tool * tool )

Definition at line 491 of file mitkToolManager.cpp.

References m_Tools.

◆ GetToolIdByToolType()

template<class T >

int mitk::ToolManager::GetToolIdByToolType ( )

inline

Definition at line 127 of file mitkToolManager.h.

◆ GetTools()

const mitk::ToolManager::ToolVectorTypeConst mitk::ToolManager::GetTools ( )

Gives you a list of all tools. This is const on purpose.

Definition at line 106 of file mitkToolManager.cpp.

References m_Tools.

Referenced by QmitkSurfaceBasedInterpolatorWidget::OnShowMarkers(), QmitkSurfaceBasedInterpolatorWidget::OnToggleWidgetActivation(), and QmitkSliceBasedInterpolatorWidget::OnToggleWidgetActivation().

◆ GetWorkingData() [1/2]

mitk::ToolManager::DataVectorType mitk::ToolManager::GetWorkingData ( )

Definition at line 401 of file mitkToolManager.cpp.

References m_WorkingData.

Referenced by mitk::FastMarchingTool3D::Activated(), mitk::SegTool2D::AddContourmarker(), mitk::SegmentationInteractor::ChangeActiveLabel(), mitk::PaintbrushTool::CheckIfCurrentSliceHasChanged(), mitk::LiveWireTool2D::ClearSegmentation(), mitk::LiveWireTool2D::ConfirmSegmentation(), mitk::FastMarchingTool::ConfirmSegmentation(), mitk::BinaryThresholdTool::CreateNewSegmentationFromThreshold(), mitk::BinaryThresholdULTool::CreateNewSegmentationFromThreshold(), mitk::SegTool2D::GetAffectedWorkingSlice(), mitk::AutoSegmentationTool::GetCurrentSegmentationName(), mitk::AutoSegmentationTool::GetTargetSegmentationNode(), mitk::PickingTool::GetWorkingData(), mitk::PaintbrushTool::MouseMoved(), mitk::SetRegionTool::OnMousePressed(), mitk::SetRegionTool::OnMouseReleased(), mitk::ContourTool::OnMouseReleased(), mitk::CorrectorTool2D::OnMouseReleased(), mitk::RegionGrowingTool::OnMouseReleased(), mitk::PickingTool::OnPointAdded(), QmitkSurfaceStampWidget::OnStamp(), QmitkMaskStampWidget::OnStamp(), QmitkSurfaceBasedInterpolatorWidget::OnToggleWidgetActivation(), QmitkSliceBasedInterpolatorWidget::OnToggleWidgetActivation(), QmitkSurfaceBasedInterpolatorWidget::OnToolManagerWorkingDataModified(), QmitkSliceBasedInterpolatorWidget::OnToolManagerWorkingDataModified(), mitk::SegmentationsProcessingTool::ProcessAllObjects(), QmitkLabelSetWidget::SetDataStorage(), mitk::FeedbackContourTool::SetFeedbackContourVisible(), mitk::BinaryThresholdTool::SetupPreviewNode(), mitk::BinaryThresholdULTool::SetupPreviewNode(), QmitkLabelSetWidget::UpdateControls(), mitk::SegTool2D::WriteBackSegmentationResult(), and mitk::SegTool2D::WriteSliceToVolume().

◆ GetWorkingData() [2/2]

mitk::DataNode * mitk::ToolManager::GetWorkingData ( unsigned int idx )

Definition at line 440 of file mitkToolManager.cpp.

References m_WorkingData.

◆ InitializeTools()

void mitk::ToolManager::InitializeTools ( )

Initialize all classes derived from mitk::Tool by itkObjectFactoy.

Definition at line 62 of file mitkToolManager.cpp.

References ActiveToolChanged, mitk::Tool::Deactivated(), m_ActiveTool, m_ActiveToolID, m_ActiveToolRegistration, m_Tools, OnGeneralToolMessage(), OnToolErrorMessage(), and mitk::Message< A >::Send().

Referenced by ToolManager().

◆ mitkClassMacroItkParent()

mitk::ToolManager::mitkClassMacroItkParent	(	ToolManager	,
		itk::Object
	)

◆ mitkNewMacro1Param()

mitk::ToolManager::mitkNewMacro1Param	(	ToolManager	,
		DataStorage *
	)

◆ OnGeneralToolMessage()

void mitk::ToolManager::OnGeneralToolMessage ( std::string s )

Definition at line 101 of file mitkToolManager.cpp.

References GeneralToolMessage.

Referenced by InitializeTools().

◆ OnNodeRemoved()

void mitk::ToolManager::OnNodeRemoved ( const mitk::DataNode * node )

protected

Callback for NodeRemove events.

Definition at line 504 of file mitkToolManager.cpp.

References OnOneOfTheReferenceDataDeleted(), OnOneOfTheRoiDataDeleted(), and OnOneOfTheWorkingDataDeleted().

Referenced by ActivateTool(), and ~ToolManager().

◆ OnOneOfTheReferenceDataDeleted()

void mitk::ToolManager::OnOneOfTheReferenceDataDeleted	(	itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 219 of file mitkToolManager.cpp.

References m_ReferenceData, m_ReferenceDataObserverTags, and SetReferenceData().

Referenced by OnNodeRemoved(), OnOneOfTheReferenceDataDeletedConst(), and SetReferenceData().

◆ OnOneOfTheReferenceDataDeletedConst()

void mitk::ToolManager::OnOneOfTheReferenceDataDeletedConst	(	const itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 214 of file mitkToolManager.cpp.

References OnOneOfTheReferenceDataDeleted().

Referenced by SetReferenceData().

◆ OnOneOfTheRoiDataDeleted()

void mitk::ToolManager::OnOneOfTheRoiDataDeleted	(	itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 366 of file mitkToolManager.cpp.

References m_RoiData, m_RoiDataObserverTags, and SetRoiData().

Referenced by OnNodeRemoved(), OnOneOfTheRoiDataDeletedConst(), and SetRoiData().

◆ OnOneOfTheRoiDataDeletedConst()

void mitk::ToolManager::OnOneOfTheRoiDataDeletedConst	(	const itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 361 of file mitkToolManager.cpp.

References OnOneOfTheRoiDataDeleted().

Referenced by SetRoiData().

◆ OnOneOfTheWorkingDataDeleted()

void mitk::ToolManager::OnOneOfTheWorkingDataDeleted	(	itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 289 of file mitkToolManager.cpp.

References m_WorkingData, m_WorkingDataObserverTags, and SetWorkingData().

Referenced by OnNodeRemoved(), OnOneOfTheWorkingDataDeletedConst(), and SetWorkingData().

◆ OnOneOfTheWorkingDataDeletedConst()

void mitk::ToolManager::OnOneOfTheWorkingDataDeletedConst	(	const itk::Object *	caller,
		const itk::EventObject &	e
	)

Definition at line 284 of file mitkToolManager.cpp.

References OnOneOfTheWorkingDataDeleted().

Referenced by SetWorkingData().

◆ OnToolErrorMessage()

void mitk::ToolManager::OnToolErrorMessage ( std::string s )

Definition at line 96 of file mitkToolManager.cpp.

References ToolErrorMessage.

Referenced by InitializeTools().

◆ RegisterClient()

void mitk::ToolManager::RegisterClient ( )

Definition at line 461 of file mitkToolManager.cpp.

References mitk::Tool::Activated(), us::GetModuleContext(), m_ActiveTool, m_ActiveToolRegistration, m_RegisteredClients, and ModuleContext::RegisterService().

◆ SetDataStorage()

void mitk::ToolManager::SetDataStorage ( DataStorage & storage )

Definition at line 435 of file mitkToolManager.cpp.

References m_DataStorage.

◆ SetReferenceData() [1/2]

void mitk::ToolManager::SetReferenceData ( DataVectorType data )

Definition at line 182 of file mitkToolManager.cpp.

References m_ReferenceData, m_ReferenceDataObserverTags, OnOneOfTheReferenceDataDeleted(), OnOneOfTheReferenceDataDeletedConst(), ReferenceDataChanged, and mitk::Message< A >::Send().

Referenced by OnOneOfTheReferenceDataDeleted(), and SetReferenceData().

◆ SetReferenceData() [2/2]

void mitk::ToolManager::SetReferenceData ( DataNode * data )

Definition at line 237 of file mitkToolManager.cpp.

References SetReferenceData().

◆ SetRoiData() [1/2]

void mitk::ToolManager::SetRoiData ( DataVectorType data )

Definition at line 319 of file mitkToolManager.cpp.

References m_RoiData, m_RoiDataObserverTags, OnOneOfTheRoiDataDeleted(), OnOneOfTheRoiDataDeletedConst(), RoiDataChanged, and mitk::Message< A >::Send().

Referenced by OnOneOfTheRoiDataDeleted(), and SetRoiData().

◆ SetRoiData() [2/2]

void mitk::ToolManager::SetRoiData ( DataNode * data )

Definition at line 350 of file mitkToolManager.cpp.

References SetRoiData().

◆ SetWorkingData() [1/2]

void mitk::ToolManager::SetWorkingData ( DataVectorType data )

Definition at line 247 of file mitkToolManager.cpp.

References ActivateTool(), m_WorkingData, m_WorkingDataObserverTags, OnOneOfTheWorkingDataDeleted(), OnOneOfTheWorkingDataDeletedConst(), mitk::Message< A >::Send(), and WorkingDataChanged.

Referenced by mitk::BinaryThresholdTool::CreateNewSegmentationFromThreshold(), mitk::BinaryThresholdULTool::CreateNewSegmentationFromThreshold(), OnOneOfTheWorkingDataDeleted(), and SetWorkingData().

◆ SetWorkingData() [2/2]

void mitk::ToolManager::SetWorkingData ( DataNode * data )

Definition at line 307 of file mitkToolManager.cpp.

References SetWorkingData().

◆ UnregisterClient()

void mitk::ToolManager::UnregisterClient ( )

Definition at line 475 of file mitkToolManager.cpp.

References mitk::Tool::Deactivated(), m_ActiveTool, m_ActiveToolRegistration, and m_RegisteredClients.

Member Data Documentation

◆ ActiveToolChanged

Message mitk::ToolManager::ActiveToolChanged

Definition at line 94 of file mitkToolManager.h.

Referenced by ActivateTool(), InitializeTools(), and ~ToolManager().

◆ GeneralToolMessage

Message1<std::string> mitk::ToolManager::GeneralToolMessage

Definition at line 100 of file mitkToolManager.h.

Referenced by OnGeneralToolMessage().

◆ m_ActiveTool

Tool* mitk::ToolManager::m_ActiveTool

protected

Definition at line 261 of file mitkToolManager.h.

Referenced by ActivateTool(), GetActiveTool(), InitializeTools(), RegisterClient(), UnregisterClient(), and ~ToolManager().

◆ m_ActiveToolID

int mitk::ToolManager::m_ActiveToolID

protected

Definition at line 262 of file mitkToolManager.h.

Referenced by ActivateTool(), GetActiveToolID(), InitializeTools(), and ~ToolManager().

◆ m_ActiveToolRegistration

us::ServiceRegistration<InteractionEventObserver> mitk::ToolManager::m_ActiveToolRegistration

protected

Definition at line 263 of file mitkToolManager.h.

Referenced by ActivateTool(), InitializeTools(), RegisterClient(), UnregisterClient(), and ~ToolManager().

◆ m_DataStorage

WeakPointer<DataStorage> mitk::ToolManager::m_DataStorage

protected

Definition at line 276 of file mitkToolManager.h.

Referenced by GetDataStorage(), and SetDataStorage().

◆ m_ReferenceData

DataVectorType mitk::ToolManager::m_ReferenceData

protected

Definition at line 265 of file mitkToolManager.h.

Referenced by GetReferenceData(), OnOneOfTheReferenceDataDeleted(), and SetReferenceData().

◆ m_ReferenceDataObserverTags

NodeTagMapType mitk::ToolManager::m_ReferenceDataObserverTags

protected

Definition at line 266 of file mitkToolManager.h.

Referenced by OnOneOfTheReferenceDataDeleted(), SetReferenceData(), and ~ToolManager().

◆ m_RegisteredClients

int mitk::ToolManager::m_RegisteredClients

protected

Definition at line 274 of file mitkToolManager.h.

Referenced by ActivateTool(), RegisterClient(), and UnregisterClient().

◆ m_RoiData

DataVectorType mitk::ToolManager::m_RoiData

protected

Definition at line 271 of file mitkToolManager.h.

Referenced by GetRoiData(), OnOneOfTheRoiDataDeleted(), and SetRoiData().

◆ m_RoiDataObserverTags

NodeTagMapType mitk::ToolManager::m_RoiDataObserverTags

protected

Definition at line 272 of file mitkToolManager.h.

Referenced by OnOneOfTheRoiDataDeleted(), and SetRoiData().

◆ m_Tools

ToolVectorType mitk::ToolManager::m_Tools

protected

Definition at line 259 of file mitkToolManager.h.

Referenced by GetToolById(), GetToolID(), GetTools(), and InitializeTools().

◆ m_WorkingData

DataVectorType mitk::ToolManager::m_WorkingData

protected

Definition at line 268 of file mitkToolManager.h.

Referenced by GetWorkingData(), OnOneOfTheWorkingDataDeleted(), SetWorkingData(), and ~ToolManager().

◆ m_WorkingDataObserverTags

NodeTagMapType mitk::ToolManager::m_WorkingDataObserverTags

protected

Definition at line 269 of file mitkToolManager.h.

Referenced by OnOneOfTheWorkingDataDeleted(), SetWorkingData(), and ~ToolManager().

◆ NewNodeObjectsGenerated

Message1<DataVectorType *> mitk::ToolManager::NewNodeObjectsGenerated

Definition at line 92 of file mitkToolManager.h.

◆ NewNodesGenerated

Message mitk::ToolManager::NewNodesGenerated

Definition at line 91 of file mitkToolManager.h.

◆ NodePropertiesChanged

Message mitk::ToolManager::NodePropertiesChanged

Definition at line 90 of file mitkToolManager.h.

◆ ReferenceDataChanged

Message mitk::ToolManager::ReferenceDataChanged

Definition at line 95 of file mitkToolManager.h.

Referenced by SetReferenceData().

◆ RoiDataChanged

Message mitk::ToolManager::RoiDataChanged

Definition at line 97 of file mitkToolManager.h.

Referenced by mitk::PixelManipulationTool::Activated(), mitk::BinaryThresholdTool::Activated(), mitk::BinaryThresholdULTool::Activated(), mitk::PixelManipulationTool::Deactivated(), mitk::BinaryThresholdTool::Deactivated(), mitk::BinaryThresholdULTool::Deactivated(), and SetRoiData().

◆ ToolErrorMessage

Message1<std::string> mitk::ToolManager::ToolErrorMessage

Definition at line 99 of file mitkToolManager.h.

Referenced by OnToolErrorMessage().

◆ WorkingDataChanged

Message mitk::ToolManager::WorkingDataChanged

Definition at line 96 of file mitkToolManager.h.

Referenced by mitk::PaintbrushTool::Activated(), mitk::PaintbrushTool::Deactivated(), QmitkSliceBasedInterpolatorWidget::QmitkSliceBasedInterpolatorWidget(), QmitkSurfaceBasedInterpolatorWidget::QmitkSurfaceBasedInterpolatorWidget(), QmitkLabelSetWidget::SetDataStorage(), SetWorkingData(), QmitkSliceBasedInterpolatorWidget::~QmitkSliceBasedInterpolatorWidget(), and QmitkSurfaceBasedInterpolatorWidget::~QmitkSurfaceBasedInterpolatorWidget().

The documentation for this class was generated from the following files:

Protected Attributes
ToolVectorType	m_Tools

Tool *	m_ActiveTool

int	m_ActiveToolID

us::ServiceRegistration< InteractionEventObserver >	m_ActiveToolRegistration

DataVectorType	m_ReferenceData

NodeTagMapType	m_ReferenceDataObserverTags

DataVectorType	m_WorkingData

NodeTagMapType	m_WorkingDataObserverTags

DataVectorType	m_RoiData

NodeTagMapType	m_RoiDataObserverTags

int	m_RegisteredClients

WeakPointer< DataStorage >	m_DataStorage

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ DataVectorType

◆ NodeTagMapType

◆ ToolVectorType

◆ ToolVectorTypeConst

Constructor & Destructor Documentation

◆ ToolManager()

◆ ~ToolManager()

Member Function Documentation

◆ ActivateTool()

◆ GetActiveTool()

◆ GetActiveToolID()

◆ GetDataStorage()

◆ GetReferenceData() [1/2]

◆ GetReferenceData() [2/2]

◆ GetRoiData() [1/2]

◆ GetRoiData() [2/2]

◆ GetToolById()

◆ GetToolID()

◆ GetToolIdByToolType()

◆ GetTools()

◆ GetWorkingData() [1/2]

◆ GetWorkingData() [2/2]

◆ InitializeTools()

◆ mitkClassMacroItkParent()

◆ mitkNewMacro1Param()

◆ OnGeneralToolMessage()

◆ OnNodeRemoved()

◆ OnOneOfTheReferenceDataDeleted()

◆ OnOneOfTheReferenceDataDeletedConst()

◆ OnOneOfTheRoiDataDeleted()

◆ OnOneOfTheRoiDataDeletedConst()

◆ OnOneOfTheWorkingDataDeleted()

◆ OnOneOfTheWorkingDataDeletedConst()

◆ OnToolErrorMessage()

◆ RegisterClient()

◆ SetDataStorage()

◆ SetReferenceData() [1/2]

◆ SetReferenceData() [2/2]

◆ SetRoiData() [1/2]

◆ SetRoiData() [2/2]

◆ SetWorkingData() [1/2]

◆ SetWorkingData() [2/2]

◆ UnregisterClient()

Member Data Documentation

◆ ActiveToolChanged

◆ GeneralToolMessage

◆ m_ActiveTool

◆ m_ActiveToolID

◆ m_ActiveToolRegistration

◆ m_DataStorage

◆ m_ReferenceData

◆ m_ReferenceDataObserverTags

◆ m_RegisteredClients

◆ m_RoiData

◆ m_RoiDataObserverTags

◆ m_Tools

◆ m_WorkingData

◆ m_WorkingDataObserverTags

◆ NewNodeObjectsGenerated

◆ NewNodesGenerated

◆ NodePropertiesChanged

◆ ReferenceDataChanged

◆ RoiDataChanged

◆ ToolErrorMessage

◆ WorkingDataChanged
