Display the data selection of a ToolManager. More...

#include <QmitkToolWorkingDataSelectionBox.h>

Inheritance diagram for QmitkToolWorkingDataSelectionBox:

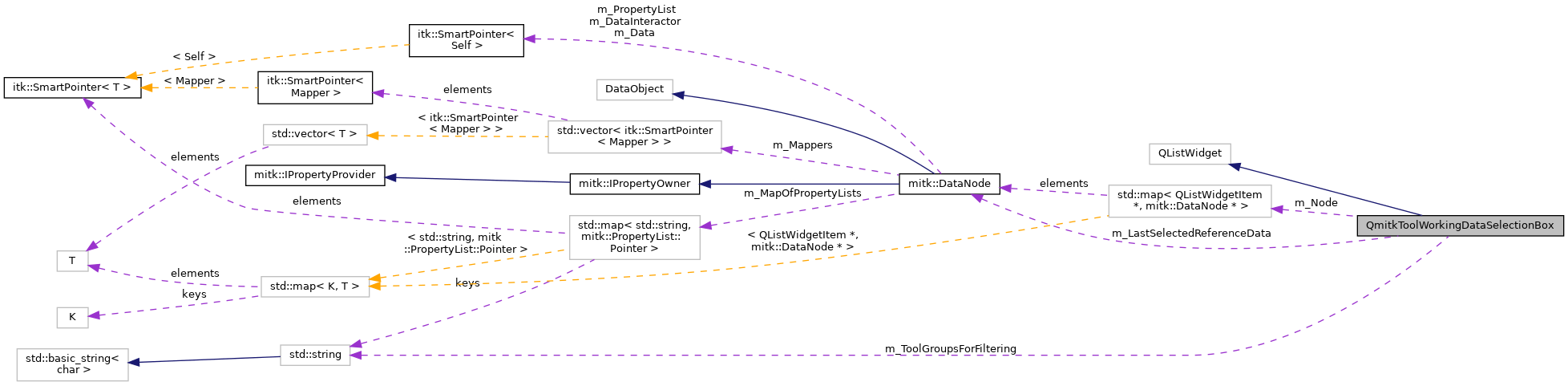

Collaboration diagram for QmitkToolWorkingDataSelectionBox:

[legend]

Public Types
enum	DisplayMode { ListDataIfAllToolsMatch, ListDataIfAnyToolMatches }
	What kind of items should be displayed. More...

Signals
void	WorkingNodeSelected (const mitk::DataNode *)

Public Member Functions
	QmitkToolWorkingDataSelectionBox (QWidget *parent=nullptr)

	~QmitkToolWorkingDataSelectionBox () override

mitk::DataStorage *	GetDataStorage ()

void	SetDataStorage (mitk::DataStorage &storage)

void	UpdateDataDisplay ()
	Can be called to trigger an update of the list contents. More...

mitk::ToolManager *	GetToolManager ()
	Returns the associated mitk::ToolManager. More...

void	SetToolManager (mitk::ToolManager &)
	Tell this object to listen to another ToolManager. More...

mitk::ToolManager::DataVectorType	GetAllNodes (bool onlyDerivedFromOriginal=true)
	A list of all displayed DataNode objects. This method might be convenient for program modules that want to display additional information about these nodes, like a total volume of all segmentations, etc. More...

mitk::ToolManager::DataVectorType	GetSelectedNodes ()
	A list of all selected DataNode objects. This method might be convenient for program modules that want to display additional information about these nodes, like a total volume of all segmentations, etc. More...

mitk::DataNode *	GetSelectedNode ()
	Like GetSelectedNodes(), but will only return one object. Will only return what QListView gives as selected object (documentation says nothing is returned if list is in Single selection mode). More...

void	OnToolManagerWorkingDataModified ()
	Callback function, no need to call it. This is used to observe and react to changes in the mitk::ToolManager object. More...

void	OnToolManagerReferenceDataModified ()
	Callback function, no need to call it. This is used to observe and react to changes in the mitk::ToolManager object. More...

Protected Types
typedef std::map< QListWidgetItem , mitk::DataNode >	ItemNodeMapType

Protected Slots
void	OnWorkingDataSelectionChanged ()

Protected Attributes
mitk::ToolManager::Pointer	m_ToolManager

ItemNodeMapType	m_Node

bool	m_SelfCall

mitk::DataNode *	m_LastSelectedReferenceData

std::string	m_ToolGroupsForFiltering

bool	m_DisplayOnlyDerivedNodes

Detailed Description

Display the data selection of a ToolManager.

See also: mitk::ToolManager; mitk::DataStorage

Shows the working data of a ToolManager in a segmentation setting. By default only the segmentation name is shown.

The working images (segmentations) are listed in a QListView, each row telling the color and name of a single segmentation. One or several segmentations can be selected to be the "active" segmentations.

Author: maleike

Definition at line 39 of file QmitkToolWorkingDataSelectionBox.h.

Member Typedef Documentation

◆ ItemNodeMapType

typedef std::map<QListWidgetItem *, mitk::DataNode *> QmitkToolWorkingDataSelectionBox::ItemNodeMapType

protected

Definition at line 123 of file QmitkToolWorkingDataSelectionBox.h.

Member Enumeration Documentation

◆ DisplayMode

enum QmitkToolWorkingDataSelectionBox::DisplayMode

What kind of items should be displayed.

Every mitk::Tool holds a NodePredicateBase object, telling the kind of data that this tool will successfully work with. There are two ways that this list box deals with these predicates.

DEFAULT is: list data if ANY one of the displayed tools' predicate matches. Other option: list data if ALL one of the displayed tools' predicate matches

Enumerator
ListDataIfAllToolsMatch
ListDataIfAnyToolMatches

Definition at line 54 of file QmitkToolWorkingDataSelectionBox.h.

Constructor & Destructor Documentation

◆ QmitkToolWorkingDataSelectionBox()

QmitkToolWorkingDataSelectionBox::QmitkToolWorkingDataSelectionBox ( QWidget * parent = nullptr )

Definition at line 16 of file QmitkToolWorkingDataSelectionBox.cpp.

References mitk::ToolManagerProvider::GetInstance(), mitk::ToolManagerProvider::GetToolManager(), m_ToolManager, OnToolManagerReferenceDataModified(), OnToolManagerWorkingDataModified(), and OnWorkingDataSelectionChanged().

◆ ~QmitkToolWorkingDataSelectionBox()

QmitkToolWorkingDataSelectionBox::~QmitkToolWorkingDataSelectionBox ( )

override

Definition at line 38 of file QmitkToolWorkingDataSelectionBox.cpp.

Member Function Documentation

◆ GetAllNodes()

mitk::ToolManager::DataVectorType QmitkToolWorkingDataSelectionBox::GetAllNodes ( bool onlyDerivedFromOriginal = true )

A list of all displayed DataNode objects. This method might be convenient for program modules that want to display additional information about these nodes, like a total volume of all segmentations, etc.

Build up predicate:

ask each tool that is displayed for a predicate (indicating the type of data that this tool will work with)
connect all predicates using AND or OR, depending on the parameter m_DisplayMode (ListDataIfAllToolsMatch or ListDataIfAnyToolMatches)
See also
SetDisplayMode
Two modes here:
display only nodes below reference data from ToolManager (onlyDerivedFromOriginal == true)
display everything matching the predicate (else)

Definition at line 207 of file QmitkToolWorkingDataSelectionBox.cpp.

References mitk::DataStorage::GetAll(), mitk::DataStorage::GetDerivations(), mitk::Tool::GetGroup(), mitk::Tool::GetName(), mitk::DataStorage::GetSubset(), mitk::Tool::GetWorkingDataPreference(), m_ToolGroupsForFiltering, m_ToolManager, and mitk::NodePredicateOr::New().

Referenced by UpdateDataDisplay().

◆ GetDataStorage()

mitk::DataStorage * QmitkToolWorkingDataSelectionBox::GetDataStorage ( )

Definition at line 42 of file QmitkToolWorkingDataSelectionBox.cpp.

References m_ToolManager.

◆ GetSelectedNode()

mitk::DataNode * QmitkToolWorkingDataSelectionBox::GetSelectedNode ( )

Like GetSelectedNodes(), but will only return one object. Will only return what QListView gives as selected object (documentation says nothing is returned if list is in Single selection mode).

Definition at line 192 of file QmitkToolWorkingDataSelectionBox.cpp.

References m_Node.

◆ GetSelectedNodes()

mitk::ToolManager::DataVectorType QmitkToolWorkingDataSelectionBox::GetSelectedNodes ( )

A list of all selected DataNode objects. This method might be convenient for program modules that want to display additional information about these nodes, like a total volume of all segmentations, etc.

Definition at line 163 of file QmitkToolWorkingDataSelectionBox.cpp.

References m_Node.

Referenced by OnWorkingDataSelectionChanged().
