#include <mitkInteractionEventHandler.h>

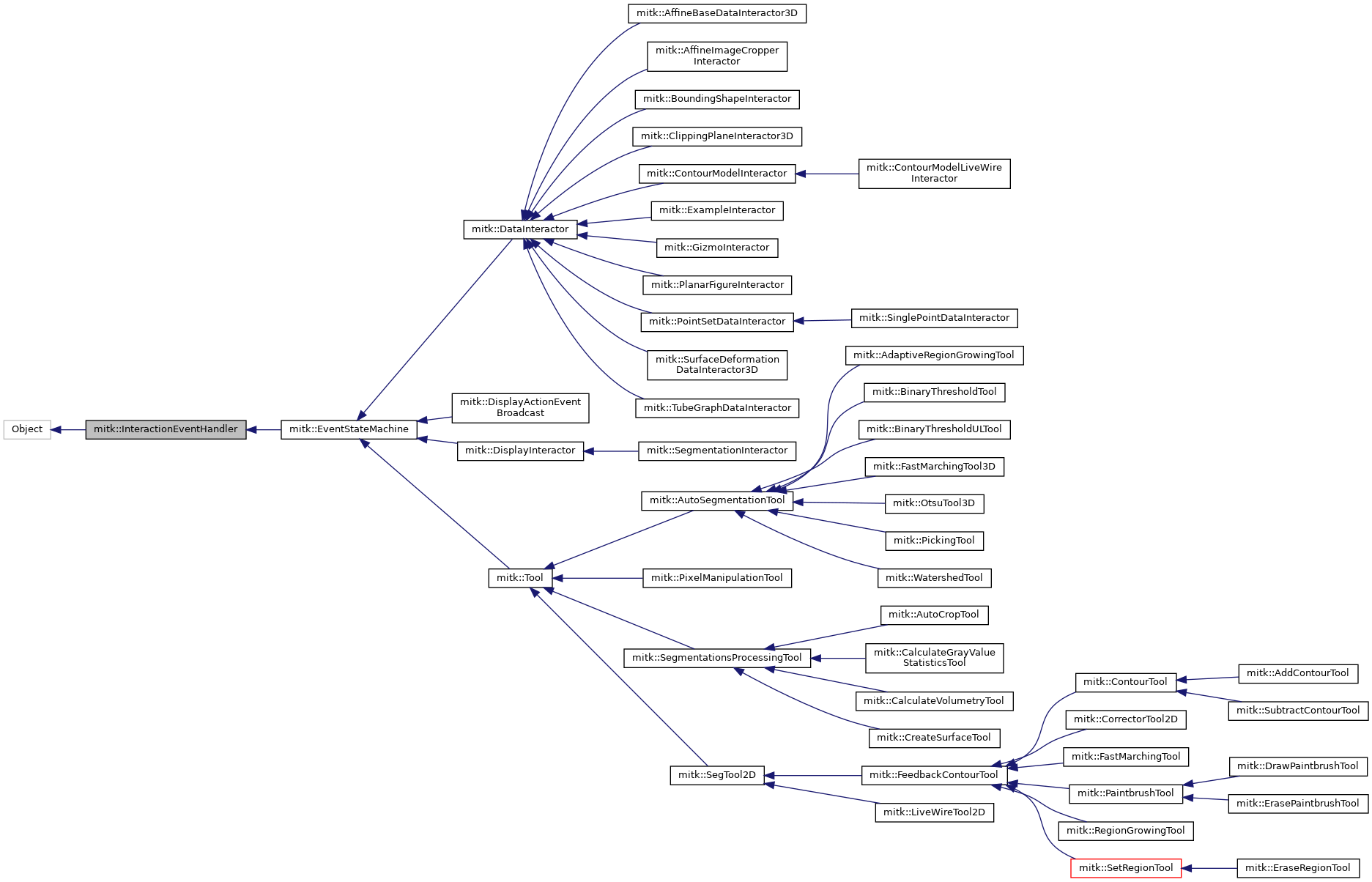

Inheritance diagram for mitk::InteractionEventHandler:

[legend]

Collaboration diagram for mitk::InteractionEventHandler:

Public Types
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Detailed Description

Definition at line 40 of file mitkInteractionEventHandler.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::InteractionEventHandler::ConstPointer

Definition at line 43 of file mitkInteractionEventHandler.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::InteractionEventHandler::Pointer

Definition at line 43 of file mitkInteractionEventHandler.h.

◆ Self

typedef InteractionEventHandler mitk::InteractionEventHandler::Self

Definition at line 43 of file mitkInteractionEventHandler.h.

◆ Superclass

typedef itk::Object mitk::InteractionEventHandler::Superclass

Definition at line 43 of file mitkInteractionEventHandler.h.

Constructor & Destructor Documentation

◆ InteractionEventHandler()

mitk::InteractionEventHandler::InteractionEventHandler ( )

protected

Definition at line 16 of file mitkInteractionEventHandler.cpp.

◆ ~InteractionEventHandler()

mitk::InteractionEventHandler::~InteractionEventHandler ( )

overrideprotected

Definition at line 20 of file mitkInteractionEventHandler.cpp.

Member Function Documentation

◆ AddEventConfig() [1/2]

bool mitk::InteractionEventHandler::AddEventConfig	(	const std::string &	filename,
		const us::Module *	module = `nullptr`
	)

This method extends the configuration.

The configuration from the resource provided is loaded and only the ones conflicting are replaced by the new one. This way several configuration files can be combined.

See also: AddEventConfig(const EventConfig&)

Parameters

filename	The resource name relative to the Interactions resource folder.
module	The module containing the resource. Defaults to the Mitk module.

Returns: true if the configuration was successfully added, false otherwise.

Definition at line 55 of file mitkInteractionEventHandler.cpp.

References mitk::EventConfig::AddConfig(), ConfigurationChanged(), mitk::EventConfig::IsValid(), and MITK_ERROR.

Referenced by mitk::InteractionSchemeSwitcher::SetInteractionScheme().

◆ AddEventConfig() [2/2]

bool mitk::InteractionEventHandler::AddEventConfig ( const EventConfig & config )

This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined.

See also: AddEventConfig(const std::string&, const Module*)

Parameters

config The EventConfig object whose configuration should be added.

Returns: true if the configuration was successfully added, false otherwise.

Definition at line 71 of file mitkInteractionEventHandler.cpp.

References mitk::EventConfig::AddConfig(), ConfigurationChanged(), mitk::EventConfig::IsValid(), and MITK_ERROR.

◆ ConfigurationChanged()

void mitk::InteractionEventHandler::ConfigurationChanged ( )

protectedvirtual

Is called whenever a new config object ist set. Overwrite this method e.g. to initialize EventHandler with parameters in configuration file.

Reimplemented in mitk::PlanarFigureInteractor, mitk::DisplayInteractor, mitk::DisplayActionEventBroadcast, and mitk::ExampleInteractor.

Definition at line 112 of file mitkInteractionEventHandler.cpp.

Referenced by AddEventConfig(), and SetEventConfig().

◆ GetAttributes()

mitk::PropertyList::Pointer mitk::InteractionEventHandler::GetAttributes ( ) const

protected

Returns a PropertyList in which the parameters defined in the config file are listed.

Definition at line 87 of file mitkInteractionEventHandler.cpp.

References mitk::EventConfig::GetAttributes(), mitk::EventConfig::IsValid(), and MITK_ERROR.

Referenced by mitk::DisplayActionEventBroadcast::ConfigurationChanged(), mitk::DisplayInteractor::ConfigurationChanged(), mitk::PlanarFigureInteractor::ConfigurationChanged(), and mitk::PointSetDataInteractor::DataNodeChanged().

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::InteractionEventHandler::GetClassHierarchy ( ) const

inlinevirtual

Reimplemented in mitk::EventStateMachine, mitk::PointSetDataInteractor, mitk::DataInteractor, mitk::SinglePointDataInteractor, mitk::DisplayInteractor, and mitk::DisplayActionEventBroadcast.

Definition at line 43 of file mitkInteractionEventHandler.h.

◆ GetClassName()

virtual const char* mitk::InteractionEventHandler::GetClassName ( ) const

virtual

Reimplemented in mitk::EventStateMachine, mitk::PointSetDataInteractor, mitk::DataInteractor, mitk::SinglePointDataInteractor, mitk::DisplayInteractor, and mitk::DisplayActionEventBroadcast.

◆ GetEventConfig()

mitk::EventConfig mitk::InteractionEventHandler::GetEventConfig ( ) const

Returns the current configuration.

Returns: A EventConfig object representing the current event configuration.

Definition at line 50 of file mitkInteractionEventHandler.cpp.

◆ GetStaticNameOfClass()

static const char* mitk::InteractionEventHandler::GetStaticNameOfClass ( )

inlinestatic

Definition at line 43 of file mitkInteractionEventHandler.h.

◆ MapToEventVariant()

std::string mitk::InteractionEventHandler::MapToEventVariant ( InteractionEvent * interactionEvent )

protected

Definition at line 100 of file mitkInteractionEventHandler.cpp.

References mitk::EventConfig::GetMappedEvent(), and mitk::EventConfig::IsValid().

Referenced by mitk::EventStateMachine::GetExecutableTransition().

◆ SetEventConfig() [1/2]

bool mitk::InteractionEventHandler::SetEventConfig	(	const std::string &	filename,
		const us::Module *	module = `nullptr`
	)

Loads a configuration from an XML resource.

Loads an event configuration from an XML resource file contained in the given module. Default is the Mitk module (core). The files have to be placed in the Resources/Interactions folder of their respective module. This method will remove all existing configuration and replaces it with the new one.

See also: SetEventConfig(const EventConfig&)

Parameters

filename	The resource name relative to the Interactions resource folder.
module	The module containing the resource. Defaults to the Mitk module.

Returns: true if the resource was successfully loaded, false otherwise.

Definition at line 24 of file mitkInteractionEventHandler.cpp.

References ConfigurationChanged(), mitk::EventConfig::IsValid(), and MITK_ERROR.

Referenced by mitk::Tool::Deactivated(), mitk::Tool::InitializeStateMachine(), mitk::BoundingShapeInteractor::RestoreNodeProperties(), and mitk::InteractionSchemeSwitcher::SetInteractionScheme().

◆ SetEventConfig() [2/2]

bool mitk::InteractionEventHandler::SetEventConfig ( const EventConfig & config )

Loads a configuration from an EventConfig object.

Loads an event configuration from the given EventConfig object. This method will remove all existing configuration and replaces it with the new one.

See also: SetEventConfig(const std::string&, const Module*)

Parameters

config The EventConfig object containing the new configuration.

Returns: true if the configuration was successfully loaded, false otherwise.

Definition at line 38 of file mitkInteractionEventHandler.cpp.

References ConfigurationChanged(), and mitk::EventConfig::IsValid().

The documentation for this class was generated from the following files:
