Interaction with mitk::PlanarFigure objects via control-points. More...

#include <mitkPlanarFigureInteractor.h>

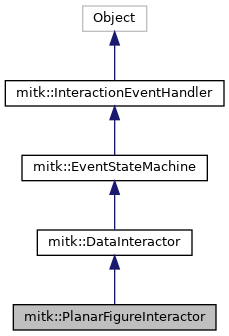

Inheritance diagram for mitk::PlanarFigureInteractor:

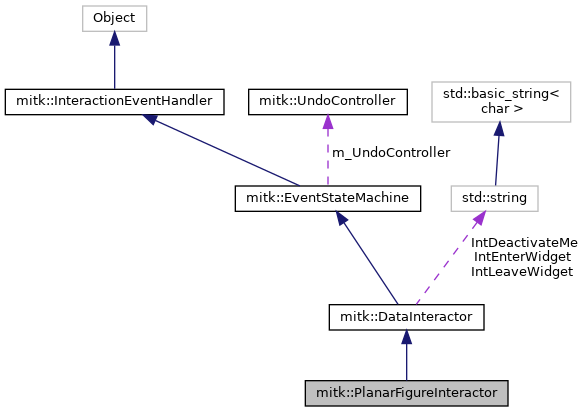

Collaboration diagram for mitk::PlanarFigureInteractor:

[legend]

Public Member Functions
	mitkClassMacro (PlanarFigureInteractor, DataInteractor)

Pointer	Clone () const

void	SetPrecision (ScalarType precision)
	Sets the amount of precision. More...

void	SetMinimumPointDistance (ScalarType minimumDistance)
	Sets the minimal distance between two control points. More...

Public Member Functions inherited from mitk::DataInteractor
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

DataNode *	GetDataNode () const

virtual void	SetDataNode (DataNode *dataNode)

int	GetLayer () const

ProcessEventMode	GetMode () const

Public Member Functions inherited from mitk::EventStateMachine
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	PlanarFigureInteractor ()

	~PlanarFigureInteractor () override

void	ConnectActionsAndFunctions () override
	Overwrite this function to connect actions from StateMachine description with functions. More...

bool	CheckFigurePlaced (const InteractionEvent *interactionEvent)

bool	CheckFigureHovering (const InteractionEvent *interactionEvent)

bool	CheckControlPointHovering (const InteractionEvent *interactionEvent)

bool	CheckSelection (const InteractionEvent *interactionEvent)

bool	CheckPointValidity (const InteractionEvent *interactionEvent)

bool	CheckFigureFinished (const InteractionEvent *interactionEvent)

bool	CheckResetOnPointSelect (const InteractionEvent *interactionEvent)

bool	CheckFigureOnRenderingGeometry (const InteractionEvent *interactionEvent)

bool	CheckMinimalFigureFinished (const InteractionEvent *interactionEvent)

bool	CheckFigureIsExtendable (const InteractionEvent *interactionEvent)

bool	CheckFigureIsDeletable (const InteractionEvent *interactionEvent)

bool	CheckFigureIsEditable (const InteractionEvent *interactionEvent)

void	FinalizeFigure (StateMachineAction , InteractionEvent interactionEvent)

void	MoveCurrentPoint (StateMachineAction , InteractionEvent interactionEvent)

void	DeselectPoint (StateMachineAction , InteractionEvent interactionEvent)

void	AddPoint (StateMachineAction , InteractionEvent interactionEvent)

void	AddInitialPoint (StateMachineAction , InteractionEvent interactionEvent)

void	StartHovering (StateMachineAction , InteractionEvent interactionEvent)

void	EndHovering (StateMachineAction , InteractionEvent interactionEvent)

void	DeleteFigure (StateMachineAction , InteractionEvent interactionEvent)

void	PerformPointResetOnSelect (StateMachineAction , InteractionEvent interactionEvent)

void	SetPreviewPointPosition (StateMachineAction , InteractionEvent interactionEvent)

void	HidePreviewPoint (StateMachineAction , InteractionEvent interactionEvent)

void	HideControlPoints (StateMachineAction , InteractionEvent interactionEvent)

void	RemoveSelectedPoint (StateMachineAction , InteractionEvent interactionEvent)

void	RequestContextMenu (StateMachineAction , InteractionEvent interactionEvent)

void	SelectFigure (StateMachineAction , InteractionEvent interactionEvent)

void	SelectPoint (StateMachineAction , InteractionEvent interactionEvent)

void	EndInteraction (StateMachineAction , InteractionEvent interactionEvent)

bool	FilterEvents (InteractionEvent interactionEvent, DataNode ) override

bool	IsMousePositionAcceptableAsNewControlPoint (const mitk::InteractionPositionEvent positionEvent, const PlanarFigure )
	Used when clicking to determine if a point is too close to the previous point. More...

bool	TransformPositionEventToPoint2D (const InteractionPositionEvent positionEvent, const PlaneGeometry planarFigureGeometry, Point2D &point2D)

bool	TransformObjectToDisplay (const mitk::Point2D &point2D, mitk::Point2D &displayPoint, const mitk::PlaneGeometry objectGeometry, const mitk::PlaneGeometry rendererGeometry, const mitk::BaseRenderer *renderer) const

bool	IsPointNearLine (const mitk::Point2D &point, const mitk::Point2D &startPoint, const mitk::Point2D &endPoint, mitk::Point2D &projectedPoint) const
	Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise. More...

int	IsPositionOverFigure (const InteractionPositionEvent positionEvent, PlanarFigure planarFigure, const PlaneGeometry planarFigureGeometry, const PlaneGeometry rendererGeometry, Point2D &pointProjectedOntoLine) const
	Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise. More...

int	IsPositionInsideMarker (const InteractionPositionEvent positionEvent, const PlanarFigure planarFigure, const PlaneGeometry planarFigureGeometry, const PlaneGeometry rendererGeometry, const BaseRenderer *renderer) const
	Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker. More...

void	LogPrintPlanarFigureQuantities (const PlanarFigure *planarFigure)

void	ConfigurationChanged () override

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

virtual void	DataNodeChanged ()
	Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor (if modified by the SlicesCoordinator) to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

Additional Inherited Members
Public Types inherited from mitk::DataInteractor
typedef DataInteractor	Self

typedef EventStateMachine	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe

static const std::string	IntLeaveWidget

static const std::string	IntEnterWidget

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Interaction with mitk::PlanarFigure objects via control-points.

Definition at line 56 of file mitkPlanarFigureInteractor.h.

Constructor & Destructor Documentation

◆ PlanarFigureInteractor()

mitk::PlanarFigureInteractor::PlanarFigureInteractor ( )

protected

Definition at line 30 of file mitkPlanarFigureInteractor.cpp.

◆ ~PlanarFigureInteractor()

mitk::PlanarFigureInteractor::~PlanarFigureInteractor ( )

overrideprotected

Definition at line 35 of file mitkPlanarFigureInteractor.cpp.

Member Function Documentation

◆ AddInitialPoint()

void mitk::PlanarFigureInteractor::AddInitialPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 363 of file mitkPlanarFigureInteractor.cpp.

References mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::InteractionEvent::GetSender(), mitk::BaseRenderer::GetSliceNavigationController(), mitk::RenderingManager::RequestUpdateAll(), mitk::DataNode::SetBoolProperty(), and TransformPositionEventToPoint2D().

Referenced by ConnectActionsAndFunctions().

◆ AddPoint()

void mitk::PlanarFigureInteractor::AddPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 252 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::InteractionEvent::GetSender(), IsPositionOverFigure(), mitk::RenderingManager::RequestUpdateAll(), and TransformPositionEventToPoint2D().

Referenced by ConnectActionsAndFunctions().

◆ CheckControlPointHovering()

bool mitk::PlanarFigureInteractor::CheckControlPointHovering ( const InteractionEvent * interactionEvent )

protected

Definition at line 516 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::BaseData::GetGeometry(), mitk::InteractionEvent::GetSender(), and IsPositionInsideMarker().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureFinished()

bool mitk::PlanarFigureInteractor::CheckFigureFinished ( const InteractionEvent * interactionEvent )

protected

Definition at line 205 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::PlanarFigure::GetMaximumNumberOfControlPoints(), and mitk::PlanarFigure::GetNumberOfControlPoints().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureHovering()

bool mitk::PlanarFigureInteractor::CheckFigureHovering ( const InteractionEvent * interactionEvent )

protected

Definition at line 481 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::InteractionEvent::GetSender(), and IsPositionOverFigure().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureIsDeletable()

bool mitk::PlanarFigureInteractor::CheckFigureIsDeletable ( const InteractionEvent * interactionEvent )

protected

Definition at line 219 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureIsEditable()

bool mitk::PlanarFigureInteractor::CheckFigureIsEditable ( const InteractionEvent * interactionEvent )

protected

Definition at line 227 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureIsExtendable()

bool mitk::PlanarFigureInteractor::CheckFigureIsExtendable ( const InteractionEvent * interactionEvent )

protected

Definition at line 211 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigureOnRenderingGeometry()

bool mitk::PlanarFigureInteractor::CheckFigureOnRenderingGeometry ( const InteractionEvent * interactionEvent )

protected

Definition at line 655 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlaneGeometry::Distance(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::BaseGeometry::GetExtentInMM(), and mitk::BaseData::GetGeometry().

Referenced by ConnectActionsAndFunctions().

◆ CheckFigurePlaced()

bool mitk::PlanarFigureInteractor::CheckFigurePlaced ( const InteractionEvent * interactionEvent )

protected

Definition at line 73 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::BaseData::GetPropertyList(), and mitk::PlanarFigure::IsPlaced().

Referenced by ConnectActionsAndFunctions().

◆ CheckMinimalFigureFinished()

bool mitk::PlanarFigureInteractor::CheckMinimalFigureFinished ( const InteractionEvent * interactionEvent )

protected

Definition at line 199 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::PlanarFigure::GetMinimumNumberOfControlPoints(), and mitk::PlanarFigure::GetNumberOfControlPoints().

Referenced by ConnectActionsAndFunctions().

◆ CheckPointValidity()

bool mitk::PlanarFigureInteractor::CheckPointValidity ( const InteractionEvent * interactionEvent )

protected

Definition at line 592 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), and IsMousePositionAcceptableAsNewControlPoint().

Referenced by ConnectActionsAndFunctions().

◆ CheckResetOnPointSelect()

bool mitk::PlanarFigureInteractor::CheckResetOnPointSelect ( const InteractionEvent * interactionEvent )

protected

Definition at line 644 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetData(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ CheckSelection()

bool mitk::PlanarFigureInteractor::CheckSelection ( const InteractionEvent * interactionEvent )

protected

Definition at line 547 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ Clone()

Pointer mitk::PlanarFigureInteractor::Clone ( ) const

◆ ConfigurationChanged()

void mitk::PlanarFigureInteractor::ConfigurationChanged ( )

overrideprotectedvirtual

Is called whenever a new config object ist set. Overwrite this method e.g. to initialize EventHandler with parameters in configuration file.

Reimplemented from mitk::InteractionEventHandler.

Definition at line 926 of file mitkPlanarFigureInteractor.cpp.

References mitk::InteractionEventHandler::GetAttributes().

◆ ConnectActionsAndFunctions()

void mitk::PlanarFigureInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Overwrite this function to connect actions from StateMachine description with functions.

Following example shows how to connect the 'addpoint' action from the StateMachine XML description using the CONNECT_FUNCTION macro with the AddPoint() function in the TestInteractor.

  void mitk::TestInteractor::ConnectActionsAndFunctions()
{
CONNECT_FUNCTION("addpoint", AddPoint);
}

Reimplemented from mitk::DataInteractor.

Definition at line 39 of file mitkPlanarFigureInteractor.cpp.

References AddInitialPoint(), AddPoint(), CheckControlPointHovering(), CheckFigureFinished(), CheckFigureHovering(), CheckFigureIsDeletable(), CheckFigureIsEditable(), CheckFigureIsExtendable(), CheckFigureOnRenderingGeometry(), CheckFigurePlaced(), CheckMinimalFigureFinished(), CheckPointValidity(), CheckResetOnPointSelect(), CheckSelection(), CONNECT_CONDITION, CONNECT_FUNCTION, DeleteFigure(), DeselectPoint(), EndHovering(), EndInteraction(), FinalizeFigure(), HideControlPoints(), HidePreviewPoint(), MoveCurrentPoint(), PerformPointResetOnSelect(), RemoveSelectedPoint(), RequestContextMenu(), SelectFigure(), SelectPoint(), SetPreviewPointPosition(), and StartHovering().

◆ DeleteFigure()

void mitk::PlanarFigureInteractor::DeleteFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 183 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::BaseRenderer::GetDataStorage(), mitk::RenderingManager::GetInstance(), mitk::InteractionEvent::GetSender(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by ConnectActionsAndFunctions().

◆ DeselectPoint()

void mitk::PlanarFigureInteractor::DeselectPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 235 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlanarFigure::DeselectControlPoint(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ EndHovering()

void mitk::PlanarFigureInteractor::EndHovering	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 168 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), mitk::PlanarFigure::ResetPreviewContolPoint(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ EndInteraction()

void mitk::PlanarFigureInteractor::EndInteraction	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 149 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ FilterEvents()

bool mitk::PlanarFigureInteractor::FilterEvents	(	InteractionEvent *	interactionEvent,
		mitk::DataNode *	dataNode
	)

overrideprotectedvirtual

Implements filter scheme for events. Standard implementation accepts events from 2d and 3d windows, and rejects events if DataNode is not visible.

Returns: true if event is accepted, else false

Overwrite this function to adapt for your own needs, for example to filter out events from 3d windows like this:

bool mitk::EventStateMachine::FilterEvents(InteractionEvent* interactionEvent, DataNode*dataNode)
{
  return interactionEvent->GetSender()->GetMapperID() == BaseRenderer::Standard2D; // only 2D mappers
}

or to enforce that the interactor only reacts when the corresponding DataNode is selected in the DataManager view..

Reimplemented from mitk::EventStateMachine.

Definition at line 158 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::GetMapperID(), mitk::InteractionEvent::GetSender(), and mitk::BaseRenderer::Standard3D.

◆ FinalizeFigure()

void mitk::PlanarFigureInteractor::FinalizeFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 130 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlanarFigure::DeselectControlPoint(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::BoolProperty::New(), mitk::RenderingManager::RequestUpdateAll(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ HideControlPoints()

void mitk::PlanarFigureInteractor::HideControlPoints	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 469 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataInteractor::GetDataNode(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ HidePreviewPoint()

void mitk::PlanarFigureInteractor::HidePreviewPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 474 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), and mitk::PlanarFigure::ResetPreviewContolPoint().

Referenced by ConnectActionsAndFunctions().

◆ IsMousePositionAcceptableAsNewControlPoint()

bool mitk::PlanarFigureInteractor::IsMousePositionAcceptableAsNewControlPoint	(	const mitk::InteractionPositionEvent *	positionEvent,
		const PlanarFigure *	planarFigure
	)

protected

Used when clicking to determine if a point is too close to the previous point.

Definition at line 855 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlaneGeometry::Distance(), mitk::PlanarFigure::GetControlPoint(), mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::BaseData::GetGeometry(), mitk::PlanarFigure::GetNumberOfControlPoints(), mitk::PlanarFigure::GetSelectedControlPoint(), mitk::InteractionEvent::GetSender(), mitk::BaseRenderer::GetTimeStep(), mitk::PlaneGeometry::Map(), TransformPositionEventToPoint2D(), and mitk::BaseRenderer::WorldToDisplay().

Referenced by CheckPointValidity().

◆ IsPointNearLine()

bool mitk::PlanarFigureInteractor::IsPointNearLine	(	const mitk::Point2D &	point,
		const mitk::Point2D &	startPoint,
		const mitk::Point2D &	endPoint,
		mitk::Point2D &	projectedPoint
	)		const

protected

Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise.

Proximity is defined as the rectangle around the line with pre-defined distance from the line.

Definition at line 733 of file mitkPlanarFigureInteractor.cpp.

Referenced by IsPositionOverFigure().

◆ IsPositionInsideMarker()

int mitk::PlanarFigureInteractor::IsPositionInsideMarker	(	const InteractionPositionEvent *	positionEvent,
		const PlanarFigure *	planarFigure,
		const PlaneGeometry *	planarFigureGeometry,
		const PlaneGeometry *	rendererGeometry,
		const BaseRenderer *	renderer
	)		const

protected

Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker.

Definition at line 816 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlanarFigure::GetControlPoint(), mitk::PlanarFigure::GetNumberOfControlPoints(), mitk::InteractionPositionEvent::GetPointerPositionOnScreen(), and TransformObjectToDisplay().

Referenced by CheckControlPointHovering(), and SelectPoint().

◆ IsPositionOverFigure()

int mitk::PlanarFigureInteractor::IsPositionOverFigure	(	const InteractionPositionEvent *	positionEvent,
		PlanarFigure *	planarFigure,
		const PlaneGeometry *	planarFigureGeometry,
		const PlaneGeometry *	rendererGeometry,
		Point2D &	pointProjectedOntoLine
	)		const

protected

Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise.

Definition at line 764 of file mitkPlanarFigureInteractor.cpp.

References mitk::InteractionPositionEvent::GetPointerPositionOnScreen(), mitk::PlanarFigure::GetPolyLine(), mitk::PlanarFigure::GetPolyLinesSize(), mitk::InteractionEvent::GetSender(), mitk::PlanarFigure::IsClosed(), IsPointNearLine(), and TransformObjectToDisplay().

Referenced by AddPoint(), and CheckFigureHovering().

◆ LogPrintPlanarFigureQuantities()

void mitk::PlanarFigureInteractor::LogPrintPlanarFigureQuantities ( const PlanarFigure * planarFigure )

protected

Definition at line 845 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlanarFigure::GetFeatureName(), mitk::PlanarFigure::GetFeatureUnit(), mitk::PlanarFigure::GetNumberOfFeatures(), mitk::PlanarFigure::GetQuantity(), and MITK_INFO.

◆ mitkClassMacro()

mitk::PlanarFigureInteractor::mitkClassMacro	(	PlanarFigureInteractor	,
		DataInteractor
	)

◆ MoveCurrentPoint()

void mitk::PlanarFigureInteractor::MoveCurrentPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 83 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), mitk::DataNode::SetBoolProperty(), and TransformPositionEventToPoint2D().

Referenced by ConnectActionsAndFunctions().

◆ New()

static Pointer mitk::PlanarFigureInteractor::New ( )

static

◆ PerformPointResetOnSelect()

void mitk::PlanarFigureInteractor::PerformPointResetOnSelect	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 193 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), and mitk::PlanarFigure::ResetOnPointSelect().

Referenced by ConnectActionsAndFunctions().

◆ RemoveSelectedPoint()

void mitk::PlanarFigureInteractor::RemoveSelectedPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 609 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::InteractionEvent::GetSender(), mitk::EventStateMachine::HandleEvent(), mitk::InternalEvent::New(), mitk::RenderingManager::RequestUpdateAll(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ RequestContextMenu()

void mitk::PlanarFigureInteractor::RequestContextMenu	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 628 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetData(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ SelectFigure()

void mitk::PlanarFigureInteractor::SelectFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 555 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), and mitk::DataInteractor::GetDataNode().

Referenced by ConnectActionsAndFunctions().

◆ SelectPoint()

void mitk::PlanarFigureInteractor::SelectPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 561 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::InteractionEvent::GetSender(), and IsPositionInsideMarker().

Referenced by ConnectActionsAndFunctions().

◆ SetMinimumPointDistance()

void mitk::PlanarFigureInteractor::SetMinimumPointDistance ( ScalarType minimumDistance )

Sets the minimal distance between two control points.

Definition at line 687 of file mitkPlanarFigureInteractor.cpp.

◆ SetPrecision()

void mitk::PlanarFigureInteractor::SetPrecision ( mitk::ScalarType precision )

Sets the amount of precision.

Definition at line 682 of file mitkPlanarFigureInteractor.cpp.

◆ SetPreviewPointPosition()

void mitk::PlanarFigureInteractor::SetPreviewPointPosition	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 439 of file mitkPlanarFigureInteractor.cpp.

References mitk::BaseRenderer::DisplayToPlane(), mitk::DataNode::GetBoolProperty(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::InteractionPositionEvent::GetPointerPositionOnScreen(), mitk::InteractionEvent::GetSender(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by ConnectActionsAndFunctions().

◆ StartHovering()

void mitk::PlanarFigureInteractor::StartHovering	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

Definition at line 417 of file mitkPlanarFigureInteractor.cpp.

References mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), and mitk::DataNode::SetBoolProperty().

Referenced by ConnectActionsAndFunctions().

◆ TransformObjectToDisplay()

bool mitk::PlanarFigureInteractor::TransformObjectToDisplay	(	const mitk::Point2D &	point2D,
		mitk::Point2D &	displayPoint,
		const mitk::PlaneGeometry *	objectGeometry,
		const mitk::PlaneGeometry *	rendererGeometry,
		const mitk::BaseRenderer *	renderer
	)		const

protected

Definition at line 709 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlaneGeometry::Distance(), mitk::BaseGeometry::GetExtentInMM(), mitk::PlaneGeometry::Map(), and mitk::BaseRenderer::WorldToDisplay().

Referenced by IsPositionInsideMarker(), and IsPositionOverFigure().

◆ TransformPositionEventToPoint2D()

bool mitk::PlanarFigureInteractor::TransformPositionEventToPoint2D	(	const InteractionPositionEvent *	positionEvent,
		const PlaneGeometry *	planarFigureGeometry,
		Point2D &	point2D
	)

protected

Definition at line 692 of file mitkPlanarFigureInteractor.cpp.

References mitk::PlaneGeometry::Distance(), mitk::InteractionPositionEvent::GetPositionInWorld(), and mitk::PlaneGeometry::Map().

Referenced by AddInitialPoint(), AddPoint(), IsMousePositionAcceptableAsNewControlPoint(), and MoveCurrentPoint().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PlanarFigureInteractor()

◆ ~PlanarFigureInteractor()

Member Function Documentation

◆ AddInitialPoint()

◆ AddPoint()

◆ CheckControlPointHovering()

◆ CheckFigureFinished()

◆ CheckFigureHovering()

◆ CheckFigureIsDeletable()

◆ CheckFigureIsEditable()

◆ CheckFigureIsExtendable()

◆ CheckFigureOnRenderingGeometry()

◆ CheckFigurePlaced()

◆ CheckMinimalFigureFinished()

◆ CheckPointValidity()

◆ CheckResetOnPointSelect()

◆ CheckSelection()

◆ Clone()

◆ ConfigurationChanged()

◆ ConnectActionsAndFunctions()

◆ DeleteFigure()

◆ DeselectPoint()

◆ EndHovering()

◆ EndInteraction()

◆ FilterEvents()

◆ FinalizeFigure()

◆ HideControlPoints()

◆ HidePreviewPoint()

◆ IsMousePositionAcceptableAsNewControlPoint()

◆ IsPointNearLine()

◆ IsPositionInsideMarker()

◆ IsPositionOverFigure()

◆ LogPrintPlanarFigureQuantities()

◆ mitkClassMacro()

◆ MoveCurrentPoint()

◆ New()

◆ PerformPointResetOnSelect()

◆ RemoveSelectedPoint()

◆ RequestContextMenu()

◆ SelectFigure()

◆ SelectPoint()

◆ SetMinimumPointDistance()

◆ SetPrecision()

◆ SetPreviewPointPosition()

◆ StartHovering()

◆ TransformObjectToDisplay()

◆ TransformPositionEventToPoint2D()
